category - Aircooling|Fans|By Size|140mm PC Fans
Category_1 - Computer Cases and Cooling
Category_2 - Fans
code - NF-A14 INDUSTRIALPPC-2000
Design - Material - Fiberglass
Design - Material - Polyamide
Design - Product colour - Black
Design - Product colour - Bronze
dimensionalWeight - 240
ean - 4716123315421
EAN_code - 4716123315421
Manufacturer - Noctua
Manufacturer_code - NF-A14 iPPC-2000

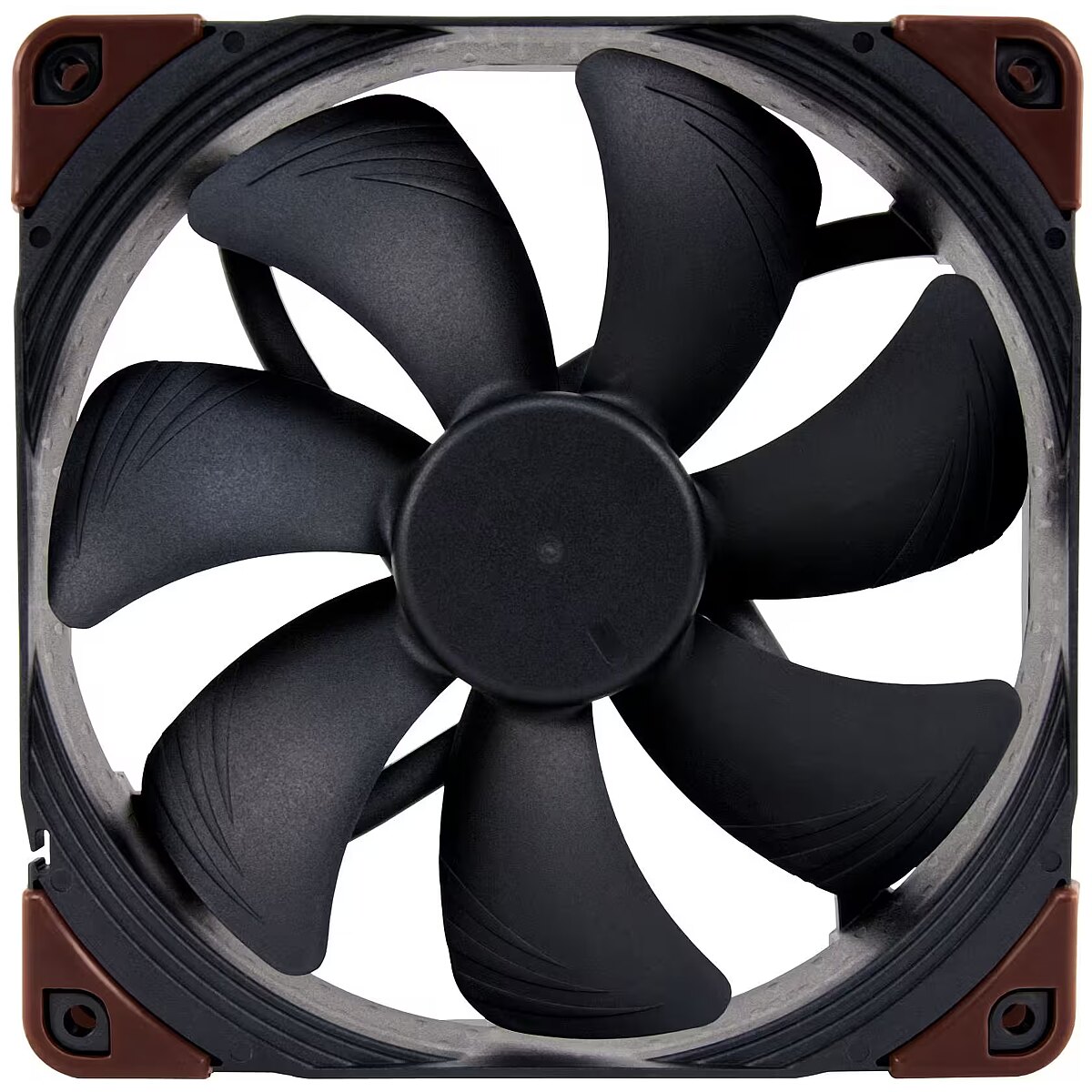

Name - Noctua NF-A14 Indu. 2000 - 140mm - industrial PPC
name - Noctua NF-A14 industrialPPC-2000 - 140mm
Other features - Connector(s) - 3-pin
Performance - Airflow - 182.5 m³/h
Performance - Compatible processor series - Not supported
Performance - Fan diameter - 14 cm
Performance - Maximum air pressure - 4.18 mmH2O
Performance - Mean time between failures (MTBF) - 150000 h
Performance - Noise level (high speed) - 31.5 dB
Performance - Rotational speed (max) - 2000 RPM
Performance - Suitable for - Computer case
Performance - Supported processor sockets - Not supported
Performance - Type - Fan
Power - Power consumption (typical) - 2.16 W
Power - Rated current - 0.18 A
Power - Voltage - 12 V
producerCode - NF-A14 IPPC-2000
productName - Noctua NF-A14 industrialPPC-2000 Computer case Fan 14 cm Black, Brown
productSize - Normal
sizeX - 200
sizeY - 200
sizeZ - 30
Technical details - Bearing technology - SSO2
Technical_details - Conceived for industrial heavy duty applications that require enhanced cooling performance and advanced ingress protection, the NF-A14 industrialPPC (Protected Performance Cooling) is a ruggedised high-speed version of the award-winning retail model. Thanks to the outstanding aerodynamic efficiency of the NF-A14 design and the use of a novel three-phase motor, the industrialPPC version provides superior airflow and pressure capacity while keeping noise levels and power consumption moderate as against comparable high-speed fans. While its fibre-glass reinforced polyamide construction and certified water and dust protection make the NF-A14 industrialPPC Suitable for operation in challenging environments, the renowned SSO2 bearing technology guarantees an MTBF of over 150.000hrs. Topped off with Noctua’s trusted reliability and 6 years manufacturer’s warranty, the NF-A14 industrialPPC is an ideal choice for highly demanding applications that require superior flow rates and ultimate dependability. Attachment screwed Power Connection 3-Pin-fan connector Fan Bearing SSO Power Input 0 - 2.16 watt(s) Voltage Range 0 - 12 V Number of Revolutions 0 - 2000 rpm Volume 0 - 31.5 dB(A) Volumetric Flow 0 - 182.5 m3/h, 0 - 107.4 cfm Dimensions Fans Fan 1 140 x 140 x 25 mm
warrantyLength - 72
warrantyType - F
Weight - 0,30
weight - 295
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 25 mm
Weight & dimensions - Width - 140 mm
