ID: 158972
Product code: NF-A6x25 FLX
Can be ordered 59 units Availability: 14 days after order approval
Warranty: 3 years

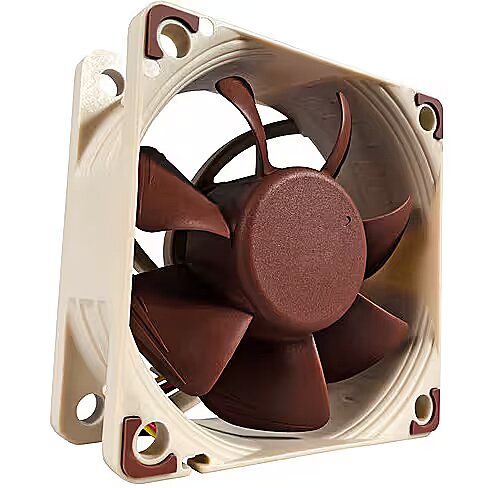

Noctua NF-A6x25 FLX
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
- Courier delivery 11.99 €: 10.12.2024
Main product parameters All parameters
- Producer: Noctua
- LED izgaismojuma krāsa: Nav
- Output Interface: 3-pin (DC)
- Revolutions (MIN), rpm: 1600
- RPM (MAX), rpm: 3000
- Size, mm: 60
- Sound level (MAX), dB(A): 19.3
- Units in package: 1
All parameters
Producer
: Noctua
Type of lighting
: Bez apgaismojuma
Basic information
LED izgaismojuma krāsa
: Nav
Output Interface
: 3-pin (DC)
RPM (MAX), rpm
: 3000
Size, mm
: 60
Sound level (MAX), dB(A)
: 19.3
Units in package
: 1
More detailed specification
category - Aircooling|Fans|By Size|60mm PC Fans
Category - Root/Electronics/PC parts/Cooling/Casing fans
Category_1 - Computer Cases and Cooling
Category_2 - Fans
code - NF-A6X25 FLX
Design - Product colour - Bronze
dimensionalWeight - 252
ean - 4716123314707
Eans - 4716123314707
EAN_code - 4716123314707
Logistics data - Harmonized System (HS) code - 84733080
Manufacturer - Noctua
Manufacturer_code - NF-A6x25 FLX
Name - Noctua NF-A6x25 FLX
Name - Noctua NF-A6x25 FLX 60x60x25
name - Noctua NF-A6x25 FLX Lüfter - 60mm
Other features - Compatible chipsets - Not supported
Other features - Power - 1.44 W
Performance - Airflow - 29.2 m³/h
Performance - Compatible processor series - Not supported
Performance - Fan diameter - 6 cm
Performance - Maximum air pressure - 0.61 mmH2O
Performance - Mean time between failures (MTBF) - 150000 h
Performance - Minimum air pressure - 2.18 mmH2O
Performance - Noise level (high speed) - 19.3 dB
Performance - Rotational speed (max) - 3000 RPM
Performance - Rotational speed (min) - 1600 RPM
Performance - Suitable location - Computer case
Performance - Supported processor sockets - Not supported
Performance - Type - Fan
Power - Voltage - 12 V
Producer - Noctua
producerCode - NF-A6X25 FLX
ProducerCode - NF-A6x25 FLX
productName - Noctua NF-A6X25 FLX computer cooling system Computer case Fan 6 cm Brown
productSize - Normal
ShortDescription - Wentylator|60|FLX|3-pin|12V|
sizeX - 210
sizeY - 150
sizeZ - 40
Technical details - Bearing technology - SSO2
Technical_details - Featuring advanced aerodynamic design measures such as Flow Acceleration Channels and Noctua’s AAO frame, the NF-A6x25 FLX is a highly optimised, premium quality quiet fan in 60x25mm size. Smooth Commutation Drive technology and Noctua’s reference class SSO2 bearings guarantee superb running smoothness and excellent long-term stability. Topped off with modular cabling, Low-Noise Adaptors and 6 years manufacturer’s warranty, the NF-A6x25 is a premium choice for the highest demands. Flow Acceleration Channels
The NF-A6x25 impeller Featuress suction side Flow Acceleration Channels. By speeding up the airflow at the crucial outer blade regions, this measure reduces suction side flow separation and thus leads to better efficiency and lower vortex noise. button Reduced Motor Hub Size
Thanks to its streamlined, compact motor design, the NF-A6x25’s motor hub is smaller than with conventional 6cm fans. This allows for more blade surface area and thus contributes to the NF-A6x25’s superior airflow and pressure performance. AAO Frame
Noctua’s AAO (Advanced Acoustic Optimisation) frames Features integrated anti-vibration pads as well as Noctua’s proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan’s performance/noise efficiency. button Stepped Inlet Design
Noctua’s Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space restricted environments. button Inner Surface Microstructures
With the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency. button Integrated Anti-Vibration Pads
Integrated Anti-Vibration Pads made from extra-soft silicone minimise the transmission of minute vibrations while maintaining full compatibility with all standard mounting systems and fan clips used on heatsinks. Smooth Commutation Drive 2
The latest version of Noctua’s advanced Smooth Commutation Drive system ensures superb running smoothness by eliminating torque variations and switching noises. This makes the NF-A6x25 remarkably quiet even at very close distance. button SSO2 Bearing
The NF-A6x25 Featuress the further optimised second generation of Noctua’s renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability. button 3 speed settings for full flexibility

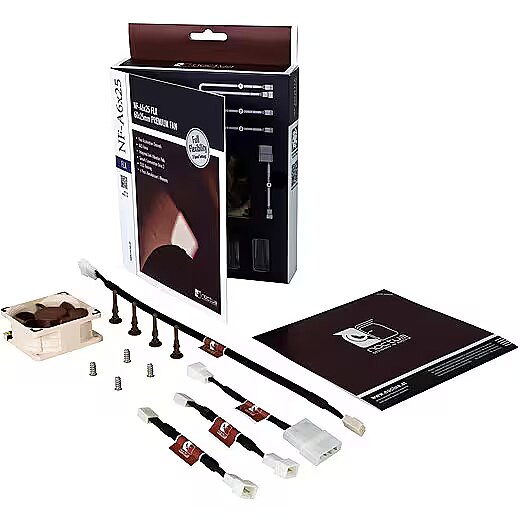

Providing 3000, 2400 and 1600 rpm speed settings via the supplied Low-Noise and Ultra-Low-Noise Adapters, the NF-A6x25 FLX (Flexibility) can be fine-tuned for superior airflow or maximum quietness. Extensive Cabling Options
The fan’s short 20cm primary cable minimises cable clutter in typical applications while the supplied 30cm extension provides extended reach when necessary. Both cables are fully sleeved and the supplied 3:4 pin adaptor allows to connect the fan directly to the power supply. Attachment screwed Power Connection 3-Pin-fan connector (mit Tachosignal) Fan Bearing SSO Power Input 0 - 1.44 watt(s) Voltage Range 0 - 12 V Number of Revolutions 0 - 3000 rpm Volume 0 - 19.3 dB(A) Volumetric Flow 0 - 29.2 m3/h, 0 - 17.2 cfm Cabel Length 20 m Dimensions Fans Fan 1 60 x 60 x 25 mm
warrantyLength - 72
warrantyType - F
Weight - 0,20
weight - 205
