ID: 1075259
Product code: ACFAN00197A
In stock 50 units
Warranty: 2 years

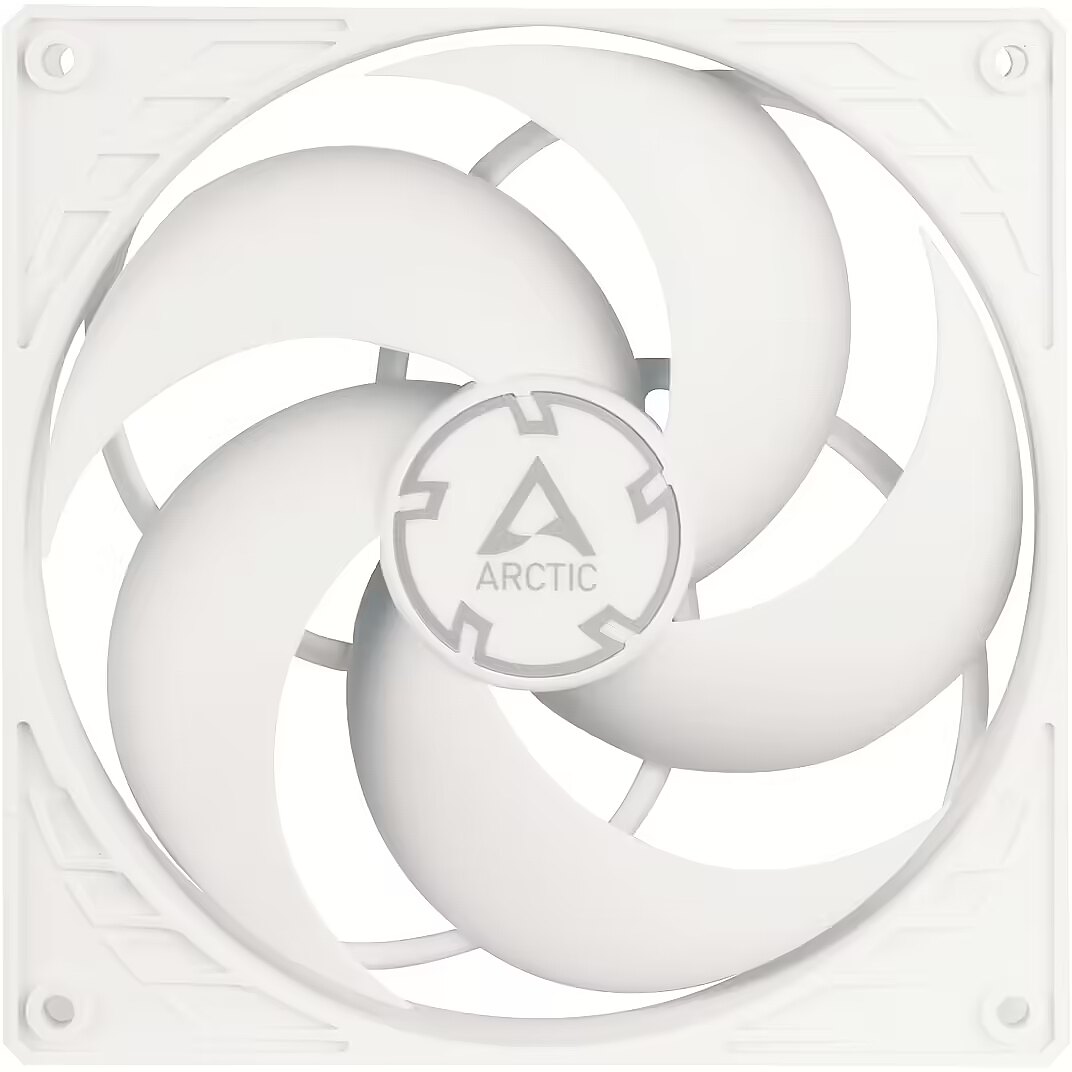

Arctic P14 PWM PST, White
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Itella parcel machineWithin 1-2 working days6.99 € -
Delivery with Posti courier mailWithin 1-2 working days10.99 €
Main product parameters All parameters
- Producer: Arctic
- LED izgaismojuma krāsa: Nav
- Output Interface: 4-pin (PWM)
- Revolutions (MIN), rpm: 200
- RPM (MAX), rpm: 1700
- Size, mm: 140
- Sound level (MAX), dB(A): 23.5
- Units in package: 1
All parameters
Producer
: Arctic
Type of lighting
: Without lighting
Basic information
Direction of air flow
: Standarta
LED izgaismojuma krāsa
: Nav
Output Interface
: 4-pin (PWM)
RPM (MAX), rpm
: 1700
Size, mm
: 140
Sound level (MAX), dB(A)
: 23.5
Units in package
: 1
More detailed specification
Air flow - 72.8 cfm
Bearing type - Fluid
Brand - ARCTIC
BrandPartCode - ACFAN00197A
Category - Computer Cooling Systems
Category - Datortehnika :: Datoru komponentes :: Korpusa ventilatori
Category 1 - Gehäuse
Category 2 - Gehäuselüfter
Category Code - COS
Code - ACFAN00197A
Colour - White
Desc - Ligdza (socket): 4-pin, Diametrs: 140 mm, Ventilators ātrums (apgr.min.): 1700 apgr. min., Apgaismojums: Nav, Skaits komplektācijā: 1, Garantija: 2 gadi
Description - P14 PWM PST Pressure-optimised 140 mm Fan with PWM PST During the development of the new P14 PWM PST, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P14 PWM PST is particularly suitable for use on heatsinks and radiators.
Design - Fan connector - 4-pin
Design - Product colour - White
Dimensions - 140x140x27mm
EAN - 4895213703116
Fan size group - 140mm
Fan speed - 200 - 1700 rpm
Full Description Line - P14 PWM PST|Air flow 72.8 cfm|Colour White|Dimensions 140x140x27mm
GTIN - 4895213703116
ImageUrl - https://www.balticdata.lv/Gfx/ProductImages/Info/Product_115031_1.png
LargeDescHTML -
Logistics data - Harmonized System (HS) code - 84733080
LongDesc - ARCTIC’s versatile assortment of PC fans are both quiet and powerful. We have the right options for any application or need, in sizes from 80 to 140 mm. Plus, our case fans are equipped with state-of-the-art engine technology, innovative fan blades and high quality bearings, making them particularly durable and efficient.
LongProductName - P14 PWM PST Pressure-optimised 140 mm Fan with PWM PST
LongSummaryDescription - ARCTIC P14 PWM PST Pressure-optimised 140 mm Fan with PWM PST. Type: Fan, Fan diameter: 14 cm, Rotational speed (min): 200 RPM, Rotational speed (max): 1700 RPM, Noise level: 0.3 sone, Airflow: 123.69 m³/h, Maximum air pressure: 2.4 mmH2O, Bearing type: Fluid Dynamic Bearing (FDB). Voltage: 12 V. Width: 140 mm, Depth: 140 mm, Height: 27 mm. Product colour: White
Mainboard connection - 4-pin
Manufacturer - ARCTIC
Model name - P14 PWM PST
MPN - ACFAN00197A
Name - 140mm Arctic P14 PWM PST white/white
Name - Dzesētājs Arctic P14 PWM PST White
Packaging content - Manual - Yes
Packaging content - Number of screws - 4
Packaging content - Screws included - Yes
Performance - Airflow - 123.69 m³/h
Performance - Bearing type - Fluid Dynamic Bearing (FDB)
Performance - Fan diameter - 14 cm
Performance - Maximum airflow - 72.8 cfm
Performance - Maximum air pressure - 2.4 mmH2O
Performance - Noise level - 0.3 sone
Performance - Pulse-width modulation (PWM) support - Yes
Performance - Rotational speed (max) - 1700 RPM
Performance - Rotational speed (min) - 200 RPM
Performance - Suitable location - Computer case
Performance - Type - Fan
Power - Rated current - 0.12 A
Power - Starting voltage - 6 V
Power - Voltage - 12 V
ProductName - P14 PWM PST Pressure-optimised 140 mm Fan with PWM PST
Product Net Weight - 0.194 kg
Shipping Box Depth Shipping/Package Box Dimensions - 53 cm
Shipping Box Height Shipping/Package Box Dimensions - 31 cm
Shipping Box Weight Shipping/Package Box Dimensions - 16.6 kg
Shipping Box Width Shipping/Package Box Dimensions - 30 cm
ShortSummaryDescription - ARCTIC P14 PWM PST Pressure-optimised 140 mm Fan with PWM PST, Fan, 14 cm, 200 RPM, 1700 RPM, 0.3 sone, 123.69 m³/h
Title - ARCTIC P14 PWM PST Pressure-optimised 140 mm Fan with PWM PST
Unit Box Height - 0.03
Unit Box Length - 0.15
Unit Box Width - 0.15
Unit Calculated Volume - 0.0007249 cubm
Unit Calculated Weight - 0.244 kg
Units per Shipping Box - 68
URL - https://www.arctic.de/en/P14-PWM-PST/ACFAN00197A
Vendor Homepage - www.arctic.de/en/P14-PWM-PST/ACFAN00197A/
Warranty - 24 months
WarrantyInfo - 10 Years
Weight - 0.24
Weight & dimensions - Cable length - 0.4 m
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 27 mm
Weight & dimensions - Package depth - 29 mm
Weight & dimensions - Package height - 143 mm
Weight & dimensions - Package weight - 230 g
Weight & dimensions - Package width - 143 mm
Weight & dimensions - Weight - 194 g
Weight & dimensions - Width - 140 mm
Bearing type - Fluid
Brand - ARCTIC
BrandPartCode - ACFAN00197A
Category - Computer Cooling Systems
Category - Datortehnika :: Datoru komponentes :: Korpusa ventilatori
Category 1 - Gehäuse
Category 2 - Gehäuselüfter
Category Code - COS
Code - ACFAN00197A
Colour - White
Desc - Ligdza (socket): 4-pin, Diametrs: 140 mm, Ventilators ātrums (apgr.min.): 1700 apgr. min., Apgaismojums: Nav, Skaits komplektācijā: 1, Garantija: 2 gadi
Description - P14 PWM PST Pressure-optimised 140 mm Fan with PWM PST During the development of the new P14 PWM PST, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P14 PWM PST is particularly suitable for use on heatsinks and radiators.
Design - Fan connector - 4-pin
Design - Product colour - White
Dimensions - 140x140x27mm
EAN - 4895213703116
Fan size group - 140mm
Fan speed - 200 - 1700 rpm
Full Description Line - P14 PWM PST|Air flow 72.8 cfm|Colour White|Dimensions 140x140x27mm
GTIN - 4895213703116
ImageUrl - https://www.balticdata.lv/Gfx/ProductImages/Info/Product_115031_1.png
LargeDescHTML -
Logistics data - Harmonized System (HS) code - 84733080
LongDesc - ARCTIC’s versatile assortment of PC fans are both quiet and powerful. We have the right options for any application or need, in sizes from 80 to 140 mm. Plus, our case fans are equipped with state-of-the-art engine technology, innovative fan blades and high quality bearings, making them particularly durable and efficient.
LongProductName - P14 PWM PST Pressure-optimised 140 mm Fan with PWM PST
LongSummaryDescription - ARCTIC P14 PWM PST Pressure-optimised 140 mm Fan with PWM PST. Type: Fan, Fan diameter: 14 cm, Rotational speed (min): 200 RPM, Rotational speed (max): 1700 RPM, Noise level: 0.3 sone, Airflow: 123.69 m³/h, Maximum air pressure: 2.4 mmH2O, Bearing type: Fluid Dynamic Bearing (FDB). Voltage: 12 V. Width: 140 mm, Depth: 140 mm, Height: 27 mm. Product colour: White
Mainboard connection - 4-pin
Manufacturer - ARCTIC
Model name - P14 PWM PST
MPN - ACFAN00197A
Name - 140mm Arctic P14 PWM PST white/white
Name - Dzesētājs Arctic P14 PWM PST White
Packaging content - Manual - Yes
Packaging content - Number of screws - 4
Packaging content - Screws included - Yes
Performance - Airflow - 123.69 m³/h
Performance - Bearing type - Fluid Dynamic Bearing (FDB)
Performance - Fan diameter - 14 cm
Performance - Maximum airflow - 72.8 cfm
Performance - Maximum air pressure - 2.4 mmH2O
Performance - Noise level - 0.3 sone
Performance - Pulse-width modulation (PWM) support - Yes
Performance - Rotational speed (max) - 1700 RPM
Performance - Rotational speed (min) - 200 RPM
Performance - Suitable location - Computer case
Performance - Type - Fan
Power - Rated current - 0.12 A
Power - Starting voltage - 6 V
Power - Voltage - 12 V
ProductName - P14 PWM PST Pressure-optimised 140 mm Fan with PWM PST
Product Net Weight - 0.194 kg
Shipping Box Depth Shipping/Package Box Dimensions - 53 cm
Shipping Box Height Shipping/Package Box Dimensions - 31 cm
Shipping Box Weight Shipping/Package Box Dimensions - 16.6 kg
Shipping Box Width Shipping/Package Box Dimensions - 30 cm
ShortSummaryDescription - ARCTIC P14 PWM PST Pressure-optimised 140 mm Fan with PWM PST, Fan, 14 cm, 200 RPM, 1700 RPM, 0.3 sone, 123.69 m³/h
Title - ARCTIC P14 PWM PST Pressure-optimised 140 mm Fan with PWM PST
Unit Box Height - 0.03
Unit Box Length - 0.15
Unit Box Width - 0.15
Unit Calculated Volume - 0.0007249 cubm
Unit Calculated Weight - 0.244 kg
Units per Shipping Box - 68
URL - https://www.arctic.de/en/P14-PWM-PST/ACFAN00197A
Vendor Homepage - www.arctic.de/en/P14-PWM-PST/ACFAN00197A/
Warranty - 24 months
WarrantyInfo - 10 Years
Weight - 0.24
Weight & dimensions - Cable length - 0.4 m
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 27 mm
Weight & dimensions - Package depth - 29 mm
Weight & dimensions - Package height - 143 mm
Weight & dimensions - Package weight - 230 g
Weight & dimensions - Package width - 143 mm
Weight & dimensions - Weight - 194 g
Weight & dimensions - Width - 140 mm
