ARTIKEL1 - PD-43Q 42.5IN UHD 3840 X 2160
ARTIKEL2 - 700 CD/M2
Audio - Built-in speaker(s) - Yes
Audio - Number of built-in speakers - 2
Audio - RMS rated power - 20 W
Brand - AG Neovo
BrandPartCode - PD43Q011M000
Category - Signage Displays
Certificates - Certification - FCC
CE
LVD
ICES-003(Issue 7)
WEEE
RoHS
REACH
Computer system - Built-in processor - No
Computer system - Computer system - No
Design - Anti-glare screen - Yes
Design - Orientation - Horizontal/Vertical

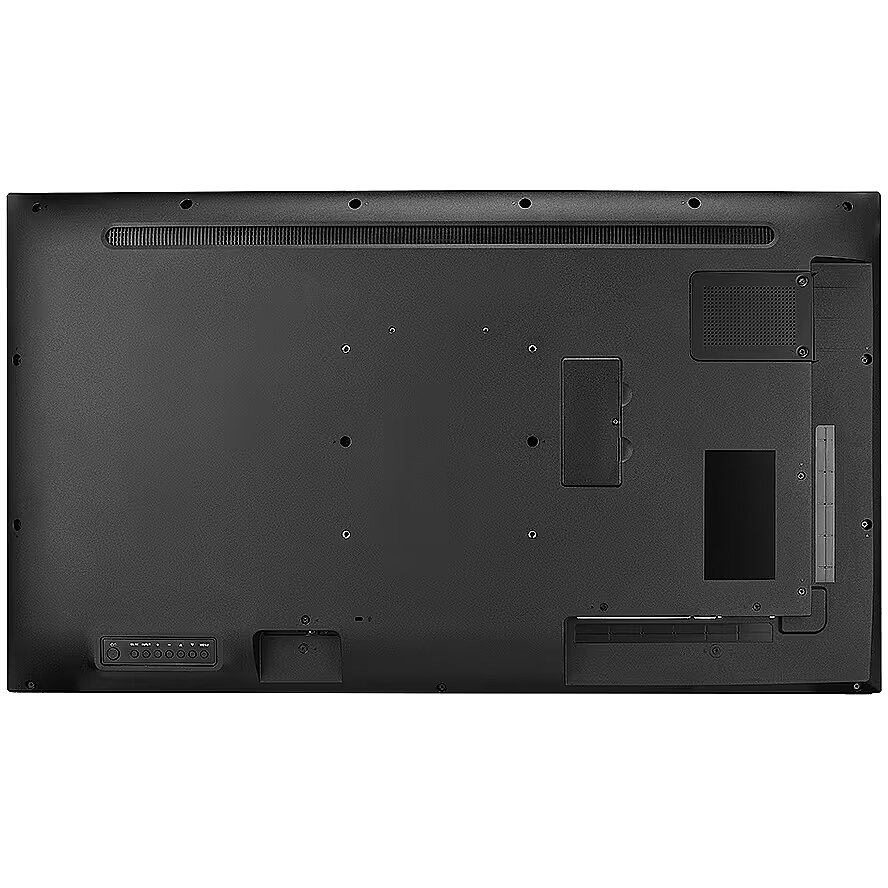

Design - Panel mounting interface - 200 x 200 mm
Design - Placement supported - Indoor
Design - Product colour - Black
Design - Product design - Digital signage flat panel
Design - VESA mounting - Yes
Display - Colour gamut - 72%
Display - Contrast ratio (typical) - 1200:1
Display - Display brightness - 700 cd/m²
Display - Display diagonal - 108 cm (42.5")
Display - Display number of colours - 1.07 billion colours
Display - Display resolution - 3840 x 2160 pixels
Display - Display technology - IPS
Display - Haze rate - 25%
Display - HD type - 4K Ultra HD
Display - Horizontal scan range - 31 - 92 kHz
Display - LED backlight - Yes
Display - Number of displays - 1
Display - Pixel pitch - 0.245 x 0.245 mm
Display - Response time - 5 ms
Display - Surface hardness - 3H
Display - Touchscreen - No
Display - Vertical scan range - 48 - 85 Hz
Display - Viewing angle, horizontal - 178°
Display - Viewing angle, vertical - 178°
EANCode - 4710739596830
Features - Wall mountable - Yes
GRUPPE1 - Displays
GRUPPE2 - Led Large Format
GTIN - 4710739596830
HERSTELLER - AG NEOVO TECHNOLOGY
HSTNUMMER - PD43Q011M000
Logistics data - Harmonized System (HS) code - 85285210
LongDesc - The PD-43Q 43-inch 4K commercial display features its 700 nits high brightness, suitable for use in different semi-outdoor environments, such as airport terminals, control rooms, and shopping malls. It integrates a full slate of input sources, including an embedded USB playback function, various I/O ports, and Intel® SDM slot. It allows you to broadcast multimedia content horizontally or vertically and it can meet different kinds of digital signage solutions as well as video wall installations.700 nits High BrightnessThe PD-43Q commercial display features 4K UHD, 10-bit colour depth, and 178-degree viewing angle for brilliant colour performance. Besides that, the display adopts a 700 nits brightness commercial-grade panel to deliver clear, bright, and detailed imagery even in the daylight or bright indoor environments.IPS Panel for 24/7 UseDesigned for 24/7 operation, the PD-43Q 4K commercial display is produced to meet the highest standard of IPS panel technology and take advantage of superior components to ensure a long product lifetime in demanding environments.Landscape/Portrait CapabilityThe PD-43Q is digital signage-friendly and can perfectly fit either in a landscape or in a portrait mode to experience complete screen orientation flexibility and fulfill the need in different scenarios.Optional Intel® SDM CapabilityThe built-in SDM slot is designed for Intel® smart display module, which is ready to create powerful smart signage for more user-friendly applications.DisplayPort/IR/RS232 Daisy Chain FunctionalityWith DisplayPort daisy chain functionality, the video and audio can be delivered to multiple commercial-grade displays using DisplayPort cables, and it saves a significant amount of time. IR/RS232 loop-through capability provides a convenient single point of control for multi-display installation.Embedded Image EnhancerThe embedded image enhancer features a 3D Comb Filter, 3D Deinterlace, and Noise Reduction to solve image issues – offering crystal clarity to the most demanding environments.Integrated Content SchedulerThe built-in integrated scheduler in the OSD menu allows you to easily broadcast content based on source, time, and day by IR remote control.Patented Anti-Burn-in™ TechnologyTo combat the effects of traditional LCD burn-in or ghosting, AG Neovo utilises its patented Anti-Burn-in Technology to prevent image burn-in and assure the extended life span for displays.PID Command & Ctrl SoftwarePID Command & Ctrl provides intuitive user interfaces for remote management via laptops and mobile devices and offers easy creation on video wall displays. The software also has simple colour calibration, temperature check, IR/key locking options, and time on usage monitoring for daily maintenance.
LongProductName - 42.5", TFT, 4K UHD, IPS, 700 cd/m², 1200:1, 178°/178°, 5ms, Haze 25%, RJ45, USB, HDMI, DVI, DisplayPorts
LongSummaryDescription - AG Neovo 43-Inch 4K Commercial Display. Product design: Digital signage flat panel. Display diagonal: 108 cm (42.5"), Display technology: IPS, Display resolution: 3840 x 2160 pixels, Display brightness: 700 cd/m², HD type: 4K Ultra HD. Operating hours (hours/days): 24/7. Product colour: Black
Operational conditions - Operating relative humidity (H-H) - 20 - 80%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 10 - 90%
Operational conditions - Storage temperature (T-T) - -20 - 60 °C
Other features - Audio input - 1
Other features - Audio output - 1
Other features - Quick start guide - Yes
Other features - RS-232 input ports - 1
Other features - RS-232 output ports - 1
Packaging content - Batteries included - Yes
Packaging content - Cables included - AC, HDMI, RS-232
Packaging content - Remote control included - Yes
Packaging data - Package depth - 141 mm
Packaging data - Package height - 680 mm
Packaging data - Package weight - 13.1 kg
Packaging data - Package width - 1070 mm
Performance - Operating hours (hours/days) - 24/7
Performance - Purpose - Commercial
Performance - TV tuner integrated - No
Ports & interfaces - Card reader integrated - Yes
Ports & interfaces - Compatible memory cards - MicroSD (TransFlash)
Ports & interfaces - DisplayPorts in - 1
Ports & interfaces - DisplayPorts out - 1
Ports & interfaces - DisplayPorts quantity - 2
Ports & interfaces - DVI-I ports quantity - 1
Ports & interfaces - DVI port - Yes
Ports & interfaces - Ethernet LAN - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - HDMI input ports quantity - 3
Ports & interfaces - HDMI ports quantity - 3
Ports & interfaces - HDMI version - 2.0
Ports & interfaces - Infrared data port - Yes
Ports & interfaces - Remote (IR) input - 1
Ports & interfaces - Remote (IR) output - 1
Ports & interfaces - RS-232 interface - Yes
Ports & interfaces - USB port - Yes
Ports & interfaces - USB ports quantity - 2
Ports & interfaces - USB version - 2.0
Ports & interfaces - Wi-Fi - No
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Energy consumption (SDR) per 1000 hours - 123 kWh
Power - Energy efficiency class (SDR) - G
Power - Energy efficiency scale - A to G
Power - Power consumption (standby) - 0.5 W
Power - Power consumption (typical) - 123 W
ProductName - 43-Inch 4K Commercial Display
ShortSummaryDescription - AG Neovo 43-Inch 4K Commercial Display, Digital signage flat panel, 108 cm (42.5"), IPS, 3840 x 2160 pixels, 24/7
Stck_Kart - 1
Stck_Pal - 5
Storno - Y
Technical details - Compliance certificates - RoHS
Technical details - I/O ports - SDM Slot
Title - AG Neovo 43-Inch 4K Commercial Display
URL - https://www.agneovo.com/uk/digital-signage/video-wall-displays/pd-series/pd-43q
WarrantyInfo -
Weight & dimensions - Display depth - 63.5 mm
Weight & dimensions - Display height - 561.2 mm
Weight & dimensions - Display weight - 10.7 kg
Weight & dimensions - Display width - 973 mm
