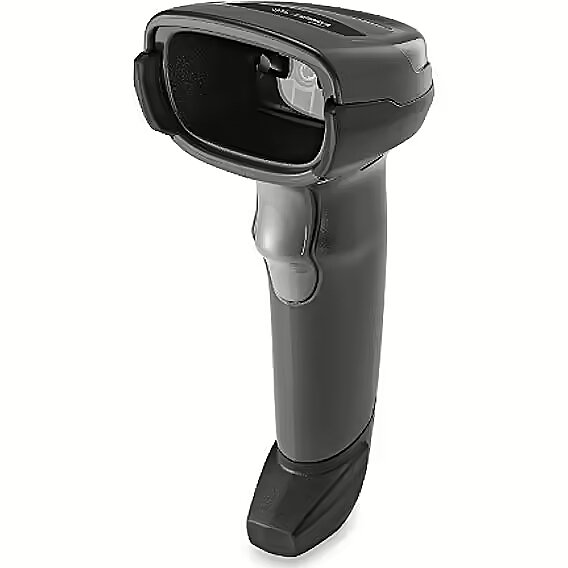

Zebra DS2208 / black / USB cable/ stand

Accessories included - - Reader
- Cable
- Stand
ARTIKEL1 - DS2208-SR BLACK (WITH STAND)
ARTIKEL2 - USB KIT
Barcodes - 1D
Barcodes - 2D
Barcodes - GS1 DataBar (RSS)
Barcodes - PDF417
Category 1 - Drucker & Scanner
Category 2 - Scanner
Color - -
Color - Black
Compatibility -

Motion Tolerance (Handheld): 5 in/13 cm/s 13 mil UPC

Swipe Speed (Hands-Free): 30.0 in/76.2 cm/s 13 mil UPC

Minimum Print Contrast: 25% minimum reflective difference

Skew/Pitch/Roll Tolerance: +/- 65°; +/- 65°; 0-360°

Minimum Element Resolution: Code 39 - 4.0 mil; Code 128 - 4.0 mil; Data Matrix - 6.0 mil; QR Code - 6.7 mil

Connectors - 1 x USB 2.0
Depth - 165 mm
Description - The DS2208 is a new generation of LS2208 series, which is a response to the widespread need in the cash registers and point of sale to read codes from cell phone displays or LCD screens as well as to increase the reading speed achieved by omni-directional code reading.
Based on the success of the best selling LS2208 1D scanner, which has been deployed in millions of locations across the globe, it seamlessly translates 2D codes at an attractive price.
Affordable hardware does not necessarily mean sacrificing performance or functionality. Employees receive a simple-to-use, reliable reader that enables quick, point-and-scan scanning, which is easy to implement and manage. The DS2208, unlike the LS2208, thanks to omni-directional reading technology, can quickly and easily read almost every existing code on the market. In addition, the device has the ability to recognize characters from the screen of electronic devices, significantly improving customer comfort and widening the range of marketing and sales opportunities for your business. The unit also handles poor quality codes that LS2208 scanner would not be able to perform.
dimensionalWeight - 1191
dimension depth - 210 mm
dimension height - 260 mm
Dimensions - 165 x 99 x 66 mm
dimension weight - 720 g
dimension width - 170 mm
EAN - 0761973626986
ean - ABEAN-MG53072
EANCode -
Environment requirements - - Permissible ambient humidity [%]: 5% to 95%
- Reading Technology: imager 2D (imager area, vision)
- Storage temperature: -40 ° C to 70 ° C
GrossWeight - 0.600 kg
GRUPPE1 - POS
GRUPPE2 - Handheld Barcode
guarantee - 36
guarantee_type - external
Height - 66 mm
HERSTELLER - ZEBRA
Hoehe - 0.11
HSTNUMMER - DS2208-SR7U2100SGW
Interface - -
LongDesc -
Manufacturer - Zebra
MANUFDATASHEET - https://www.zebra.com/us/en/products/spec-sheets/scanners/general-purpose-scanners/handheld/ds2200-series.html
MPN - DS2208-SR7U2100SGW
name - Code reader 2D DS2208 / USB / black / cable / stand
Name - Zebra Barcode-Scanner DS2208 1D/2D USB RS-232 Kabelgebunden inkl. Standfuß
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 50 °C
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features -
Other scan parameters -
PackageContents - -
Packaging data - Cables included - Micro-USB
Packaging data - Charging base - No
Performance - International Protection (IP) code - IP42
Performance - LED indicators - Yes
Performance - Product colour - Black
Ports & interfaces - Connectivity technology - Wired
Ports & interfaces - Standard interfaces - USB, RS-232, RS-485, Keyboard wedge
ProdDesc - Zebra DS2208-SR Handheld Scanner - USB - W.Stand
producer - Zebra
producerCode - DS2208-SR7U2100SGW
productName - Zebra DS2208 Handheld bar code reader 1D/2D LED Black
ProductPicture - http://www.tdbaltic.ee/images/ds4/DS2208-SR7U2100AZW-01.jpg
ProductPicture2 -
ProductPicture3 -
ProductPicture4 -
productSize - Normal
Protection class - IP42
Required barcode contrast - 25 %
Scanning - 2D (matrix & stacked) barcodes supported - Aztec Code
Scanning - 2D (matrix & stacked) barcodes supported - Composite Codes
Scanning - 2D (matrix & stacked) barcodes supported - Data Matrix
Scanning - 2D (matrix & stacked) barcodes supported - Han Xin
Scanning - 2D (matrix & stacked) barcodes supported - MaxiCode
Scanning - 2D (matrix & stacked) barcodes supported - Micro QR Code
Scanning - 2D (matrix & stacked) barcodes supported - PDF417
Scanning - 2D (matrix & stacked) barcodes supported - QR Code
Scanning - 2D (matrix & stacked) barcodes supported - TLC-39
Scanning - Linear (1D) barcodes supported - Codabar
Scanning - Linear (1D) barcodes supported - Code 11
Scanning - Linear (1D) barcodes supported - Code 39
Scanning - Linear (1D) barcodes supported - Code 93
Scanning - Linear (1D) barcodes supported - Code 128
Scanning - Linear (1D) barcodes supported - EAN-13
Scanning - Linear (1D) barcodes supported - GS1 DataBar Expanded
Scanning - Linear (1D) barcodes supported - Interleaved 2 of 5
Scanning - Linear (1D) barcodes supported - MSI
Scanning - Linear (1D) barcodes supported - U.P.C.
Scanning - Motion tolerance (cm/s) - 13
Scanning - Optical sensor resolution (W x H) - 640 x 480 pixels
Scanning - Pitch reading angle - -65 - 65°
Scanning - Scanner type - 1D/2D
Scanning - Sensor type - LED
Scanning - Tilt reading angle - -65 - 65°
Scanning - Type - Handheld bar code reader
Scanning - Wavelength - 645 nm
Scanning - Working distance - 36.8 cm
Scanning - Yaw reading angle - -65 - 65°
Scan signal - Light
Scan technology - Area imager
Scan technology - Linear imager
Shockproof - 1.5 m
sizeX - 230
sizeY - 185
sizeZ - 140
Stck_Kart - 10
Stck_Pal - 200
Storno - Y
SystemRequirements - -
Technical details - Sustainability certificates - RoHS
Technology -

Light Source: Linear 624nm Amber LED

Illumination: 2x 645nm Super-Red LEDs

Imager Field of View: 32.8° H x 24.8° V Nominal

Image Sensor: 640 x 480 pixels

Type - Barcode scanner
Type - Handheld
vendpn - DS2208-SR7U2100SGW
Warranty - 2 years
warrantyLength - 24
warrantyType - G
Weight - 0.6
Weight - 0.162 kg
weight - 780
Weight & dimensions - Depth - 99 mm
Weight & dimensions - Height - 165 mm
Weight & dimensions - Weight - 161.6 g
Weight & dimensions - Width - 66 mm
Width - 99 mm
