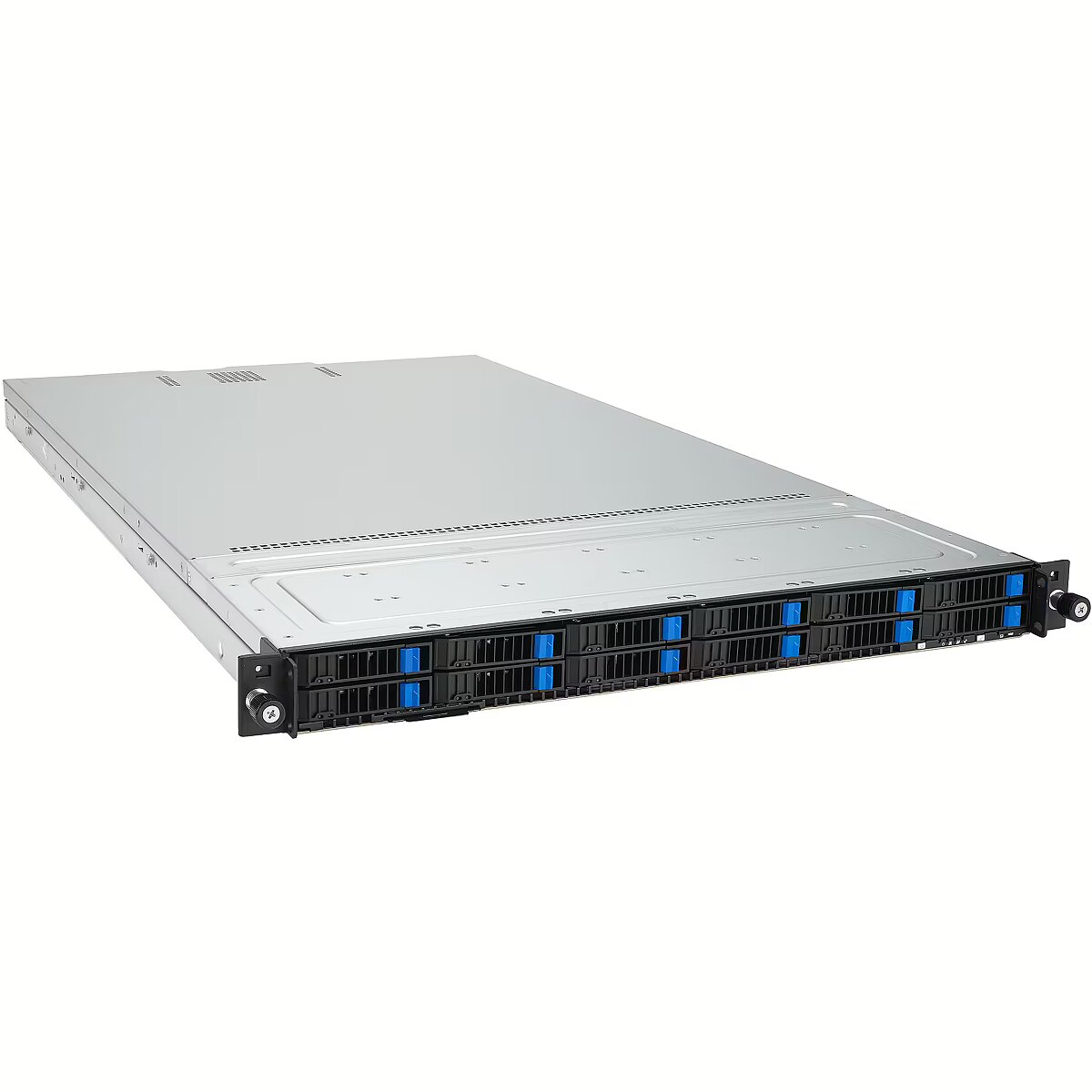

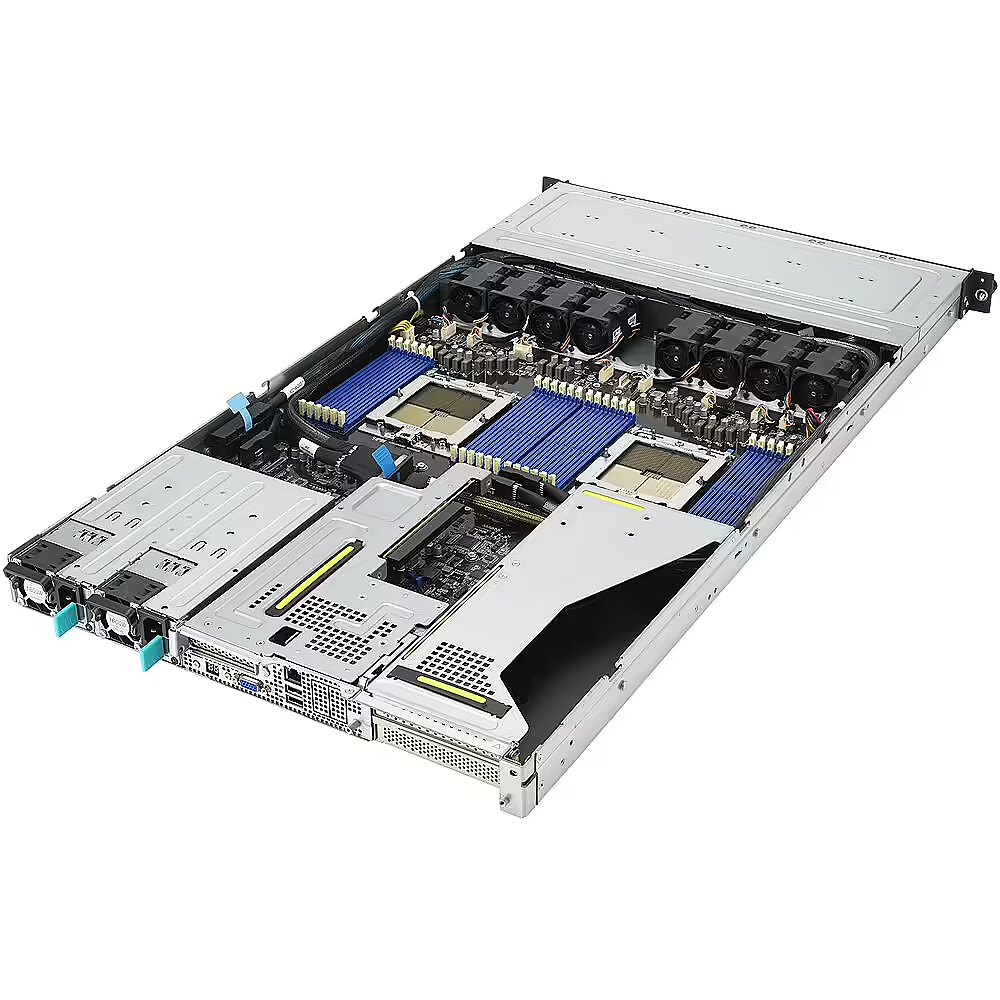

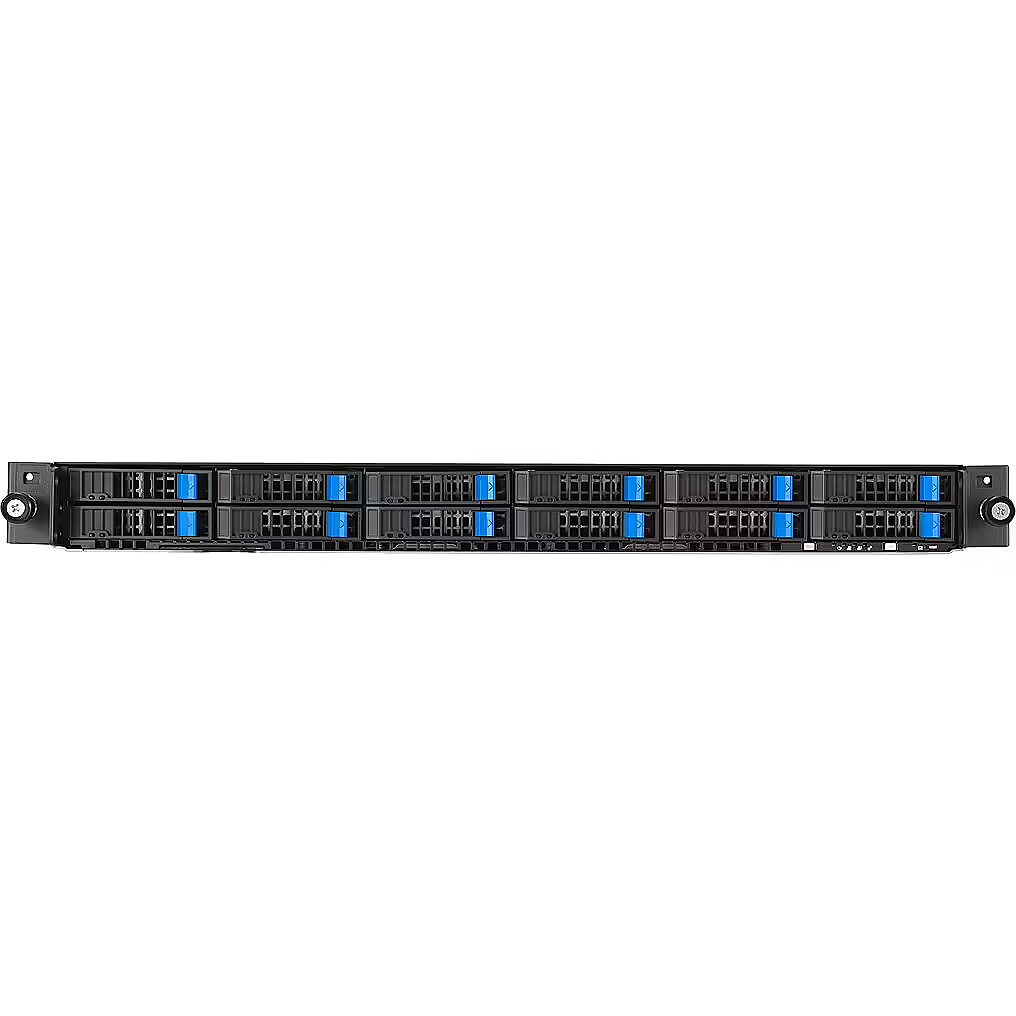

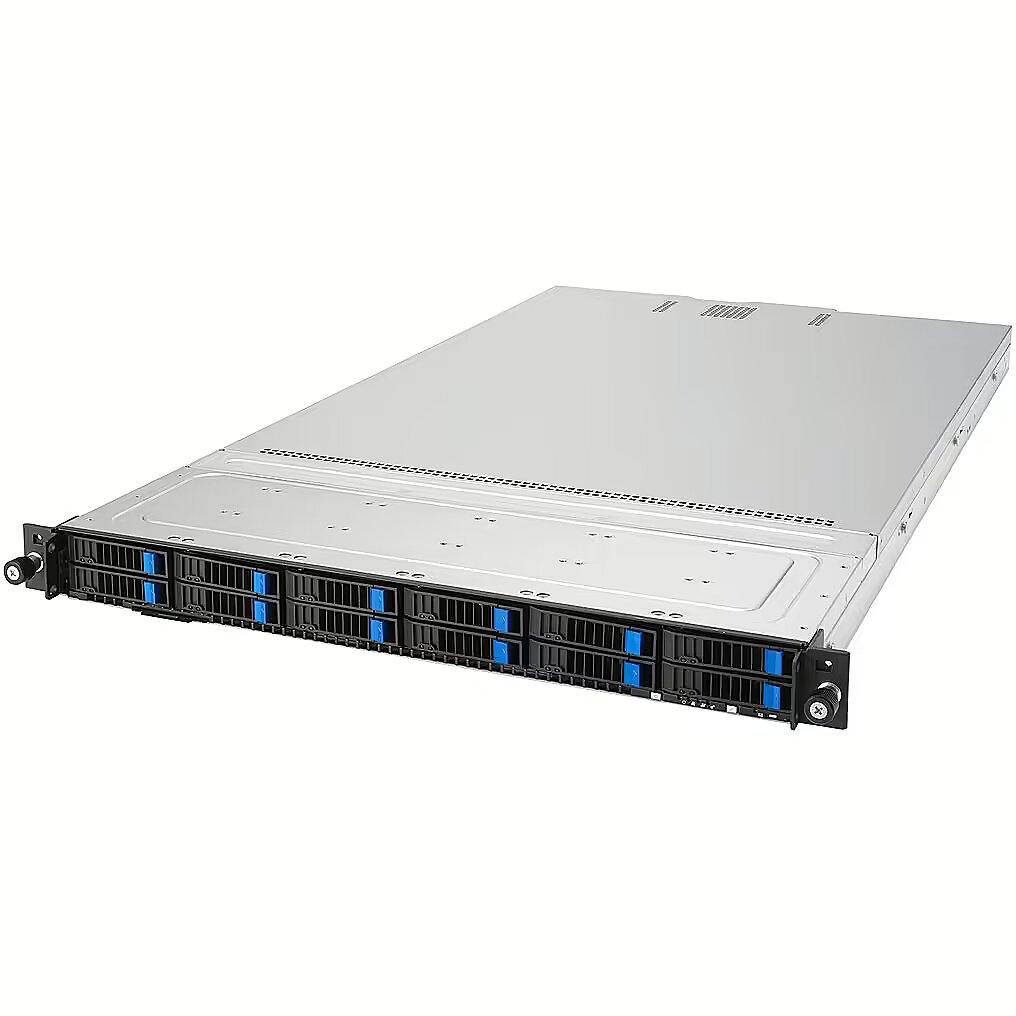

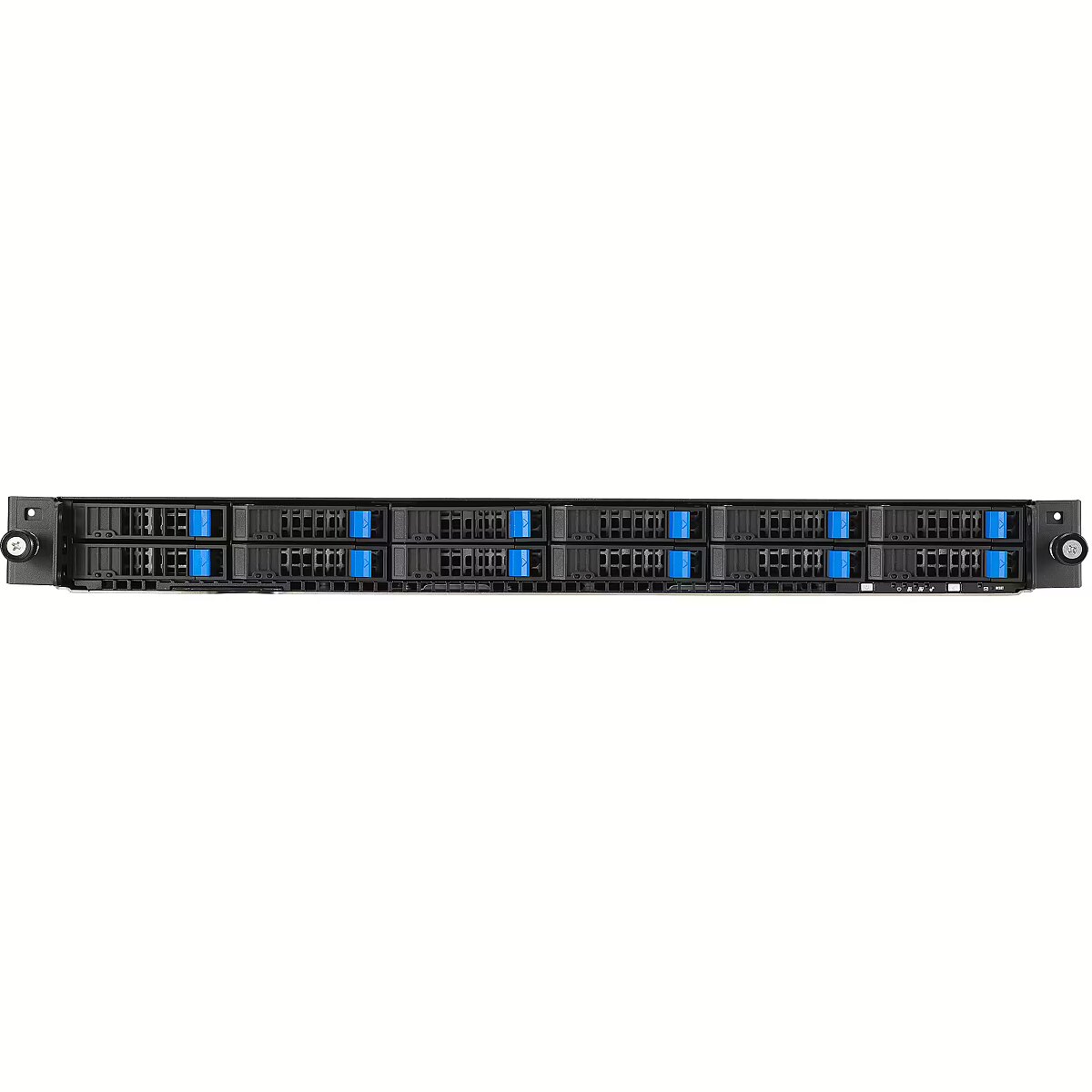

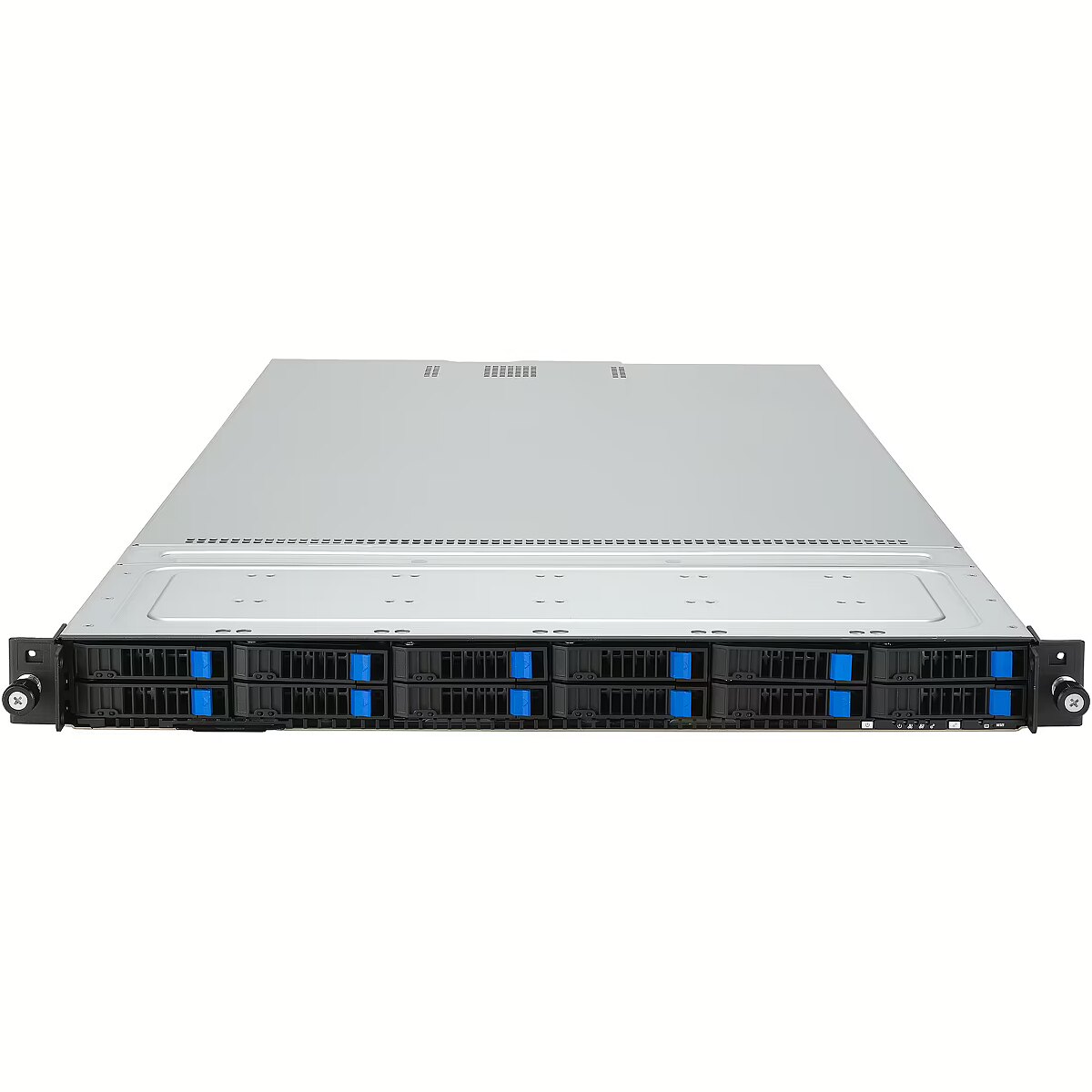

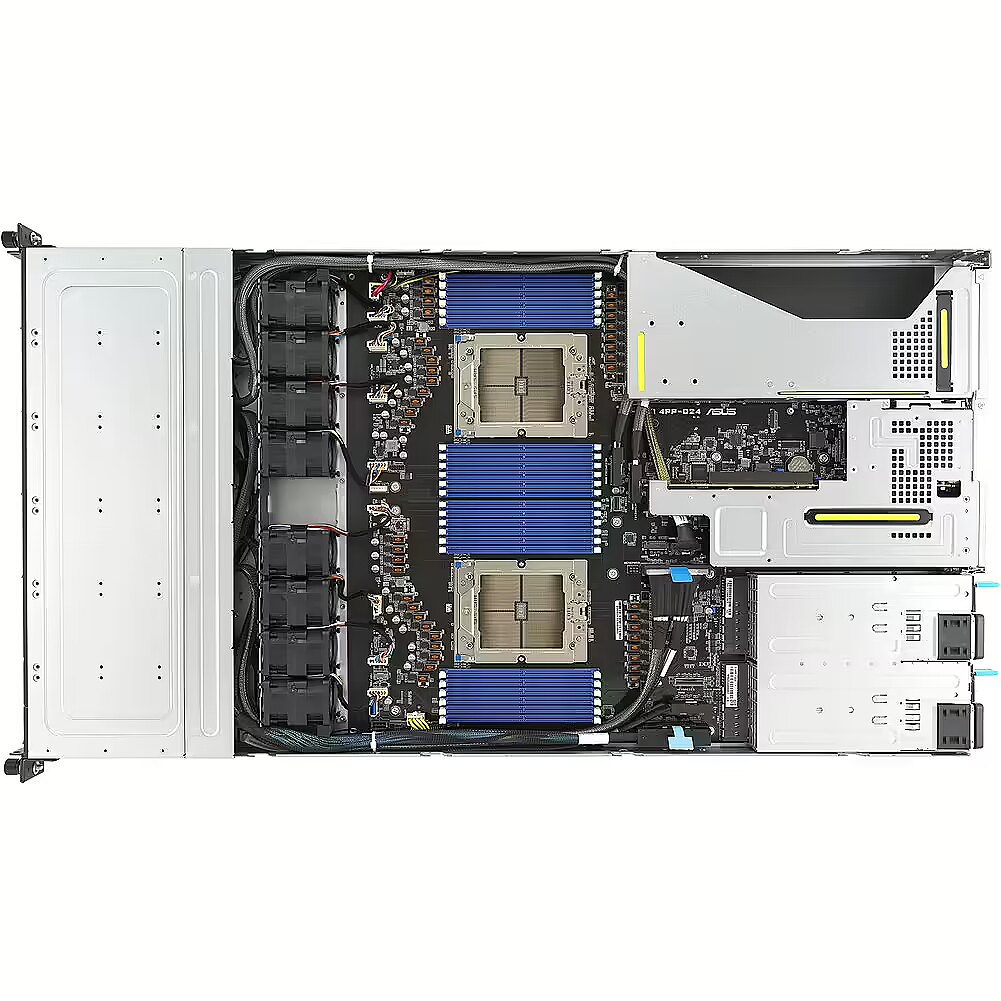

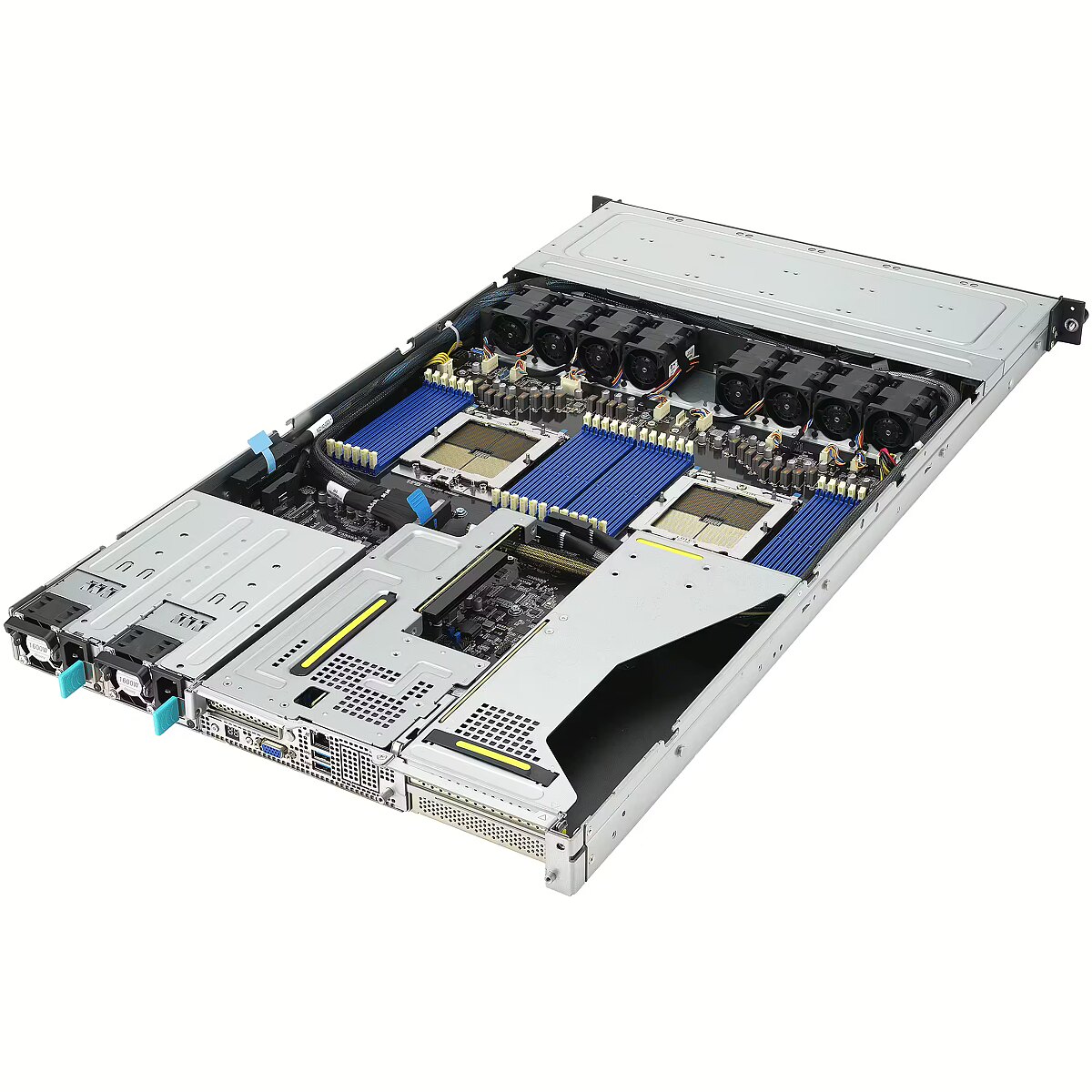

Asus RS700A-E12-RS12U/10G2.6K/G 90SF02D1-M006Z0

Brand - ASUS
BrandPartCode - 90SF02D1-M006Z0
Category - Server Barebones
Design - Certification - BSMI, CE, CB, C-Tick, FCC(Class A)
Design - Chassis type - Rack (1U)
Design - Cooling type - Active
Design - LED indicators - Yes
Design - Product colour - Black
Design - Product colour - Black, Steel
Design - Product colour - Steel
dimensionalWeight - 27460
Expansion slots - Number of M.2 (M) slots - 2
Expansion slots - PCI Express slots version - 4.0
Expansion slots - PCI Express slots version - 4.0, 5.0
Expansion slots - PCI Express slots version - 5.0
Expansion slots - PCI Express x4 slots - 1
Expansion slots - PCI Express x8 slots - 1
Expansion slots - PCI Express x16 slots - 1
Features - Integrated BMC with IPMI - Yes
Features - Trusted Platform Module (TPM) - Yes
Features - Trusted Platform Module (TPM) version - 2.0
Graphics - On-board graphics card memory - 64 MB
Graphics - On-board graphics card model - Aspeed AST2600
GTIN - 4711387414620
LongDesc - PCIe 5.0 ReadyFaster storage, graphics and networking capabilitiesPCI Express® (PCIe®) 5.0 delivers 32GT/s bandwidth, which is twice the speed of PCIe 4.0, and offers lower power consumption, better land scalability and backwards compatibility. ASUS servers are PCIe 5.0 ready with scalability design to satisfy the increasing workloads for modern data center.AMD EPYC™ 9004 Series ProcessorsThe 9004 Series EPYC CPUs amplifies the AMD history of x86 architecture innovations and record-breaking performance with next generation 5nm technology as well as introducing support for high performant DDR5 DIMMs and fast PCIe® Gen 5 I/O. EPYC 9004 CPUs support 12 memory channels with 2 DIMMs/channel capability, delivering the resources needed for memory hungry AI, ML, HPC, and large in-memory computations.CPU-balanced ArchitectureThe new AMD EPYC 9004 processors excel at providing full features and functionality for both dual-socket and single-socket platforms, but our new servers ASUS is introducing an CPU-balanced architecture to enable secure and optimal CPU-performance efficiency.This architecture extends the full bandwidth to either dual- or single-CPU configurations, enabling more computing capability and much-improved overall power efficiency for compute-intensive workloads. This architecture allows customers to take full advantage of bandwidth capabilities of the dual-CPU architecture with a single CPU, while offering the flexibility to upgrade later with the addition of a second CPU.World Records LeadershipASUS holds the most amount of records in dual-socket (2P) and single-socket (1P) on SPEC CPU 2017 benchmark and dominate the computing performance. These top performance results provide a useful insight into compute-intensive workloads on different computer systems, enabling our customers to reduce complexity, tackle challenging workloads and accelerate system validations.Computing PerformanceASUS servers feature Performance Boost technology to achieve the best server performance and agility by tuning servers to match the requirements of workloads, letting you gain greater control of your server environment. This technology improves workload throughput by maximizing processor frequency and boost power, ideal for timesensitive applications such as financial services or data center operations.Power EfficiencyASUS select servers achieved most power efficiency positions on the SPEC Power benchmark for energy efficiency and demonstrate to customers how they can achieve faster deployments and higher energy efficiency for their IT infrastructure.Scalable Storage SolutionThis server features scalable storage solutions to support maximum performance for data center flexibility, and enable industry-standard SAS/SATA/NVMe interfacing through Broadcom Tri-Mode RAID adapters for increased connectivity and security.Accelerating performancefor AI workloadsUp to one dual-slot GPUsThis server features multiple PCIe 5.0 slots to meet the demands of AI and high-performance computing (HPC) workloads, including supporting up to one dual-slot active or passive GPUs, and Xilinx Alveo accelerators. The scalable configurations in one 2U system provide optimized acceleration for workloads across cloud and on-premises data centers, and for hybrid cloud environments in financial computing, machine learning, computational storage, and data search and analytics.NVIDIA Omniverse3D design collaboration and simulationASUS solutions for Omniverse give your organization a comprehensive package for Omniverse Enterprise. The diverse portfolio allows us to tailor a package to be fully compatible with your design environment and needs. As our long-term partnership with NVIDIA and ISV certifications, we’re fully invested in the Omniverse ecosystem and ready to help our partners develop new segments on this exciting platform.Front Bezel ProtectionASUS servers are designed with optional front bezel with a lock that has been tested and supported by our technical team to avoid accidental usage or removal and ensure your data center is fully safe.Server-management SolutionRemote server managementASUS ASMB11-iKVM is the latest server-management solution from ASUS, built upon the ASPEED 2600 chipset running on the latest AMI MegaRAC SP-X. The module provides various interfaces to enable out-of-band server management through WebGUI, Intelligent Platform Management Interface (IPMI) and Redfish® API.Streamline IT operations via a single dashboardASUS Control Center (ACC) is remote IT management software designed for monitoring your hardware and software IT assets and inventory status and enabling seamless remote BIOS configurations and updates, efficient IT diagnostics and troubleshooting and enhanced security with Hotfix updates, allowing easier server management for any IT infrastructure.Enhanced SecurityHardware Root-of-Trust SolutionDetect, recover, boot and protectASUS servers integrate PFR FPGA as the platform Root-of-Trust solution for firmware resiliency to prevent from hackers from gaining access to infrastructure. ASUS security solutions are fully compliant with the 2018 National Institute of Standards and Technology (NIST) SP 800 193 specification.Trusted Platform Module 2.0ASUS servers also include support Trusted Platform Module 2.0 (TPM 2.0) to secure hardware through integrated cryptographic keys and offer regular firmware update for vulnerabilities.
LongProductName - 2 x Socket SP5, E12, 24 x DDR5, Aspeed AST2600 64MB, 1U, 14.94 kg
LongSummaryDescription - ASUS RS700A-E12-RS12U. Processor socket: Socket SP5, Processor manufacturer: AMD, Processor family: AMD. Supported memory types: DDR5-SDRAM, Supported DIMM module capacities: 32GB, 64GB, 128GB, Maximum RDIMM memory: 3.07 TB. Storage drive sizes supported: 2.5,M.2, Supported storage drive types: HDD & SSD, Supported storage drive interfaces: Serial ATA, Serial Attached SCSI (SAS). On-board graphics card model: Aspeed AST2600, On-board graphics card memory: 64 MB. Ethernet interface type: 10 Gigabit Ethernet, Gigabit Ethernet, Ethernet LAN data rates: 1000,10000 Mbit/s, LAN controller: Intel® I350-AM4, Intel X710-AT2
Memory - Maximum RDIMM memory - 3.07 TB
Memory - Number of DIMM slots - 24
Memory - Supported DIMM module capacities - 32GB
Memory - Supported DIMM module capacities - 32GB, 64GB, 128GB
Memory - Supported DIMM module capacities - 64GB
Memory - Supported DIMM module capacities - 128GB
Memory - Supported memory types - DDR5-SDRAM
Network - Ethernet interface type - 10 Gigabit Ethernet
Network - Ethernet interface type - 10 Gigabit Ethernet, Gigabit Ethernet
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Ethernet LAN data rates - 1000 Mbit/s
Network - Ethernet LAN data rates - 1000,10000 Mbit/s
Network - Ethernet LAN data rates - 10000 Mbit/s
Network - LAN controller - Intel X710-AT2
Network - LAN controller - Intel® I350-AM4
Network - LAN controller - Intel® I350-AM4, Intel X710-AT2
Operational conditions - Operating relative humidity (H-H) - 20 - 90%
Operational conditions - Operating temperature (T-T) - 10 - 35 °C
Operational conditions - Storage relative humidity (H-H) - 20 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 60 °C
Packaging data - Package weight - 19.9 kg
Ports & interfaces - Ethernet LAN (RJ-45) ports - 3
Ports & interfaces - IPMI LAN (RJ-45) port - Yes
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Ports & interfaces - VGA (D-Sub) ports quantity - 1
Power - 80 PLUS certification - 80 PLUS Platinum
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Number of redundant power supplies supported - 2
Power - Power supply - 2600 W
Power - Redundant power supply (RPS) support - Yes
Processor - AMD Opteron series - 9000
Processor - Built-in processor - No
Processor - Compatible processor series - AMD EPYC 9004
Processor - Processor family - AMD
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket SP5
producerCode - 90SF02D1-M006Z0
productName - ASUS RS700A-E12-RS12U Socket SP5 Rack (1U) Black, Steel
ProductName - RS700A-E12-RS12U
productSize - Normal
ShortSummaryDescription - ASUS RS700A-E12-RS12U, Socket SP5, AMD, AMD, AMD EPYC 9004, DDR5-SDRAM, 32GB, 64GB, 128GB
sizeX - 598
sizeY - 1148
sizeZ - 200
Storage - Hot-swap HDD bays - Yes
Storage - Number of storage drives supported - 14
Storage - Storage drive sizes supported - 2.5
Storage - Storage drive sizes supported - 2.5,M.2
Storage - Storage drive sizes supported - M.2
Storage - Supported storage drive interfaces - Serial ATA, Serial Attached SCSI (SAS)
Storage - Supported storage drive types - HDD & SSD
Title - ASUS RS700A-E12-RS12U Socket SP5 Rack (1U) Black, Steel
URL - https://servers.asus.com/products/Servers/Rack-Servers/RS700A-E12-RS12U/
WarrantyInfo -
warrantyLength - 36
warrantyType - G
weight - 24560
Weight & dimensions - Depth - 842.5 mm
Weight & dimensions - Height - 43.9 mm
Weight & dimensions - Weight - 14.9 kg
Weight & dimensions - Width - 449 mm
