Satel SP-4003 R signaler

Accessories included -
Alarm - Sound
Category Code - SIR
Color - Red

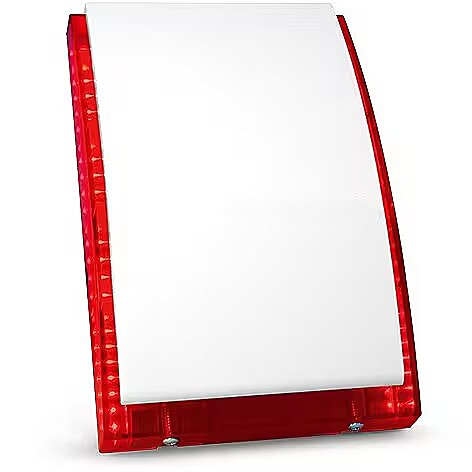

Description - SP-4003 R is an optical-acoustic siren designed for outdoor installation, provided with super bright LEDs and a piezoelectric transducer. Two optical sets placed on the sides of the enclosure increase visibility of the light alarm, even from a distance and also in daylight. It offers three types of 120 dB intensity modulated tones to choose from. Enclosure of the siren is made of polycarbonate, which ensures high mechanical strength and aesthetic appearance of the device that remains unchanged over time. A simple, yet attractive design of the enclosure makes it ideal even for a modern façade. The device is provided with tamper protection against opening or tearing off the wall, and the inner shield of galvanized sheet additionally protects the electronics board and transducer against mechanical damage. The electronic circuits are properly weatherproofed, so they are also resistant to the effects of harsh environmental conditions.
Description - SP-4003 R outdoor sounder The SP-4003 R is an optic-acoustic signalling device for outdoor installation, equipped with super-bright LEDs and a piezo transducer. The two optical sets located on the sides of the housing make the luminous device more visible, even from a considerable distance, even in daylight. A choice of three types of modulated sound signalling with 120 dB is available. The housing of the siren is made of polycarbonate, which ensures high mechanical strength and an aesthetic appearance of the device that remains unchanged despite the passage of years. The simple, yet attractive design of the housing is ideal even on a modern façade. The device is equipped with tamper protection to prevent the casing from being opened or detached from the wall, and an internal cover made of galvanised sheet metal provides additional protection for the electronics board and transmitter from mechanical damage. Thanks to suitable impregnation, the electronics are also resistant to harsh environmental conditions. The SP-4003 optical/acoustic alarm device is available in three colour versions: SP-4003 R (red), SP-4003 BL (blue) and SP-4003 O (orange). Acoustic indication: piezo transducer Optical signalling: super-bright LEDs Internal metal shielding Tamper protection against: Detachment from ground Opening
dimensionalWeight - 665
dimension depth - 70 mm
dimension height - 260 mm
Dimensions - 148 x 254 x 64 mm
Dimensions - Housing: 148 x 254 x 64 mm
dimension weight - 1025 g
dimension width - 160 mm
ean - 5905033333116
Environment requirements - Environmental class III
Features - Alarm decibels - 120 dB
Features - Environmental class - III
Features - Housing material - Plastic
Features - LED indicators - Yes
Features - Light alarm - Y
Features - Placement available - Indoor/outdoor
Features - Product colour - Red
Features - Product colour - White
Full Description Line - 12 V DC
guarantee - 24
guarantee_type - normal
name - SP-4003 R outside signaler
Operational conditions - Operating temperature (T-T) - -35 - 55 °C
Other features - Operating temperature range: -35+55 °C Rated supply voltage (15%): 12 V DC Maximum current consumption: 520 mA
Power - Mains
Power - Operating voltage - 12 V
Power - Power consumption - 520 mA
Power supply requirements - 12 V DC
producer - Satel
producerCode - SP4003R
productName - Satel SP-4003 R Wired siren Indoor/Outdoor Red,White
productSize - Normal
Shipping Box Depth Shipping/Package Box Dimensions - 26 cm
Shipping Box Height Shipping/Package Box Dimensions - 16 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 1.024 kg
Shipping Box Width Shipping/Package Box Dimensions - 7 cm
sizeX - 80
sizeY - 160
sizeZ - 260
Special functions -
Unit Box Height - 0.16
Unit Box Length - 0.26
Unit Box Width - 0.07
Unit Brutto Volume - 0.002912 cubm
Unit Gross Weight - 1.02 kg
Unit Net Weight - 0.894 kg
Vendor Homepage - www.satel.pl/en/products/intruder-alarms/wired-alarm-sirens/outdoor-sirens/sp-4003-r/
vendpn - SP-4003 R
Volume - 120 dB
Warranty - 36 months
warrantyLength - 24
warrantyType - F
Weight - 0.894 kg
weight - 1022
Weight & dimensions - Dimensions (WxDxH) - 148 x 64 x 254 mm
Weight & dimensions - Weight - 894 g
