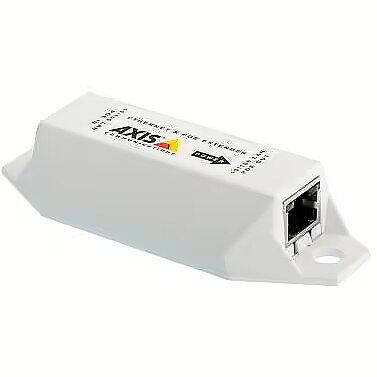

Axis T8129 POE EXTENDER IN

Accessories included -
ARTIKEL1 - AXIS T8129 POE EXTENDER
ARTIKEL2 - IN
Category 1 - Netzwerk
Category 2 - Netzwerkkameras
Category Code - POE
Depth - 105 mm
Description - - Extend a PoE connection beyond the 100m limit - IEEE 802.3af and IEEE 802.3at compliance - Ease of installation with no additional power supply - Compatible with all Axis network video products - Indoor use
Description - AXIS T8129 PoE Extender The smart solution for covering distances   Extend a PoE connection beyond the 100m limit IEEE 802.3af, IEEE 802.3at and High PoE 60 W compatible Ease of installation with no additional power supply Compatible with all Axis network video products Indoor use Ethernet has a limited cable length between the switch and the camera of 100m (328 ft.). When needed to cover a longer distance, a switch is normally used as a repeater, or optical fiber may be used. To overcome this distance limit, network installers can simply connect an AXIS T8129 PoE Extender in-line with the Cat-5e or Cat-6 cable, and forward the rest to the camera. Dependent on midspan and camera type, the connection in total can be between 200-400 meters (656-1312 ft.).   AXIS T8129 PoE Extender is compatible with all Axis network video products with PoE, and supports both IEEE 802.3af and IEEE 802.3at. Check in the Typical set-up section for connection examples with Axis network video products.   Range depends on the power required, so a 25 watt PTZ dome camera may be located 200 m (656 ft.) away using a single AXIS T8129. Or, the cable length to a regular 5 watt network camera may extend up to 400 m (1312 ft.), by fitting three AXIS T8129 at 100 m (328 ft.) intervals. Check in the Range tab for information about Maximum distances. The table below shows the maximum distances from the network switch depending on power source, by adding an Axis PoE Extender for every 100m (328ft). The actual figures will depend on operating conditions.  No additional power supply AXIS T8129 does not require any additional power supply and the connected network camera is fed by a single PoE switch or midspan. It offers two female Ethernet ports, which are both configured automatically for link speed, duplex and crossover and the full-rate network throughput is maintained.
Designation - CE+WEEE
dimension depth - 40 mm
dimension height - 170 mm
Dimensions - 105 x 40 x 22 mm
dimension weight - 105 g
dimension width - 120 mm
ean - 7331021003972
EAN - 7331021003972
EANCode - 7331021003972
Full Description Line - 1xRJ45|Dimensions 105 x 40 x 22 mm
Gewicht - 0.11
GRUPPE1 - Security
GRUPPE2 - Video Surveillance
guarantee - 36
guarantee_type - normal
Height - 22 mm
HERSTELLER - AXIS
HSTNUMMER - 5025-281
I/O ports - 2 x 10/100 Mbit/s
Manufacturer - Axis
MPN - 5025-281
Name - Axis Netzwerk PoE T8129 PoE-Extender
name - T8129 PoE Extender
Other features -
producer - AXIS
RJ45 Input/Output connectors - 1
Shipping Box Depth Shipping/Package Box Dimensions - 17 cm
Shipping Box Height Shipping/Package Box Dimensions - 4 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.116 kg
Shipping Box Width Shipping/Package Box Dimensions - 12 cm
Stck_Kart - 9998
Stck_Pal - 0
Storno - Y
Unit Box Height - 0.04
Unit Box Length - 0.17
Unit Box Width - 0.12
Unit Brutto Volume - 0.000816 cubm
Unit Gross Weight - 0.116 kg
Unit Net Weight - 0.045 kg
Vendor Homepage - http://www.axis.com/products/pol/poe_extender/index.htm
vendpn - 5025-281
Warranty - 36 months
Weight - 45 g
Width - 40 mm
