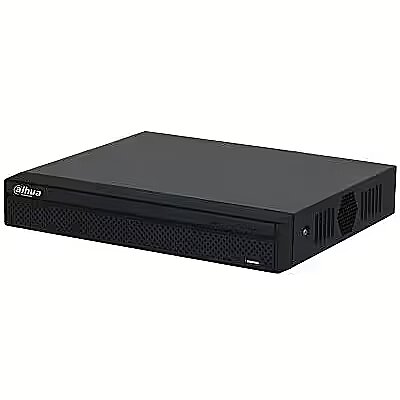

Dahua IP DVR DAHUA NVR2108HS-4KS3

15pin D-sub Input/Output connectors - 1
AV-In Input/Output connectors - 1
AV-out Input/Output connectors - 1
Category Code - NVR
Colour - Black
CPU - Industrial-grade processor
Description - NVR2108HS-4KS3 8CH Compact 1U 1HDD Lite Network Video Recorder> Supports Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG decoding formats. > Max. decoding capability: 6 × 1080p@30 fps. > Max. 80/80/60 Mbps incoming/recording/outgoing bandwidth. > Supports IP cameras with a resolution up to 12 MP. > AI by Recorder supports 4-channel SMD Plus. > AI by Camera supports perimeter protection and SMD Plus. > Supports one-click arming and disarming.
Desktop/pedestal Mounting Type - Yes
dimensionalWeight - 1869
Dimensions - 260.0 × 232.5 × 47.6 mm
Features - LED indicators - Yes
Features - Product colour - Black
Features - Rack capacity - 1U
Features - Rack mounting - Yes
Features - SMD Plus - Yes
Full Description Line - Channels 8|Desktop/pedestal|Rack|CPU Industrial-grade processor|SATA|1x15pin D-sub|1xHDMI|1xAV-In|1xAV-out|2xUSB 2.0|1xRJ45|Power supply requirements 12 VDC, 1.5 A|Power consumption 10 Watts|Dim. 260.0 × 232.5 × 47.6 mm|Colour Black
Hard drive - HDD interface - SATA
Hard drive - Maximum storage capacity - 20 TB
Hard drive - Number of HDDs supported - 1
HDMI Input/Output connectors - 1
Model - NVR2108HS-4KS3
Number of Channels - 8
Operational conditions - Operating relative humidity (H-H) - 10 - 93%
Operational conditions - Operating temperature (T-T) - -10 - 55 °C
Operational conditions - Storage temperature (T-T) - -20 - 60 °C
Performance - Audio codecs - PCM; G711A; G711U; G726
Performance - Audio formats supported - G.711 A-law
Performance - Audio formats supported - G.711 μ-law
Performance - Audio formats supported - G.726
Performance - Audio formats supported - PCM
Performance - Backup function - Yes
Performance - Input bandwidth - 80 Mbit/s
Performance - Maximum frame rate - 30 fps
Performance - Multi-screen - Yes
Performance - Operating system installed - Embedded LINUX
Performance - Output bandwidth - 60 Mbit/s
Performance - Playback modes - Pause, Play, Stop
Performance - Video codecs - Smart H.265; H.265; Smart H.264; H.264
Performance - Video input channels - 8 channels
Performance - Video motion detection - Yes
PoE ports - 8
Ports & interfaces - Audio RCA inputs - 1
Ports & interfaces - Audio RCA outputs - 1
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - Ethernet LAN data rates - 10
Ports & interfaces - Ethernet LAN data rates - 100
Ports & interfaces - HDMI output - Yes
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - Power over Ethernet (PoE) - No
Ports & interfaces - USB 2.0 ports quantity - 2
Ports & interfaces - VGA (D-Sub) output ports - 1
Power - Output current - 1.5 A
Power - Output voltage - 12 V
Power consumption - 10 Watts
Power supply requirements - 12 VDC, 1.5 A
Processor - Built-in processor - Yes
producerCode - 45889
productName - IP DVR DAHUA NVR2108HS-4KS3
productSize - Normal
Rack Mounting Type - Yes
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping box quantity - 1
sizeX - 335
sizeY - 90
sizeZ - 310
System requirements - Browser supported - Chrome; IE9 or later; Firefox
System requirements - Mobile operating systems supported - Android
System requirements - Mobile operating systems supported - iOS
Unit Brutto Volume - 0.02223 cubm
Unit Gross Weight - 1.39 kg
Unit Net Weight - 0.85 kg
USB 2.0 Input/Output connectors - 2
Vendor Homepage - www.dahuasecurity.com/products/All-Products/Network-Recorders/Lite-Series/NVR2-4KS3-Series/1HDD/NVR2108HS-4KS3
Warranty - 36 months
warrantyLength - 24
warrantyType - F
weight - 1380
Weight & dimensions - Depth - 232.5 mm
Weight & dimensions - Height - 47.6 mm
Weight & dimensions - Package depth - 314 mm
Weight & dimensions - Package height - 89 mm
Weight & dimensions - Package weight - 1.39 kg
Weight & dimensions - Package width - 334 mm
Weight & dimensions - Weight - 850 g
Weight & dimensions - Width - 260 mm
