ID: 1079873
Product code: NVR4232-4KS3
In stock 6 units
Warranty: 3 years

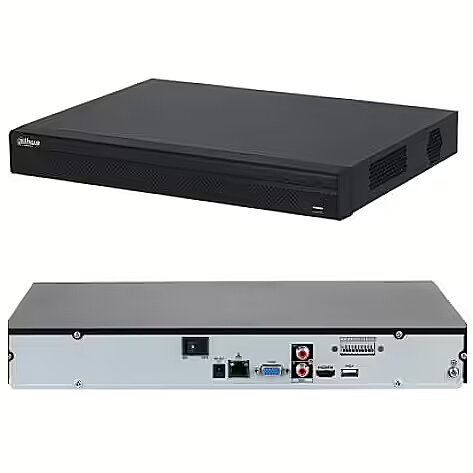

Dahua NVR4232-4KS3
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
- Courier delivery 11.99 €: on Thursday, 14.11.2024
More detailed specification
15pin D-sub Input/Output connectors - 1
Alarm In Input/Output connectors - 4
Alarm Out Input/Output connectors - 2
Audio-In Input/Output connectors - 1
Audio-Out Input/Output connectors - 1
Category Code - NVR
CPU - Industrial-grade
Description - 32CH 1U 2HDDs Lite Network Video Recorder > Supports Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG decoding formats. > Max. decoding capability: 8 × 1080p@30 fps or 2 × 8 MP@30 fps. > Max. 160/128/60 Mbps incoming/recording/outgoing bandwidth. > Supports IP cameras with a resolution up to 12 MP. > AI by Recorder supports 2-channel SMD Plus. > AI by Camera supports face detection and recognition, perimeter protection, SMD Plus, people counting, stereo analysis and heat map. > Supports EPTZ, and one-click arming and disarming.
Desktop/pedestal Mounting Type - Yes
dimensionalWeight - 4421
Dimensions - 375.0 × 282.9 × 53.0 mm
Full Description Line - Channels 32|Drives/bays 2|Desktop/pedestal|Rack 1U|CPU Industrial-grade|1x15pin D-sub|1xHDMI|1xAudio-In|1xAudio-Out|1xRJ45|4xAlarm In|2xAlarm Out|Power supply requirements 12 VDC, 4 A|Power consumption 10 Watts|Dim. 375.0 × 282.9 × 53.0 mm|Temp. range –10 °C to +55 °C
HDMI Input/Output connectors - 1
Number of Channels - 32
Number of drives/bays - 2
Operating temperature range - –10 °C to +55 °C
Power consumption - 10 Watts
Power supply requirements - 12 VDC, 4 A
producerCode - NVR4232-4KS3
productName - EJESTRATOR IP DAHUA NVR4232-4KS3
productSize - Normal
Rack 1U Mounting Type - Yes
RJ45 Input/Output connectors - 1
Shipping Box Depth Shipping/Package Box Dimensions - 43 cm
Shipping Box Height Shipping/Package Box Dimensions - 36.5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 2.8 kg
Shipping Box Width Shipping/Package Box Dimensions - 14 cm
sizeX - 435
sizeY - 363
sizeZ - 140
Unit Box Height - 0.365
Unit Box Length - 0.43
Unit Box Width - 0.14
Unit Brutto Volume - 0.02197 cubm
Unit Gross Weight - 2.8 kg
Unit Net Weight - 1.49 kg
Vendor Homepage - www.dahuasecurity.com/products/All-Products/Network-Recorders/Lite-Series/NVR4-4KS3-Series/2HDD/NVR4232-4KS3
Warranty - 36 months
warrantyLength - 36
warrantyType - F
weight - 2780
