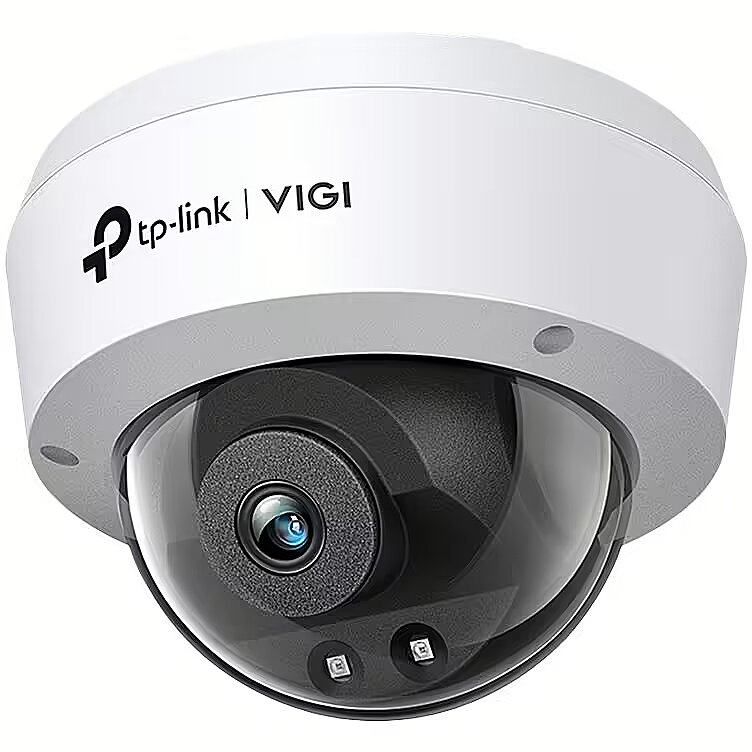

TP-LINK C240(2.8mm), 1440p, 4MP, White

Accessories included - VIGI network camera Quick Installation Guide Sealing elements for the cable Mounting accessories
ARTIKEL1 - 4MP FULL-COLOR DOME
ARTIKEL2 - NETWORK CAMERA
Audio - Built-in microphone - Yes
Brand - TP-Link
BrandPartCode - VIGI C240(2.8MM)
Camera - Angle of rotation - 360°
Camera - Camera pan control - Yes
Camera - Camera tilt control - Yes
Camera - Lens viewing angle, diagonal - 113°
Camera - Lens viewing angle, horizontal - 95.7°
Camera - Lens viewing angle, vertical - 51.7°
Camera - Minimum illumination - 0.005 lx
Camera - Pan range - 0 - 360°
Camera - Tilt angle range - 0 - 85°
Category - Security Cameras
Certificates - CE BSMI VCCI ONVIF
Code - VIGI C240(2.8mm)
Color - White
Connectors - RJ-45
Description - VIGI C240 Dome Vandal Resistant Full Color VIGI 4MP Network Camera 4MP High Quality: The camera is equipped with a 4MP sensor that is able to capture even the smallest details. Full color for 24 hours: Full color details are available all day long, even in total darkness. This is possible thanks to a sensitive sensor and built-in LED spot light. People and Vehicle Classification: Distinguishes people and vehicles from other objects, so you get more accurate event notifications. Smart Detection: Receive notifications and check channels when someone crosses the border, enters the area you set, locks the camera or removes/abandons objects. Built-in Mic: It has a built-in microphone to record everything that happens within 4.5 meters of the camera. IK10 Mechanical Grade Vandalproof and IP67 Waterproof: With mechanical strength, rugged housing and waterproof design, this VIGI dome camera is built to withstand vandalism and harsh environmental conditions with rain and dust, keeping you safe anytime, anywhere. H.265+: Without using extra bandwidth, your cameras can transmit compressed and crystal-clear video while conserving disk space, reducing network load and lowering surveillance costs without sacrificing image quality. Smart Video Enhancement: VIGI's professional technologies including Smart IR, WDR, 3D DNR and Night Vision process video to greatly enhance video quality which is essential for monitoring. PoE/12V DC: Two power supply methods make camera wiring much easier. Flexible management: Take full control of your security with four management methods: web interface, NVR interface, VIGI App and VIGI Security Manger. Local storage is available for each method as well as built-in memory with an SD card slot (up to 256 GB). Full of color, all the time VIGI 4MP full color vandal resistant dome network camera. Transparency and colors, all in one Monitor the area for 24 hours in clear and colorful detail, even during the dark night. VIGI's full color camera provides a maximum resolution of 3MP and guarantees color monitoring thanks to its large lens size, high sensitivity sensor and built-in auxiliary lighting. Classification of people and vehicles Integrated AI chips support advanced algorithms that distinguish people and vehicles from other objects. You can flexibly customize alarm rules to suit your monitoring needs and receive more accurate event notifications. We keep an eye on your business. Intelligent detection. Powered by AI algorithms, the VIGI camera offers more intelligent detection. You will receive notifications when someone crosses the border, enters the zone you set, covers the camera or removes / abandons objects. No more silent surveillance. Built-in microphone. The VIGI camera has a built-in microphone to record everything that happens within 4.5 meters of the camera. This provides more detailed monitoring for greater peace of mind. IK10 mechanical grade vandal resistance and IP67 water resistance. With mechanical strength, rugged housing, and waterproof design, this VIGI dome camera is built to withstand vandalism and harsh environmental conditions with rain and dust, keeping you safe anytime, anywhere. More compression. More savings. Same quality. Without using extra bandwidth, your cameras can transmit compressed and crystal-clear images, while saving disk space, reducing network load and lowering surveillance costs without sacrificing image quality. Never miss a detail. Smart video enhancement. VIGI's professional technologies including Smart IR, WDR, 3D DNR and Night Vision process the video to significantly improve its quality, which is essential for monitoring. Discover the best way to power your camera. PoE/12V DC. Two ways of power supply not only provide more convenience, but also make wiring extremely simple. Flexible management and storage Take full control of your security with four management methods: web interface, NVR interface, VIGI App and VIGI Security Manger. Local storage is available for each method as well as built-in memory with an SD card slot (up to 256 GB). Flexible installation. Easily route the camera cable to a suspended ceiling or avoid drilling by routing it through the camera's side exit. One system. Full security. Run your business with peace of mind. The professional TP-Link monitoring system will allow you to protect your company - regardless of the place and time. exceptional Efficient functions, trustworthy quality, simple installation and convenient management is a combination that will ensure the security of your company.
Design - Form factor - Dome
Design - Housing material - Plastic
Design - IK code - IK10
Design - International Protection (IP) code - IP67
Design - Mounting type - Ceiling/wall
Design - Product colour - Black
Design - Product colour - Black, White
Design - Product colour - White
Design > Chassis type - Dome
Design > Protection features - IP67, IK10
dimensionalWeight - 684
dimension depth - 120 mm
dimension height - 150 mm
Dimensions - 115 x 115 x 86 mm
dimension weight - 477 g
dimension width - 190 mm
EAN - 4895252501070
ean - 4895252501070
EANCode - 4895252501070
Environment requirements - Permissible operating temperature: -30 - 60 °C
Features - Basic event - Motion Detection, Camera Tampering Detection, Exception
Features > Package content - VIGI Network Camera; Waterproof Cable Attachments; Mounting Accessories
Frames per second - 30
GRUPPE1 - Security
GRUPPE2 - Network Cameras
GTIN - 4895252501070
guarantee - 36
guarantee_type - normal
HERSTELLER - TP-LINK
HSTNUMMER - VIGI C240(2.8MM)
Image sensor - Optical sensor size - 25.4 / 3 mm (1 / 3")
Image sensor - Sensor type - CMOS
Lens - Focal length: 2.8mm Aperture: F1.6 Lens mount: M12
Lens system - Lens diameter - 2.8 mm
Lens system - Number of lenses - 1
Lens system > Lens type - 2.8mm
LongDesc - Clarity and Colors, All in OneMonitor 24-hour clear and colorful details even in pitch dark night. VIGI Full-Color camera provides maximum 4MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.Human & Vehicle ClassificationIntegrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.We keep an eye on your business.Smart DetectionBacked by AI algorithms, the VIGI camera offers more smart detection. You will receive notifications when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.No more silent surveillance.Built-In MicrophoneThe VIGI camera features a built-in microphone to record anything going on within a 15-ft radius of the camera. This gives you more detailed monitoring for greater peace of mind.IK10 Vandal-Proof & IP67 WaterproofWith vandal-resistant, rugged housing and waterproof design, this VIGI dome camera is built tough to withstand vandalism and harsh environments with rain and dust for constant security anywhere and anytime.More compression. More savings. Same quality.Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.Never miss a detail.SmartVid-Smart Video EnhancementVIGI’s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.Discover the best way to power your camera.PoE/12V DCTwo power supply ways not only give you more convenience but also make your wiring remarkably easy.Flexible Management and StorageTake full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager. Local storage is available for each methods, as well as onboard storage with SD card slot.One system. Full security.Run your business with peace of mind.The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.
LongProductName - 4MP (2560 × 1440), 1/3” Progressive Scan CMOS, 2.8 mm, F1.6, IR Cut Filter, IP67, IK10
LongSummaryDescription - TP-Link VIGI 4MP Full-Color Dome Network Camera. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.005 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 95.7°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3"). Lens diameter: 2.8 mm
Management, monitoring, configuration - API: ONVIF Simultaneous live view: 3 main streams and 3 sub streams Client: VIGI Application, VIGI Security Manager, VIGI NVR, web interface
Management features - Management software - VIGI App, VIGI Security Manager, VIGI NVR
Management features - Reset button - Yes
Management features - Web-based management - Yes
Memory > Memory slots - MicroSD, max. 256 GB
Memory card reader - Yes
Memory standard - SD
Memory standard - SDHC
Memory standard - SDXC
Microphone - Yes
Min. illuminance - 0 lx
Motion detection - Yes
name - Network Camera C240(2.8mm) 4MP Dome
Name - TP-LINK | Full-Color Dome Network Camera | VIGI C240 | Dome | 4 MP | 2.8mm | IP67, IK10 | H.265+/H.265/H.264+/H.264 | MicroSD, max. 256 GB
Network - Bluetooth - No
Network - Ethernet interface type - Fast Ethernet
Network - Ethernet LAN - Yes
Network - Number of simultaneous live view channels - 3 channels
Network - Supported network protocols - TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Network - Wi-Fi - No
Network protocols - TCP/IP UDP ICMP HTTP HTTPS DHCP DNS RTSP NTP UPnP UDP SSL/TLS
Night mode - Yes
Night vision - Infra-red wavelength - 850 nm
Night vision - LED type - IR
Night vision - Night vision - Yes
Night vision - Night vision distance - 30 m
Night vision - Number of illumination LEDs - 1
Operational conditions - Operating temperature (T-T) - -30 - 60 °C
Operational conditions > Operating temperature (T-T) - -30–60 °C
Other features - Digital Noise Reduction: 3D DNR WDR: DWDR Rotation: 0° - 360° Tilt: 0° - 85° Mechanical strength class: IK10 Infrared LED: Range: 30m; Wavelength: 850nm White LED: Range: 30m Video Compression: Main stream: H.265+/H.265/H.264+/H.264 Substream: H.265/H.264
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 193.00 mm
Package features > Gross height (mm) - 120.00 mm
Package features > Gross width (mm) - 153.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 488 pc(s)
Package features > Paper/Pasteboard - 190.00 g
Package features > Plastic (No PET) - 10.00 g
Package features > Tare weight (kg) - 0.20 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Mounting kit - Yes
Packaging content - Number of cameras - 1
Performance - Certification - CE, BSMI, VCCI, ONVIF
Performance - Connectivity technology - Wired
Performance - Day/night mode - Yes
Performance - Placement supported - Indoor & outdoor
Performance - Type - IP security camera
Performance > Built-in microphone - Yes
Performance > Video compression formats - H.265+/H.265/H.264+/H.264
Performance > Wide Dynamic Range (WDR) - DWDR
Picture quality > Camera type - Indoor/Outdoor
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Power - Power consumption (max) - 5.4 W
Power - Power source type - DC, PoE
Power > Power - 12V DC: Max 5.4 W
Power supply - 12V DC 5%, 5.5mm coaxial power plug PoE (802.3af/at, class 0)
producer - TP-LINK
producerCode - VIGI C240(2.8mm)
productName - TP-LINK VIGI C240(2.8mm) Camera
ProductName - VIGI 4MP Full-Color Dome Network Camera
productSize - Normal
Protection class - IP67
Resolution - 2560 x 1440
Security - Password protection HTTPS encryption IP address filter Digest authorization
Security - Active tampering alarm - Yes
Security - Digest authentication - Yes
Security - HTTPS encryption - Yes
Security - Intelligent Video Surveillance (IVS) system features - Abandoned object
Security - Intelligent Video Surveillance (IVS) system features - Abandoned object, Crossing line, Human detection, Intrusion, Region entrance detection, Region exiting detection, Vehicle detection
Security - Intelligent Video Surveillance (IVS) system features - Crossing line
Security - Intelligent Video Surveillance (IVS) system features - Human detection
Security - Intelligent Video Surveillance (IVS) system features - Intrusion
Security - Intelligent Video Surveillance (IVS) system features - Region entrance detection
Security - Intelligent Video Surveillance (IVS) system features - Region exiting detection
Security - Intelligent Video Surveillance (IVS) system features - Vehicle detection
Security - IP address filtering - Yes
Security - Mirror - Yes
Security - Password protection - Yes
Security - Video motion detection - Yes
Sensor - 1/3" Progressive Scan CMOS
ShortSummaryDescription - TP-Link VIGI 4MP Full-Color Dome Network Camera, IP security camera, Indoor & outdoor, Wired, CE, BSMI, VCCI, ONVIF, Ceiling/wall, Black, White
sizeX - 190
sizeY - 120
sizeZ - 150
Speakers built-in - No
Special functions - Image adjustments: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White balance fixed by client software, Rotation (90°/270°) Intelligent event detection Classification of people and vehicles Intrusion detection Line crossing detection Human detection Vehicle detection Zone entrance detection Zone exit detection Object abandonment detection Object removal detection Notifications and Alerts: Motion detection Camera manipulation detection Exception (invalid login)
Standards - 802.3af
Standards - 802.3at
Stck_Kart - 9998
Stck_Pal - 0
Storage - Built-in HDD - No
Storage - Card reader integrated - Yes
Storage - Compatible memory cards - MicroSD (TransFlash)
Storage - Maximum memory card size - 256 GB
Storno - Y
System Requirements -
Technical details - Sustainability certificates - CE
Technical details > Gross weight - 0.40 kg
Technical details > Net weight - 0.20 kg
Technical details > Other features - Obtain 24-hour color details, even in pitch-black conditions, with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights. Obtain 24-hour color details, even in pitch-black conditions, with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights. Digital Noise Reduction 3D DNR
Technical details > Producer - TP-LINK
Technical details > Producer product family - Full-Color Dome Network Camera
Technical details > Producer product name - VIGI C240
Technical details > Sensors - 1/3” Progressive Scan CMOS
Title - TP-Link VIGI 4MP Full-Color Dome Network Camera
Two-way transmission - No
type - fixed dome camera
URL - https://www.tp-link.com/en/business-networking/vigi-network-camera/vigi-c240/#overview
vendpn - VIGI C240(2.8mm)
Video - Back Light Compensation (BLC) - Yes
Video - Bit rate - 64 Kbps - 4 Mbps
Video - Digital Wide Dynamic Range (DWDR) - Yes
Video - Frame rate - 30 fps
Video - Highlight Compensation (HLC) - Yes
Video - Image quality adjustment - Brightness
Video - Image quality adjustment - Brightness, Contrast, Mirror, Saturation, Sharpness
Video - Image quality adjustment - Contrast
Video - Image quality adjustment - Mirror
Video - Image quality adjustment - Saturation
Video - Image quality adjustment - Sharpness
Video - Maximum resolution - 2560 x 1440 pixels
Video - Noise reduction technology - 3D noise reduction
Video - Privacy masking - Yes
Video - Supported graphics resolutions - 320 x 240
Video - Supported graphics resolutions - 320 x 240, 352 x 288, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440
Video - Supported graphics resolutions - 352 x 288
Video - Supported graphics resolutions - 640 x 480 (VGA)
Video - Supported graphics resolutions - 1280 x 720 (HD 720)
Video - Supported graphics resolutions - 1920 x 1080 (HD 1080)
Video - Supported graphics resolutions - 2048 x 1280
Video - Supported graphics resolutions - 2304 x 1296
Video - Supported graphics resolutions - 2560 x 1440
Video - Total megapixels - 4 MP
Video - Video compression formats - H.264
Video - Video compression formats - H.264+
Video - Video compression formats - H.264, H.264+, H.265, H.265+
Video - Video compression formats - H.265
Video - Video compression formats - H.265+
Video - Video streaming - Yes
Video > Maximum video resolution - 2560 x 1440 pixels
Video > Max IR distance - 30m
Video > Megapixel - 4 MP
Viewing angle, horizontal - 95 °
Viewing angle, vertical - 51 °
Warranty - 36
Warranty - 36 month(s)
WarrantyInfo - 2 years
warrantyLength - 24
warrantyType - G
weight - 450
Weight & dimensions - Depth - 115 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Package depth - 193 mm
Weight & dimensions - Package height - 120 mm
Weight & dimensions - Package weight - 460 g
Weight & dimensions - Package width - 153 mm
Weight & dimensions - Width - 115 mm
Wireless communication - No
