ID: 927166
Product code: IPC-HDW2449TM-S-IL-0280B
In stock 12 units
Warranty: 3 years

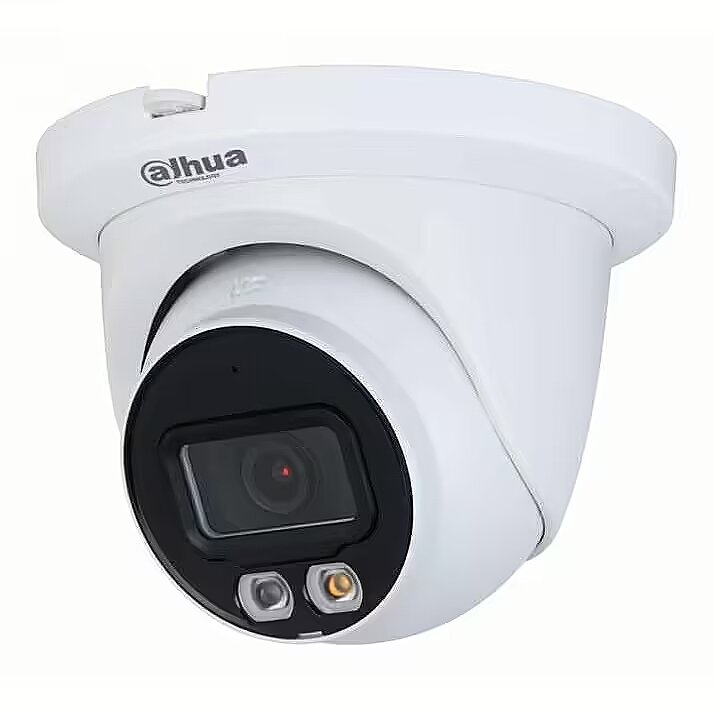

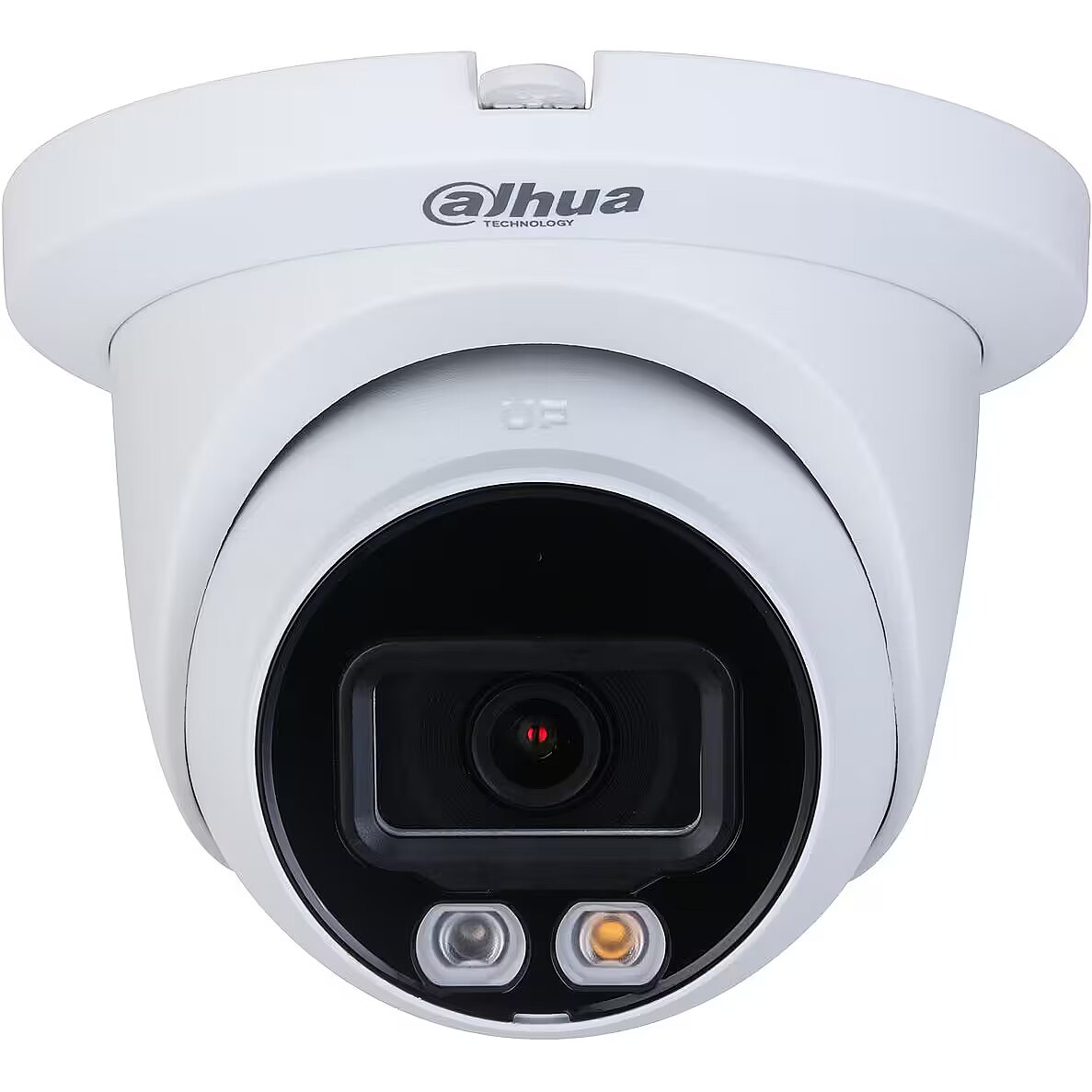

Dahua Eyeball, 1520p, 4MP, White
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
All parameters
Aperture
: F1.6
Atmiņas kartes ligzda
: microSD
Colour
: Balta
Encoding
: H.264, H.265
Feeding
: 12V adapteris, PoE
FPS at maximum resolution
: 20
Microphone
: Ir
Network connections
: Ir, Nav
Number of cameras per set
: 1
Operating temperature MAX (°C)
: 60
Operating temperature MIN (°C)
: -40
Resolution
: 2688x1520
SIM card socket
: Nav
Use
: Indoor/Outdoor
Viewing angle
: 95°
Water resistance
: IP67
Weight (g)
: 370
More detailed specification
Camera design - Eyeball
Category Code - FNC
Description - - 1/2.9” 4Megapixel progressive CMOS, 2688 × 1520 @ 20 fps - Minimum illumination: 0.008 lux @ F1.6 (Color, 30 IRE), 0.0008 lux@F1.6 (B/W, 30 IRE), 0 lux (Illuminator on) - 2.8 mm fixed lens (95°) - Up to 30 meters Illumination: white warm light/IR LED - True Day/Night (ICR), BLC / HLC / True WDR 120dB /3D DNR - H.265; H.264; H.264B; MJPEG, Smart H.265+; Smart H.264+encoding, ONVIF (Profile S/Profile G/Profile T); CGI; P2P - No alarm I/O, no audio I/O, Built-in MIC - Micro SD card up to 256GB supported - Metal case, IP67, -40°C~+60°C, PoE / 12VDC power, 7.3W max - Smart capabilities: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) - Free IP monitoring software available
dimensionalWeight - 444
dimensionalWeight - 462
Dimensions - 99.1 mm × Φ121.9 mm
Electronic Shutter Speed - Auto/Manual 1/3 s–1/100,000 s
Environment - Outdoor
Focal Length - 2.8 mm
Full Description Line - Type Fixed/Outdoor|Pixel Resolution 4 Mega Pixel|Focal Length 2.8 mm|IR Illumination|Sensor size 1/2.9" CMOS|Microphone Built-in|Lens Mount M12|Min. Illumination 0.0008 Lux|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xMicroSD Card Slot|1xRJ45|Supports card capacities up to 256GB|Power options PoE/12V|Power supply requirements PoE / 12VDC power|Environment Outdoor|Operating temperature range -40°C~+60°C|Dimensions 99.1 mm × Φ121.9 mm
IR Illumination - Yes
Lens Mount - M12
Microphone - Built-in
MicroSD Card Slot Input/Output connectors - 1
Min. Illumination - 0.0008 Lux
Model - IPC-HDW2449TM-S-IL-0280B
Network Camera Type - Fixed/Outdoor
Operating temperature range - -40°C~+60°C
Pixel Resolution - 4 Mega Pixel
Power consumption - 7.3 Watts
Power options - 12V/PoE
Power supply requirements - PoE / 12VDC power
producerCode - IPC-HDW2449TM-S
producerCode - IPC-HDW2449TM-S-IL-0280B
productName - IP CAMERA DAHUAIPC-HDW2449TM-S-IL-0280B
productName - Kamera IP DAHUA IPC-HDW2449TM-S-IL-0280B
productSize - Normal
RJ45 Input/Output connectors - 1
Sensor size - 1/2.9" CMOS
Shipping Box Depth Shipping/Package Box Dimensions - 14 cm
Shipping Box Height Shipping/Package Box Dimensions - 14 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.66 kg
Shipping Box Width Shipping/Package Box Dimensions - 11.5 cm
sizeX - 138
sizeX - 140
sizeY - 115
sizeY - 118
sizeZ - 140
Supports card capacities up to - 256GB
Unit Box Height - 0.14
Unit Box Length - 0.14
Unit Box Width - 0.115
Unit Brutto Volume - 0.002254 cubm
Unit Gross Weight - 0.66 kg
Unit Net Weight - 0.46 kg
Vendor Homepage - www.dahuasecurity.com/ceen/products/All-Products/Network-Cameras/WizSense-Series/2-Series/Smart-Dual-Illuminators/IPC-HDW2449TM-S-IL
Warranty - 36 months
warrantyLength - 36
warrantyType - G
weight - 640
weight - 655
