ID: 871204
Product code: IPC-HFW1230DS-SAW-0280B
In stock 2 units
Warranty: 3 years

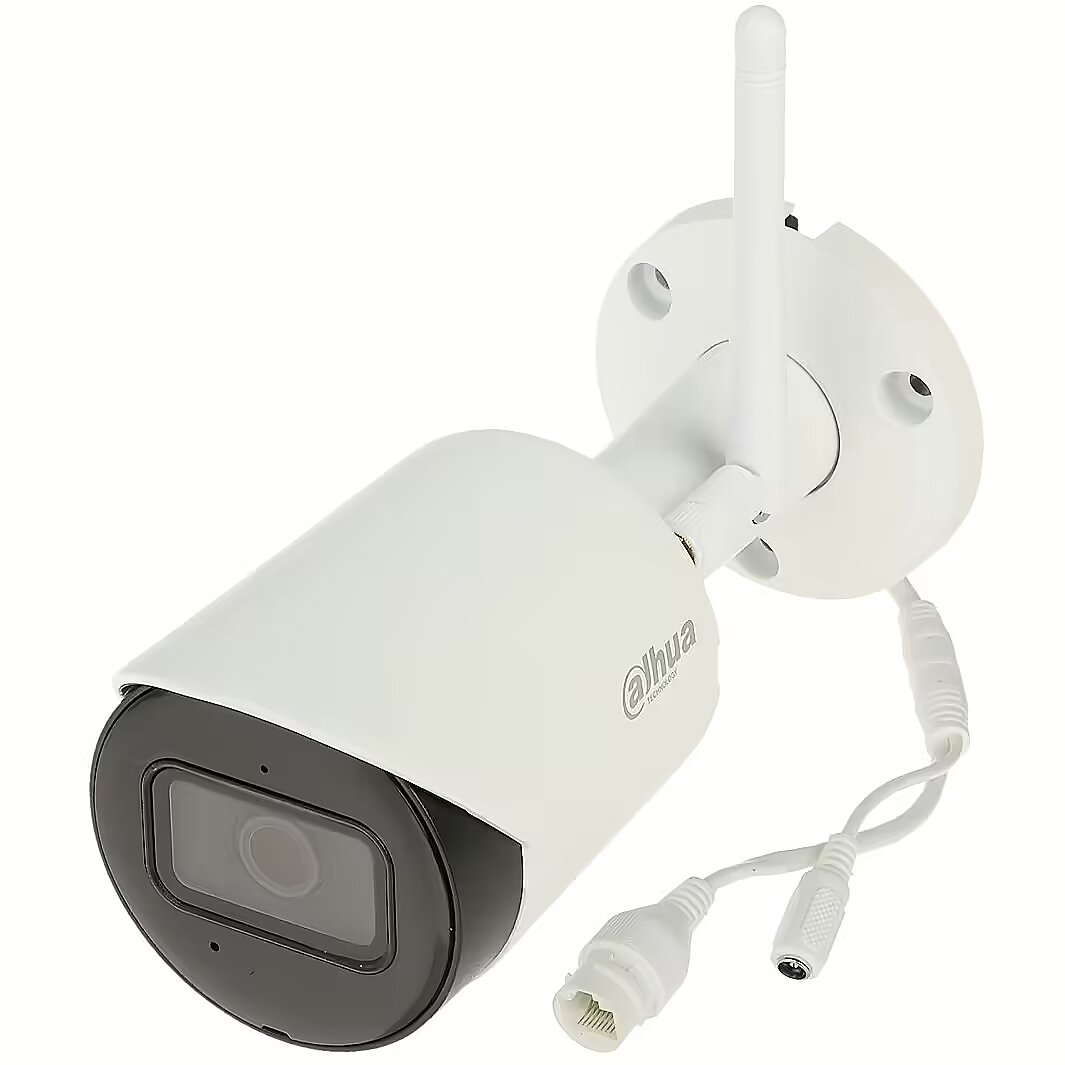

Dahua Bullet, 1080p Full HD, 2MP, White
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost 6.99 €: on Wednesday, 30.04.2025
- Courier delivery 11.99 €: on Wednesday, 30.04.2025
All parameters
Aperture
: F2.0
Atmiņas kartes ligzda
: microSD
Colour
: Balta
Encoding
: H.264, H.265
Feeding
: 12V adapteris
FPS at maximum resolution
: 20
Microphone
: Ir
Network connections
: Ir, Nav
Number of cameras per set
: 1
Operating temperature MAX (°C)
: 50
Operating temperature MIN (°C)
: -40
Resolution
: 1920x1080
SIM card socket
: Nav
Use
: Indoor/Outdoor
Viewing angle
: 100°
Water resistance
: IP67
Weight (g)
: 730
More detailed specification
Camera design - Bullet
Category Code - FNC
Description - 1/3” 2 Megapixel progressive CMOS, 1920 × 1080 @20 fps 2.8 mm fixed lens (100 °) Min. Illumination: 0.025 lux@ F2.0 (Color,30 IRE); 0.0025 lux@ F2.0 (B/W,30 IRE); 0 lux (Illuminator on) Up to 30 meters IR Illumination True Day/Night with ICR Filter, BLC, HLC, DWDR, 3D DNR Smart H.265+; Smart H.264+, H.264B; H.264; H.264H; H.265, ONVIF (Profile S/Profile G); CGI; P2P Wi-Fi: IEEE802.11b/g/n 2.4~2.4835GHz, up to 80 m Built-in MIC, Micro SD Slot (up to 256 GB) DC 12V1A Power supply, Power Consumption: < 4.1W Bullet design, metal case, IP67, -40°C to +50°C, indoor/outdoor use Free IP monitoring software available
Dimensions - 166.2 mm × 70.0 mm × 128.6 mm
Effective pixels - 2560(H)×1440(V)
Electronic Shutter Speed - Auto/Manual 1/3 s–1/100,000 s
Environment - Outdoor
Focal Length - 2.8 mm
Full Description Line - Type HDTV/Megapixel/Outdoor|Pixel Resolution 4 Mega Pixel|Focal Length 2.8 mm|IR Illumination|Sensor size 1/3” 4|Microphone Built-in|Lens Mount M12|Min. Illumination 0.025 Lux|Effective pixels 2560(H)×1440(V)|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|Power options 12V|Power supply requirements DC 12V1A|Environment Outdoor|Operating temperature range -40°C to +50°C|Dimensions 166.2 mm × 70.0 mm × 128.6 mm
IR Illumination - Yes
Lens Mount - M12
Microphone - Built-in
Min. Illumination - 0.025 Lux
Network Camera Type - HDTV/Megapixel/Outdoor
Operating temperature range - -40°C to +50°C
Pixel Resolution - 4 Mega Pixel
Power consumption - 4.1 Watts
Power options - 12V
Power supply requirements - DC 12V1A
Sensor size - 1/3” 4
Shipping Box Depth Shipping/Package Box Dimensions - 23 cm
Shipping Box Height Shipping/Package Box Dimensions - 10 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.73 kg
Shipping Box Width Shipping/Package Box Dimensions - 12.5 cm
Unit Box Height - 0.1
Unit Box Length - 0.23
Unit Box Width - 0.125
Unit Brutto Volume - 0.002875 cubm
Unit Gross Weight - 0.73 kg
Unit Net Weight - 0.477 kg
Vendor Homepage - www.dahuasecurity.com/products/All-Products/Network-Cameras/Wireless-Series/Wi-Fi-Series/2MP/IPC-HFW1230DS-SAW
Warranty - 36 months
Category Code - FNC
Description - 1/3” 2 Megapixel progressive CMOS, 1920 × 1080 @20 fps 2.8 mm fixed lens (100 °) Min. Illumination: 0.025 lux@ F2.0 (Color,30 IRE); 0.0025 lux@ F2.0 (B/W,30 IRE); 0 lux (Illuminator on) Up to 30 meters IR Illumination True Day/Night with ICR Filter, BLC, HLC, DWDR, 3D DNR Smart H.265+; Smart H.264+, H.264B; H.264; H.264H; H.265, ONVIF (Profile S/Profile G); CGI; P2P Wi-Fi: IEEE802.11b/g/n 2.4~2.4835GHz, up to 80 m Built-in MIC, Micro SD Slot (up to 256 GB) DC 12V1A Power supply, Power Consumption: < 4.1W Bullet design, metal case, IP67, -40°C to +50°C, indoor/outdoor use Free IP monitoring software available
Dimensions - 166.2 mm × 70.0 mm × 128.6 mm
Effective pixels - 2560(H)×1440(V)
Electronic Shutter Speed - Auto/Manual 1/3 s–1/100,000 s
Environment - Outdoor
Focal Length - 2.8 mm
Full Description Line - Type HDTV/Megapixel/Outdoor|Pixel Resolution 4 Mega Pixel|Focal Length 2.8 mm|IR Illumination|Sensor size 1/3” 4|Microphone Built-in|Lens Mount M12|Min. Illumination 0.025 Lux|Effective pixels 2560(H)×1440(V)|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|Power options 12V|Power supply requirements DC 12V1A|Environment Outdoor|Operating temperature range -40°C to +50°C|Dimensions 166.2 mm × 70.0 mm × 128.6 mm
IR Illumination - Yes
Lens Mount - M12
Microphone - Built-in
Min. Illumination - 0.025 Lux
Network Camera Type - HDTV/Megapixel/Outdoor
Operating temperature range - -40°C to +50°C
Pixel Resolution - 4 Mega Pixel
Power consumption - 4.1 Watts
Power options - 12V
Power supply requirements - DC 12V1A
Sensor size - 1/3” 4
Shipping Box Depth Shipping/Package Box Dimensions - 23 cm
Shipping Box Height Shipping/Package Box Dimensions - 10 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.73 kg
Shipping Box Width Shipping/Package Box Dimensions - 12.5 cm
Unit Box Height - 0.1
Unit Box Length - 0.23
Unit Box Width - 0.125
Unit Brutto Volume - 0.002875 cubm
Unit Gross Weight - 0.73 kg
Unit Net Weight - 0.477 kg
Vendor Homepage - www.dahuasecurity.com/products/All-Products/Network-Cameras/Wireless-Series/Wi-Fi-Series/2MP/IPC-HFW1230DS-SAW
Warranty - 36 months
