Audio - Audio formats supported - G.711 A-law
Audio - Audio input channels - 1 channels
Audio - Audio output channels - 1 channels
Audio - Audio system - 2-way
Audio - Bit rate range - 0 - 64 Kbit/s
Audio - Built-in microphone - Yes
Audio - Built-in speaker(s) - Yes
Audio - Number of microphones - 1
Audio - Sample rate - 8 kHz
Brand - TP-Link
BrandPartCode - INSIGHT S345-4G(4MM)
Camera - Camera shutter speed - 1/3 to 1/10000
Camera - Lens viewing angle, diagonal - 98.7°
Camera - Lens viewing angle, horizontal - 80.4°
Camera - Lens viewing angle, vertical - 41.8°
Camera - Minimum illumination - 0 lx
Camera - Tilt angle range - 0 - 90°
Category - Security Cameras
Category 1 - Netzwerk
Category 2 - Netzwerkkameras
Design - Form factor - Bullet
Design - Housing material - Metal
Design - International Protection (IP) code - IP66
Design - Mounting type - Wall
Design - Product colour - White
Design - Protection features - Waterproof
Design - Weatherproof - Yes
EAN - 8885020625585
GTIN - 8885020625585
Image sensor - Optical sensor size - 25.4 / 2.7 mm (1 / 2.7")
Image sensor - Progressive scan - Yes
Image sensor - Sensor type - CMOS
Lens system - Detect distance - 80 m
Lens system - Fixed focal length - 4 mm
Lens system - Fixed focus - Yes
Lens system - Identify distance - 8 m
Lens system - Maximum aperture number - 1.6
Lens system - Observe distance - 33 m
Lens system - Recognize distance - 16 m
LongDesc - 4G and 3 LAN Ports, Hassle-free Deployment4MP Outdoor Full-Color 4G Bullet Network Camera3 LAN Ports Meet Minimal Deployment EffortInSight S345-4G offers industry-first three LAN ports, enabling simultaneous connectivity for up to three devices as you need. It is ideal for coupling with solar power systems to eliminate additional wiring deployments.Human & Vehicle ClassificationDistinguish humans and vehicles from other objects and receive more accurate event notifications.LightPro Night Vision TechnologyThe VIGI LightPro Night Vision Technology intelligently switches between IR night vision and full-color night vision by detecting people or vehicles. This allows the camera to capture clearer and more critical details with the white light on, and to reduce light pollution and energy consumption with the IR light on at most time, effectively adapting to a broader range of scenarios.Smart Video Enhancement TechnologyTrue WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.△Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.Efficient H.265+ Compression TechnologyH.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.
LongProductName - VIGI 4MP Outdoor Full-Color 4G Bullet Network Camera, 4 mm, 1/2.7”, 1/3 to 1/10000 s, F1.6, 2688 x 1520, CBR, VBR, BLC/3D DNR/HLC/SmartIR, 120 dB, 12V DC ± 5%, Max. 10.59 W, 5.5 mm Coaxial Power Plug, 690~960, 1710~2690MHz Dipole Omni-Directional Antenna, IP66, 256 x 122 x 101 mm, 1.09 kg, White
LongSummaryDescription - TP-Link INSIGHT S345-4G. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: White, Form factor: Bullet. Lens viewing angle, horizontal: 80.4°, Lens viewing angle, vertical: 41.8°, Lens viewing angle, diagonal: 98.7°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Detect distance: 80 m, Observe distance: 33 m, Recognize distance: 16 m
Management features - Cloud-managed - Yes
Management features - Reset button - Yes
Management features - Web-based management - Yes
Management features - Web browser - Yes
Manufacturer - TP-Link
MPN - InSight S345-4G(4mm)
Name - TP-Link Omada InSight S345-4G(4mm) 4MP Outdoor Bullet Netzwerkkamera
Network - 4G standard - LTE-TDD & LTE-FDD
Network - Bluetooth - No
Network - Ethernet LAN - Yes
Network - Live view - Yes
Network - Mobile network generation - 4G

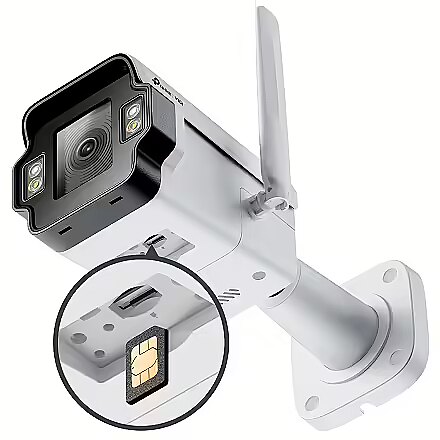

Network - SIM card slot - Yes
Network - SIM card type - NanoSIM
Network - Supported network protocols - TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
Network - Wi-Fi - No
Night vision - LED type - IR/White
Night vision - Night vision - Yes
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - -30 - 60 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -40 - 60 °C
Packaging content - Drilling template included - Yes
Packaging content - Manual - Yes
Packaging content - Mounting kit - Yes
Packaging content - Number of cameras - 1
Packaging content - Screws included - Yes
Performance - Antennas quantity - 2
Performance - Antenna type - External
Performance - Connectivity technology - Wired
Performance - Day/night mode - Yes
Performance - Dynamic range - 120 dB
Performance - Infrared (IR) cut-off filter - Yes
Performance - Maximum operating distance - 80 m
Performance - Placement supported - Outdoor
Performance - Remote viewing - Yes
Performance - Type - IP security camera
Performance - Wide Dynamic Range (WDR) - Yes
Ports & interfaces - DC-in jack - Yes

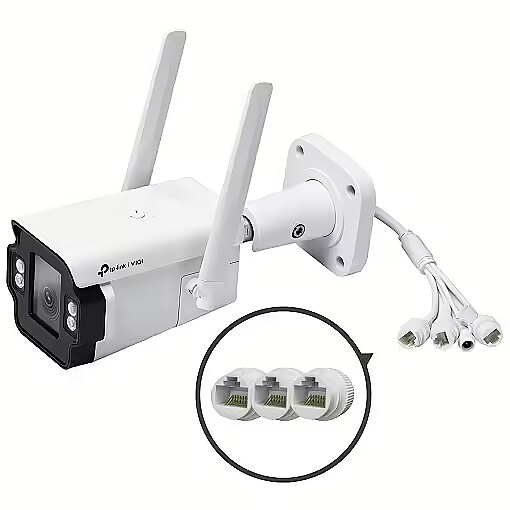

Ports & interfaces - Ethernet LAN (RJ-45) ports - 3
Power - DC output voltage - 12
Power - Power consumption (max) - 9.7 W
Power - Power consumption (Power over Ethernet (PoE)) - 10.7 W
Power - Power source type - DC
ProductName - INSIGHT S345-4G
Security - Alert notification type - Push notification
Security - Built-in siren - Yes
Security - Detection distance - 120 m
Security - Digest authentication - Yes
Security - HTTPS encryption - Yes
Security - Human and vehicle targets classification - Yes
Security - IP address filtering - Yes
Security - Mirror - Yes
Security - Motion sensor - Yes
Security - Password protection - Yes
Security - Video motion detection - Yes
ShortSummaryDescription - TP-Link INSIGHT S345-4G, IP security camera, Outdoor, Wired, 80 m, External, 120 dB
Storage - Compatible memory cards - MicroSD (TransFlash)
Storage - Maximum memory card size - 512 GB
Title - TP-Link INSIGHT S345-4G Bullet IP security camera Outdoor 2688 x 1520 pixels Wall
URL - https://www.tp-link.com/ae/business-networking/vigi-network-camera/insight-s345-4g/
Video - Back Light Compensation (BLC) - Yes
Video - Bit rate - Main Stream: 256 Kbps to 6 Mbps, Sub-Stream: 64 Kbps to 512 Kbps
Video - Bit rate control - Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Video - Digital Wide Dynamic Range (DWDR) - Yes
Video - Highlight Compensation (HLC) - Yes
Video - Image quality adjustment - Brightness, Contrast, Mirror, Saturation, Sharpness
Video - Maximum resolution - 2688 x 1520 pixels
Video - Supported graphics resolutions - 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440, 2688 x 1520
Video - Total megapixels - 4 MP
Video - Video compression formats - H.264, H.264+, H.265, H.265+
Video - Video recording - Yes
WarrantyInfo -
Weight & dimensions - Height - 101 mm
Weight & dimensions - Length - 256 mm
Weight & dimensions - Weight - 1.09 kg
Weight & dimensions - Width - 122 mm
