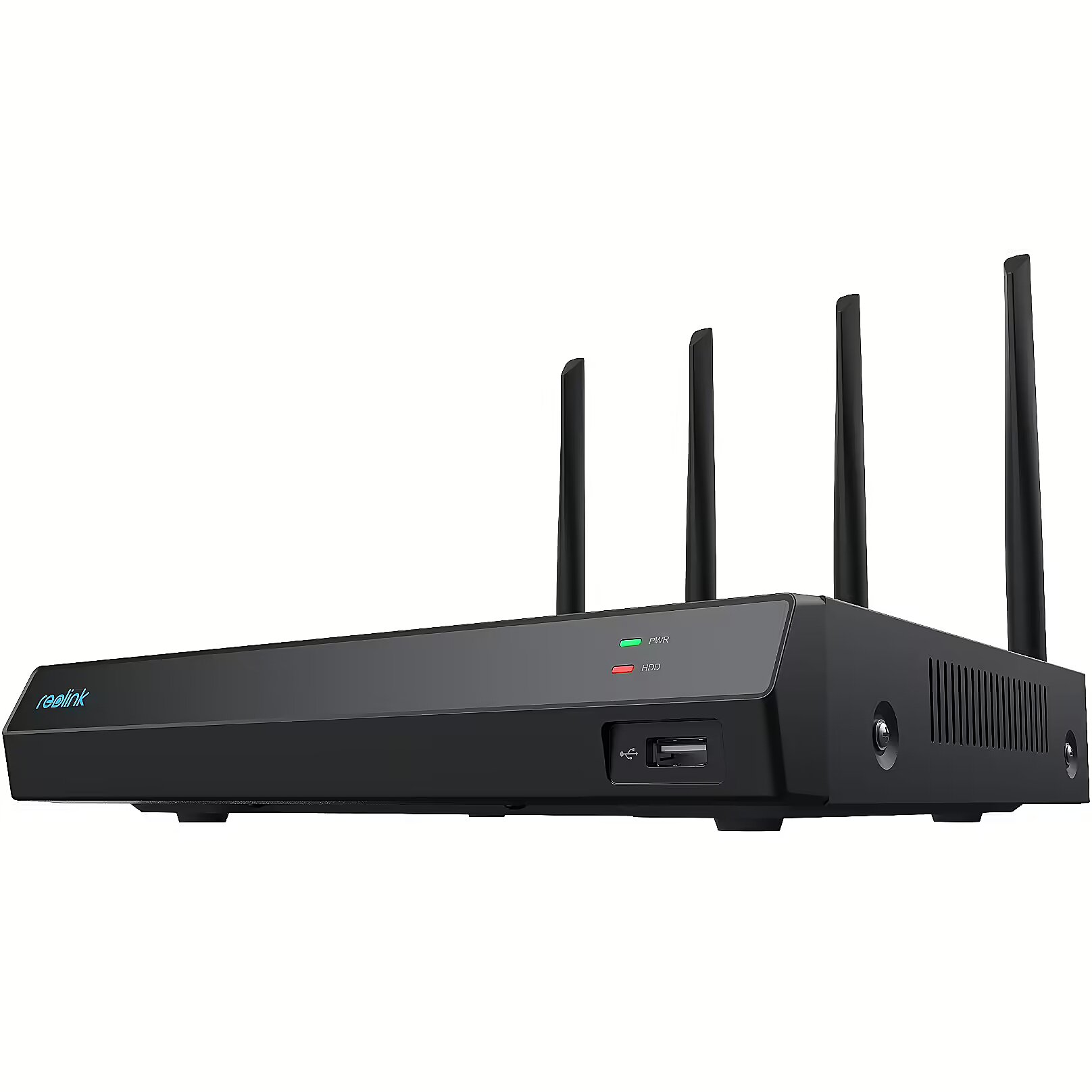

Reolink Rejestrator Reolink NVS12W NVR

Brand - Reolink
BrandPartCode - 6975253983940
Category - Network Video Recorders (NVR)
Code - WN12W
dimensionalWeight - 1814
EAN - 6975253983940
Features - Product colour - Black
GTIN - 6975253983940
Hard drive - HDD capacity - 2 TB
Hard drive - HDD interface - SATA
Hard drive - Maximum storage capacity - 16 TB
Hard drive - Number of HDDs installed - 1
Hard drive - Number of HDDs supported - 1
Hard drive - Total installed storage capacity - 2 TB
LongDesc - NVS12W is a next-gen Wi-Fi 6 NVR that redefines your home security. It allows for up to 12 security devices to monitor every corner of your house. With a robust 2TB HDD and the ability to expand up to 16TB, it can archive your event recordings or 24/7 footage. Building your home security system with this NVR, you can also enjoy local live viewing offline and get centralized management of all your cameras.12 Channels at 16MPSupports up to 12 channels of IPC access; each channel up to 16MP input.Next-Gen Wi-Fi 6Experience seamless, lag-free live streaming with blazing-fast Wi-Fi 6 speeds. Supporting 5/2.4 GHz frequency, you can switch between them for a more stable network experience.Long-Range Wi-Fi SignalFour external high-gain antennas enable the outstanding signal strength of the NVR, which covers an area of up to 1,000 square meters.*The data is obtained under laboratory conditions. Actual results may vary.Up to 16TB Storage CapacityStore videos locally on a pre-installed 2TB HDD (upgradable to 16TB).24/7 RecordingContinuous recordings directly to your hard drive with expandable storage.Local and Remote AccessAccess the live feeds offline via a monitor or an HD TV, or remotely via the Reolink App.DIY Your Wi-Fi Security System EasilyTake control of your security system centrally with Reolink Wi-Fi NVR, allowing you to customize and build your Wi-Fi security system with ease and confidence.
LongProductName - NVS12W - 12-Channel Wi-Fi 6 NVR, Support Up to 16MP Cam, 5/2.4 GHz Wi-Fi, 2TB HDD, 16TB Storage Capacity
LongSummaryDescription - Reolink NVS12W - 12-Channel Wi-Fi 6 NVR, Support Up to 16MP Cam, 5/2.4 GHz Wi-Fi, 2TB HDD, 16TB Storage Capacity. Video input channels: 12 channels, Maximum resolution: 3840 x 2160 pixels, Number of simultaneously playbacked channels: 4 channels. Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Security algorithms: WPA, WPA2, WPA3. HDD capacity: 2 TB, Maximum storage capacity: 16 TB, HDD interface: SATA. Ethernet LAN data rates: 10,100,1000 Mbit/s, Supported network protocols: HTTPS, TCP/IP, UDP, DHCP, P2P, UPNP, RTMP, RTSP,SMTP, SSL/TLS, DNS, DDNS, NTP, FTP. Product colour: Black
Name - Reolink WN12W 12-Channel Wi-Fi 6 NVR Recorder for 24/7 Local Recordings
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - -10 - 45 °C
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 478 mm
Package features > Gross height (mm) - 300 mm
Package features > Gross width (mm) - 370 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 16 pc(s)
Package features > Paper/Pasteboard - 490.00 g
Package features > Plastic (No PET) - 10.00 g
Package features > Tare weight (kg) - 0.50 kg
Package features > Volume (m3) - 0.053058 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes

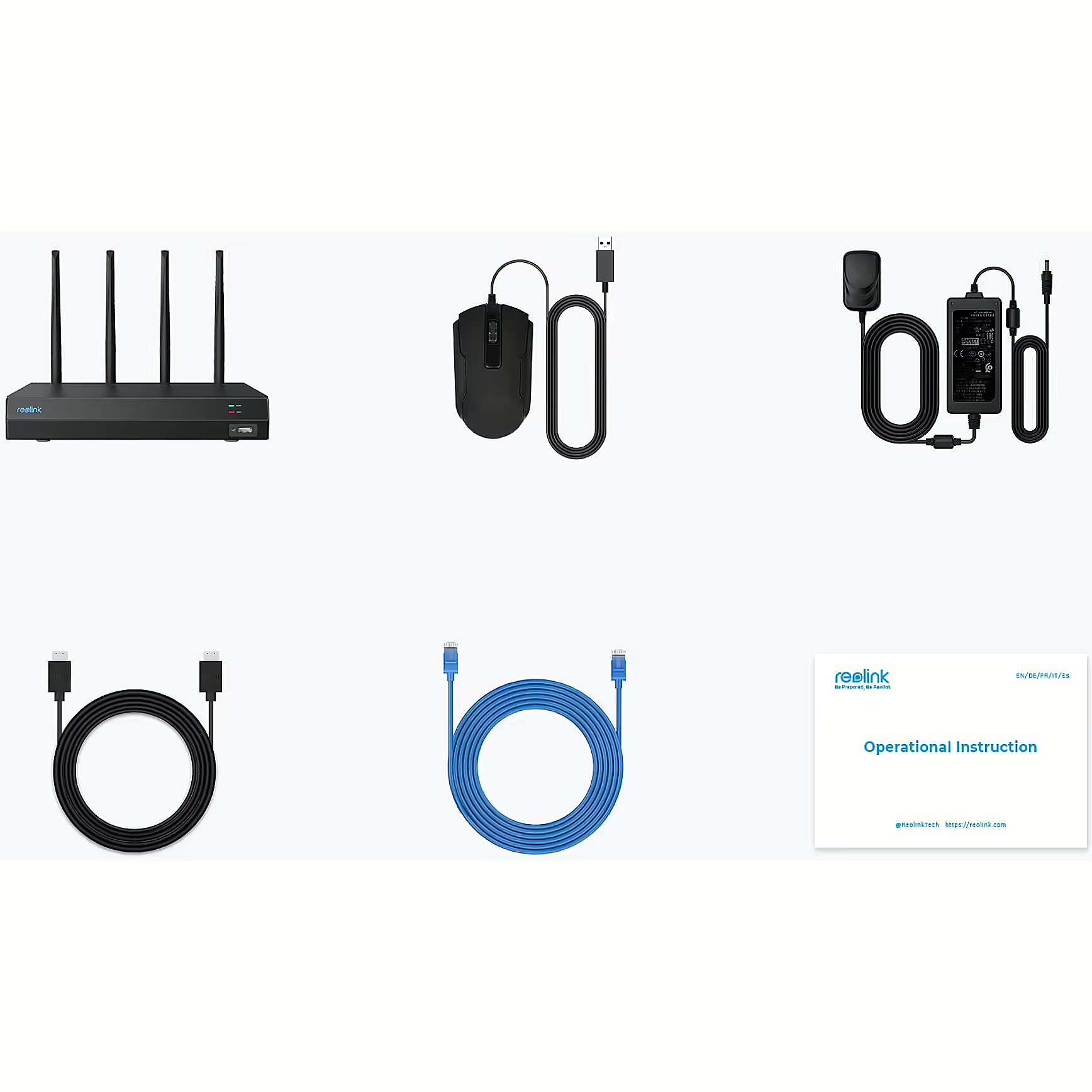

Packaging content - Packaging content - 1 - NVS12W
1 - NVR Power Adapter
1 - HDMI Cable
1 - USB Mouse
1 - 1m Network Cable
1 - Quick Start Guide
Performance - Maximum resolution - 3840 x 2160 pixels
Performance - Number of simultaneously playbacked channels - 4 channels
Performance - Number of users - 20 user(s)
Performance - Supported resolutions - 3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768
Performance - Video formats supported - H.264
Performance - Video formats supported - H.264, H.265
Performance - Video formats supported - H.265
Performance - Video input channels - 12 channels
Performance - Video recording modes - 720p
Performance - Video recording modes - 720p, 1080p
Performance - Video recording modes - 1080p
Ports & interfaces - Audio RCA outputs - 1
Ports & interfaces - Ethernet LAN (RJ-45) ports - 5
Ports & interfaces - Ethernet LAN data rates - 10
Ports & interfaces - Ethernet LAN data rates - 10,100,1000 Mbit/s
Ports & interfaces - Ethernet LAN data rates - 100
Ports & interfaces - Ethernet LAN data rates - 1000 Mbit/s
Ports & interfaces - Ethernet WAN - Yes
Ports & interfaces - HDMI output - Yes
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - Power over Ethernet (PoE) - No
Ports & interfaces - Supported network protocols - HTTPS, TCP/IP, UDP, DHCP, P2P, UPNP, RTMP, RTSP,SMTP, SSL/TLS, DNS, DDNS, NTP, FTP
Ports & interfaces - USB 2.0 ports quantity - 2
Ports & interfaces - VGA (D-Sub) output ports - 1
Power - Output current - 2 A
Power - Output voltage - 12 V
Power - Power consumption (typical) - 10 W
producerCode - NVS12W NVR
ProductName - NVS12W - 12-Channel Wi-Fi 6 NVR, Support Up to 16MP Cam, 5/2.4 GHz Wi-Fi, 2TB HDD, 16TB Storage Capacity
productName - Reolink NVS12W - 12-Channel Wi-Fi 6 NVR, Support Up to 16MP Cam, 5/2.4 GHz Wi-Fi, 2TB HDD, 16TB Storage Capacity, black
productSize - Normal
ShortSummaryDescription - Reolink NVS12W - 12-Channel Wi-Fi 6 NVR, Support Up to 16MP Cam, 5/2.4 GHz Wi-Fi, 2TB HDD, 16TB Storage Capacity, 12 channels, 3840 x 2160 pixels, 4 channels, 720p, 1080p, 3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768, 20 user(s)
sizeX - 360
sizeY - 280
sizeZ - 90
System requirements - Browser supported - Edge, Firefox, Chrome, Safari
System requirements - Mac compatibility - Yes
System requirements - Mobile operating systems supported - Android
System requirements - Mobile operating systems supported - Android, iOS
System requirements - Mobile operating systems supported - iOS
System requirements - Windows operating systems supported - Yes
Technical details > Gross weight - 1.90 kg
Technical details > Net weight - 1.40 kg
Technical details > Producer - Reolink
Title - Reolink NVS12W - 12-Channel Wi-Fi 6 NVR, Support Up to 16MP Cam, 5/2.4 GHz Wi-Fi, 2TB HDD, 16TB Storage Capacity
URL - https://reolink.com/
Warranty - 24
Warranty - 24 month(s)
WarrantyInfo - 2 Years
warrantyLength - 24
warrantyType - F
weight - 2064
Weight & dimensions - Depth - 222.7 mm
Weight & dimensions - Height - 49.5 mm
Weight & dimensions - Weight - 1.4 kg
Weight & dimensions - Width - 255 mm
Wireless LAN features - Security algorithms - WPA
Wireless LAN features - Security algorithms - WPA, WPA2, WPA3
Wireless LAN features - Security algorithms - WPA2
Wireless LAN features - Security algorithms - WPA3
Wireless LAN features - Wi-Fi - Yes
Wireless LAN features - Wi-Fi band - Dual-band (2.4 GHz / 5 GHz)
Wireless LAN features - Wi-Fi standards - 802.11a
Wireless LAN features - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Wireless LAN features - Wi-Fi standards - 802.11b
Wireless LAN features - Wi-Fi standards - 802.11g
Wireless LAN features - Wi-Fi standards - Wi-Fi 4 (802.11n)
Wireless LAN features - Wi-Fi standards - Wi-Fi 5 (802.11ac)
Wireless LAN features - Wi-Fi standards - Wi-Fi 6 (802.11ax)
