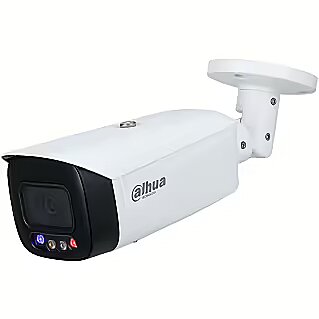

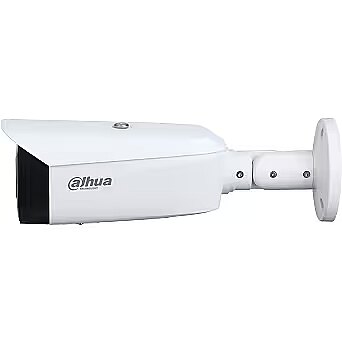

Dahua Bullet, 1668p, 5MP, White

Alarm In Input/Output connectors - 1
Alarm Out Input/Output connectors - 1
Audio-In Input/Output connectors - 1
Audio-Out Input/Output connectors - 1
Camera design - Bullet
Category Code - FNC
Colour - White
Description - > 5-MP 1/2.7" CMOS image sensor, low luminance, and high definition image. > Outputs max. 5 MP (2960 ×1668) @20 fps. > H.265 codec, high compression rate, ultra-low bit rate. > Built-in warm light and IR LED; the max. IR illumination distance is 30 m and warm light distance is 30 m. > ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments. > Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes. > Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human) > Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection. > Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built-in dual Mic; 1-ch speaker; support two-way talk. > 12 VDC/PoE power supply. > IP67 protection. > Sound and light alarm (red and blue lights). > SMD 4.0. > Supports AI SSA and one-tap arming and disarming. > SMD area can be set in warm light areas that support triggering alarms.
Dimensions - 288.4 × 94.4 × 84.7 mm
Effective pixels - 2960 (H) × 1688 (V)
Electronic Shutter Speed - Auto/Manual 1/3 s–1/100,000 s
Environment - Outdoor
Full Description Line - Type HDTV/Megapixel/Outdoor|Pixel Resolution 5 Mega Pixel|IR Illumination|Sensor size 1/2.7|Microphone Built-in|Lens Mount M12|Min. Illumination 0.0003 Lux|Effective pixels 2960 (H) × 1688 (V)|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xAudio-In|1xAudio-Out|1xRJ45|1xAlarm In|1xAlarm Out|Supports card capacities up to 256GB|Power options PoE/12V|Power supply requirements 12 VDC/PoE (802.3af)|Environment Outdoor|Operating temperature range –40 °C to +60 °C|Colour White|Dimensions 288.4 × 94.4 × 84.7 mm
IR Illumination - Yes
Lens Mount - M12
Microphone - Built-in
Min. Illumination - 0.0003 Lux
Network Camera Type - Outdoor/HDTV/Megapixel
Operating temperature range - –40 °C to +60 °C
Pixel Resolution - 5 Mega Pixel
Power consumption - 4.8 Watts
Power options - 12V/PoE
Power supply requirements - 12 VDC/PoE (802.3af)
RJ45 Input/Output connectors - 1
Sensor size - 1/2.7
Shipping Box Depth Shipping/Package Box Dimensions - 57.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 32 cm
Shipping box quantity - 8
Shipping Box Weight Shipping/Package Box Dimensions - 11.3 kg
Shipping Box Width Shipping/Package Box Dimensions - 35.5 cm
Supports card capacities up to - 256GB
Unit Brutto Volume - 0.008165 cubm
Unit Gross Weight - 1.41 kg
Unit Net Weight - 1 kg
Vendor Homepage - www.dahuasecurity.com/ceen/products/All-Products/Network-Cameras/WizSense-Series/TiOC/IPC-HFW3549T1-AS-PV=S5
Warranty - 36 months
