Camera - Angle of rotation - 355°
Camera - Camera pan control - Yes
Camera - Camera shutter speed - 1/3 - 1/100000 s
Camera - Camera tilt control - Yes
Camera - Lens viewing angle, diagonal - 122°
Camera - Lens viewing angle, horizontal - 103°
Camera - Lens viewing angle, vertical - 55°
Camera - Pan range - 0 - 360°
Camera - Tilt angle range - 0 - 90°
Design - Form factor - Dome
Design - Housing material - Aluminium
Design - International Protection (IP) code - IP67
Design - Mounting type - Ceiling/wall
Design - Product colour - White
dimensionalWeight - 639
Image sensor - Number of sensors - 1
Image sensor - Optical sensor size - 25.4 / 3 mm (1 / 3")
Image sensor - Progressive scan - Yes
Image sensor - Sensor type - CMOS
Lens system - Fixed focal length - 2.8 mm
Lens system - Identify distance (wide) - 6 m
Lens system - Maximum aperture number - 1.6
Lens system - Number of lenses - 1
Lens system - Observe distance (wide) - 26 m
Lens system - Recognize distance (wide) - 13 m
Logistics data - Harmonized System (HS) code - 85258900
Management features - Behavior analysis - Intrusion detection, Line crossing detection
Management features - Reset button - Yes
Management features - Web-based management - Yes
Management features - Web browser - Yes
Network - Bluetooth - No
Network - Ethernet interface type - Fast Ethernet
Network - Ethernet LAN - Yes
Network - Networking standards - IEEE 802.1x
Network - Networking standards - IEEE 802.3af
Network - Number of users - 32 user(s)
Network - Quality of Service (QoS) support - Yes
Network - Wi-Fi - No
Night vision - Infra-red wavelength - 850 nm
Night vision - LED type - IR
Night vision - Night vision - Yes
Night vision - Night vision distance - 30 m
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - -30 - 60 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -30 - 60 °C
Packaging content - Number of cameras - 1
Performance - Certification - FCC SDoC (47 CFR 15, B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: 6, 2016); KC (KN 32: 2015, KN 35: 2015)UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015);LOA (IEC/EN 60950-1)
Performance - Connectivity technology - Wired
Performance - Day/night mode - Yes
Performance - Infrared (IR) cut-off filter - Yes
Performance - Number of languages - 33
Performance - Placement supported - Outdoor
Performance - Type - IP security camera
Performance - Wide Dynamic Range (WDR) - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Power - DC output current - 0.5 A
Power - DC output voltage - 12
Power - Power consumption (max) - 6 W
Power - Power consumption (Power over Ethernet (PoE)) - 7 W
Power - Power source type - DC, PoE
producerCode - DS-2CD2343G2-I(2.8mm)

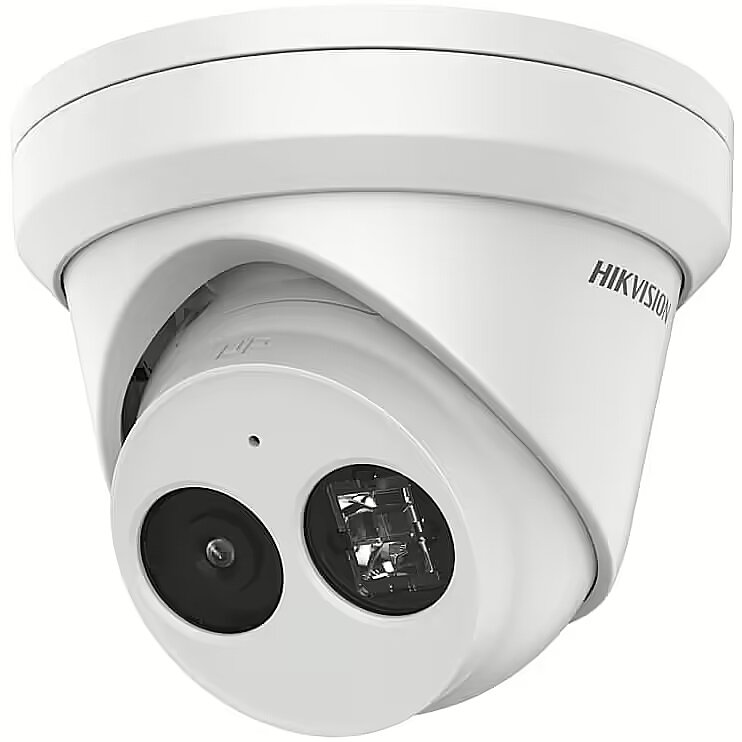

productName - IP camera Hikvision DS-2CD2343G2-I(2.8mm)
productSize - Normal
Security - Anti-flicker - Yes
Security - Heartbeat - Yes
Security - HTTPS encryption - Yes
Security - Intelligent Video Surveillance (IVS) system features - Missing object
Security - IP address filtering - Yes
Security - Mirror - Yes
Security - Password protection - Yes
Security - Video motion detection - Yes
sizeX - 150
sizeY - 142
sizeZ - 150
Storage - Built-in HDD - No
Storage - Card reader integrated - Yes
Storage - Compatible memory cards - MicroSD (TransFlash)
Storage - Compatible memory cards - MicroSDHC
Storage - Compatible memory cards - MicroSDXC
Storage - Maximum memory card size - 256 GB
Video - Back Light Compensation (BLC) - Yes
Video - Bit rate - 32 Kbps - 8 Mbps
Video - Bit rate control - Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Video - Frame rate - 30 fps
Video - Highlight Compensation (HLC) - Yes
Video - Image quality adjustment - Brightness
Video - Image quality adjustment - Contrast
Video - Image quality adjustment - Saturation
Video - Image quality adjustment - Sharpness
Video - Noise reduction - Yes
Video - Noise reduction technology - 3D noise reduction
Video - Privacy masking - Yes
Video - Region of Interest (ROI) encoding - Yes
Video - Supported graphics resolutions - 640 x 360
Video - Supported graphics resolutions - 640 x 480 (VGA)
Video - Supported graphics resolutions - 1280 x 720 (HD 720)
Video - Supported graphics resolutions - 1920 x 1080 (HD 1080)
Video - Supported graphics resolutions - 2688 x 1520
Video - Total megapixels - 4 MP
Video - Video compression formats - H.264
Video - Video compression formats - H.264+
Video - Video compression formats - H.265
Video - Video compression formats - H.265+
Video - Video compression formats - M-JPEG
Video - Video streaming - Yes
warrantyLength - 36
warrantyType - F
weight - 810
Weight & dimensions - Cable length - 1 m
Weight & dimensions - Diameter - 12.7 cm
Weight & dimensions - Height - 95.9 mm
Weight & dimensions - Package depth - 150 mm
Weight & dimensions - Package height - 141 mm
Weight & dimensions - Package weight - 816 g
Weight & dimensions - Package width - 150 mm
Weight & dimensions - Weight - 600 g
