ID: 1001705
Product code: IPC-HFW5541E-ZE-27135-S3
In stock 15 units
Warranty: 3 years

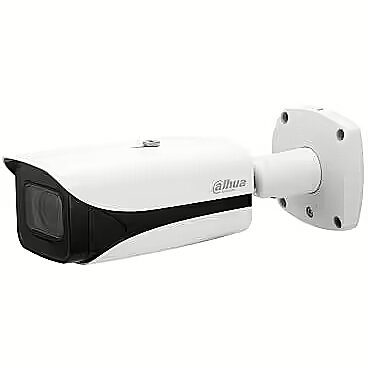

Dahua Bullet, 1668p, 5MP, White
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
All parameters
Aperture
: Nav norādīts
Atmiņas kartes ligzda
: microSD
Colour
: Balta
Encoding
: H.264, H.265
Feeding
: 12V adapteris, PoE
FPS at maximum resolution
: 25
Microphone
: Ir
Network connections
: Nav
Number of cameras per set
: 1
Operating temperature MAX (°C)
: 60
Operating temperature MIN (°C)
: -30
Resolution
: 2960x1668
SIM card socket
: Nav
Use
: Indoor/Outdoor
Viewing angle
: N/A
Water resistance
: IP67
Weight (g)
: 1200
More detailed specification
Alarm In Input/Output connectors - 2
Alarm Out Input/Output connectors - 1
Audio-In Input/Output connectors - 1
Audio-Out Input/Output connectors - 1
Camera design - Bullet
Category Code - FNC
Description - - 5-MP 1/2.7" CMOS image sensor, low luminance, and high definition image. - Outputs max. 5MP (2960×1668) @25/30 fps. - Built-in IR LED, and the max. illumination distance is 60 m. - ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments. - Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes. - With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc. - Alarm: 2 in, 1 out; audio: 1 in, 1 out; supports max. 512 GB Micro SD card, built-in MIC. - 12 VDC/PoE power supply; ePoE. - IP67 and IK10 protection. - SMD 3.0.
Dimensions - –30 °C to +60 °C
Electronic Shutter Speed - Auto/Manual 1/3 s–1/100,000 s
Environment - Outdoor
Full Description Line - Type Outdoor|Pixel Resolution 5 Mega Pixel|IR Illumination|Sensor size 1/2.7" CMOS|Microphone Built-in|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xAudio-In|1xAudio-Out|1xRJ45|2xAlarm In|1xAlarm Out|Power options PoE/12V|Power supply requirements 12 VDC/PoE (802.3af)/ePoE|Environment Outdoor|Operating temperature range –30 °C to +60 °C|Dimensions –30 °C to +60 °C
IR Illumination - Yes
Microphone - Built-in
Model - IPC-HFW5541E-ZE-27135-S3
Network Camera Type - Outdoor
Operating temperature range - –30 °C to +60 °C
Pixel Resolution - 5 Mega Pixel
Power options - 12V/PoE
Power supply requirements - 12 VDC/PoE (802.3af)/ePoE
RJ45 Input/Output connectors - 1
Sensor size - 1/2.7" CMOS
Shipping Box Depth Shipping/Package Box Dimensions - 38 cm
Shipping Box Height Shipping/Package Box Dimensions - 30.5 cm
Shipping box quantity - 4
Shipping Box Weight Shipping/Package Box Dimensions - 7.15 kg
Shipping Box Width Shipping/Package Box Dimensions - 31.5 cm
Unit Box Height - 0.135
Unit Box Length - 0.365
Unit Box Width - 0.15
Unit Brutto Volume - 0.009127 cubm
Unit Gross Weight - 1.79 kg
Unit Net Weight - 1.12 kg
Vendor Homepage - www.dahuasecurity.com/ne/products/All-Products/Network-Cameras/WizMind-S-Series/5MP/IPC-HFW5541E-ZE-S3=S3
Warranty - 36 months
Alarm Out Input/Output connectors - 1
Audio-In Input/Output connectors - 1
Audio-Out Input/Output connectors - 1
Camera design - Bullet
Category Code - FNC
Description - - 5-MP 1/2.7" CMOS image sensor, low luminance, and high definition image. - Outputs max. 5MP (2960×1668) @25/30 fps. - Built-in IR LED, and the max. illumination distance is 60 m. - ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments. - Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes. - With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc. - Alarm: 2 in, 1 out; audio: 1 in, 1 out; supports max. 512 GB Micro SD card, built-in MIC. - 12 VDC/PoE power supply; ePoE. - IP67 and IK10 protection. - SMD 3.0.
Dimensions - –30 °C to +60 °C
Electronic Shutter Speed - Auto/Manual 1/3 s–1/100,000 s
Environment - Outdoor
Full Description Line - Type Outdoor|Pixel Resolution 5 Mega Pixel|IR Illumination|Sensor size 1/2.7" CMOS|Microphone Built-in|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xAudio-In|1xAudio-Out|1xRJ45|2xAlarm In|1xAlarm Out|Power options PoE/12V|Power supply requirements 12 VDC/PoE (802.3af)/ePoE|Environment Outdoor|Operating temperature range –30 °C to +60 °C|Dimensions –30 °C to +60 °C
IR Illumination - Yes
Microphone - Built-in
Model - IPC-HFW5541E-ZE-27135-S3
Network Camera Type - Outdoor
Operating temperature range - –30 °C to +60 °C
Pixel Resolution - 5 Mega Pixel
Power options - 12V/PoE
Power supply requirements - 12 VDC/PoE (802.3af)/ePoE
RJ45 Input/Output connectors - 1
Sensor size - 1/2.7" CMOS
Shipping Box Depth Shipping/Package Box Dimensions - 38 cm
Shipping Box Height Shipping/Package Box Dimensions - 30.5 cm
Shipping box quantity - 4
Shipping Box Weight Shipping/Package Box Dimensions - 7.15 kg
Shipping Box Width Shipping/Package Box Dimensions - 31.5 cm
Unit Box Height - 0.135
Unit Box Length - 0.365
Unit Box Width - 0.15
Unit Brutto Volume - 0.009127 cubm
Unit Gross Weight - 1.79 kg
Unit Net Weight - 1.12 kg
Vendor Homepage - www.dahuasecurity.com/ne/products/All-Products/Network-Cameras/WizMind-S-Series/5MP/IPC-HFW5541E-ZE-S3=S3
Warranty - 36 months
