ID: 259638
Product code: TR18
Can be ordered 2 units Availability: 14 days after order approval
Warranty: 3 years

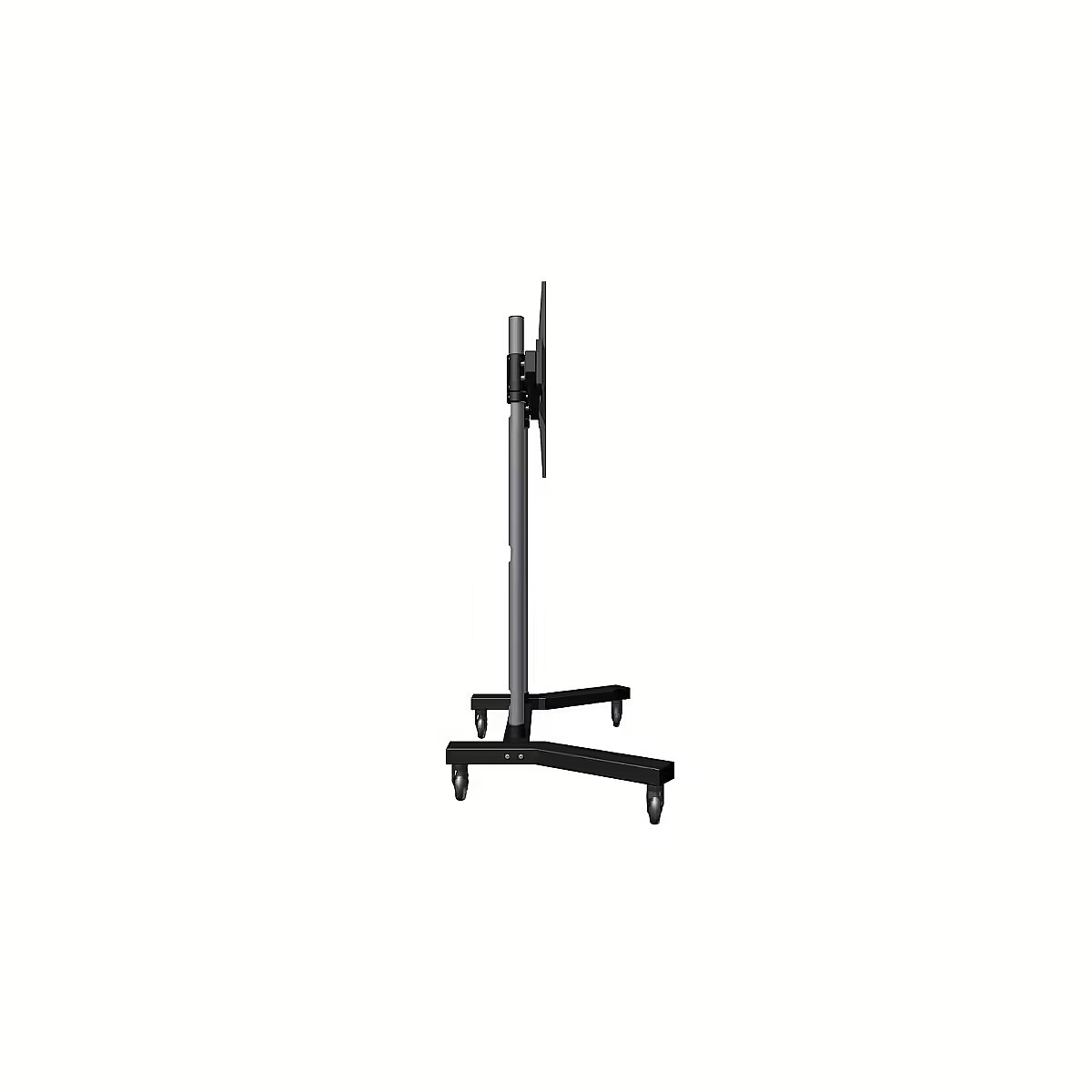

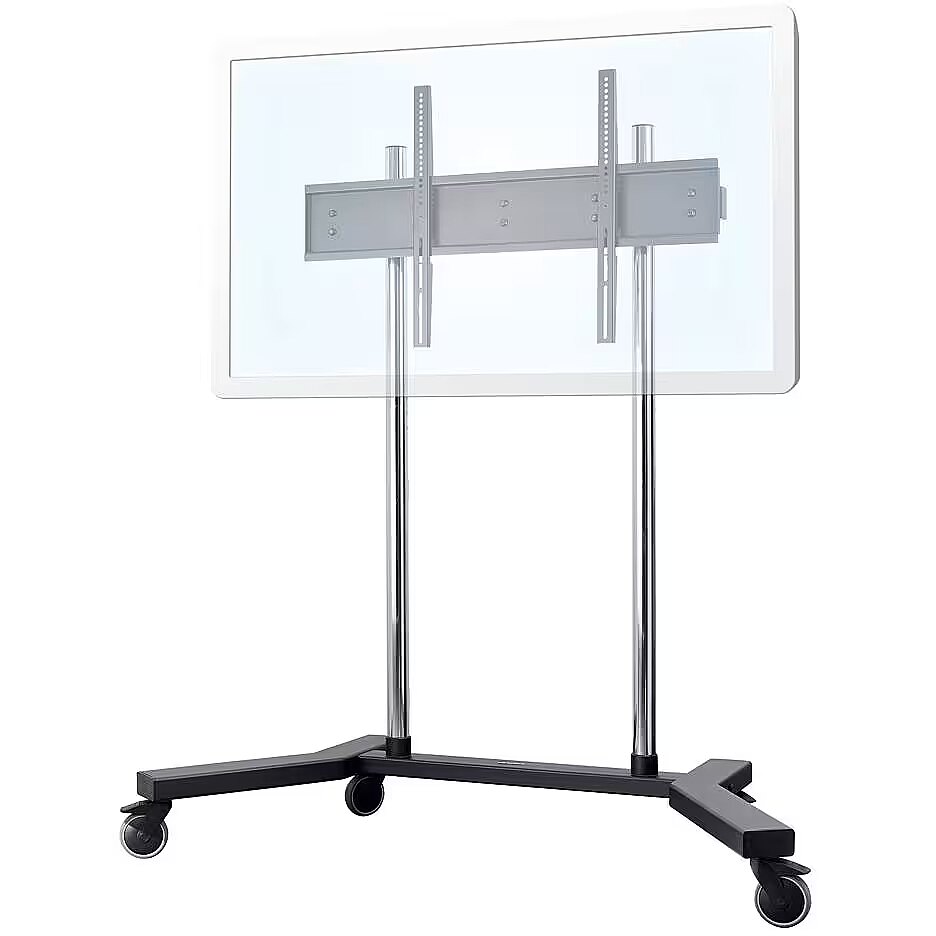

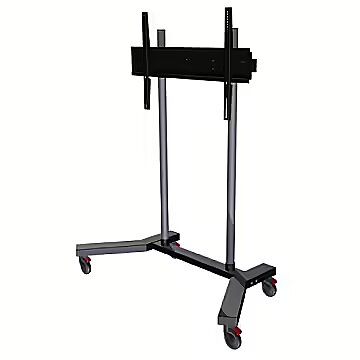

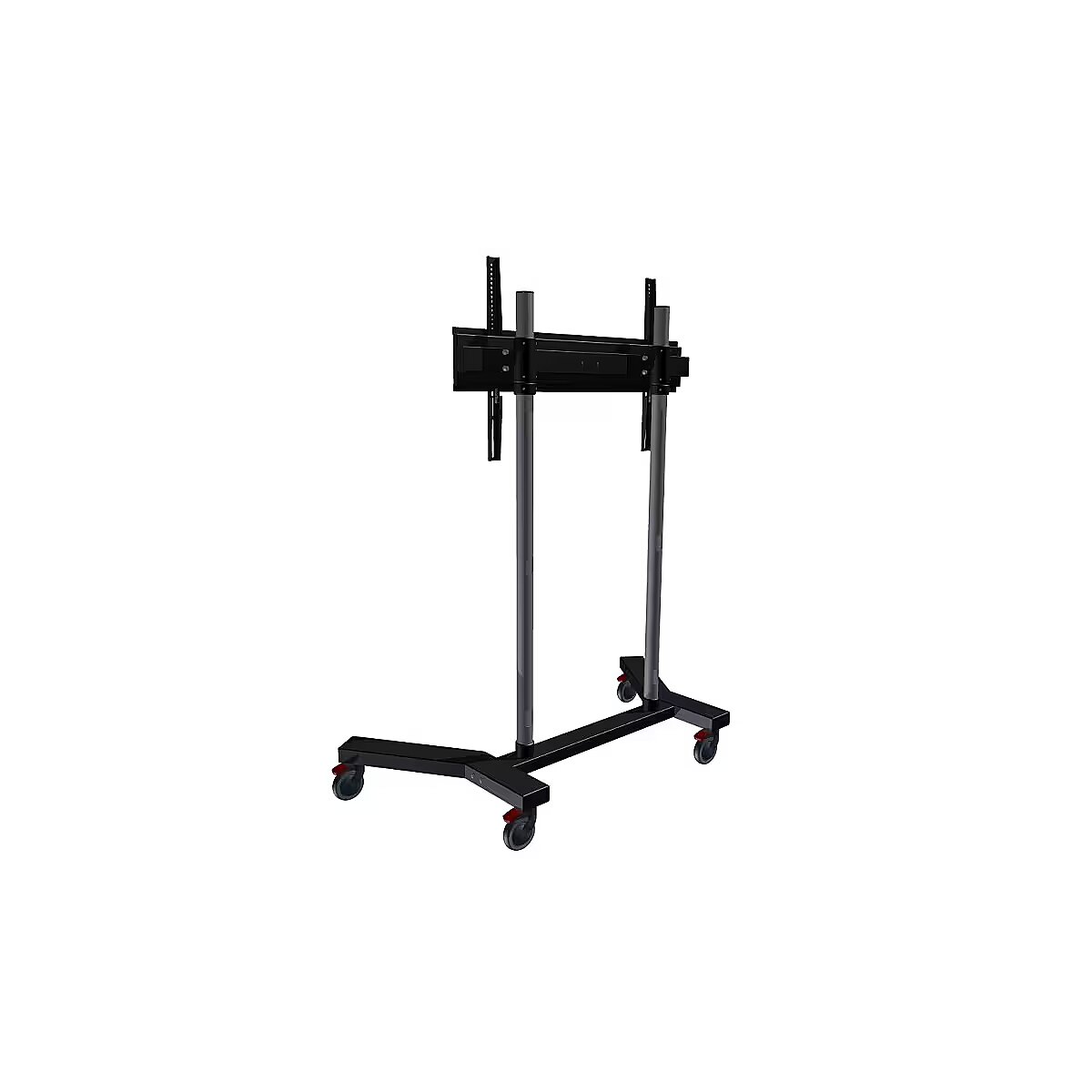

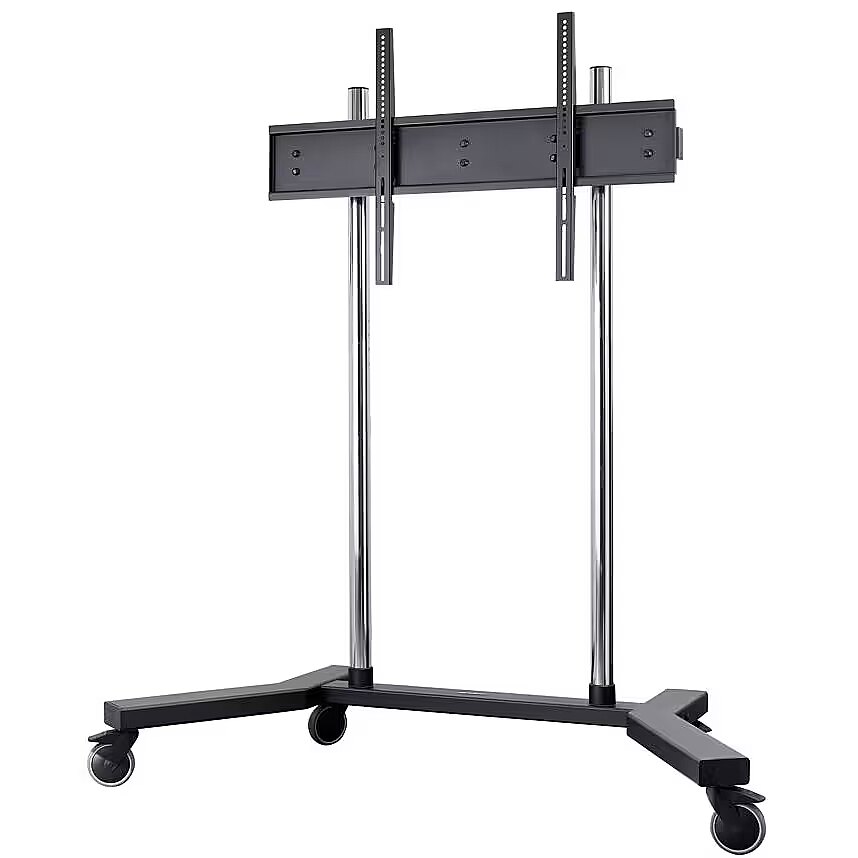

Edbak TR18
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
- Courier delivery 11.99 €: 10.12.2024
Main product parameters All parameters
- Maximum load (1 screen), kg: 80.00
- Maximum screen diagonal, inches: 95
- Minimum screen diagonal, inches: 60
All parameters
Colour
: Melna
Maximum load (1 screen), kg
: 80.00
Maximum screen diagonal, inches
: 95
Minimum screen diagonal, inches
: 60
Number of supported screens
: 1
Rotation
: Not
Swivel
: Nav
Tilt
: Not
Type of attachment
: Grīdas
VESA support
: 75 x 75, 100 x 100, 200 x 100, 200 x 200, 300 x 300, 400 x 200, 400 x 400, 600 x 400, 800 x 400
More detailed specification
Accessories included -
Brand - Edbak
BrandPartCode - TR18
Category - Signage Display Mounts
Code - TR18
Color - Black
Color - Silver
Corner mount - No
Description - Adjustable height Cable management for smart installation Includes 4 non-marking braked casters All necessary mounting hardware included
Design - Certification - RoHS
Design - Product colour - Black
Design > Colour of product - Black
Design > VESA mounting - Yes
dimension depth - 155 mm
dimension height - 1300 mm
Dimensions -
dimension weight - 55600 g
dimension width - 790 mm
EAN - 5908252968701
ean - 5908252968701
Ergonomics - Cable management - Yes
Ergonomics - Height adjustment - Yes
Ergonomics - Maximum distance to floor - 181 cm
Ergonomics - Minimum distance to floor - 57 cm
Ergonomics - Number of wheels - 4 wheel(s)
Ergonomics - Wheels - Yes
GTIN - 5908252968701
guarantee - 60
guarantee_type - external
Link - https://edbak.com/en/products/trolleys-stands/flat-screen-trolleys/universal-series/tr18/
Load (max) - 80 kg
LongDesc - This modern and universal TR18 video conferencing trolley enables professional installation of heavier screens up to 95″. Cable management system allows the cables to be hidden, thus creating an aesthetic and smart installation. Also, seamless adjustment of screen height allows the user to adjust image to the room and the needs of the audience. TR18 is equipped with a system that protects the screen against falling or unauthorised removal. It has been designed for larger conference rooms and exhibition fairs.
LongProductName - Flat Screen Trolley for One 60-95″ Screen
LongSummaryDescription - Edbak TR18. Maximum weight capacity: 80 kg, Minimum screen size: 152.4 cm (60"), Maximum screen size: 2.41 m (95"), Minimum VESA mount: 100 x 100 mm, Maximum VESA mount: 600 x 400 mm. Product colour: Black
Mounting - Maximum screen size - 2.41 m (95")
Mounting - Maximum VESA mount - 600 x 400 mm
Mounting - Maximum weight capacity - 80 kg
Mounting - Minimum screen size - 152.4 cm (60")
Mounting - Minimum VESA mount - 100 x 100 mm
Mounting - Mounting type - Floor
Mounting - Number of displays supported - 1
Mounting > Maximum screen size compatibility - 98 "
Mounting > Maximum weight (capacity) - 80 kg
Mounting > Mounting interface compatibility (max) - 1000x600 mm
Mounting > Mounting interface compatibility (min) - 100x100 mm
Mounting > VESA mounting interfaces - 100x100; 1000x600 mm
Name - EDBAK | TR18 | Trolleys & Stands | 60-98 " | Maximum weight (capacity) 80 kg | Black
name - TR18 LFD SCREEN CART 60-95
Other features -
Other features - VESA mounting - Yes
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 1213 mm
Package features > Gross height (mm) - 125 mm
Package features > Gross width (mm) - 783 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 15 pc(s)
Package features > Paper/Pasteboard - 22500.00 g
Package features > Plastic (No PET) - 200.00 g
Package features > Tare weight (kg) - 22.50 kg
Package features > Volume (m3) - 0.118722375 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Packaging data - Package depth - 800 mm
Packaging data - Package height - 150 mm
Packaging data - Package weight - 85 kg
Packaging data - Package width - 1300 mm
producer - Edbak
ProductName - TR18
Range (max) - 1700 mm
Range (min) - 300 mm
Screen size (max) - 95 ''
Screen size (min) - 60 ''
ShortSummaryDescription - Edbak TR18, 80 kg, 152.4 cm (60"), 2.41 m (95"), 100 x 100 mm, 600 x 400 mm
Technical details > Functions - Trolleys & Stands
Technical details > Gross weight - 57 kg
Technical details > Net weight - 34.5 kg
Technical details > Other features - Adjustable height. Cable management for smart installation. Includes 4 non-marking braked casters. All necessary mounting hardware included
Technical details > Producer - EDBAK
Technical details > Producer product family - Flat Screen Trolley for One
Technical details > Product name - TR18
Technical details > Screen size compatibility - 60-98 "
Title - Edbak TR18 signage display mount 2.41 m (95") Black
Type - Stand
URL - https://edbak.com/en/products/trolleys-stands/flat-screen-trolleys/universal-series/tr18/
Usage - Monitors
Use - Large hall
vendpn - TR18
VESA - 75 x 75
VESA - 100 x 100
VESA - 200 x 100
VESA - 200 x 200
VESA - 300 x 300
VESA - 400 x 200
VESA - 400 x 400
VESA - 600 x 400
VESA - 800 x 400
Warranty - 60
Warranty - 60 month(s)
WarrantyInfo - Limited 5-year’s
Weight - 55.6 kg
Weight & dimensions - Depth - 815 mm
Weight & dimensions - Height - 1874 mm
Weight & dimensions - Weight - 62.5 kg
Weight & dimensions - Width - 1705 mm
