Accessories included -
Brand - Edbak
BrandPartCode - VWPOP65-P
Category - Video Wall Display Mounts
Code - VWPOP65-P
Color - Black
Corner mount - No
Description - Uniwersalny uchwyt ścienny wideo Pop-Out VWPOP jest przeznaczony do łatwej i szybkiej obsługi instalacji w ścianie wideo. Prosty mechanizm wyskakujący z jednym dotknięciem pozwala na pełne wysunięcie wyświetlacza z videowall, dzięki czemu dostęp i obsługa mogą być wykonywane szybko i bezpiecznie. W zestawie znajduje się beznarzędziowa mikroregulacja umożliwiająca płynne ustawienie wyświetlaczy i precyzyjne dedykowane przekładki eliminujące konieczność wykonywania obliczeń i pomiarów na miejscu.
Design > Colour of product - Black
Design > VESA mounting - Yes
Designation - CE+WEEE
dimension depth - 120 mm
dimension height - 570 mm
Dimensions - 512 x 530 x 80 mm
dimension weight - 15700 g
dimension width - 540 mm
EAN - 5908252968596
ean - 5908252968596
Ergonomics - Certification - RoHS, TUV
Ergonomics - Distance to the wall (max) - 27 cm
Ergonomics - Distance to the wall (min) - 8.5 cm
Ergonomics - Height adjustment - Yes
Ergonomics - Product colour - Black
Ergonomics - Tilt adjustment - Yes
Ergonomics - Tilt angle range - 0 - 28°
Ergonomics - Type - Fixed
GTIN - 5908252968596
guarantee - 60
guarantee_type - external
Link - https://edbak.com/en/products/video-wall-menu-board-mounts/video-walls/video-wall-mounts/vwpop65-p/
Load (max) - 60 kg

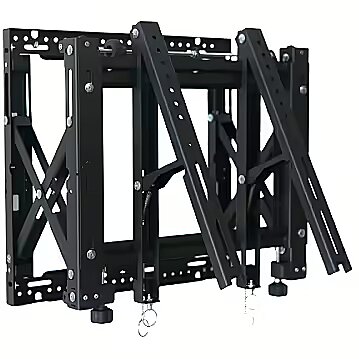

LongDesc - Professional pop-out mount designed to build portrait video walls. The open design of the VWPOP65-P allows full access to cabling, and the included ties are used to hide the cables easily and aesthetically. Independent 8-point micro adjustment allows precise alignment of screens without the use of tools. Special retractable system for easy access for service purposes. VWPOP65-P is padlocked against uncontrolled structure opening. This mount is the number one choice for users who care about intuitiveness and operating comfort. VWPOP65-P provides optimum comfort during the construction of a modular audio visual wall.
LongProductName - Video Wall Pop-Out Mount with Quick Release 42″-65″, Portrait
LongSummaryDescription - Edbak VWPOP65-P. Type: Fixed, Product colour: Black, Tilt angle range: 0 - 28°. Maximum weight capacity: 60 kg, Maximum screen size: 165.1 cm (65"), Mounting type: Wall. Width: 832 mm, Depth: 85 mm, Height: 530 mm. Package width: 890 mm, Package depth: 560 mm, Package height: 110 mm
Mounting - Maximum screen size - 165.1 cm (65")
Mounting - Maximum VESA mount - 400 x 600 mm
Mounting - Maximum weight capacity - 60 kg
Mounting - Minimum screen size - 106.7 cm (42")
Mounting - Minimum VESA mount - 200 x 400 mm
Mounting - Mounting type - Wall
Mounting - Number of displays supported - 1
Mounting > Maximum screen size compatibility - 65 "
Mounting > Maximum weight (capacity) - 60 kg
Mounting > Mounting interface compatibility (max) - 400x600 mm
Mounting > Mounting interface compatibility (min) - 200x400 mm
Mounting > VESA mounting interfaces - 200x400; 400x600 mm
Name - EDBAK VWPOP65-P Video Wall Pop-Out Mount with Quick Release 42-65", Portrait | EDBAK | Wall mount | Display Mounts | 42-65 " | Maximum weight (capacity) 60 kg | Black
name - VWPOP65-P Videowall Mount Portrai
Other features -
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 630.00 mm
Package features > Gross height (mm) - 115.00 mm
Package features > Gross width (mm) - 585.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 41 pc(s)
Package features > Paper/Pasteboard - 800.00 g
Package features > Plastic (No PET) - 356.00 g
Package features > Tare weight (kg) - 0.80 kg
Package features > TI weight (kg) - 0.00 kg
Package features > Type of battery - Battery
Package features > Volume (m3) - 0.04 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Packaging data - Package depth - 560 mm
Packaging data - Package height - 110 mm
Packaging data - Package weight - 15.8 kg
Packaging data - Package width - 890 mm
producer - Edbak
ProductName - VWPOP65-P
Screen size (max) - 65 ''
Screen size (min) - 42 ''
ShortSummaryDescription - Edbak VWPOP65-P, Fixed, Black, 0 - 28°, 8.5 cm, 27 cm, RoHS, TUV
Technical details > Functions - Display Mounts
Technical details > Gross weight - 16.30 kg
Technical details > Net weight - 15.50 kg
Technical details > Other features - Forward tilting +28°. Independent 8-point micro adjustment allows precise alignment of screens without the use of tools
Technical details > Placement - Wall mount
Technical details > Producer - EDBAK
Technical details > Producer product family - Video Wall Pop-Out Mount with Quick Release
Technical details > Producer product name - VWPOP65-P
Technical details > Screen size compatibility - 42-65 "
Title - Edbak VWPOP65-P video wall display mount
Type - Wall
URL - https://edbak.com/en/products/video-wall-menu-board-mounts/video-walls/video-wall-mounts/vwpop65-p/
Usage - Monitors
Usage - TV
vendpn - VWPOP65-P
VESA - 200 x 400
VESA - 300 x 200
VESA - 300 x 300
VESA - 400 x 200
VESA - 400 x 300
VESA - 400 x 400
VESA - 400 x 500
VESA - 400 x 600
Warranty - 60
Warranty - 60 month(s)
WarrantyInfo - Limited 5-year’s
Weight - 12.5 kg
Weight & dimensions - Depth - 85 mm
Weight & dimensions - Height - 530 mm
Weight & dimensions - Weight - 15 kg
Weight & dimensions - Width - 832 mm
