ID: 1140530
Product code: BP0076
In stock 13 units
Warranty: 2 years

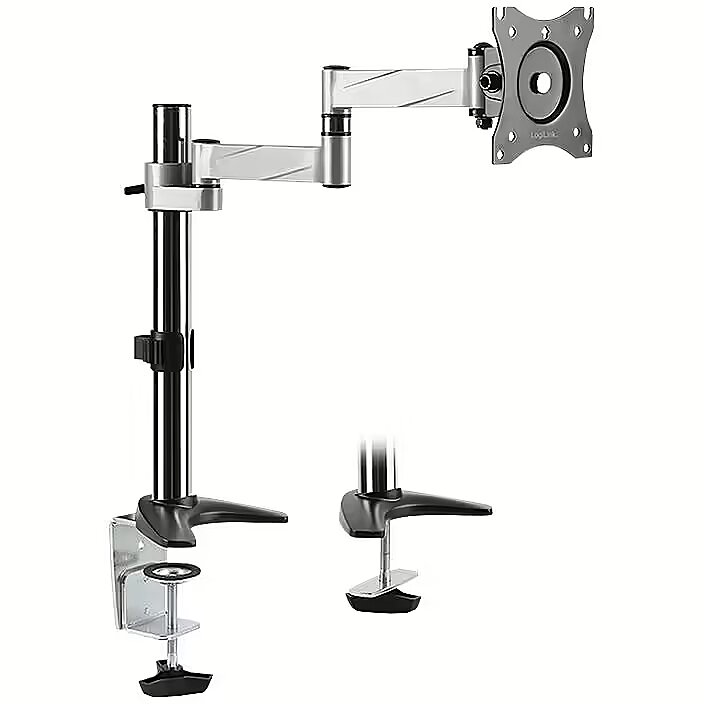

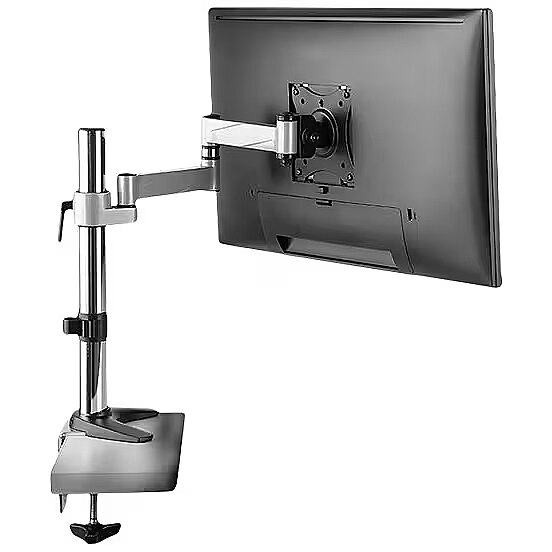

Logilink BP0076, Monitor mount, 13–27"
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Main product parameters All parameters
- Rotation: Not
- Tilt: Is
All parameters
Colour
: Melna/Pelēka
Maximum load (1 screen), kg
: 8.00
Maximum screen diagonal, inches
: 27
Minimum screen diagonal, inches
: 13
Notebook holder
: Nav
Number of supported screens
: 1
Rotation
: Not
Swivel
: Ir
Tilt
: Is
Type of attachment
: Galda
VESA support
: 75 x 75, 100 x 100
More detailed specification
Code - BP0076
Design > VESA mounting - Yes
EAN - 4052792054194
Ergonomics > Rotation - -180/180 °
Ergonomics > Swivel angle - 180 °
Ergonomics > Tilt angle - -35/35 °
Mounting > Maximum screen size compatibility - 27 "
Mounting > Maximum weight (capacity) - 8 kg
Mounting > Mounting interface compatibility (max) - 100 x 100 mm
Mounting > Mounting interface compatibility (min) - 75 x 75 mm
Mounting > VESA mounting interfaces - 75 x 75, 100 x 100 mm
Name - Logilink | Desk Mount | Tilt, swivel, level adjustment | 13-27 " | Maximum weight (capacity) 8 kg
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 440 mm
Package features > Gross depth master carton - 660 mm
Package features > Gross height (mm) - 245 mm
Package features > Gross height master carton - 270 mm
Package features > Gross weight - 3.35 kg
Package features > Gross width (mm) - 125 mm
Package features > Gross width master carton - 470 mm
Package features > Net weight master carton - 16.75 kg
Package features > Packing quantity - 5 pc(s)
Package features > Palette Qty - 100 pc(s)
Package features > Paper/Pasteboard - 310.00 g
Package features > Plastic (No PET) - 60.00 g
Package features > Tare weight (kg) - 0.37 kg
Package features > Tare weight master carton - 1.424 kg
Package features > Volume (m3) - 0.013475 m³
Package features > WEEE tax - No
Technical details > Functions - Tilt, swivel, level adjustment
Technical details > Net weight - 2.98 kg

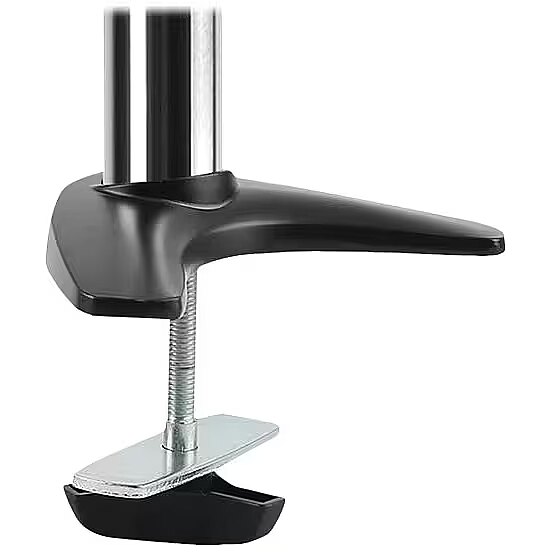

Technical details > Other features - Maximum arm length: 396 mm. Suitable for 13–27" LCD, LED, PC and TV monitors. Aluminum mounting bracket. Easy cable management keeps everything organized. Full motion, easy to adjust and no tools required. Two Mounting Options: both desk clamp and grommet are included.
Technical details > Placement - Desk Mount
Technical details > Producer - Logilink
Technical details > Producer product family - Monitor mount
Technical details > Producer product name - BP0076
Technical details > Screen size compatibility - 13-27 "
Warranty - 24
Warranty - 24 month(s)
