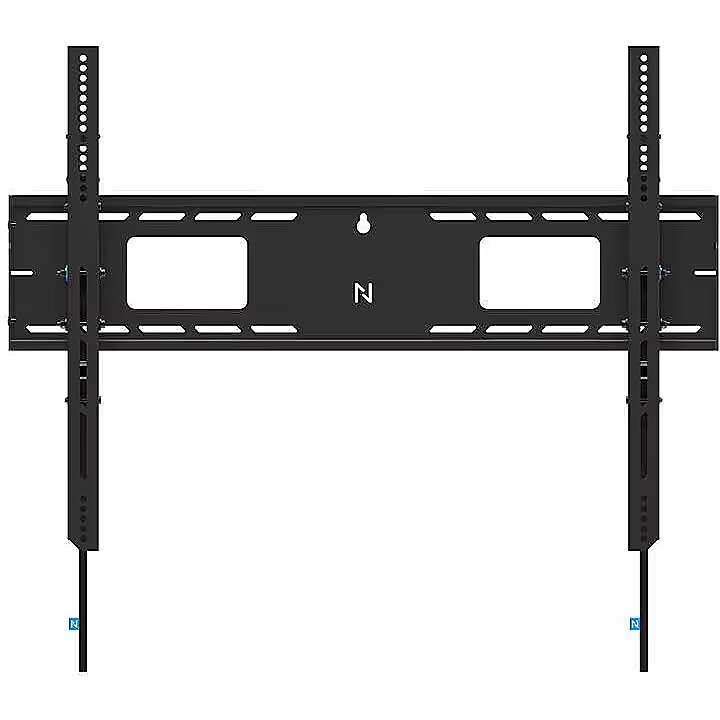

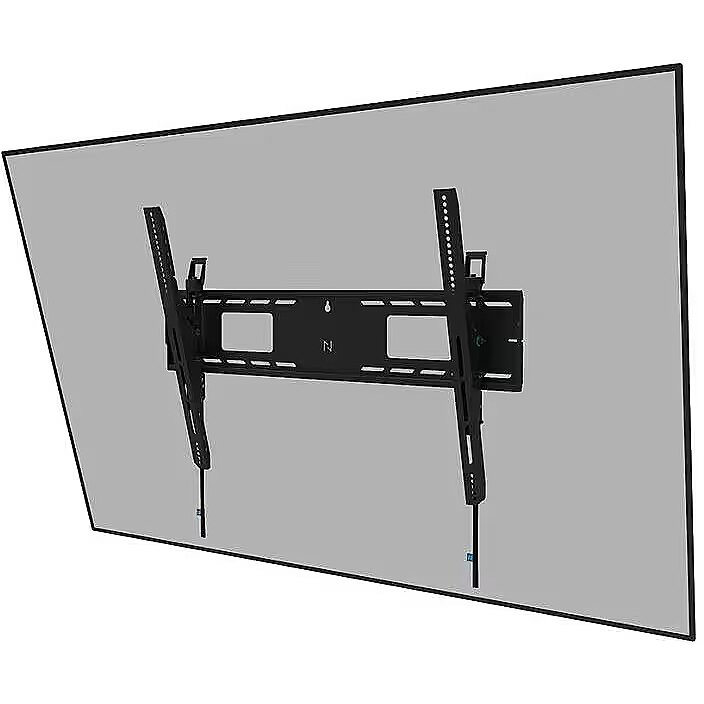

Newstar Tiltable wall mount, 43-98"

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 1136631 Product code: WL35-750BL18
In stock 3 units
Warranty: 3 years
100.39 €
Delivery options
  • Courier delivery 11.99 €: on Thuesday, 04.02.2025
Main product parameters All parameters
  • Maximum load (1 screen), kg: 125.00
  • Maximum screen diagonal, inches: 98
  • Minimum screen diagonal, inches: 43
All parameters
Colour : Melna
Maximum load (1 screen), kg : 125.00
Maximum screen diagonal, inches : 98
Minimum screen diagonal, inches : 43
Notebook holder : Nav
Number of supported screens : 1
Rotation : Not
Swivel : Nav
Tilt : Is
Type of attachment : Sienas
VESA support : 100 x 100, 100 x 150, 100 x 200, 120 x 120, 200 x 100, 200 x 200, 200 x 300, 200 x 400, 300 x 100, 300 x 200, 300 x 300, 350 x 350, 400 x 200, 400 x 300, 400 x 400, 400 x 500, 400 x 600, 440 x 400, 500 x 400, 600 x 200, 600 x 300, 600 x 400, 600 x 500, 600 x 600, 800 x 200, 800 x 400, 800 x 500, 800 x 600
More detailed specification
100 mm x 100 mm VESA mounting interface - Yes
200 mm x 100 mm VESA mounting interface - Yes
200 mm x 200 mm VESA mounting interface - Yes
300 mm x 200 mm VESA mounting interface - Yes
300 mm x 300 mm VESA mounting interface - Yes
400 mm x 200 mm VESA mounting interface - Yes
400 mm x 300 mm VESA mounting interface - Yes
400 mm x 400 mm VESA mounting interface - Yes
600 mm x 300 mm VESA mounting interface - Yes
600 mm x 400 mm VESA mounting interface - Yes
600 mm x 600 mm VESA mounting interface - Yes
800 mm x 400 mm VESA mounting interface - Yes
800 mm x 600 mm VESA mounting interface - Yes
Accessories included -
Brand - Neomounts
BrandPartCode - WL35-750BL18
Category - TV Mounts & Stands
Category Code - MAS
Color - Black
Colour - Black
Colour of product - orange / off-white
Corner mount - No
Description - NEOMOUNTS LEVEL-750 WALL MOUNT (XL, 100 KG, TILTABLE, TILT GUARD, CONNECTABLE, VESA 800X600)
Description - Neomounts WL35-750BL18 LEVEL to idealne rozwiązanie z funkcją regulacji kąta nachylenia, przeznaczone do bezpiecznego montażu interaktywnego lub ciężkiego wyświetlacza o przekątnej do 98" i maksymalnej nośności 125 kg. Beznarzędziowa regulacja nachylenia (+15°/-15°) pozwala na ustawienie optymalnego kąta widzenia. Ten wytrzymały uchwyt ścienny ma solidną, wysokoprofilową płytę montażową, zaprojektowaną z myślą o stabilności i precyzji, zapewniając bezpieczne mocowanie ekranu nawet na nierównych powierzchniach. Uchwyt posiada także indywidualnie regulowane wsporniki (10 mm), umożliwiające precyzyjne dostosowanie wysokości ekranu lub jego wypoziomowanie. Uchwyt LEVEL-750 ma profil o głębokości 9,3 cm i jest odpowiedni dla ekranów z wzorem otworów VESA od 100x100 do 800x600 mm. Szybkozłączna płyta montażowa umożliwia instalację wielu ekranów. Dodatkowo, płyta montażowa ma specjalne wycięcia na gniazdka oraz urządzenia zabezpieczające i kable. Zawiera również liczne perforowane otwory, które umożliwiają łatwe mocowanie kabli za pomocą opasek zaciskowych oraz zapewnia miejsce na ich przechowywanie, co gwarantuje schludny wygląd instalacji.
Description - WL35-750BL18 Neomounts heavy duty tv wall mount Neomounts WL35-750BL18 tiltable wall mount for 43-98" screens - Black The Neomounts WL35-750BL18 LEVEL is the ultimate tiltable solution for securely mounting an interactive or heavy weight display up to 98" with a maximum capacity of 125 kg. The toolless tilt adjustment (+15°/-15°) allows you to create the optimum viewing angle. This heavy-duty wall mount features a sturdy high profile wall plate and is engineered for stability and precision, ensuring your screen is securely mounted even on uneven surfaces. The mount features individual adjustable brackets (10 mm) for securely adjusting the display height or levelling it. The LEVEL-750 wall mount has a profile of 9,3 cm and is suitable for screens that meet VESA hole pattern 100x100 to 800x600 mm. Its quickly connectable wall plate allows for multiple screen mounting. Additionally, the wall plate is designed with specific cut-outs for wall sockets and securing devices and cables. It features various perforated holes for easy tie-wrap cable fixing and provides space for cable storage, ensuring a clean and tidy finishing. The WL35-750BL18 includes a safe and practical pull & release system, allowing you to quickly attach and detach the display in a safe and secure manner. The tilt-lock prevents the display from tilting upwards when attaching it on or detaching it from the mount to enable a safe install. It is possible to lock the bracket using a padlock (not included) for extra screen security. For a simple and effective storage, an optionally available, AV-rack can be installed to the left or right side of the mount.
Design - Housing material - Steel
Design - Product colour - Black
Designation - CE+WEEE
dimension depth - 105 mm
dimension height - 935 mm
Dimensions - 68,4 x 88,6 x 9,3 cm
Dimensions - 684 x 886 x 9.3 mm
dimension weight - 8500 g
dimension width - 210 mm
Distance to wall - 9.3 cm
ean - 8171371443375
Ergonomics - Cable management - Yes
Ergonomics - Distance to the wall (max) - 9.3 cm
Ergonomics - Height adjustment - Yes
Ergonomics - Height adjustment range - 0 - 10 mm
Ergonomics - Tilt adjustment - Yes
Ergonomics - Tilt angle range - -15 - 15°
Fits screens sized - 43-98"
Full Description Line - Max. weight 125 kg|Fits screens sized 43-98"|Distance to wall 9.3 cm|100 mm x 100 mm|200 mm x 100 mm|200 mm x 200 mm|300 mm x 200 mm|300 mm x 300 mm|400 mm x 200 mm|400 mm x 300 mm|400 mm x 400 mm|600 mm x 300 mm|600 mm x 400 mm|600 mm x 600 mm|800 mm x 400 mm|800 mm x 600 mm|Dimensions 68,4 x 88,6 x 9,3 cm|Colour Black
GTIN - 8717371443375
guarantee - 60
guarantee_type - normal
Height - 102.000000
Height adjustment - Yes
Height adjustment, mm - 10
Length - 935.000000
Load (max) - 125 kg
Logistics data - Harmonized System (HS) code - 7326909890
Logistics data - Master (outer) case gross weight - 26.3 kg
Logistics data - Master (outer) case height - 324 mm
Logistics data - Master (outer) case length - 227 mm
Logistics data - Master (outer) case net weight - 20.4 kg
Logistics data - Master (outer) case width - 946 mm
Logistics data - Products per master (outer) case - 3 pc(s)
Logistics data - Products per pallet (EU) - 39 pc(s)
LongDesc - The Neomounts WL35-750BL18 LEVEL is the ultimate tiltable solution for securely mounting an interactive or heavy weight display up to 98" with a maximum capacity of 125 kg. The toolless tilt adjustment (+15°/-15°) allows you to create the optimum viewing angle. This heavy-duty wall mount features a sturdy high profile wall plate and is engineered for stability and precision, ensuring your screen is securely mounted even on uneven surfaces. The mount features individual adjustable brackets (10 mm) for securely adjusting the display height or levelling it. The LEVEL-750 wall mount has a profile of 9,3 cm and is suitable for screens that meet VESA hole pattern 100x100 to 800x600 mm. Its quickly connectable wall plate allows for multiple screen mounting. Additionally, the wall plate is designed with specific cut-outs for wall sockets and securing devices and cables. It features various perforated holes for easy tie-wrap cable fixing and provides space for cable storage, ensuring a clean and tidy finishing.The WL35-750BL18 includes a safe and practical pull & release system, allowing you to quickly attach and detach the display in a safe and secure manner. The tilt-lock prevents the display from tilting upwards when attaching it on or detaching it from the mount to enable a safe install. It is possible to lock the bracket using a padlock (not included) for extra screen security. For a simple and effective storage, an optionally available, AV-rack can be installed to the left or right side of the mount.
LongProductName - Neomounts WL35-750BL18 tiltable wall mount for 43-98" screens - Black
LongSummaryDescription - Neomounts heavy duty tv wall mount. Maximum weight capacity: 125 kg, Minimum screen size: 109.2 cm (43"), Maximum screen size: 2.49 m (98"), Minimum VESA mount: 100 x 100 mm, Maximum VESA mount: 800 x 600 mm. Height adjustment range: 0 - 10 mm, Tilt angle range: -15 - 15°, Distance to the wall (max): 9.3 cm. Product colour: Black
Manufacturer - NEOMOUNTS
ManufacturerPartNumber - WL35-750BL18
Max. weight - 125 kg
Maximum weight (capacity), kg - 125
Model - WL35-750BL18
Motorized - No
Mounting - Maximum screen size - 2.49 m (98")
Mounting - Maximum VESA mount - 800 x 600 mm
Mounting - Maximum weight capacity - 125 kg
Mounting - Minimum screen size - 109.2 cm (43")
Mounting - Minimum VESA mount - 100 x 100 mm
Mounting - Mounting type - Wall
Mounting - Number of displays supported - 1
Mounting - Panel mounting interface - 100 x 100,100 x 150,100 x 200,120 x 120,200 x 100,200 x 200,200 x 300,200 x 400,300 x 100,300 x 200,300 x 300,350 x 350,400 x 200,400 x 300,400 x 400,400 x 500,400 x 600,440 x 400,500 x 400,600 x 200,600 x 300,600 x 400,600 x 500,600 x 600,680 x 300,800 x 200,800 x 400,800 x 500,800 x 600
name - TV wall mount WL35-750BL18 heavy duty (XL, 100 kg, tiltable, tilt guard)
Number of screens - 1
Other features -
Packaging data - Package depth - 102 mm
Packaging data - Package height - 209 mm
Packaging data - Package weight - 8.4 kg
Packaging data - Package width - 928 mm
PeriodofWarranty - 5 Y
producer - Neomounts
ProductName - Neomounts heavy duty tv wall mount
Range adjustment - No
Screen size (max) - 98 ''
Screen size (min) - 43 ''
Screen size compatibility, " - 43-98
Shipping Box Depth Shipping/Package Box Dimensions - 93.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 10 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 6.8 kg
Shipping Box Width Shipping/Package Box Dimensions - 21 cm
ShortSummaryDescription - Neomounts heavy duty tv wall mount, 2.49 m (98"), 100 x 100 mm, 800 x 600 mm, -15 - 15°, Steel, Black
Stand/mount type - Wall
Stuff - Steel
Technical details - Country of origin - China
Technical details - Lockable - Padlock not included
Tilt - Yes
Tilt adjustment, ° - +15-15
Title - Neomounts heavy duty tv wall mount
Turn - No
Type - Wall
Unit Brutto Volume - 0.01963 cubm
Unit Gross Weight - 6.8 kg
Unit Net Weight - 1 kg
URL - https://www.neomounts.com/default.asp?pageid=44&artdetail=WL35-750BL18
Usage - TV
Vendor Homepage - www.neomounts.com/wall/tv-monitor-mounts/wl35-750bl18-neomounts-heavy-duty-tv-wall-mount/
vendpn - WL35-750BL18
Vertical adjustment - 30 °
VESA - 100 x 100
VESA - 100 x 150
VESA - 100 x 200
VESA - 120 x 120
VESA - 200 x 100
VESA - 200 x 200
VESA - 200 x 300
VESA - 200 x 400
VESA - 300 x 100
VESA - 300 x 200
VESA - 300 x 300
VESA - 350 x 350
VESA - 400 x 200
VESA - 400 x 300
VESA - 400 x 400
VESA - 400 x 500
VESA - 400 x 600
VESA - 440 x 400
VESA - 500 x 400
VESA - 600 x 200
VESA - 600 x 300
VESA - 600 x 400
VESA - 600 x 500
VESA - 600 x 600
VESA - 680 x 300
VESA - 800 x 200
VESA - 800 x 400
VESA - 800 x 500
VESA - 800 x 600
VESA-standard, mm - 100 x 100
VESA-standard, mm - 100 x 150
VESA-standard, mm - 100 x 200
VESA-standard, mm - 120 x 120
VESA-standard, mm - 200 x 100
VESA-standard, mm - 200 x 200
VESA-standard, mm - 200 x 300
VESA-standard, mm - 200 x 400
VESA-standard, mm - 300 x 100
VESA-standard, mm - 300 x 200
VESA-standard, mm - 300 x 300
VESA-standard, mm - 350 x 350
VESA-standard, mm - 400 x 200
VESA-standard, mm - 400 x 300
VESA-standard, mm - 400 x 400
VESA-standard, mm - 400 x 500
VESA-standard, mm - 400 x 600
VESA-standard, mm - 440 x 400
VESA-standard, mm - 500 x 400
VESA-standard, mm - 600 x 200
VESA-standard, mm - 600 x 300
VESA-standard, mm - 600 x 400
VESA-standard, mm - 600 x 500
VESA-standard, mm - 600 x 600
VESA-standard, mm - 680 x 300
VESA-standard, mm - 800 x 200
VESA-standard, mm - 800 x 400
VESA-standard, mm - 800 x 500
VESA-standard, mm - 800 x 600
Warranty - 60 months
WarrantyInfo - 5 year
Weight - 8.390000
Weight & dimensions - Depth - 93 mm
Weight & dimensions - Height - 684 mm
Weight & dimensions - Width - 886 mm
Wheels - No
Width - 209.000000
