ID: 1048021
Product code: NMPRO-WMB2
In stock 2 units
Warranty: 3 years

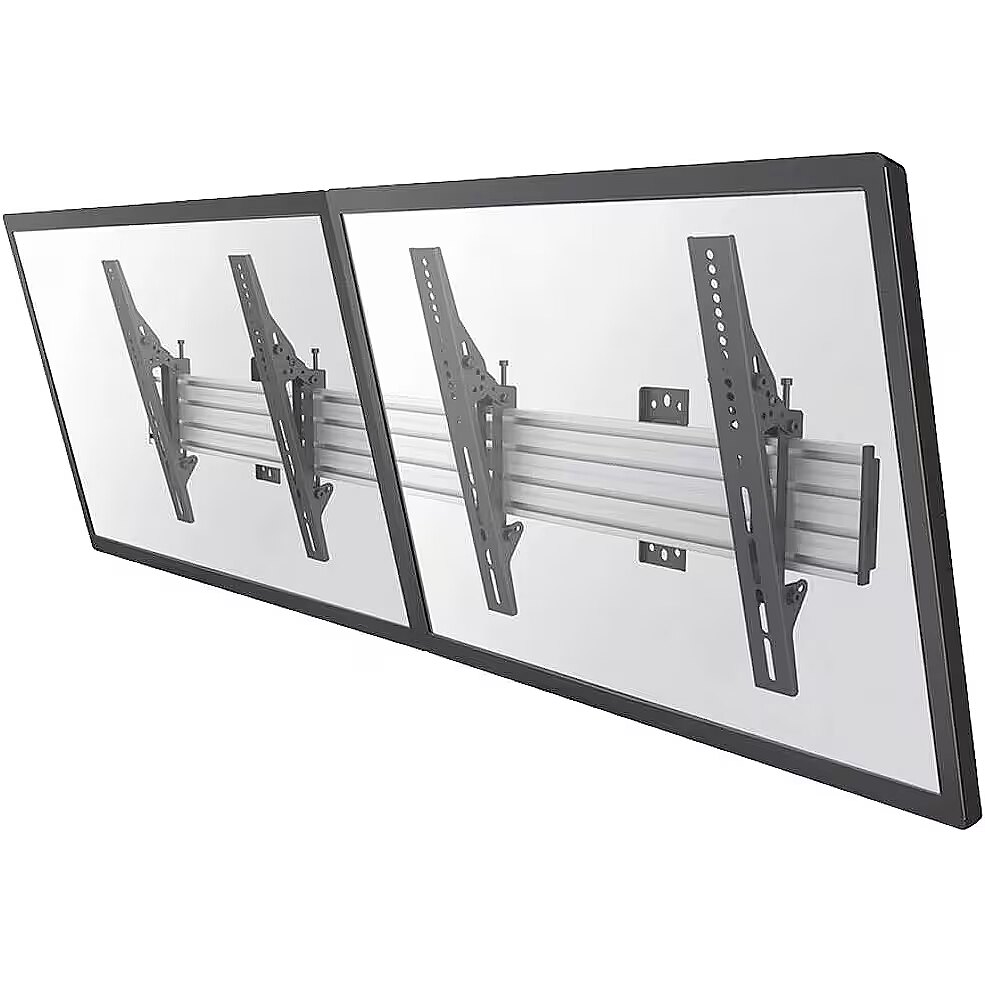

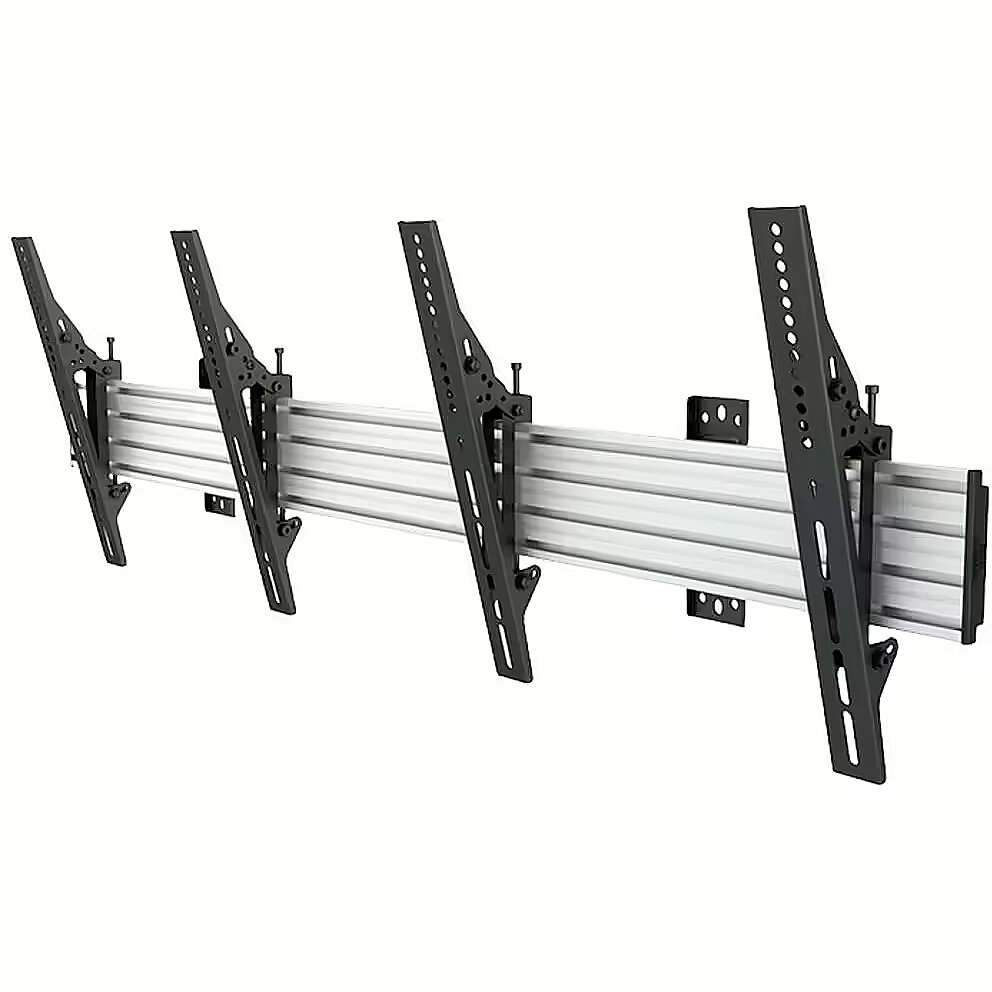

Newstar Menuboard Wall mount for 2 screens, 32-55"
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Courier delivery 11.99 €: on Wednesday, 05.02.2025
Main product parameters All parameters
- Maximum load (1 screen), kg: 30.00
- Maximum screen diagonal, inches: 55
- Minimum screen diagonal, inches: 32
All parameters
Colour
: Melna
Maximum load (1 screen), kg
: 30.00
Maximum screen diagonal, inches
: 55
Minimum screen diagonal, inches
: 32
Notebook holder
: Nav
Number of supported screens
: 2
Rotation
: Not
Swivel
: Nav
Tilt
: Is
Type of attachment
: Sienas
VESA support
: 100 x 100, 100 x 150, 100 x 200, 200 x 100, 200 x 200, 200 x 300, 200 x 400, 300 x 100, 300 x 200, 300 x 300, 400 x 200, 400 x 300, 400 x 400, 400 x 600, 440 x 400, 500 x 400, 600 x 200, 600 x 300, 600 x 400
More detailed specification
100 mm x 100 mm VESA mounting interface - Yes
600 mm x 400 mm VESA mounting interface - Yes
Brand - Neomounts
BrandPartCode - NMPRO-WMB2
Category - Signage Display Mounts
Category Code - MAS
Colour - Black

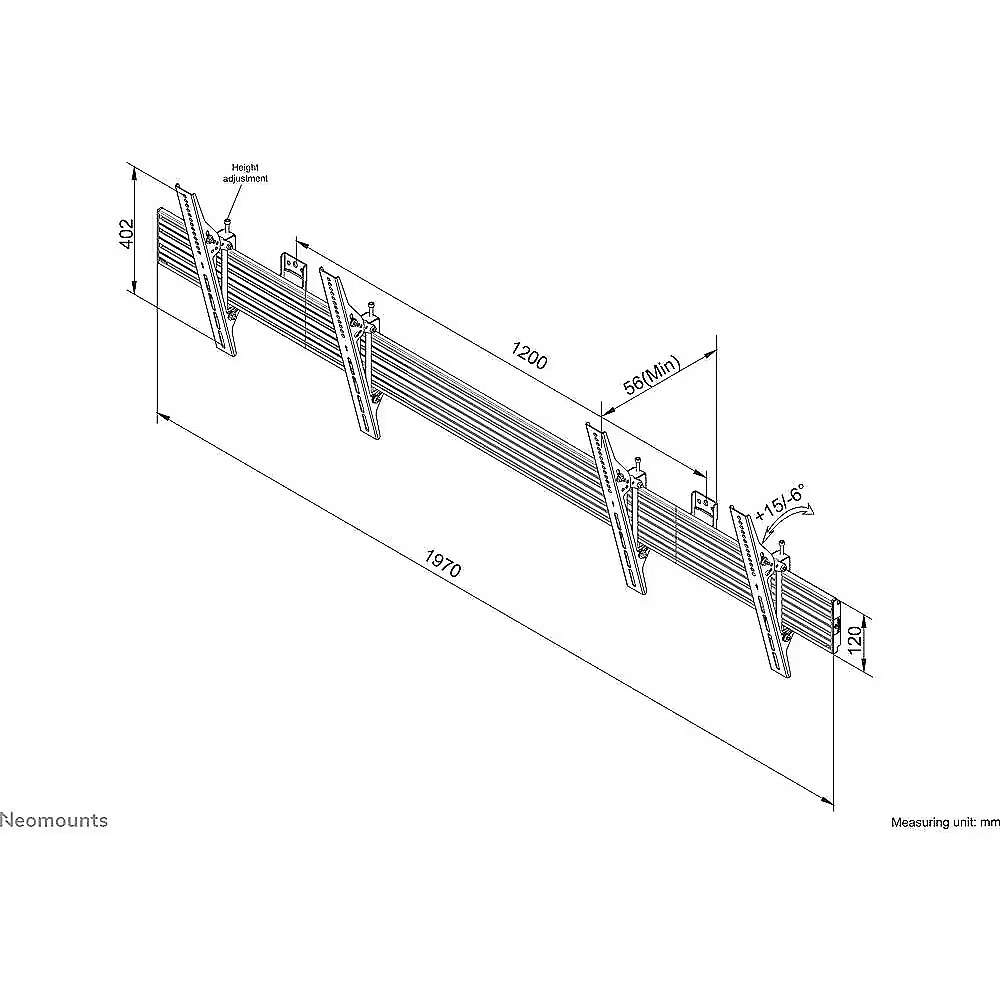

Description - The Neomounts Pro menuboard wall mount, model NMPRO-WMB2, is a tiltable wall mount for two flat screens up to 55"/65". This mount is a great choice when you want the ultimate viewing flexibility with your flat screen. The Neomounts Pro tilt (0°/-6°/+15°) technology allows the mount to change to the best suitable viewing angle. Neomounts Pro NMPRO WMB-series is suitable for 1 to 4 screens. The weight capacity of this product is 30 kg each screen. The wall mount is suitable for screens that meet VESA 100x100 to 400x400mm (65") or VESA 100x100 to 600x400mm (55"). Depth of this mount is 5,6 centimetres. Functionality Type: Tilt, Fixed Tilt (degrees): 21° Width: 197 cm Depth: 6 cm Height: 44 cm Height adjustment: None
Design - Housing material - Aluminium
Design - Product colour - Black
Design - Type - Fixed floor stand
Ergonomics - Cable management - Yes
Ergonomics - Depth adjustment - 6 cm
Ergonomics - Height adjustment - 44 cm
Ergonomics - Tilt adjustment - Yes
Ergonomics - Tilt angle - 21°
Ergonomics - Tilt angle range - 0 - 21°
Ergonomics - Width adjustment - 197 cm
Fits screens sized - 32-55"
Full Description Line - Max. weight 30 kg|Fits screens sized 32-55"|100 mm x 100 mm|600 mm x 400 mm|Colour Black
GTIN - 8717371447540
Logistics data - Harmonized System (HS) code - 85299040
Logistics data - Master (outer) case gross weight - 11.7 kg
Logistics data - Master (outer) case height - 1120 mm
Logistics data - Master (outer) case length - 105 mm
Logistics data - Master (outer) case net weight - 11.7 kg
Logistics data - Master (outer) case width - 185 mm
Logistics data - Products per master (outer) case - 1 pc(s)
Logistics data - Products per pallet (EU) - 52 pc(s)
Logistics data - Quantity per master (outer) case - 1 pc(s)
LongDesc - The Neomounts Pro menuboard wall mount, model NMPRO-WMB2, is a tiltable wall mount for two flat screens up to 55"/65". This mount is a great choice when you want the ultimate viewing flexibility with your flat screen. The Neomounts Pro tilt (0°/-6°/+15°) technology allows the mount to change to the best suitable viewing angle. Neomounts Pro NMPRO WMB-series is suitable for 1 to 4 screens. The weight capacity of this product is 30 kg each screen. The wall mount is suitable for screens that meet VESA 100x100 to 400x400mm (65") or VESA 100x100 to 600x400mm (55"). Depth of this mount is 5,6 centimetres. * All installation material is included with the product.
LongProductName - Neomounts Pro Menuboard Wall mount for two 32"-55"/65" Screens - Black
LongSummaryDescription - Neomounts Pro menu board wall mount. Maximum weight capacity: 30 kg, Minimum screen size: 81.3 cm (32"), Maximum screen size: 139.7 cm (55"), Minimum VESA mount: 100 x 100 mm, Maximum VESA mount: 600 x 400 mm. Tilt angle range: 0 - 21°. Product colour: Black
Max. weight - 30 kg
Mounting - Maximum screen size - 139.7 cm (55")
Mounting - Maximum VESA mount - 600 x 400 mm
Mounting - Maximum weight capacity - 30 kg
Mounting - Minimum screen size - 81.3 cm (32")
Mounting - Minimum VESA mount - 100 x 100 mm
Mounting - Mounting type - Wall
Mounting - Number of displays supported - 2
Mounting - Panel mounting interface - 100 x 100,100 x 200,200 x 200,200 x 400,400 x 400,400 x 600,200 x 300,300 x 300,440 x 400,500 x 400,600 x 200,600 x 300,600 x 400,300 x 200,400 x 300,200 x 100,300 x 100,100 x 150,400 x 200
Number of screens - 2
Other features - Country of origin - China
Packaging data - Package depth - 105 mm
Packaging data - Package height - 1120 mm
Packaging data - Package weight - 11.7 kg
Packaging data - Package width - 185 mm
ProductName - Neomounts Pro menu board wall mount
Shipping Box Depth Shipping/Package Box Dimensions - 112 cm
Shipping Box Height Shipping/Package Box Dimensions - 11 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 11.7 kg
Shipping Box Width Shipping/Package Box Dimensions - 19 cm
ShortSummaryDescription - Neomounts Pro menu board wall mount, 30 kg, 81.3 cm (32"), 139.7 cm (55"), 100 x 100 mm, 600 x 400 mm, 0 - 21°
Technical details - Package net weight - 11.7 kg
Title - Neomounts Pro menu board wall mount
Unit Brutto Volume - 0.02341 cubm
Unit Gross Weight - 11.7 kg
Unit Net Weight - 8 kg
URL - https://www.neomounts.com/default.asp?pageid=44&artdetail=NMPRO-WMB2
Vendor Homepage - www.neomounts.com/tv-lfd/menu-board-wall-mounts/nmpro-wmb2-neomounts-by-newstar-pro-menu-board-wall-mount/
Warranty - 60 months
WarrantyInfo - 5 year
Weight & dimensions - Depth - 60 mm
Weight & dimensions - Height - 44 mm
Weight & dimensions - Width - 197 mm
