10/100/1000M LAN Ports - 1
brand - MikroTik
category - MikroTik > Komutatori > Cloud Router Switch 10G
Category 1 - Netzwerk
Category 2 - Switching Hubs
Category Code - SWI
Code - CRS310-1G-5S-4S+OUT
Description - MIKROTIK netFiber 9 with 800MHz ARM v7 CPU, 256MB RAM, 4 x 10G SFP+ ports, 5 x 1G SFP ports, 1 x Gigabit Ethernet port (PoE-In), RouterOS L5 license, outdoor enclosure, mounting kit, PSU, PoE injector

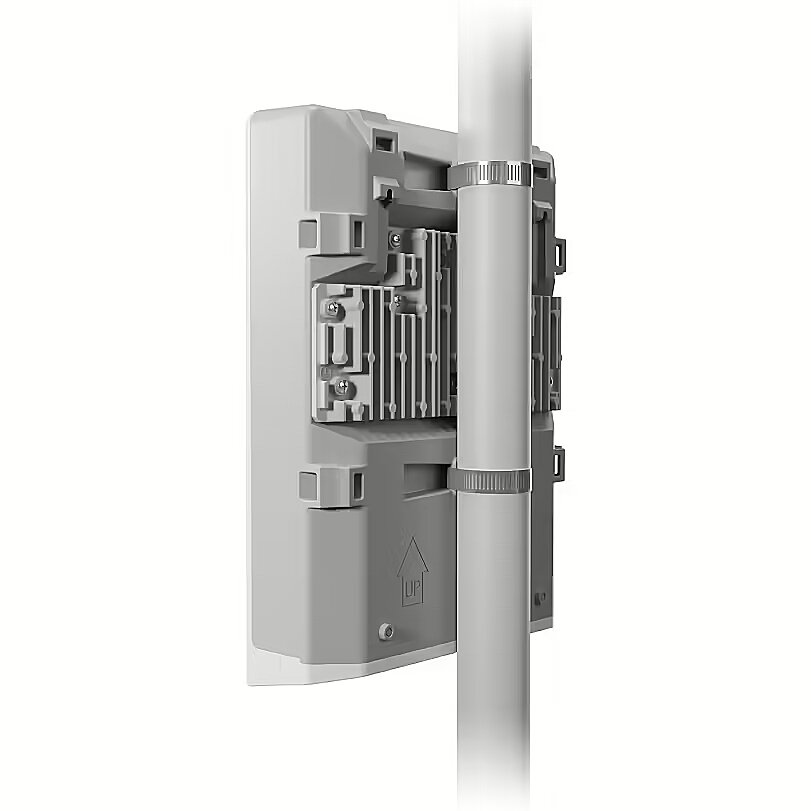

Design > Form factor - Pole, Wall or Mast Mountable
Dimensions - 303X212x72mm
EAN - 4752224007834
Features > Mesh Support - No
Features > Mobile Broadband - No mobile broadband
Features > MU-MiMO - No
Full Description Line - 5xSFP|4xSFP+|1x10/100/1000M|PoE ports 1|Dimensions 303X212x72mm|Unit Net Weight 1.9 kg
Hard drive > Storage capacity - 16 MB MB
height - 0.36 m
length - 0.36 m
Manufacturer - MikroTik
Model name - CRS310-1G-5S-4S+OU
mpn - CRS310-1G-5S-4S+OUT
MPN - CRS310-1G-5S-4S+OUT
Name - 10P Mikrotik CRS310-1G-5S-4S+OUT SFP SFP+ POE
Name - Mikrotik CRS310-1G-5S-4S+OUT netFiber 9, 1xGigabit LAN port, 5xSFP ports, 4x SFP+ ports, Serial console port (RJ45), 802.3af/at PoE in, CPU temperature monitor, Router OS | MikroTik | Cloud Router Switch | CRS310-1G-5S-4S+OUT, NetFiber 9 | Pole, Wall or Mast Mountable | 1 Gbps (RJ-45) ports quantity 1 | Mesh Support No | MU-MiMO No | SFP ports quantity 5 | No mobile broadband | SFP+ ports quantity 4
Networking > CPU frequency - 800 MHz
Networking > PoE in - 802.3af/at
Operational conditions > Operating temperature (T-T) - -40°C to 70°C °C
Other features > Ethernet LAN (RJ-45) ports - 1
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 240.00 mm
Package features > Gross height (mm) - 60.00 mm
Package features > Gross width (mm) - 320.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 375 pc(s)
Package features > Paper/Pasteboard - 427.00 g
Package features > Plastic (No PET) - 48.00 g
Package features > Tare weight (kg) - 0.48 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Performance > Ethernet LAN data rates - 10/100/1000 Mbit/s
PoE ports - 1
Ports & interfaces > Gigabit Ethernet (copper) ports quantity - 1
Ports & interfaces > POE - PoE passive
Ports & interfaces > Predominant port type - 10/100/1000 Mbps (RJ-45)
Ports & interfaces > SFP+ ports quantity - 4
Ports & interfaces > SFP ports quantity - 5
Power > Power consumption (max) - 16.3 W W
Power > Voltage - 18-57 V V
Processor > Processor model - 98DX226S
Producer product family - Cloud Router Switch
Producer product name - CRS310-1G-5S-4S+OUT, NetFiber 9
SFP+ Ports - 4
SFP Ports - 5
Shipping Box Depth Shipping/Package Box Dimensions - 36 cm
Shipping Box Height Shipping/Package Box Dimensions - 9 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 2.5 kg
Shipping Box Width Shipping/Package Box Dimensions - 36 cm
Software > Operating system installed - RouterOS
Technical details > Gross weight - 1.68 kg
Technical details > Net weight - 1.20 kg
Technical details > Other features - netFiber 9 is a powerful outdoor switch with SFP, SFP+, and Gigabit Ethernet. It features a powerful ARM v7 CPU, 256 MB of RAM, 4x 10G SFP+ ports, and an advanced Marvell switch-chip that can handle even the heaviest loads. The Gigabit Ethernet port is not just for management purposes. It has a direct connection to the switch chip – so you can enjoy full gigabit speed. This port also supports PoE-in, so you don’t have to rely on the DC jack for powering in tight, hard- to-reach spots. There is a console port, followed by five regular SFP ports and four SFP+ ports for that sweet 10 Gbps networking. This means there might be quite a lot of wires for you to organize at some point. That’s why we designed the case to have some handy little additional features on the bottom of the case to help you keep everything neat and tidy. The sturdy case provides decent protection in dusty environments with occasional splashes of water. Perfect for outdoors with some light coverage – like a roof overhang or a simple cabinet. There is a massive heatsink on the back that serves two purposes. Not only it provides outstanding heat dissipation, it also moves the center of mass towards the side with all the mounting options – keeping the board firm and strong upon installation. The package includes metal hose clamps and screws, so you can attach the netFiber to a pole, wall, or mast right away. netFiber 9 is an amazing tool for anyone working with connections over 100 meters while keeping data loss and ping low. Optic fiber can be a great alternative to copper if you are worried about electromagnetic interference or maybe even tampering and eavesdropping. With 10 ports, a powerful CPU, and a rugged case, netFiber 9 is a real bargain that will make your network management so much easier!
Technical details > Producer - MikroTik
Technical details > Software type - RouterOS
title - MikroTik netFiber 9
Unit Box Height - 0.09
Unit Box Length - 0.36
Unit Box Width - 0.36
Unit Brutto Volume - 0.01166 cubm
Unit Gross Weight - 2.5 kg
Unit Net Weight - 1.9 kg
Vendor Homepage - www.mikrotik-store.eu/en/mikrotik-crs310-1g-5s-4sout-netfiber-9
Warranty - 12
Warranty - 12 month(s)
Warranty - 12 months
weight - 2.9 kg
width - 0.11 m
Wireless LAN features > Wi-Fi band - No Wi-Fi
