10/100/1000/2500 Mbps ports - None
10Base-T / 100Base-TX / 1000Base-T Ports - 48
Accessories included -
Application - Medium and large companies
brand - MikroTik
category - Mājas un biroju tīkli > Komutatori > 1G komutatori
Category - Root/Electronics/Networks and communication/Switchers
Category 1 - Netzwerk
Category 2 - Switching Hubs
Category Code - SWI
Chassis type - Rack
Code - CRS354-48G-4S+2Q+RM
Console port - Yes

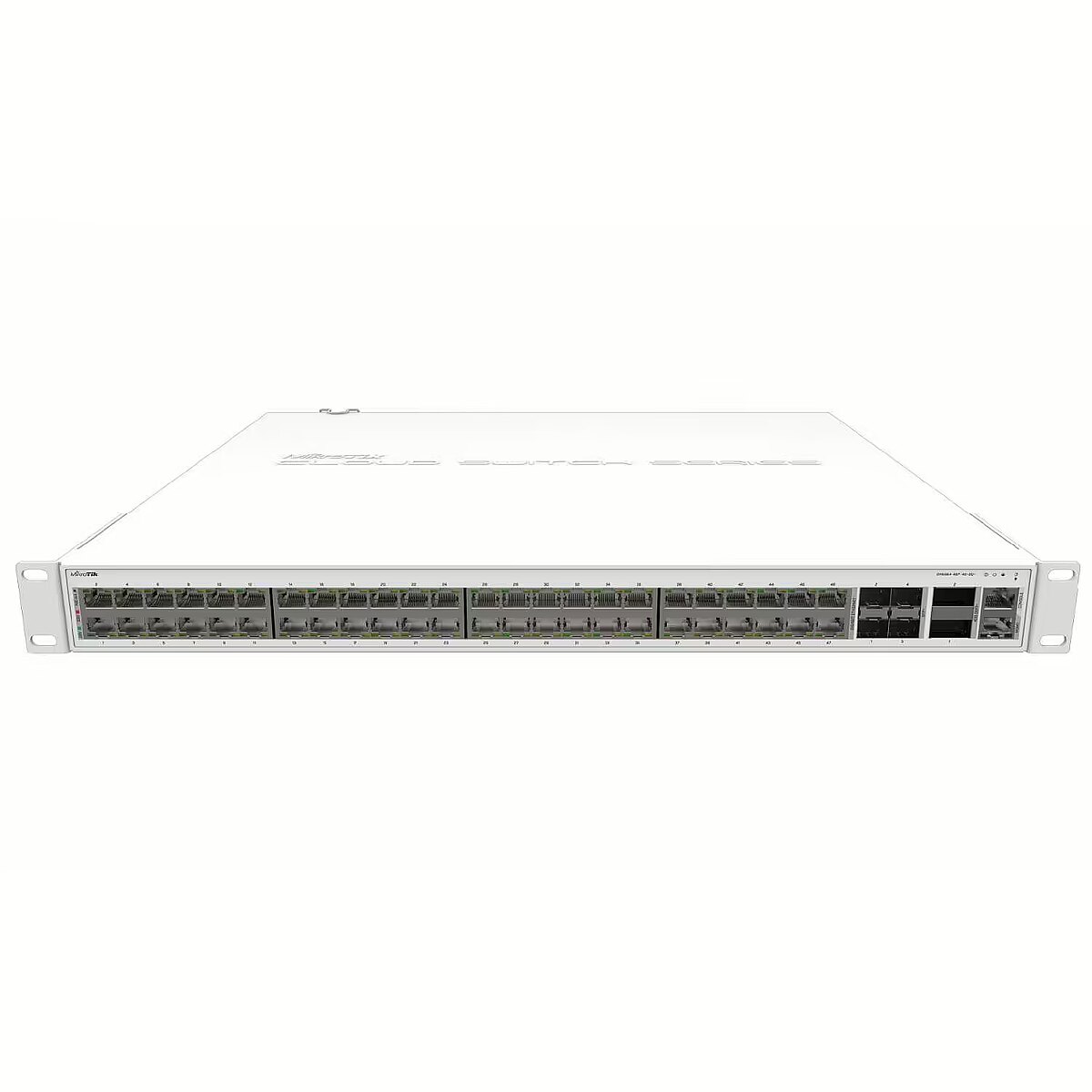

Description - If you are looking for a single switch that will put your network setup ahead of the curve without costing a fortune, look no further. The new CRS354-48G-4S+2Q+RM is an effective and adaptable rackmount solution for managing networks in demanding and busy environments. With this product we aim to set a new price-performance bar – get more features while spending way less! < This powerful switch has 48 x 1G RJ45 ports and 4 x 10G SFP+ ports. There are also 2 x 40G QSFP+ ports for extremely fast fiber connections or linking with other 40 Gbps devices. The total non-blocking throughput is 168 Gbps, switching capacity is 336 Gbps and the forwarding rate reaches 235 Mpps
Description - Jeśli szukasz pojedynczego przełącznika, który zapewni Twojej sieci przewagę bez wydawania fortuny, nie szukaj dalej. Nowy CRS354-48G-4S+2Q+RM to efektywne i elastyczne rozwiązanie do montażu w szafie serwerowej do zarządzania sieciami w wymagających i ruchliwych środowiskach.
Ten potężny przełącznik ma 48 portów 1G RJ45 i 4 porty 10G SFP+. Dostępne są również 2 porty 40G QSFP+ do niezwykle szybkich połączeń światłowodowych lub łączenia z innymi urządzeniami 40 Gb/s. Łączna przepustowość bez blokowania wynosi 168 Gb/s, zdolność przełączania 336 Gb/s, a prędkość przesyłania danych sięga 235 Mp/s.
Design > Form factor - Rackmountable
dimension depth - 370 mm
dimension height - 580 mm
Dimensions - 297 x 443 x 44 mm
dimension weight - 5000 g
dimension width - 90 mm
EAN - 4752224002266
ean - 4752224002266
Eans - 4752224002266
Fan - Yes
Forwarding rate - 235 Mpps
Full Description Line - Type L3|48x10Base-T / 100Base-TX / 1000Base-T|4xSFP+|2xQSFP+|Switching capacity 336 Gbps|Forwarding rate 235 Mpps|Dimensions 297 x 443 x 44 mm|Unit Net Weight 2.1 kg
guarantee - 12
guarantee_type - normal
height - 0.105 m
L2 features -
L3 features -
length - 0.59 m
Management, monitoring, configuration -
Manufacturer - MikroTik
Mean time between failures (MTBF) - 200000 h
mpn - CRS354-48G-4S+2Q+RM
MPN - CRS354-48G-4S+2Q+RM
Name - 48P+4+2 Mikrotik CRS354-48G-4S+2Q+RM SFP+ QSFP+ RM
Name - MikroTik Cloud Router Switch 354-48G-4S+2Q+RM with RouterOS L5 License | MikroTik | Rackmountable
Name - MikroTik CRS354-48G-4S+2Q+RM
name - MikroTik Switch 48xGbE4 SFP+ CRS354-48G-4S+2Q+R
Network architecture - GigabitEthernet
Number of 10/100 Mbps ports - 1
Number of 10/100/1000 Mbps ports - 48
Number of 10Gb ports - None
Number of COMBO ports - None
Number of PoE+ ports - None
Number of PoE ports (PoE & PoE+) - None
Number of QSFP+ ports - 2
Number of SFP+ ports - 4
Number of SFP ports - None
Other features - Architektura: MIPSBE Procesor: QCA9531 Liczba rdzeni procesora: 1 Częstotliwość nominalna procesora: 650 MHz Licencja RouterOS: 5 System operacyjny: SwOS / RouterOS (podwójny rozruch) Rozmiar pamięci RAM: 64 MB Rozmiar pamięci: 16 MB Typ pamięci: FLASH Testowana temperatura otoczenia: -20°C do 60°C Obsługiwane napięcie wejściowe: zasilanie AC 100 - 240 V Nadmiarowe zasilanie
Other functions -
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - Yes
Package features > Gross depth (mm) - 580 mm
Package features > Gross height (mm) - 95 mm
Package features > Gross weight - 4.58 kg
Package features > Gross width (mm) - 360.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 87 pc(s)
Package features > Paper/Pasteboard - 980 g
Package features > Tare weight (kg) - 0.98 kg
Package features > TI weight (kg) - 0.00 kg
Package features > Type of battery - Battery
Package features > Volume (m3) - 0.019836 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
PDF - http://www.blobs.lt/products/5/9/0/1/8/2/6b47afe71d6f69173f98d35dc3085be4/original.pdf
Power consumption - 60 W
Power supply -
Primary port count - 48
producer - Mikrotik
Producer - MikroTik
ProducerCode - CRS354-48G-4S+2Q+RM
QoS -
QSFP+ Ports - 2
Security -
SFP+ Ports - 4
Shipping Box Depth Shipping/Package Box Dimensions - 58 cm
Shipping Box Height Shipping/Package Box Dimensions - 37 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 5.05 kg
Shipping Box Width Shipping/Package Box Dimensions - 9 cm
ShortDescription -
Supported protocols and standards -
Switching capacity - 336 Gbps
Switch type - L3
Technical details > Net weight - 3.60 kg
Technical details > Producer - MikroTik
title - MikroTik CRS354-48G-4S+2Q+RM
Unit Box Height - 0.37
Unit Box Length - 0.58
Unit Box Width - 0.09
Unit Brutto Volume - 0.01931 cubm
Unit Gross Weight - 5.05 kg
Unit Net Weight - 2.1 kg
Vendor Homepage - mikrotik.com/product/crs354_48g_4splus2qplusrm
vendpn - CRS354-48G-4S+2Q+RM
VLAN -
Warranty - 12
Warranty - 12 month(s)
Warranty - 12 months
weight - 5.2 kg
Weight - 5.12
width - 0.40 m
