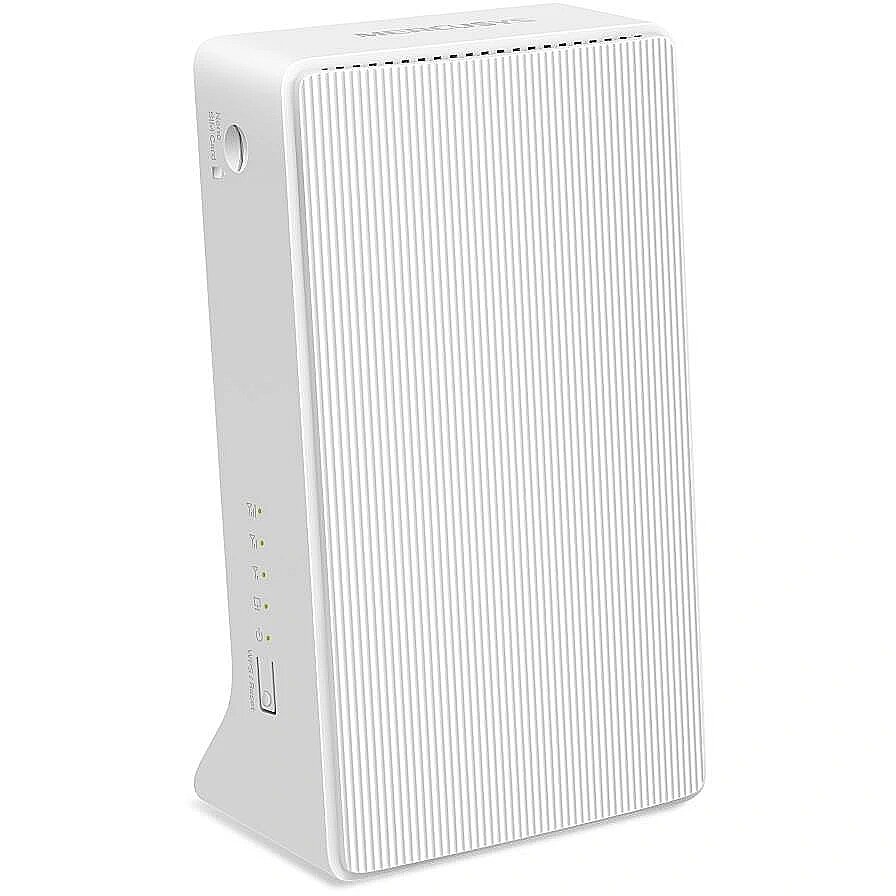

Mercusys Router Mercusys MB230-4G LTE 4G+ Cat6, AC1200

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 1101107 Product code: MB230-4G
In stock 3 units
Warranty: 2 years
91.67 €
Delivery options
  • Delivery to Smartpost 6.99 €: on Monday, 07.04.2025
  • Courier delivery 11.99 €: on Monday, 07.04.2025
More detailed specification
4G - Yes
10/100/1000M LAN Ports - 1
Antenna - Antenna design - Internal
Category - Root/Electronics/Networks and communication/Routers
Category Code - WRO
Colour - White
Data transmission speed - 1200 Mbps
Description - MB230-4G 4G+ Cat6 AC1200 Wireless Dual Band Gigabit Router - 4G+ network – Enjoy the 4G+ Cat 6 download speeds up to 300 Mbps. - Plug a SIM card and play – No configurations needed, compatibility of SIM cards are assured by years of field tests. - Dual Band 1200 Mbps WiFi – Fast WiFi speeds up to 300 Mbps on the 2.4 GHz band and 867 Mbps on the 5 GHz band. - Simultaneous Connection– Enjoy and share internet access with up to 64 Wi-Fi devices. - Wi-Fi router mode – Plug an Ethernet cable into the LAN/WAN port for flexible access if you can't get a 4G connection.
Design - Indication light - Yes
Design - Product colour - White
Design - Product type - Desktop/pole router
DHCP Networking features - Yes
dimensionalWeight - 609
Dimensions - 95×61.05×165.97 mm
Eans - 6957939001827
Features - Firmware upgradeable - Yes
Full Description Line - MB230-4G|Router|Data transmission speed 1200 Mbps|IEEE 802.3ac|IEEE 802.11a/b/g|IEEE 802.11n|1x10/100/1000M|WPA - Wi-Fi Protected Access|WPA2 - Wi-Fi Protected Access|WPA3|DHCP|4G|Colour White|Dimensions 95×61.05×165.97 mm
IEEE 802.3ac Network standard - Yes
IEEE 802.11a/b/g Network standard - Yes
IEEE 802.11n Network standard - Yes
LAN \ WAN ports - 1
Management features - Reset button - Yes
Management features - Wi-Fi Multimedia (WMM)/(WME) - Yes
Management features - WPS push button - Yes
Mobile network - 3G standards - HSPA
Mobile network - 3G standards - HSPA+
Mobile network - 3G standards - UMTS
Mobile network - 4G bands supported - 700
Mobile network - 4G bands supported - 800
Mobile network - 4G bands supported - 850
Mobile network - 4G bands supported - 900
Mobile network - 4G bands supported - 1800
Mobile network - 4G bands supported - 2100
Mobile network - 4G bands supported - 2300
Mobile network - 4G bands supported - 2600 MHz
Mobile network - 4G standard - LTE-TDD & LTE-FDD
Mobile network - Dual SIM support - No
Mobile network - Mobile network generation - 4G
Mobile network - SIM card type - NanoSIM
Mobile network - UMTS bands supported - 850
Mobile network - UMTS bands supported - 900
Mobile network - UMTS bands supported - 2100 MHz
Model name - MB230-4G
Name - Mercusys MB230-4G
Network - Cabling technology - 10/100/1000Base-T(X)
Network - Dynamic DNS (DDNS) - Yes
Network - Ethernet LAN - Yes
Network - Ethernet LAN data rates - 10
Network - Ethernet LAN data rates - 100
Network - Ethernet LAN data rates - 1000 Mbit/s
Network - Ethernet LAN interface type - Gigabit Ethernet
Network - Networking standards - IEEE 802.11a
Network - Networking standards - IEEE 802.11ac
Network - Networking standards - IEEE 802.11b
Network - Networking standards - IEEE 802.11g
Network - Networking standards - IEEE 802.11n
Network - Port forwarding - Yes
Network - Port triggering - Yes
Network - Receiver sensitivity - 11g 6Mbps: -95dBm; 11g 54Mbps: -77dBm; 11n HT20 MCS7: -74dBm; 11n HT40 MCS7: -71dBm; 11a 6Mbps: -92dBm; 11a 54Mbps: -75dBm; 11ac VHT20 MCS8: -70dBm; 11ac VHT40 MCS9: -65dBm; 11ac VHT80 MCS9: -61dBm
Network Device Type - Router
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 60 °C
Packaging content - AC adapter included - Yes
Packaging content - Quick installation guide - Yes
Packaging data - Number of products included - 1 pc(s)
Packaging data - Package type - Box
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 2
Ports & interfaces - USB port - No
Power - Output current - 1 A
Power - Output voltage - 12 V
Power - Power source type - DC
Producer - Mercusys
producerCode - MB230-4G
ProducerCode - MB230-4G
productName - Mercusys 4G+ Cat6 AC1200 Wireless Dual Band Gigabit Router
productSize - Normal
Protocols - DHCP server - Yes
Protocols - Universal Plug and Play (UPnP) - Yes
Protocols - VoIP protocols - IPv4, IPv6
Security - DMZ support - Yes
Security - Firewall - Yes
Security - Port-based Network Access Control (PNAC) - Yes
Security - Security algorithms - 64-bit WEP
Security - Security algorithms - WPA-PSK
Security - Security algorithms - WPA2-PSK
Security - Security algorithms - WPA3-SAE
Security - System event log - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 11 cm
Shipping Box Height Shipping/Package Box Dimensions - 21 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.525 kg
Shipping Box Width Shipping/Package Box Dimensions - 13 cm
ShortDescription - AC1200 Wi-Fi 4G+ LTE Router
sizeX - 210
sizeY - 110
sizeZ - 132
Unit Box Height - 0.21
Unit Box Length - 0.11
Unit Box Width - 0.13
Unit Brutto Volume - 0.003003 cubm
Unit Gross Weight - 0.525 kg
Unit Net Weight - 0.3 kg
Vendor Homepage - www.mercusys.com/en/product/details/mb230-4g
WAN connection - 3G/4G USB modem compatibility - Yes
WAN connection - DSL WAN - No
WAN connection - Ethernet WAN - Yes
WAN connection - SIM card slot - Yes
WAN connection - WAN connection type - RJ-45
Warranty - 24 months
warrantyLength - 36
warrantyType - G
weight - 530
Weight & dimensions - Depth - 61 mm
Weight & dimensions - Height - 166 mm
Weight & dimensions - Width - 95 mm
Wireless LAN features - Top Wi-Fi standard - Wi-Fi 5 (802.11ac)
Wireless LAN features - Wi-Fi band - Dual-band (2.4 GHz / 5 GHz)
Wireless LAN features - Wi-Fi standards - 802.11a
Wireless LAN features - Wi-Fi standards - 802.11b
Wireless LAN features - Wi-Fi standards - 802.11g
Wireless LAN features - Wi-Fi standards - Wi-Fi 4 (802.11n)
Wireless LAN features - Wi-Fi standards - Wi-Fi 5 (802.11ac)
Wireless LAN features - WLAN data transfer rate (max) - 1200 Mbit/s
WPA - Wi-Fi Protected Access Security - Yes
WPA2 - Wi-Fi Protected Access Security - Yes
WPA3 Security - Yes
