ID: 954178
Product code: D41 MESH BLACK SC
Can be ordered 50 units Availability: 14 days after order approval
Warranty: 2 years

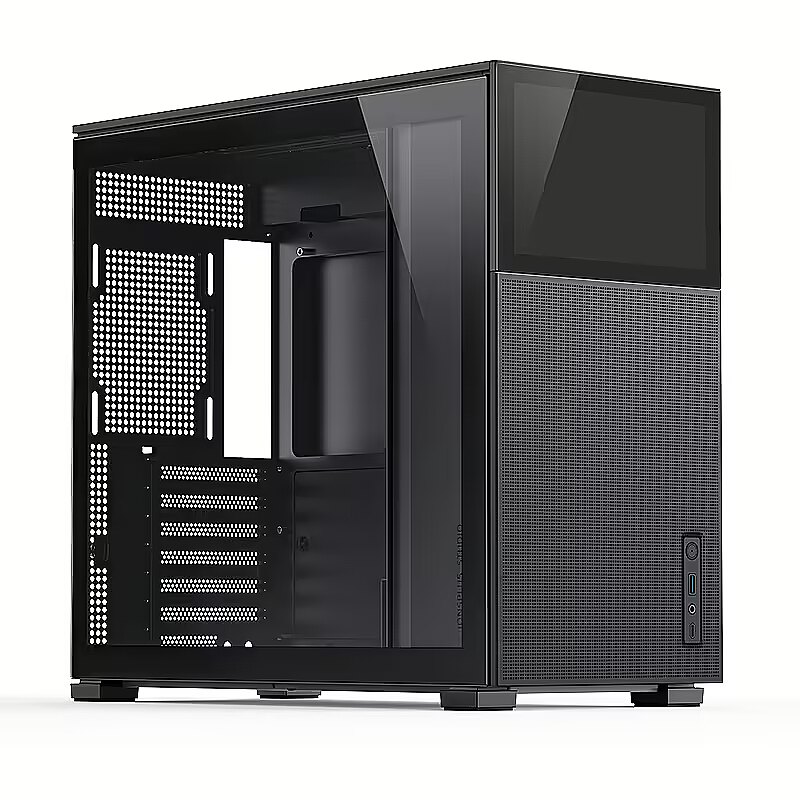

Jonsbo D41 MESH SCREEN, Tempered Glass, Black
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Courier delivery 11.99 €: 12.03.2025
Main product parameters All parameters
- Form factor: ATX
- Case type: Premium Quality
- Color: Melna
- PSU: Nav
All parameters
Form factor
: ATX
Case type
: Premium Quality
Color
Melna
The colour of the front panel of the housing. This parameter is approximate and may differ from the actual colour of the housing.
Side panel type
: Tempered Glass
PSU
: Nav
Max. CPU cooler height, mm
: 168
Max. radiator size, mm
: 360
Max. Video card length, mm
: 400
2.5" internal HDD/SSD bays
: 3
3.5" internal HDD bays
: 2
5.25" external drive bays
: 0
3.5" FDD drive bays
: 0
USB 2.0 Ports
: Nav
USB 3.0 ports
: 1
USB Type-C ports
: 1
Number of fans
: Nav
More detailed specification
category - Cases & Modding|PC Cases|Mini Cases|Micro-ATX Cases
code - D41 MESH BLACK SC
Cooling - Bottom fans diameters supported - 120
Cooling - Bottom fans diameters supported - 140 mm
Cooling - Bottom radiator sizes supported - 240
Cooling - Bottom radiator sizes supported - 360 mm
Cooling - Front fans diameters supported - 120
Cooling - Number of bottom fans supported (max) - 3 / 2
Cooling - Number of front fans supported (max) - 1
Cooling - Number of rear fans supported (max) - 1
Cooling - Number of top fans supported (max) - 3 / 2
Cooling - Rear fans diameters supported - 120 mm
Cooling - Rear radiator sizes supported - 120 mm
Cooling - Top fans diameters supported - 120
Cooling - Top fans diameters supported - 140 mm
Cooling - Top radiator sizes supported - 240
Cooling - Top radiator sizes supported - 280 mm
Cooling - Top radiator sizes supported - 360 mm
Design - Backlight - No
Design - Form factor - Micro Tower
Design - Material - Steel
Design - Material - Tempered glass
Design - Maximum CPU cooler height - 16.8 cm
Design - Maximum graphics card length - 40 cm

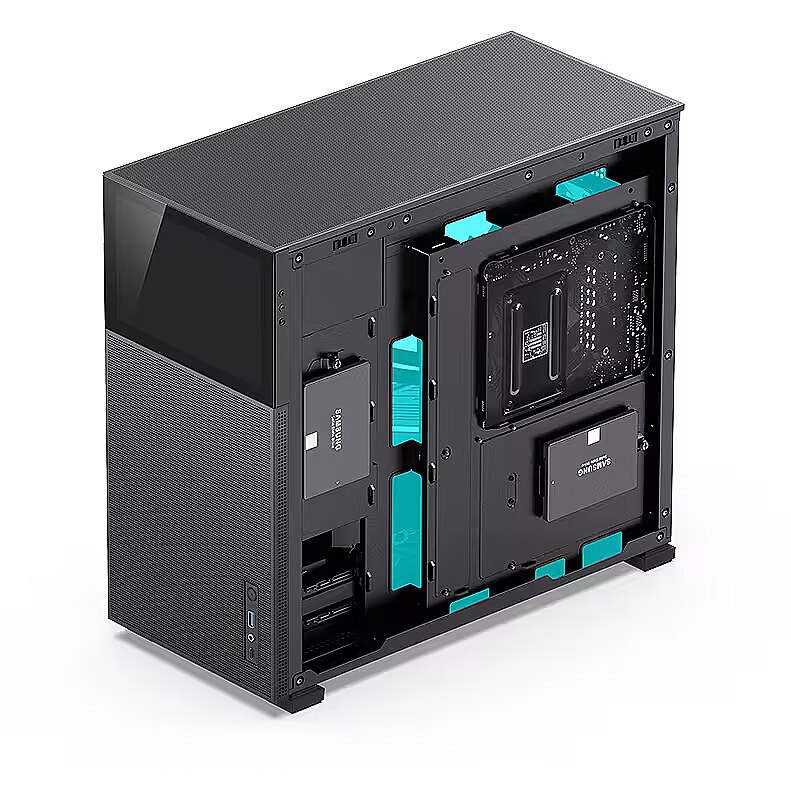

Design - Number of 2.5" bays - 3
Design - Number of 3.5" bays - 2
Design - Number of expansion slots - 7
Design - On/off button - Yes
Design - Product colour - Black
Design - Side window - Yes
Design - Suitable for - Gaming
Design - Supported motherboard form factors - ATX
Design - Supported motherboard form factors - M-ATX
Design - Tempered glass panel(s) - Yes
Design - Type - PC
dimensionalWeight - 15062

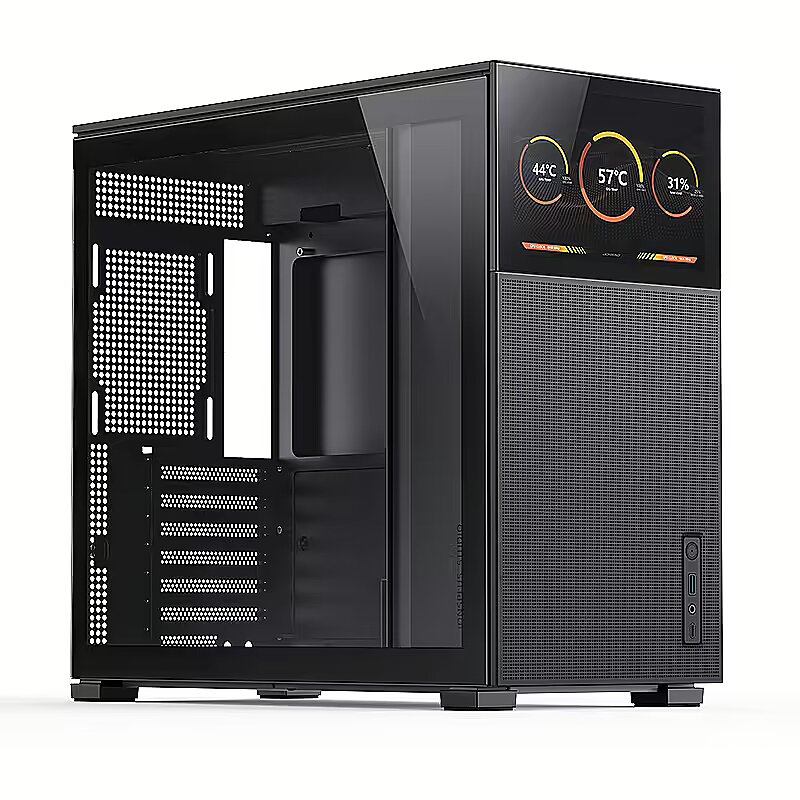

Display - Contrast ratio - 1000:1
Display - Display - TFT-LCD
Display - Display brightness - 300 cd/m²
Display - Display diagonal - 20.3 cm (8")
Display - Display resolution - 1280 x 800 pixels
Display - Mini HDMI ports quantity - 1
Display - Number of colours - 16.7 million colours
Display - Refresh rate - 60 Hz
Display - USB Type-C ports quantity - 1
ean - 6970620552590
name - Jonsbo D41 MESH Screen ATX Case, Tempered Glass - black
Ports & interfaces - Combo headphone/mic port - Yes
Ports & interfaces - Number of USB 3.0 Type-A ports - 1
Ports & interfaces - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
Power supply - Number of power supply units - 1

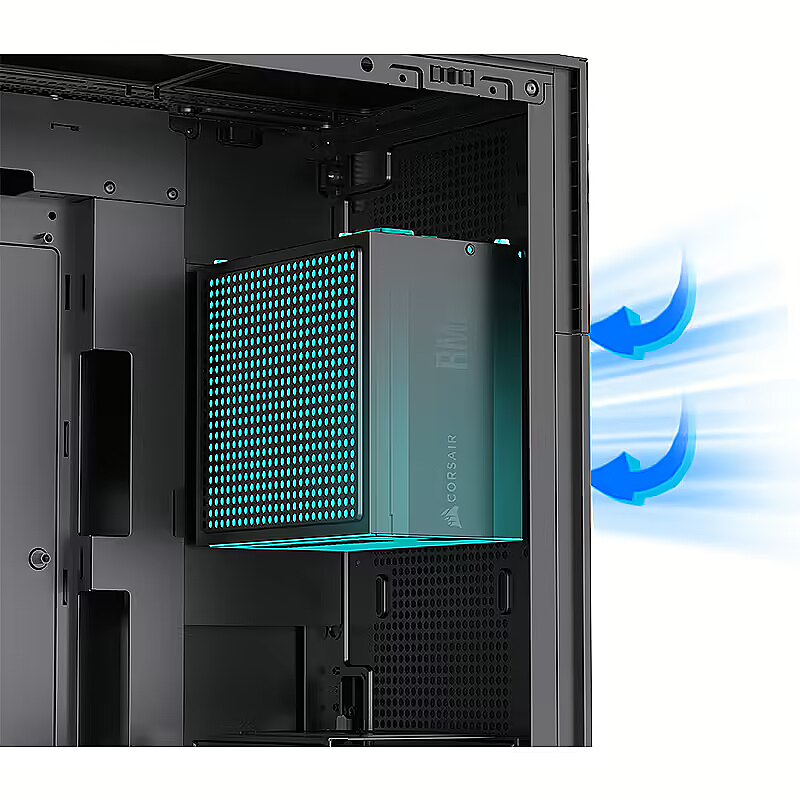

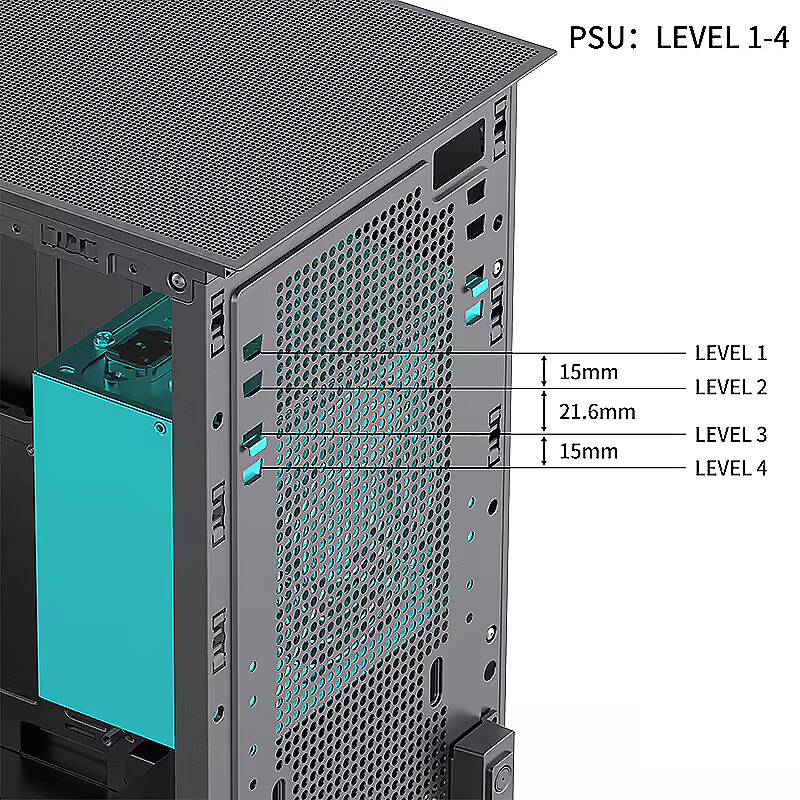

Power supply - Power supply location - Front
Power supply - Supported power supply form factors - ATX
producerCode - D41 MESH BLACK SC
productName - Computer Case JONSBO D41 MESH SCREEN Black
productSize - Normal
sizeX - 530
sizeY - 290
sizeZ - 490
Storage - SSD form factor - 2.5"
Storage - Supported HDD sizes - 2.5
Storage - Supported HDD sizes - 3.5"
warrantyLength - 24
warrantyType - G
weight - 8500
Weight & dimensions - Depth - 452 mm
Weight & dimensions - Display depth - 24.6 mm
Weight & dimensions - Display height - 131.7 mm
Weight & dimensions - Display width - 205.3 mm
Weight & dimensions - Height - 407 mm
Weight & dimensions - Material thickness - 0.7 mm
Weight & dimensions - Weight - 6.78 kg
Weight & dimensions - Width - 205 mm
