Category - Root/Electronics/PC parts/Computer casings
Chassis type - Midi Tower
Color - Black
Cooling - Front fans diameters supported - 120
Cooling - Front fans diameters supported - 140 mm
Cooling - Liquid cooling capability - Yes
Cooling - Number of front fans supported (max) - 3
Cooling - Number of rear fans supported (max) - 1
Cooling - Number of top fans supported (max) - 2
Cooling - Rear fans diameters supported - 90
Cooling - Rear fans diameters supported - 120 mm
Cooling - Rear fans installed - 1x 120 mm
Cooling - Top fans diameters supported - 120
Cooling - Top fans diameters supported - 140 mm

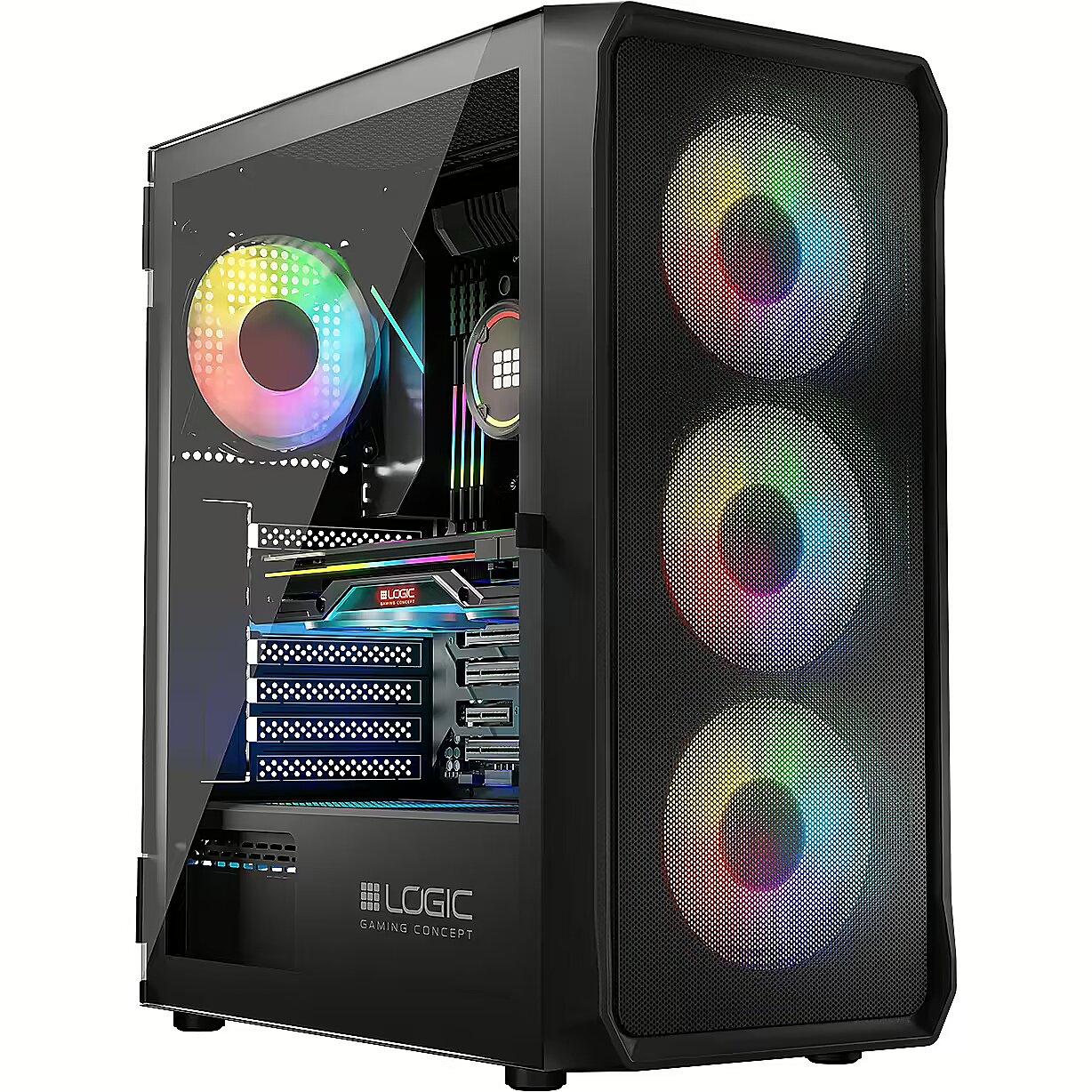

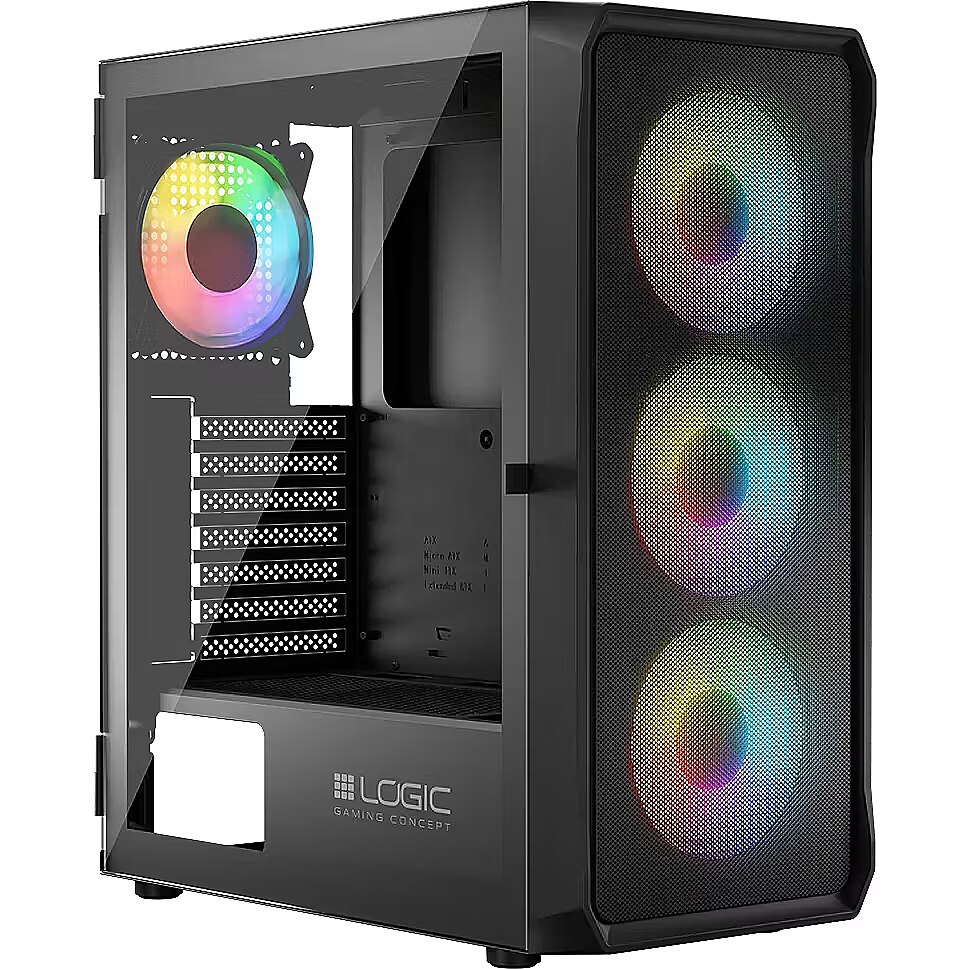

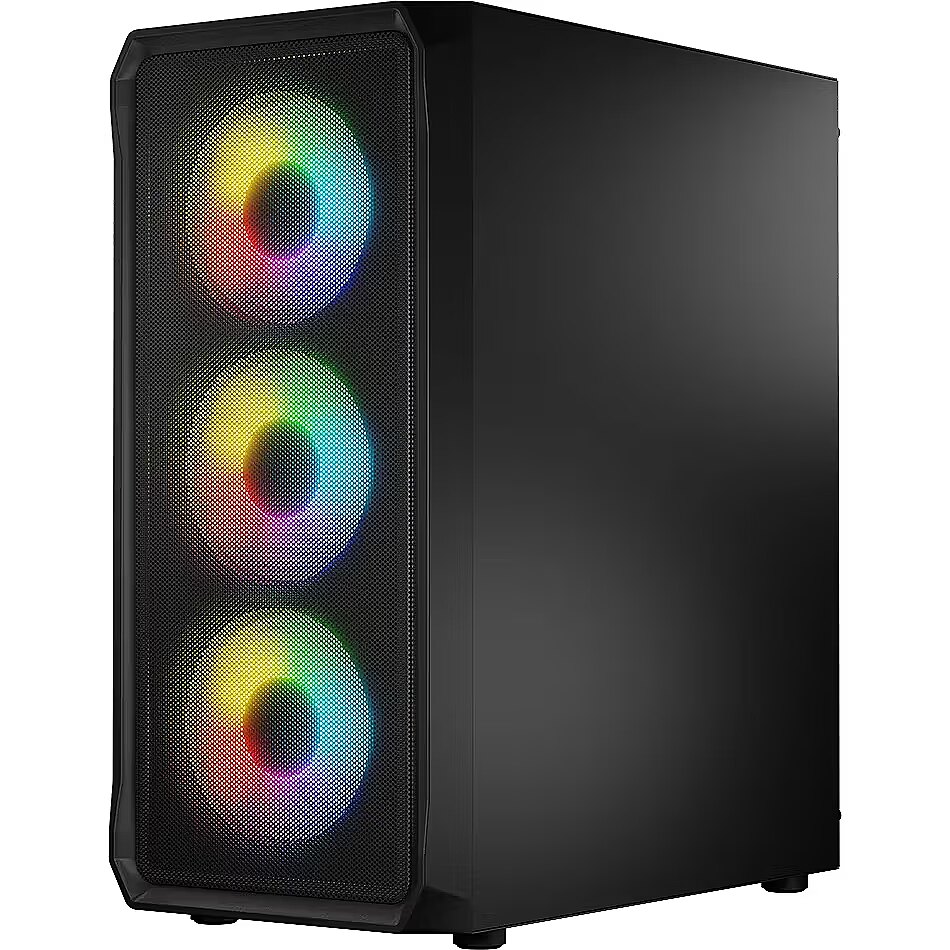

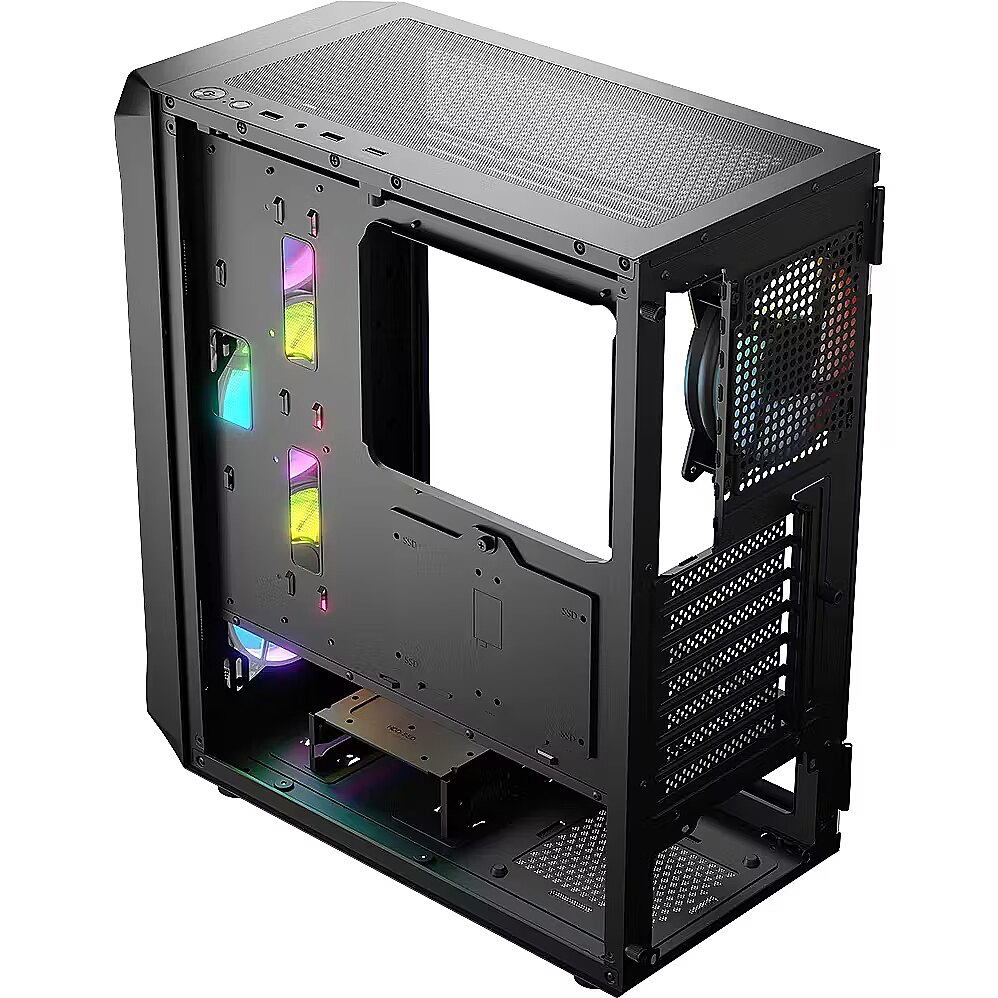

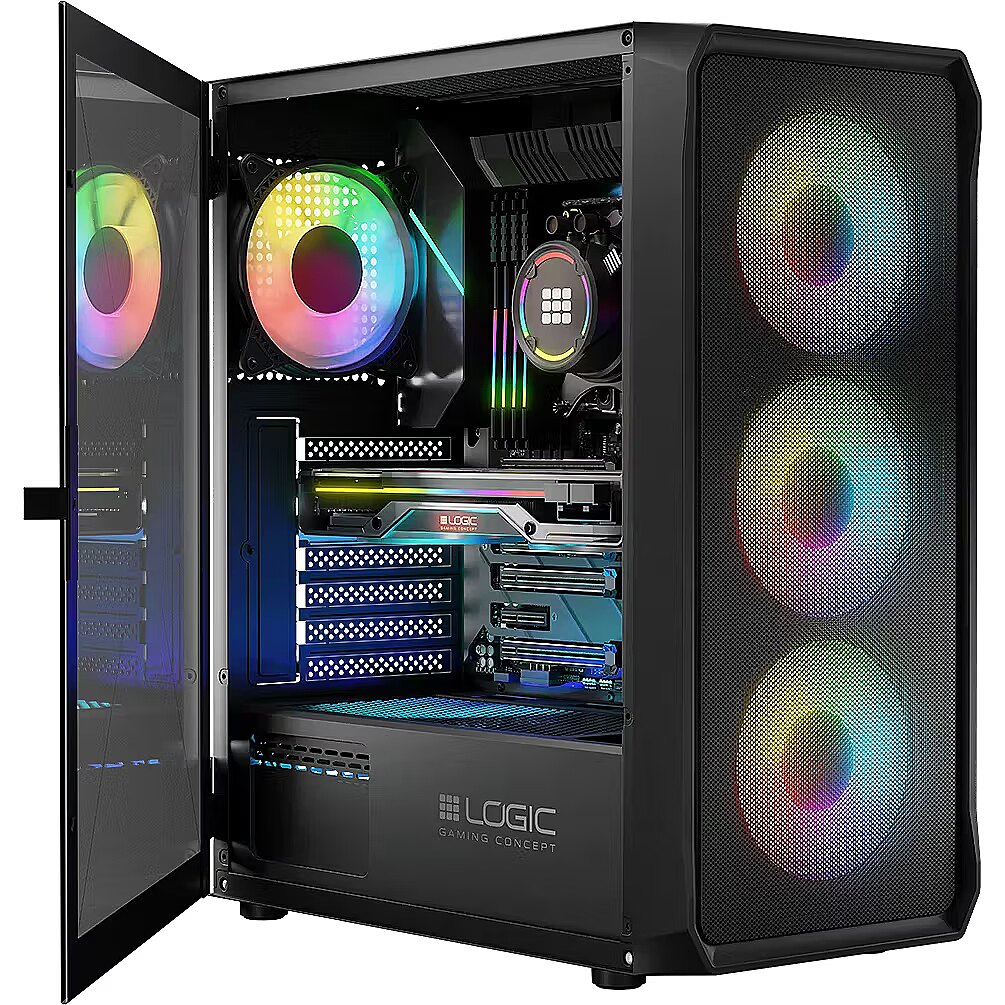

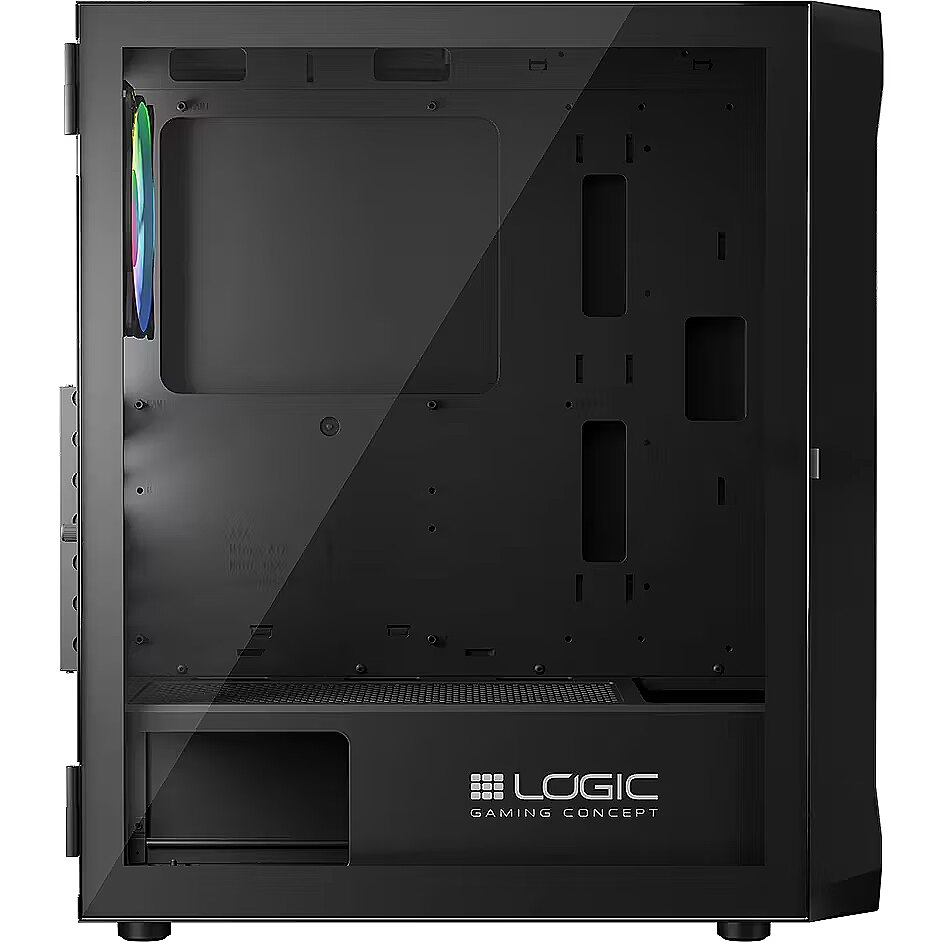

Description - GETTING INTO THE GAME. Are you building a gaming computer? Then of course you need your gaming rig to have a sturdy, well-thought-out, well-designed and good-looking case. One with four mounted ARGB fans, an airy front and top, and dust filters. And even better if the side panel was made into a tempered glass door. This is where Case Logic Concept Portos MIDI comes to the rescue. A concrete competitor for gaming tasks to ensure good airflow, component culture, their safety and low temperatures of installed components. Computer case that has everything you need. OPEN YOURSELF TO NEW A side panel made of tempered glass in the form of a hinged door makes it easier not only to install components, but also to keep the computer clean. Just open the door and clean the center with compressed air. Isn't it simple and practical? It's the only one we want to give you, because they simply belong to you. TO HOT COMPONENTS SAY "NO" An airy front and top panel significantly facilitates air circulation. As many as three 120 mm fans on the front and one 120 mm fan on the back Cases effectively cool the heated components. All for your comfort and the safety of your computer. Always willing to play Logic PORTOS ARGB MIDI is a case created to build an efficient and modern gaming PC. Optimal airflow, practical solutions and pre-installed ARGB fans make up its gaming character. READY FOR GAMING COMPONENTS The ability to mount graphics cards up to 340 mm and a maximum CPU cooling height of 155 mm allows the installation of most high-performance components available on the market. PROTECT YOUR COMPUTER FROM DUST THREE DUST FILTERS A dust filter has been placed under the power supply unit. It minimizes the amount of dust sucked in by the PSU's fan, positively affecting its operating temperature and service life. An additional filter is located on top of Cases. This effectively traps unwanted dust and protects the installed components. It protects against dust that enters the computer by gravity throughout the day, even when the computer is turned off. All the effective protection is complemented by mesh mesh on the front panel. OPTIMAL AIR CIRCULATION The ventilated front panel provides airflow with three, efficiently operating 120 mm fans. The back of Cases , on the other hand, features one pre-installed 120 mm fan. This allows you to effectively cool the installed components of the computer's interior, positively influencing the culture of their operation and service life. As an option, it is possible to mount three 140 millimeter fans on the front of Cases (in place of the factory-installed ones) and two 120 or 140 millimeter fans on the top on their own. Case It is also adapted for installation of water cooling. ARGB BEAUTY Case for gamers must look nice. That's why the pre-installed ARGB fans add beauty to the case and the gaming stand. The backlight color can be changed at will from the predefined settings using the RESET button on the control panel Cases. Convenient access to the top panel Convenient access to the top panel, and there are two USB 2.0 and one USB 3.0 connectors, plus one minijack connector for headphones and microphone, a power button and a button to control the fan backlight. SIMPLE INSTALLATION Everything here is well thought out and intuitive. Building a computer in this case is a pleasure and is child's play. POWER SUPPLY A gaming computer must have a good and powerful power supply. That's why we made sure that it has a home here! The maximum length of the power supply with the disk cage installed is 200 mm. A dust filter has been placed under the power supply, which effectively protects the operation of the power supply from dust. 7 PCIe expansion card slots Seven slots for PCIe expansion cards. This is the optimal number for mounting a graphics card and a network card, among others. NEED SPACE FOR GAMES? YOU HAVE IT IN ABUNDANCE! The mounting of HDD or SSD drives is obviously thought out here as well. Inside Cases at tunnel level there is a basket for 3.5" or 2.5" drives. On the motherboard tray, on the other hand, it is possible to mount two additional 2.5" drives. On the motherboard mounting wall, another two 2.5" (with a microATX or ATX motherboard size). A total of 5 SSDs and 1 HDD or 4 SSDs and 2 HDDs can be installed.
Design - Anti-dust filter - Yes
Design - Backlight - Yes
Design - Cable management - Yes
Design - Form factor - Midi Tower
Design - Maximum CPU cooler height - 15.5 cm
Design - Maximum graphics card length - 34 cm
Design - Number of 2.5" bays - 4
Design - Number of 3.5" bays - 2
Design - Number of expansion slots - 7
Design - On/off button - Yes
Design - Product colour - Black
Design - Side window - Yes
Design - Supported motherboard form factors - ATX
Design - Tempered glass panel(s) - Yes
Design - Type - PC
dimensionalWeight - 11637
dimension depth - 445 mm
dimension height - 490 mm
Dimensions - Dimensions without front panel: 350 x 200 x 440 mm Housing with panel and legs: 390 x 200 x 450 mm
dimension weight - 4700 g
dimension width - 248 mm
Drive bays 2.5'' extern. - 0
Drive bays 2.5'' intern. - 4
Drive bays 3.5'' extern. - 0
Drive bays 3.5'' intern. - 2
Drive bays 5.25'' extern. - 0
Drive bays 5.25'' intern. - 0
ean - 5905842126046
Eans - 5905842126046
Fan - 12 cm
Fan - 14 cm
Form-factor - ATX
Form-factor - Micro ATX
Front panel connectors - 1 x mic/headphone (combo)
Front panel connectors - 1 x USB 3.0
Front panel connectors - 2 x USB 2.0
guarantee - 24
guarantee_type - statutory
name - Comuter case PORTOS ARGB MIDI USB 3.0 Black
Name - Logic Portos ARGB Midi czarna
No. of drive bays - 6
Other features - PCI expansion cards: x 7 ATX power supply installation: at the bottom Maximum length of the ATX power supply: 200 mm (with disk basket installed). Maximum motherboard size: ATX Possibility to install graphics cards: up to 340 mm Maximum CPU cooling height: 155 mm Fan installation locations: Front 3 x 120 mm or 3 x 140 mm. Top 2 x 120 mm or 2 x 140 mm. Rear 1 x 120 mm. Installed illuminated fans: 3 x 120 mm on ARGB front panel. 1 x 120 mm on ARGB rear panel.
Ports & interfaces - Audio input - Yes
Ports & interfaces - Audio output - Yes
Ports & interfaces - Reset button - Yes
Ports & interfaces - USB 2.0 ports quantity - 2
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 1
Power supply - Power supply included - No
Producer - Logic
producer - Logic Concept
producerCode - AT-PORTOS-10-0000000-0002
ProducerCode - AT-PORTOS-10-0000000-0002
productName - Logic PORTOS ARGB MINIDI USB 3.0 Case Black
productSize - Normal
ShortDescription - Middle Tower | czarna | bez zasilacza | 1 x USB 3.0 i 2 x USB 2.0 | 390mm x 200mm x 450 mm |
Side panel - Tempered Glass
sizeX - 250
sizeY - 475
sizeZ - 490
Storage - Supported HDD sizes - 2.5
Storage - Supported HDD sizes - 3.5"
vendpn - AT-PORTOS-10-0000000-0002
warrantyLength - 24
warrantyType - G
weight - 5500
Weight & dimensions - Depth - 390 mm
Weight & dimensions - Height - 450 mm
Weight & dimensions - Width - 200 mm
