ID: 149170
Product code: XONAR_AE
Can be ordered 1 units Availability: 14 days after order approval
Warranty: 2 years

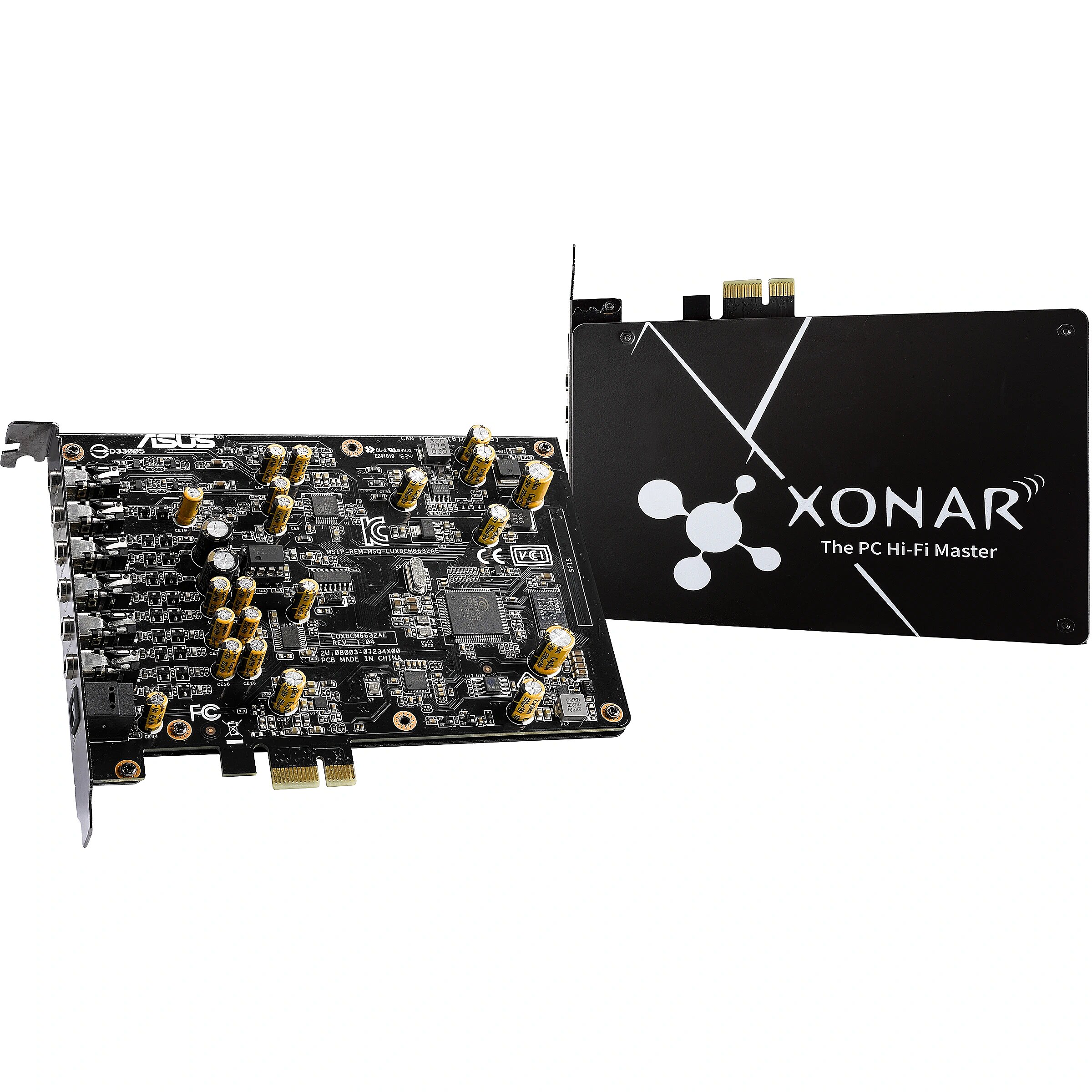

Asus Xonar AE 7.1
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
- Courier delivery 11.99 €: 11.12.2024
Main product parameters All parameters
- Interface: PCI eXpress
- Speaker support: 8 speakers (7.1)
All parameters
Interface
PCI eXpress
The type of connecting the sound card to the computer. The PCI connector is intended for installation in the enclosure of the desktop computer. The USB or FireWire connector will allow to connect the sound card to a portable computer or a desktop computer externally as any other peripheral device.
Prior to buying the sound card you should verify whether your computer has a compliant connection slot for connecting the card.
Model
: Xonar
Speaker support
8 speakers (7.1)
The speakers support indicates the number of channels that the sound card has. For wholesome enjoyment of sound the speakers support of the sound card has to correspond to the number of channels of your playback devices or be higher.
Use
: For home
Speakers
More detailed specification
Audio - Audio A/D Converter (ADC) - 24-bit/192kHz
Audio - Audio output channels - 7.1 channels
Audio - Audio quality - 32 bit
Audio - Digital-to-Analog Conversion (DAC) - 24-bit/192kHz
Audio - Frequency range - 10 - 650000 Hz
Audio - Internal - Yes
Audio - Line-in Signal-to-Noise Ratio (SNR) - 103 dB
Audio - Line-in Total Harmonic Distortion (THD) - 0.0022%
Audio - Line-out Signal-to-Noise Ratio (SNR) - 110 dB
Audio - Line-out Total Harmonic Distortion (THD) - 0.00158%
Audio > Audio output channels - 7.1 channels
Audio > Internal - Yes
Brand - ASUS
BrandPartCode - 90YA00P0-M0UA00
Category - Audio Cards
category - PC Components|Sound Cards|7.1 Sound Cards
Category_1 - Audio
Category_2 - Sound Cards - PCIe
code - 90YA00P0-M0UA00
Code - 90YA00P0-M0UA00
EAN - 4712900633603
ean - 4712900633603
EAN_code - 4712900633603
Gross weight - 0.476 kg
GTIN - 0889349633601
GTIN - 889349633601
GTIN - 4712900633603
Link - https://www.asus.com/Sound-Cards/Xonar-AE/
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - Xonar AE is a PCIe gaming sound card built with high-quality components to satisfy gamers who demand exceptional sound for the best gaming and multimedia experiences. Xonar AE delivers 7.1-channel, 192kHz/24-bit Hi-Res audio output with a high 110dB signal-to-noise ratio (SNR), and comes with a built-in 150ohm headphone amplifier that provides rich, detailed sound and defined bass. An exclusive EMI back plate shields static noise for incredibly clear audio.Immersive audio optimized for gamingWith up to 7.1-channel output and support for 192kHz/24-bit Hi-Res audio, Xonar AE lets you enjoy truly cinematic sound while gaming, watching movies, and listening to music.Swappable operational amplifiers — Level-up your audio experienceXonar AE features a swappable operational amplifier (op-amp), allowing you to customize your listening experience easily — no soldering required!110dB signal-to-noise ratio (SNR)A hi-fi-grade ESS 9023P DAC delivers an exceptional, jitter-free audio signal with a 110dB signal-to-noise ratio (SNR) for 12-times greater clarity than average onboard audio chips.Integrated headphone amplifier reveals every sound detailSince many gamers choose to play wearing headphones, Xonar AE features a high-quality, 150ohm headphone amplifier that delivers detailed, immersive sound with punchy, defined bass.ASUS-exclusive sound-insulation technologyHyper Grounding technologyExclusive ASUS Hyper Grounding PCB fabrication ensures strong signal insulation to reduce distortion and interference, also known as component crosstalk.Exclusive EMI back plateXonar AE is built with an ASUS-exclusive EMI back plate that blocks static noise to provide you with the purest audio experiences.Total Audio ControlTake complete control with Sonic StudioXonar AE features the latest Sonic Studio software suite for full control over every sound technology, from equalization (EQ) to 7.1-speaker level-balancing. Sonic Studio has a single navigation page that puts everything in front of you, with an intuitive point-and-click interface that allows you to pre-set audio profiles to suit different audio requirements.Perfect Voice TechnologySonic Studio includes controls for Perfect Voice, noise-cancellation technology that eliminates noises for clear in-game communications.Works perfectly with Windows 10Xonar AE is fully compatible with Windows 10 and features Windows Hardware Quality Labs (WHQL) support, ensuring a great audio experience with minimal setup hassles.
LongProductName - PCI Express, 3.5mm, S/PDIF, Sonic Studio, Windows, 16bit/24bit/32bit
LongSummaryDescription - ASUS Xonar AE. Audio output channels: 7.1 channels, Audio quality: 32 bit, Line-out Signal-to-Noise Ratio (SNR): 110 dB. Host interface: PCI-E, Headphone connectivity: 3.5 mm. Processor model: 6632AE
Manufacturer - Asus
Manufacturer_code - 90YA00P0-M0UA00
Name - ASUS Xonar AE PCIe R
name - ASUS Xonar AE Soundkarte, 7.1 Channel Surround, PCI-E x1
Name - Asus | Xonar AE | 7.1 channels | PCI Express
Other features - Mic/line-in combo port - Yes
Other features - Processor model - 6632AE
Other features - Quick start guide - Yes
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 6 mm
Package features > Gross depth master carton - 498 mm
Package features > Gross height (mm) - 240 mm
Package features > Gross height master carton - 197 mm
Package features > Gross width (mm) - 165.00 mm
Package features > Gross width master carton - 322 mm
Package features > Net weight master carton - 4.76 kg
Package features > Packing quantity - 10 pc(s)
Package features > Palette Qty - 540 pc(s)
Package features > Paper/Pasteboard - 200.00 g
Package features > Plastic (No PET) - 4.00 g
Package features > Tare weight (kg) - 0.204 kg
Package features > Tare weight master carton - 0.316 kg
Package features > Volume (m3) - 0.0002376 m³
Package features > WEEE tax - No
Ports & interfaces - Headphone connectivity - 3.5 mm
Ports & interfaces - Headphone outputs - 1
Ports & interfaces - Host interface - PCI-E
Ports & interfaces - S/PDIF out port - Yes
Ports & interfaces - Subwoofer out - Yes
Ports & interfaces > Host interface - PCI Express
Producer product name - Xonar AE
ProductName - Xonar AE
ShortSummaryDescription - ASUS Xonar AE, 7.1 channels, Internal, 32 bit, 110 dB, PCI-E
Software - Windows operating systems supported - Yes
Technical details > Net weight - 0.272 kg
Technical details > Producer - Asus
Technical details > Warranty - 24 month(s)
Technical_details - Chipset: C-media 6632AX (DAC: ESS ES9023P) Channels: 8 (7.1) Resolution: 24bit Sampling rate: 192kHz SNR: 110dB (RCA), 108dB (3.5mm) Inputs (analog): 1x jack (3.5mm) Outputs (analog): 5x jack (3.3mm) Outputs (digital): 1x TOSLink Special features: not available
Title - ASUS Xonar AE Internal 7.1 channels PCI-E
URL - https://www.asus.com/Sound-Cards/Xonar-AE/
Warranty - 24
WarrantyInfo -
Weight - 0,49
Audio - Audio output channels - 7.1 channels
Audio - Audio quality - 32 bit
Audio - Digital-to-Analog Conversion (DAC) - 24-bit/192kHz
Audio - Frequency range - 10 - 650000 Hz
Audio - Internal - Yes
Audio - Line-in Signal-to-Noise Ratio (SNR) - 103 dB
Audio - Line-in Total Harmonic Distortion (THD) - 0.0022%
Audio - Line-out Signal-to-Noise Ratio (SNR) - 110 dB
Audio - Line-out Total Harmonic Distortion (THD) - 0.00158%
Audio > Audio output channels - 7.1 channels
Audio > Internal - Yes
Brand - ASUS
BrandPartCode - 90YA00P0-M0UA00
Category - Audio Cards
category - PC Components|Sound Cards|7.1 Sound Cards
Category_1 - Audio
Category_2 - Sound Cards - PCIe
code - 90YA00P0-M0UA00
Code - 90YA00P0-M0UA00
EAN - 4712900633603
ean - 4712900633603
EAN_code - 4712900633603
Gross weight - 0.476 kg
GTIN - 0889349633601
GTIN - 889349633601
GTIN - 4712900633603
Link - https://www.asus.com/Sound-Cards/Xonar-AE/
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - Xonar AE is a PCIe gaming sound card built with high-quality components to satisfy gamers who demand exceptional sound for the best gaming and multimedia experiences. Xonar AE delivers 7.1-channel, 192kHz/24-bit Hi-Res audio output with a high 110dB signal-to-noise ratio (SNR), and comes with a built-in 150ohm headphone amplifier that provides rich, detailed sound and defined bass. An exclusive EMI back plate shields static noise for incredibly clear audio.Immersive audio optimized for gamingWith up to 7.1-channel output and support for 192kHz/24-bit Hi-Res audio, Xonar AE lets you enjoy truly cinematic sound while gaming, watching movies, and listening to music.Swappable operational amplifiers — Level-up your audio experienceXonar AE features a swappable operational amplifier (op-amp), allowing you to customize your listening experience easily — no soldering required!110dB signal-to-noise ratio (SNR)A hi-fi-grade ESS 9023P DAC delivers an exceptional, jitter-free audio signal with a 110dB signal-to-noise ratio (SNR) for 12-times greater clarity than average onboard audio chips.Integrated headphone amplifier reveals every sound detailSince many gamers choose to play wearing headphones, Xonar AE features a high-quality, 150ohm headphone amplifier that delivers detailed, immersive sound with punchy, defined bass.ASUS-exclusive sound-insulation technologyHyper Grounding technologyExclusive ASUS Hyper Grounding PCB fabrication ensures strong signal insulation to reduce distortion and interference, also known as component crosstalk.Exclusive EMI back plateXonar AE is built with an ASUS-exclusive EMI back plate that blocks static noise to provide you with the purest audio experiences.Total Audio ControlTake complete control with Sonic StudioXonar AE features the latest Sonic Studio software suite for full control over every sound technology, from equalization (EQ) to 7.1-speaker level-balancing. Sonic Studio has a single navigation page that puts everything in front of you, with an intuitive point-and-click interface that allows you to pre-set audio profiles to suit different audio requirements.Perfect Voice TechnologySonic Studio includes controls for Perfect Voice, noise-cancellation technology that eliminates noises for clear in-game communications.Works perfectly with Windows 10Xonar AE is fully compatible with Windows 10 and features Windows Hardware Quality Labs (WHQL) support, ensuring a great audio experience with minimal setup hassles.
LongProductName - PCI Express, 3.5mm, S/PDIF, Sonic Studio, Windows, 16bit/24bit/32bit
LongSummaryDescription - ASUS Xonar AE. Audio output channels: 7.1 channels, Audio quality: 32 bit, Line-out Signal-to-Noise Ratio (SNR): 110 dB. Host interface: PCI-E, Headphone connectivity: 3.5 mm. Processor model: 6632AE
Manufacturer - Asus
Manufacturer_code - 90YA00P0-M0UA00
Name - ASUS Xonar AE PCIe R
name - ASUS Xonar AE Soundkarte, 7.1 Channel Surround, PCI-E x1
Name - Asus | Xonar AE | 7.1 channels | PCI Express
Other features - Mic/line-in combo port - Yes
Other features - Processor model - 6632AE
Other features - Quick start guide - Yes
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 6 mm
Package features > Gross depth master carton - 498 mm
Package features > Gross height (mm) - 240 mm
Package features > Gross height master carton - 197 mm
Package features > Gross width (mm) - 165.00 mm
Package features > Gross width master carton - 322 mm
Package features > Net weight master carton - 4.76 kg
Package features > Packing quantity - 10 pc(s)
Package features > Palette Qty - 540 pc(s)
Package features > Paper/Pasteboard - 200.00 g
Package features > Plastic (No PET) - 4.00 g
Package features > Tare weight (kg) - 0.204 kg
Package features > Tare weight master carton - 0.316 kg
Package features > Volume (m3) - 0.0002376 m³
Package features > WEEE tax - No
Ports & interfaces - Headphone connectivity - 3.5 mm
Ports & interfaces - Headphone outputs - 1
Ports & interfaces - Host interface - PCI-E
Ports & interfaces - S/PDIF out port - Yes
Ports & interfaces - Subwoofer out - Yes
Ports & interfaces > Host interface - PCI Express
Producer product name - Xonar AE
ProductName - Xonar AE
ShortSummaryDescription - ASUS Xonar AE, 7.1 channels, Internal, 32 bit, 110 dB, PCI-E
Software - Windows operating systems supported - Yes
Technical details > Net weight - 0.272 kg
Technical details > Producer - Asus
Technical details > Warranty - 24 month(s)
Technical_details - Chipset: C-media 6632AX (DAC: ESS ES9023P) Channels: 8 (7.1) Resolution: 24bit Sampling rate: 192kHz SNR: 110dB (RCA), 108dB (3.5mm) Inputs (analog): 1x jack (3.5mm) Outputs (analog): 5x jack (3.3mm) Outputs (digital): 1x TOSLink Special features: not available
Title - ASUS Xonar AE Internal 7.1 channels PCI-E
URL - https://www.asus.com/Sound-Cards/Xonar-AE/
Warranty - 24
WarrantyInfo -
Weight - 0,49
