MSI GeForce RTX 4060, 8GB GDDR6, GAMING X (DLSS 3)

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 977483 Product code: GeForce RTX 4060 GAMING X 8G
Can be ordered 22 units Availability: 14 days after order approval
Warranty: 3 years
395.97 €
Delivery options
  • Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
  • Courier delivery 11.99 €: 27.11.2024
Main product parameters All parameters
  • GPU model: GeForce RTX 4060
  • GPU core frequency: 2595 MHz
  • Power sockets: 1x 8-pin
  • RAM: 8 GB
  • Memory type: GDDR6
  • Cooling: High-End Cooler
Description
We offer to buy the graphics card MSI GeForce RTX 4060 with 8 GB GDDR6 RAM.

Virtual reality

The GeForce emblem indicates that this graphics card is powerful enough to be compatible with the latest VR (Virtual Reality) devices such as Oculus Rift, HTC Vive (SteamVR), etc.

GeForce RTX 40 Series
Basic information
GPU tips GeForce
GPU or the video card processor. This parameter determines whether the video card model is AMD Radeon or FirePro, NVIDIA GeForce or Quadro.
GPU series : MSI Gaming
GPU model GeForce RTX 4060

This is the main performance indicator of the graphics card because it indicates the model of this card. The performance of cards of the same model is very similar and usually very different from the cards of another model.

The main difference is the manufacturer. NVidia produces GeForce series cards and AMD produces Radeon series cards. There are considerable differences between both series, GeForce cards have more successful (more stable) drivers, which improve the compatibility of these cards with games and operating systems reducing the image defect (artefact) and the cases of "hanging" to the minimum. Radeon cards usually are cheaper and consume less energy (they are technologically superior), however there might be problems with drivers and the support of games.

The choice between Radeon or GeForce series is the question of preference, similar to the choice between AMD or Intel CPU, and not always there is 100% rational justification behind it, therefore we recommend to base your selection criteria just on the games that you want to play in the near future and to find a video review in YouTube (the graphic card model + the game title) that will demonstrate exactly how the particular card handles the relevant game. The result will be obvious and usually quite close to what you get when you buy the particular or similar model card.

For making the choice easier for our customers TopPC.fi has marked the graphic cards (models) that are the best choice for playing all the newest games at a reasonable quality level with a green tick "recommended".

GPU core frequency 2595 MHz
GPU speed or the graphic drive speed (MHz) indicates the clock frequency at which the most important component of the video card, i.e. the video processor, operates. The higher the drive speed, the more powerful the video card. The performance of the video card is also determined by the memory volume, type, bits and the drive model, therefore you should verify the capacity compliance of the other components upon buying a video card with a powerful drive.
Number of fans : 2
Length (mm) : 247
Stream processors / CUDA Cores : 3072
PCI-E version : 4.0 x8
Power consumption (TDP) : 115 W
Minimum power supply output : 550 W
Power sockets : 1x 8-pin
Random-access memory (RAM)
RAM 8 GB

The RAM capacity of the video card. This is an important parameter if you want to play games of high resolution or work with a high resolution monitor. A higher memory capacity means better performance and the support to higher resolution.

Currently 1GB is the optimum capacity of the video memory.

Memory type GDDR6
The type of the RAM of the video card determines the operation speed of the video card. The currently available video cards have DDRII, GDDRIII or GDDR4 memory. GDDR4 memory is the fastest memory type.
Memory type : 17000 MHz
Bus width 128 bit

The number of bits of the video card RAM determine what amount of information the video card memory can handle within a single clock cycle. A higher number of bits indicates higher performance of the video card.

Functionality
Cooling High-End Cooler
Two types of cooling are available, i.e. a radiator and a ventilator. The radiator based cooling is implemented without any moving parts (ventilator), therefore the video card does not emit any noise. The ventilator based cooling is more efficient, however, the video card emits certain noise during the computer operation.
Lighting : Nav
NVIDIA SLI (NVLink) support : Not
VR (Virtual Reality) Ready : Is
Low Profile support : No

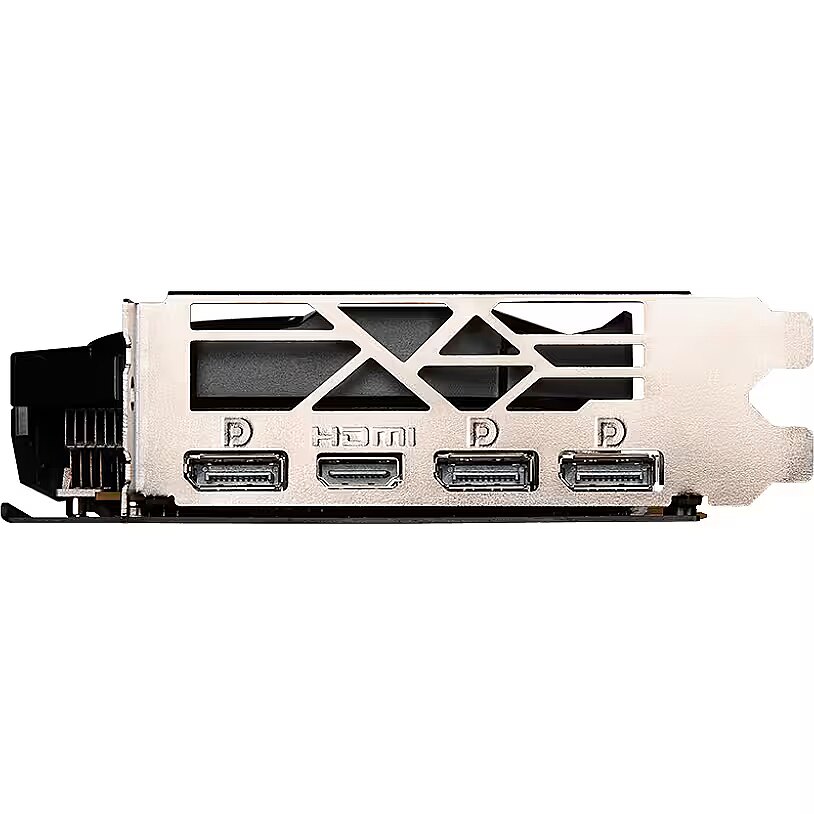

Ports and equipment
HDMI port 1

HDMI is the digital image and sound transmission standard that allows to connect a TV set, monitor or projector supporting HDMI to the computer via the HDMI cable.

DisplayPort 3

DisplayPort digital connection for the transmission of the image and sound via a single wire at a high quality level. Contrary to the HDMI, this connection allows to connect several external monitors to the computer via a single connector.

DVI-D port : 0
DVI-I port : 0
D-SUB 0

D-SUB is the classic (analogous) connection plug of monitors, projectors and other external video devices. This standard is gradually disappearing from the market leaving the space for much higher quality HDMI or DisplayPort (digitālajiem) plugs.

Maximum number of screens : 4
More detailed specification
Additional information in manufacturers website MSI GeForce RTX 4060, 8GB GDDR6, GAMING X (DLSS 3)
Accessories included -
ARTIKEL1 - GEFORCE RTX 4060
ARTIKEL2 - GAMING X 8G
Brand - MSI
BrandPartCode - GEFORCE RTX 4060 GAMING X 8G
Card's length - 240 to 280 mm
Category - Graphics Cards
category - PC Components|Graphics Cards|NVIDIA|GeForce RTX 4060
Category - Root/Electronics/PC parts/Graphic cards
Category 1 - Grafikkarten
Category 2 - NVidia PCI-Express Grafikkarten
Category Code - VGP
Category_1 - Graphics Cards
Category_2 - Graphics Cards PCIe - Nvidia
Chipset - GeForce RTX 4060
Chipset - NVIDIA GeForce RTX 4060
Chipset manufacturer - NVIDIA
Code - GeForce RTX 4060 GAMING X 8G
code - V516-003R
Cooling - Active
Cooling system - Dual Slot Fansink
Core Boost frequency - 2595 MHz
Core frequency - 2610 MHz
CUDA Cores - 3072
Description - GeForce RTX 4060 Gaming X 8G 8GB GDDR6 128bit 3DP graphics card GeForce RTX 4060 GAMING X 8G WITH DLSS 3 TECHNOLOGY Play, stream, create. Thanks to the ultra-efficient NVIDIA Ada Lovelace architecture, GeForce RTX 4060 series graphics cards can tackle all the latest games and applications with ease. Enjoy immersive gameplay with ray tracing and AI-powered DLSS 3. Accelerate your creative process and increase your productivity with the NVIDIA Studio Platform. TWIN FROZR 9 cooling system:   TORX 5.0 fans: connected by curved rings, the fan blades and the shroud protruding over the edge of the blade plane work together to stabilise the flow and maintain high pressure of the pumped air. Copper baseplate: Heat generated by the GPU and memory modules is immediately absorbed by the copper baseplate and then quickly transported to the Core Pipes heat pipes. Core Pipe heat pipes: the square cross-section heat pipes ensure maximum contact with the GPU surface and then transport heat to the heatsink. Airflow Control: With Airflow Control technology, airflow is directed exactly where it is needed, thus maximising cooling efficiency.   Afterburner Take full control of your graphics card with the world's most recognised and widely used graphics card overclocking software. MSI Center app The exclusive MSI Center software helps you get the most out of your MSI products in real time.
Description - GeForce RTX™ 4060 GAMING X 8G WITH DLSS 3 Game, stream, create. The GeForce RTX™ 4060 lets you take on the latest games and apps with the ultra-efficient NVIDIA Ada Lovelace architecture. Experience immersive, AI-accelerated gaming with ray tracing and DLSS 3, and supercharge your creative process and productivity with NVIDIA Studio. Boost Clock / Memory Speed 2595 MHz / 17 Gbps 8GB GDDR6 DisplayPort x 3 (v1.4a) HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a) TWIN FROZR 9 Thermal Design TORX Fan 5.0: Fan blades linked by ring arcs and a fan cowl work together to stabilize and maintain high-pressure airflow. Copper Baseplate: Heat from the GPU and memory modules is captured by a copper baseplate and then rapidly transferred to Core Pipes. Core Pipe: A section of square-shape heat pipes make maximum contact over the GPU, then spread the heat to the heatsink. Airflow Control: Don’t sweat it, Airflow Control guides the air to exactly where it needs to be for maximum cooling. Afterburner Take full control with the most recognized and widely used graphics card overclocking software in the world. MSI Center The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
Design - Cooling technology - MSI TORX FAN 5.0
Design - Cooling type - Active
Design - Form factor - Full-Height/Full-Length (FH/FL)
Design - Illumination - Yes
Design - Number of fans - 2 fan(s)
Design - Product colour - Black
Design - Product colour - Grey
dimensionalWeight - 1223
dimension depth - 80 mm
dimension height - 220 mm
Dimensions - 41 x 130 x 247 mm
Dimensions - 247 x 130 x 41 mm
dimension weight - 785 g
dimension width - 335 mm
DisplayPort Input/Output connectors - 3
EAN - 4711377115476
ean - 4711377115476
EANCode - 4711377115476
Eans - 4711377115476
EAN_code - 4711377115476
Full Description Line - NVIDIA GeForce RTX 4060|Graphics memory size 8 GB|GDDR6|128 bit|PCIE 4.0 8x|Memory CLK 17 Gbps|GPU boost clock 2595 MHz|7680x4320|Cooling Dual Slot Fansink|1xHDMI|3xDisplayPort
Gewicht - 1
GPU boost clock - 2595 MHz
Graphic card features - HDCP
Graphics card connector - PCI-E 8x ver. 4.0
Graphics connector - PCIE 4.0 8x
Graphics memory size - 8 GB
Graphics memory type - GDDR6
Gross Weight Kg - 1,5
GRUPPE1 - Multimedia & Games
GRUPPE2 - Video Card
GTIN - 4711377115476
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
HERSTELLER - MSI COMPUTER
HSTNUMMER - V516-003R
Link - https://www.msi.com/Graphics-Card/GeForce-RTX-4060-GAMING-X-8G
LongDesc - MSI GeForce RTX™ 4060 GAMING X 8GGame, stream, create. The GeForce RTX™ 4060 lets you take on the latest games and apps with the ultra-efficient NVIDIA Ada Lovelace architecture. Experience immersive, AI-accelerated gaming with ray tracing and DLSS 3, and supercharge your creative process and productivity with NVIDIA Studio.GAMING IN STYLE!Play with style! GAMING is upgraded with TWIN FROZR 9 to sustain intense performance during gaming and content creation. A high-speed style matches high-performance capabilities for gamers who want to go all out.STRENGTH AND ARTISTRYMSI envisioned the GAMING series as the favored graphic cards solution for all sorts of gamers, including adventure seekers, esport competitors, livestream broadcasters, and more. GAMING reflects both the spirit of gamers and the intense performance within the cards with a styled exterior that erupts with colorful lights between bold lines and edges.TWIN FROZR 9 THERMAL DESIGN:Stay cool and quiet. MSI’s TWIN FROZR 9 thermal design enhances heat dissipation all around the graphics card.TORX FAN 5.0:TORX FAN 5.0 is a culmination of fan design improvements to increase the air pressure and flow into the heatsink. Ring arcs link three sets of fan blades that tilt 22 degrees together to maintain high-pressure airflow even at slower rotational speeds. The resulting increased airflow is +23% compared to an axial fan.A fan cowl extends a bit beyond the general enclosure to lengthen the wind’s passageway, allowing airflow to stabilize and move smoother through the fans. Bulging notches under the cowl help to reduce recirculation, thus further improving airflow stability and reducing some noise.COPPER BASEPLATE:Heat from the GPU and memory modules is immediately captured by a solid nickel-plated copper baseplate and then rapidly transferred to an array of heat pipes. This widening of the thermal transfer systems with highly efficient mechanisms improves overall efficiency.KEEPING THE CORE COOL:Core Pipes are precision-crafted to make maximum use of the available space. A squared section of heat pipes fully touch the GPU baseplate and spread the heat along the full length of the heatsink.Airflow Control improves airflow dynamics through the Wave Curved 2.0 and updated deflectors for optimizing the balance between cooling and quieter acoustics.
LongProductName - NVIDIA GeForce RTX 4060, 2475MHz, 8GB GDDR6, 128 bit, PCI Express 4.0, 1 x HDMI (2.1a), 3 x DP (1.4a), CUDA, DirectX 12 Ultimate, OpenGL 4.6, 115W
LongSummaryDescription - MSI GAMING GEFORCE RTX 4060 X 8G. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 4060, Processor frequency: 2610 MHz. Discrete graphics card memory: 8 GB, Graphics card memory type: GDDR6, Memory bus: 128 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express 4.0. Cooling type: Active, Number of fans: 2 fan(s)
Manufacturer - MSI
Manufacturer Code - V516-003R
Manufacturer Name - MSI
Manufacturer_code - V516-003R
Max resolution - 7680x4320
Memory - Data transfer rate - 17 Gbit/s
Memory - Discrete graphics card memory - 8 GB
Memory - Graphics card memory type - GDDR6
Memory - Memory bandwidth (max) - 17 GB/s
Memory - Memory bus - 128 bit
Memory > Discrete graphics adapter memory - 8 GB
Memory > Graphics adapter memory type - GDDR6
Memory > Memory clock speed - 17000 MHz
Memory bus - 128 bit
Memory bus - 128-bit
Memory CLK - 17 Gbps
Memory frequency - 17 Gbps
Memory type - DDR6
Model - GeForce RTX 4060
Model - GeForce RTX 4060 GAMING X 8G
MPN - V516-003R
name - Graphics card GeForce RTX 4060 Gaming X 8G 8GB GDDR6 128bit 3DP
name - MSI GeForce RTX 4060 Gaming X 8G, 8192 MB GDDR6
Name - MSI GeForce RTX 4060 GAMING X 8G, graphics card (DLSS 3, 3x DisplayPort, 1x HDMI 2.1)
Name - MSI GeForce RTX 4060 GAMING X 8GB DLSS 3
Name - MSI | GeForce RTX 4060 GAMING X 8G | NVIDIA | 8 GB | GeForce RTX 4060 | GDDR6 | HDMI ports quantity 1 | PCI Express Gen 4 x 8 | Memory clock speed 17000 MHz
Name - RTX 4060 8GB MSI Gaming X GDDR6
Other features -
Other information -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 247.00 mm
Package features > Gross depth master carton - 725 mm
Package features > Gross height (mm) - 41.00 mm
Package features > Gross height master carton - 310 mm
Package features > Gross width (mm) - 130.00 mm
Package features > Gross width master carton - 465 mm
Package features > Net weight master carton - 16 kg
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 656 pc(s)
Package features > Paper/Pasteboard - 393.00 g
Package features > Plastic (No PET) - 20.00 g
Package features > Tare weight (kg) - 0.41 kg
Package features > Tare weight master carton - 1.777 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packaging data - Package type - Box
Packaging data - Package weight - 1 kg
Performance - AMD FreeSync - No
Performance - DirectX version - 12 Ultimate
Performance - Dual Link DVI - No
Performance - HDCP - Yes
Performance - NVIDIA DLSS 3 - Y
Performance - NVIDIA G-SYNC - Yes
Performance - OpenGL version - 4.6
Performance - TV tuner integrated - No
Ports & interfaces - DisplayPorts quantity - 3
Ports & interfaces - DisplayPort version - 1.4a
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 2.1a
Ports & interfaces - Interface type - PCI Express 4.0
Ports & interfaces > DisplayPorts quantity - 3
Ports & interfaces > HDMI ports quantity - 1
Ports & interfaces > Interface type - PCI Express Gen 4 x 8
Power - Minimum system power supply - 550 W
Power - Power consumption (typical) - 115 W
Power - Supplementary power connectors - 1x 8-pin
Power connectors - 8 pin
Power consumption - 115 Watts
Processor - CUDA - Yes
Processor - CUDA cores - 3072
Processor - Graphics processor - GeForce RTX 4060
Processor - Graphics processor family - NVIDIA
Processor - Maximum displays per videocard - 4
Processor - Maximum resolution - 7680 x 4320 pixels
Processor - Processor boost clock speed - 2595 MHz
Processor - Processor boost clock speed - 2610 MHz
Processor - Processor frequency - 2610 MHz
Processor > Graphics processor - GeForce RTX 4060
Processor > Graphics processor family - NVIDIA
producer - MSI
Producer - MSI
ProducerCode - GeForce RTX 4060 GAMING X 8G
producerCode - RTX 4060 GAMING X 8G
Producer product name - GeForce RTX 4060 GAMING X 8G
ProductName - GEFORCE RTX 4060 GAMING X 8G
productName - MSI GeForce RTX 4060 GAMING X 8G NVIDIA 8 GB GDDR6 DLSS 3
productSize - Normal
Shipping Box Depth Shipping/Package Box Dimensions - 33 cm
Shipping Box Height Shipping/Package Box Dimensions - 22 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 1 kg
Shipping Box Width Shipping/Package Box Dimensions - 8 cm
ShortDescription - Chipset NVIDIA RTX 4060 | 8GB |
Short description - MSI VGA 8GB RTX4060 GAMING X 8G 3xDP/HDMI GeForce RTX 4060 GAMING X 8G
ShortSummaryDescription - MSI GAMING GEFORCE RTX 4060 X 8G, GeForce RTX 4060, 8 GB, GDDR6, 128 bit, 7680 x 4320 pixels, PCI Express 4.0
sizeX - 335
sizeY - 83
sizeZ - 220
Stck_Kart - 12
Stck_Pal - 108
Storno - Y
Supported standards - DirectX 12 Ultimate
Supported standards - OpenGL 4.6
Technical details > Gross weight - 1.00 kg
Technical details > Net weight - 0.59 kg
Technical details > Producer - MSI
Title - MSI GAMING GEFORCE RTX 4060 X 8G graphics card NVIDIA 8 GB GDDR6
Unit Box Height - 0.22
Unit Box Length - 0.33
Unit Box Width - 0.08
Unit Brutto Volume - 0.005808 cubm
Unit Gross Weight - 1 kg
Unit Net Weight - 0.587 kg
URL - https://www.msi.com/Graphics-Card/GeForce-RTX-4060-GAMING-X-8G/Overview
Vendor Homepage - www.msi.com/Graphics-Card/GeForce-RTX-4060-GAMING-X-8G
vendpn - GeForce RTX 4060 GAMING X 8G
Version - Box
Video ports - 1 x HDMI
Video ports - 3 x DisplayPort
VRAM memory size - 8 GB
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 0.88
Weight - 1,00
weight - 990
Weight & dimensions - Depth - 41 mm
Weight & dimensions - Depth - 130 mm
Weight & dimensions - Height - 41 mm
Weight & dimensions - Height - 130 mm
Weight & dimensions - Length - 247 mm
Weight & dimensions - Weight - 587 g
Weight & dimensions - Width - 247 mm
