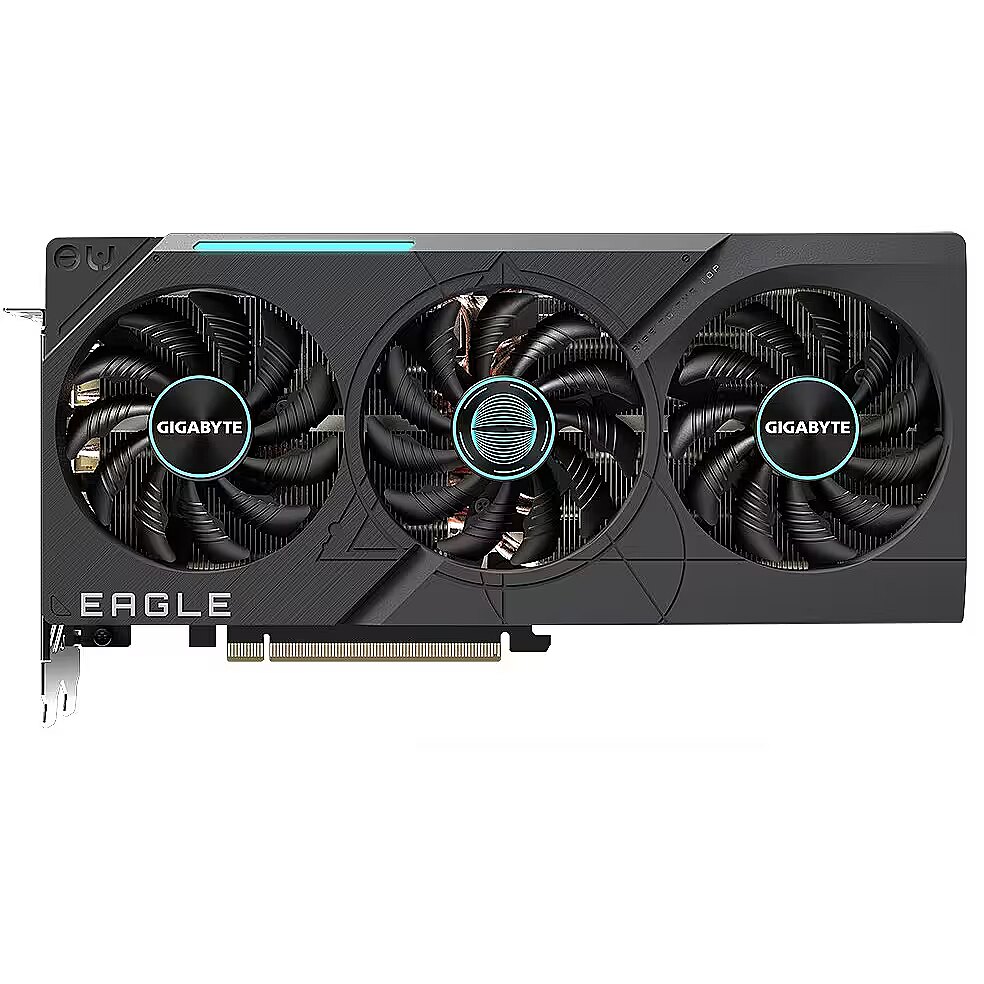

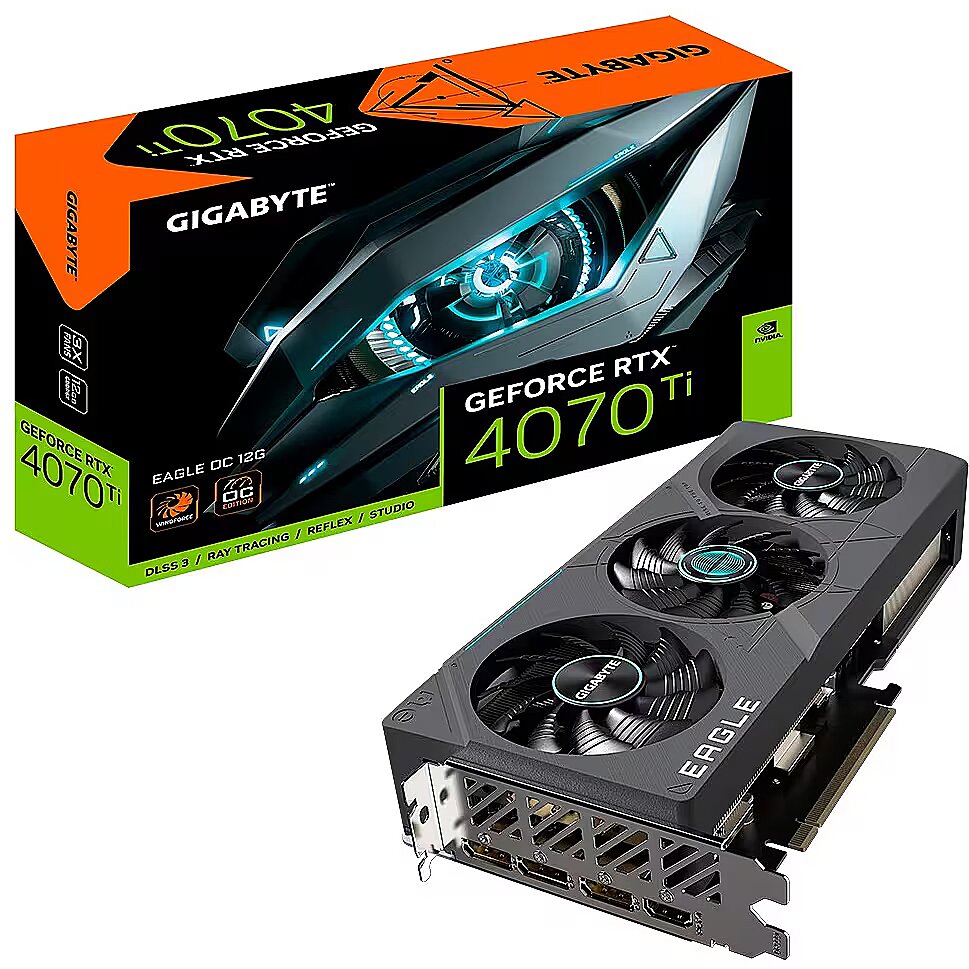

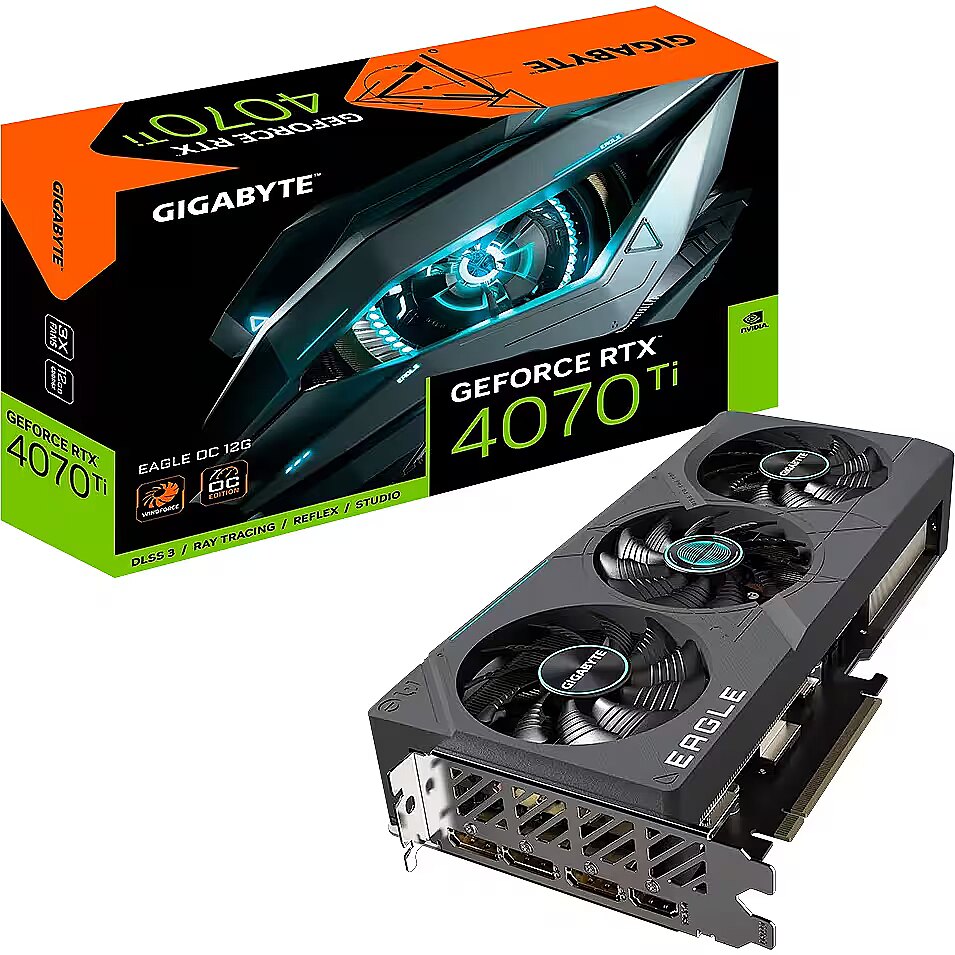

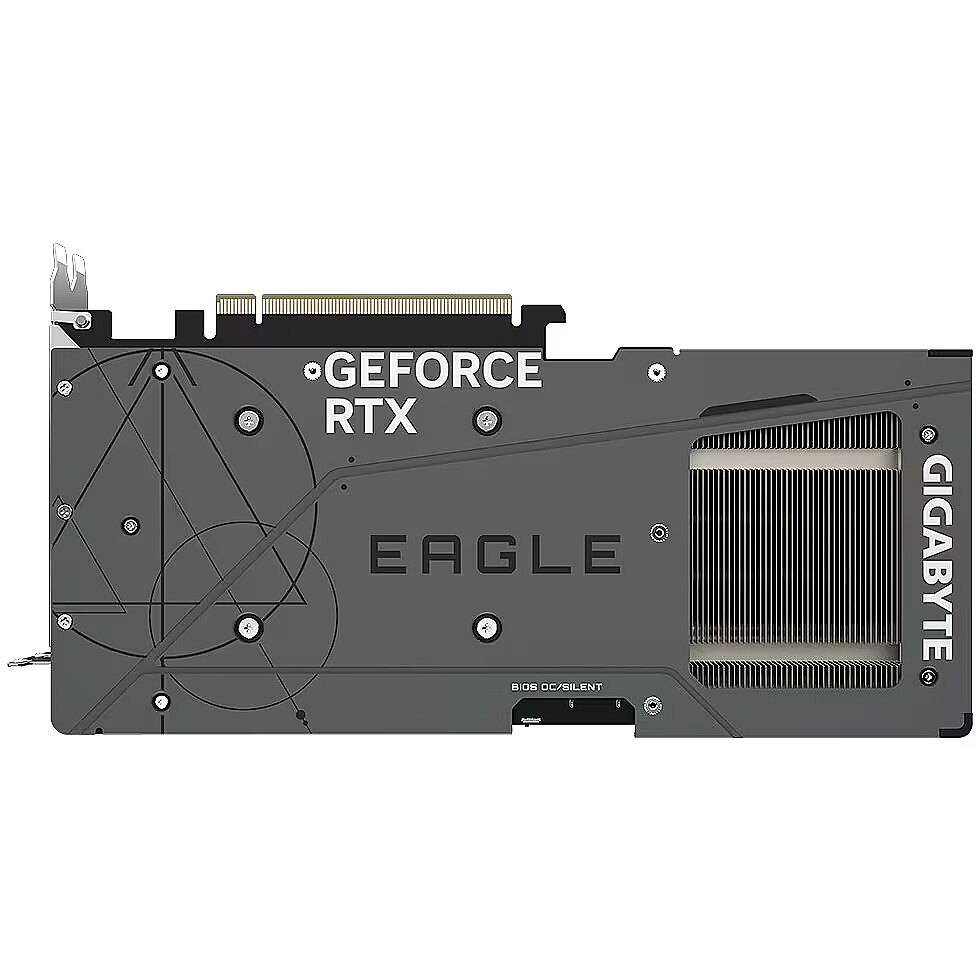

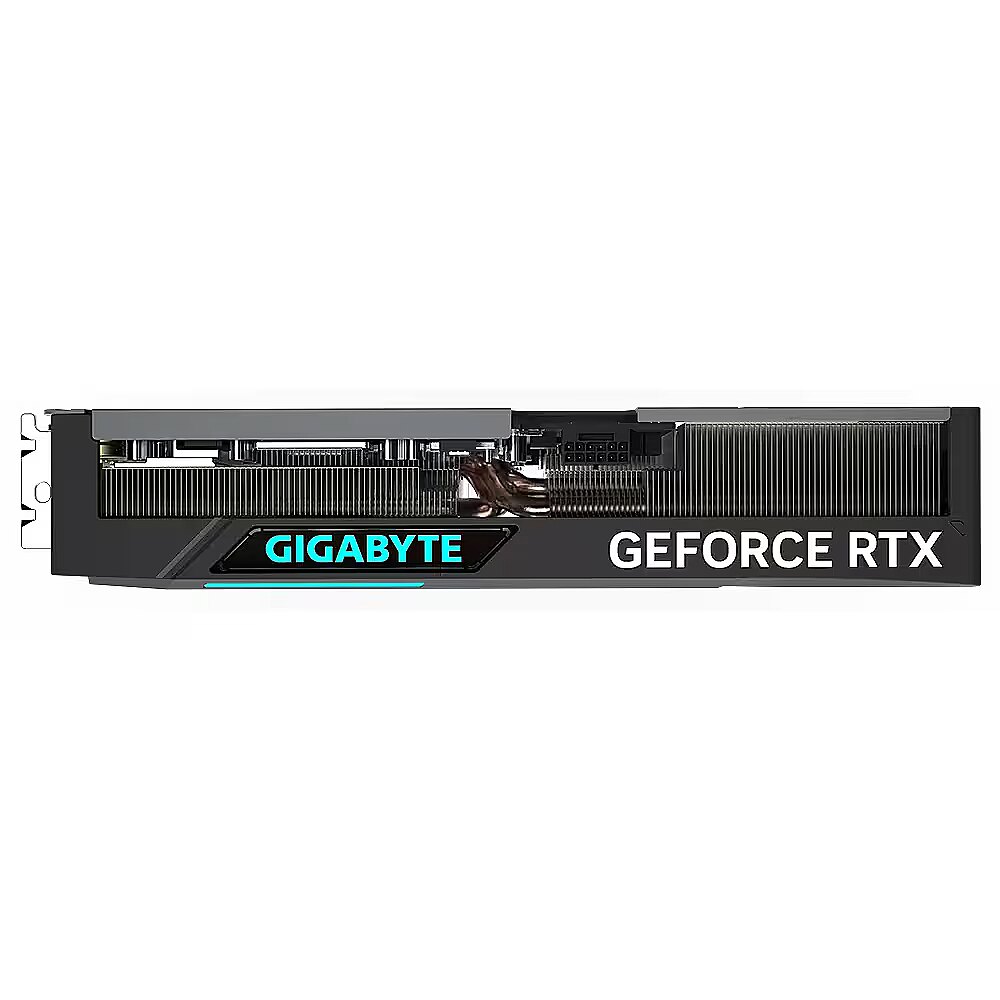

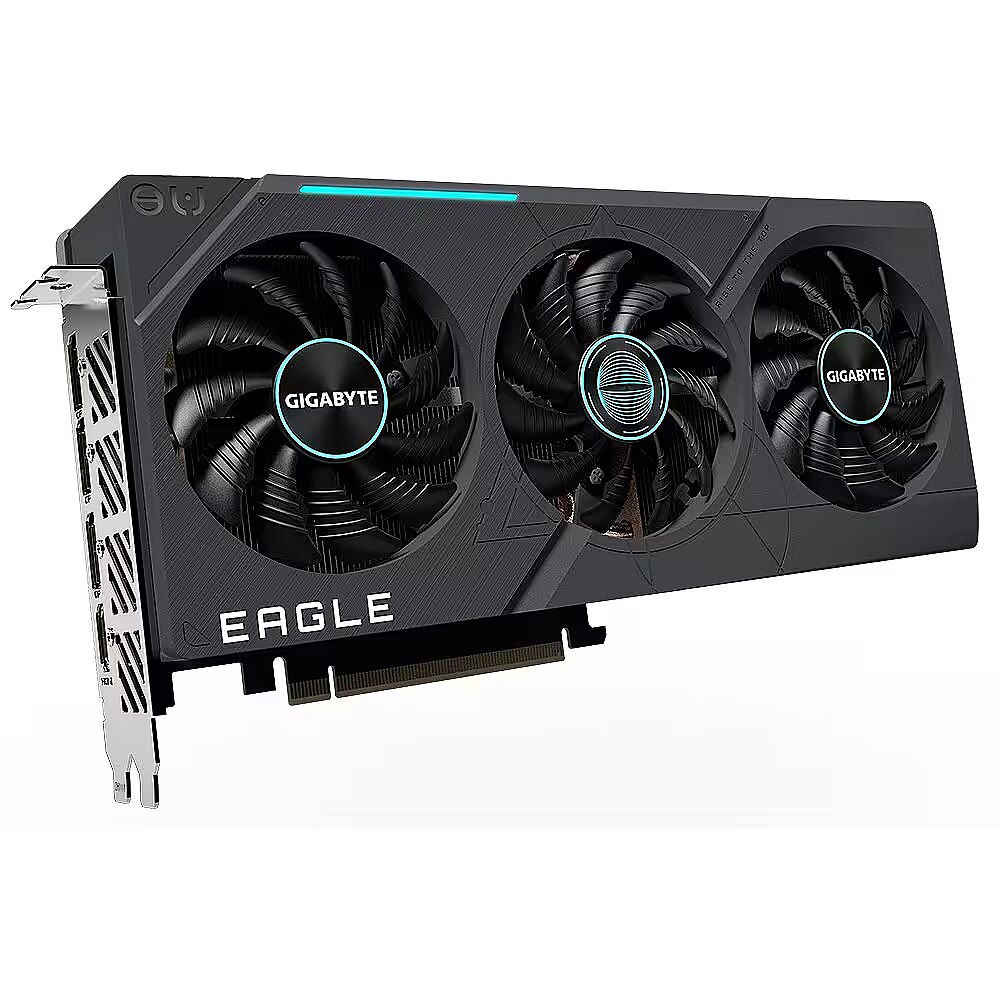

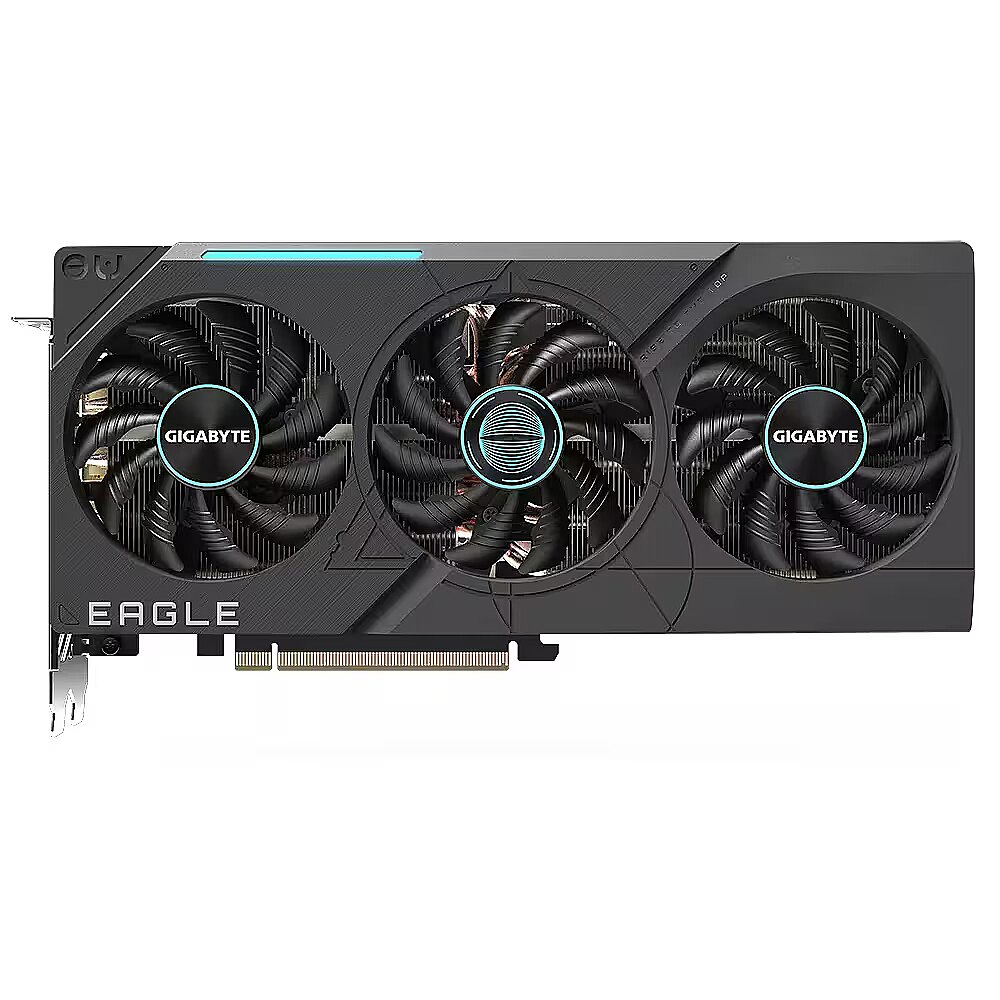

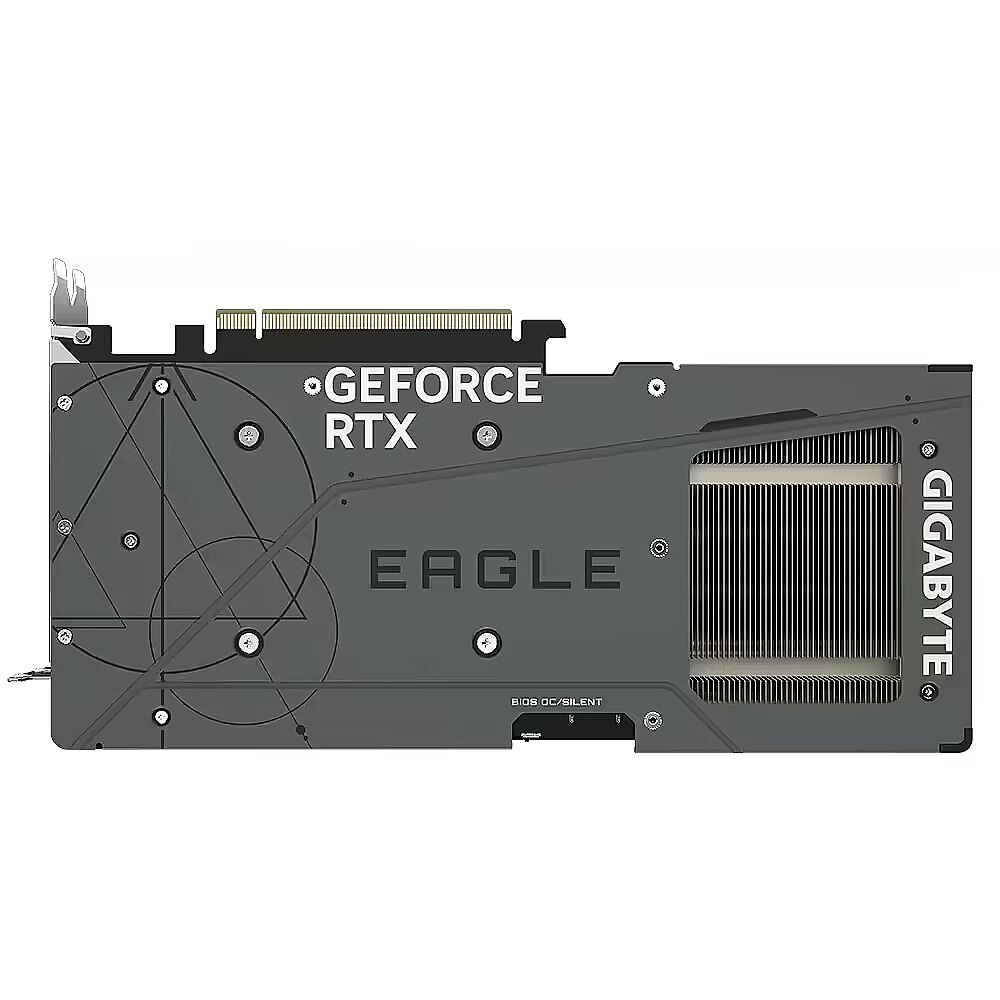

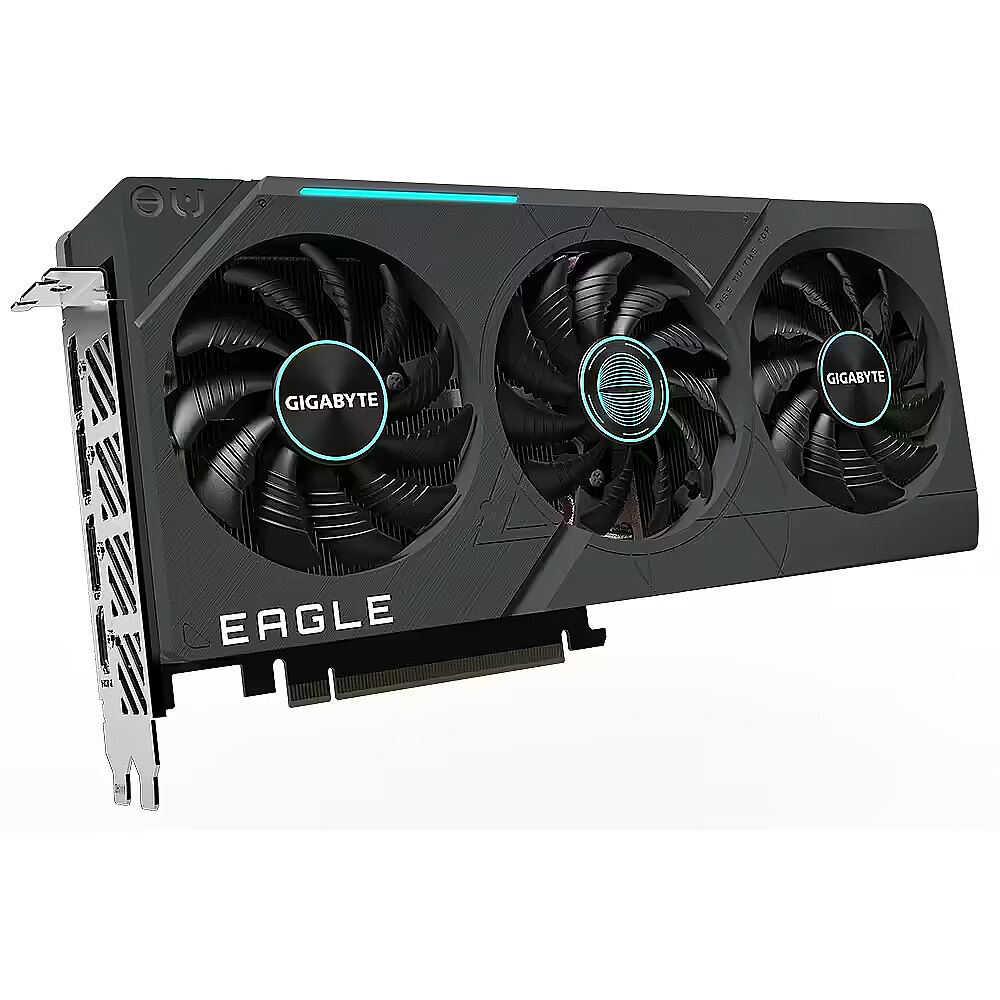

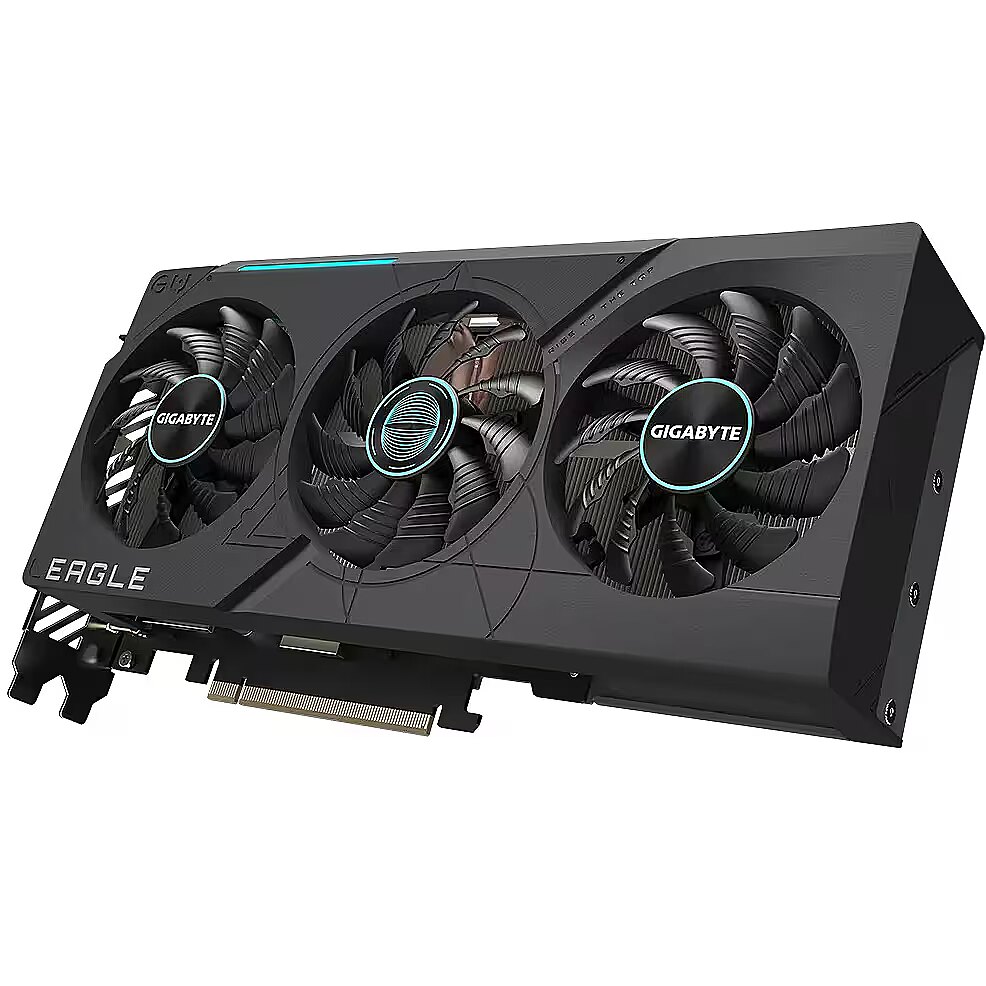

Gigabyte GeForce RTX 4070 Ti, 12GB GDDR6X, Eagle OC rev. 2.0 (DLSS 3)

Name: Gigabyte GeForce RTX 4070 Ti, 12GB GDDR6X, Eagle OC rev. 2.0 (DLSS 3)
Brand: Gigabyte
SKU: 964413
Price: 830.82 EUR
Availability: OutOfStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 964413 Product code: GV-N407TEAGLE OC-12GD 2.0

Goods are not available at the moment We do not accept orders for the delivery of this product. We do not have information as to when this product will be available. Our suppliers currently do not provide information about possible delivery times of the product and the possible price when it is on sale again.

TopPC.fi website provides information about this product for information only, so that customers can see the product and compare it to the products available for sale now.

Warranty: 3 years

Compare

Main product parameters All parameters

GPU model: GeForce RTX 4070 Ti
GPU core frequency: 2625 MHz
Power sockets: 1x 16-pin
RAM: 12 GB
Memory type: GDDR6X
Cooling: Standard Cooler

Virtual reality

The GeForce emblem indicates that this graphics card is powerful enough to be compatible with the latest VR (Virtual Reality) devices such as Oculus Rift, HTC Vive (SteamVR), etc.

Basic information

GPU tips GeForce

GPU or the video card processor. This parameter determines whether the video card model is AMD Radeon or FirePro, NVIDIA GeForce or Quadro.

GPU series : Gigabyte Eagle

GPU model GeForce RTX 4070 Ti

This is the main performance indicator of the graphics card because it indicates the model of this card. The performance of cards of the same model is very similar and usually very different from the cards of another model.

The main difference is the manufacturer. NVidia produces GeForce series cards and AMD produces Radeon series cards. There are considerable differences between both series, GeForce cards have more successful (more stable) drivers, which improve the compatibility of these cards with games and operating systems reducing the image defect (artefact) and the cases of "hanging" to the minimum. Radeon cards usually are cheaper and consume less energy (they are technologically superior), however there might be problems with drivers and the support of games.

The choice between Radeon or GeForce series is the question of preference, similar to the choice between AMD or Intel CPU, and not always there is 100% rational justification behind it, therefore we recommend to base your selection criteria just on the games that you want to play in the near future and to find a video review in YouTube (the graphic card model + the game title) that will demonstrate exactly how the particular card handles the relevant game. The result will be obvious and usually quite close to what you get when you buy the particular or similar model card.

For making the choice easier for our customers TopPC.fi has marked the graphic cards (models) that are the best choice for playing all the newest games at a reasonable quality level with a green tick "recommended".

GPU core frequency 2625 MHz

GPU speed or the graphic drive speed (MHz) indicates the clock frequency at which the most important component of the video card, i.e. the video processor, operates. The higher the drive speed, the more powerful the video card. The performance of the video card is also determined by the memory volume, type, bits and the drive model, therefore you should verify the capacity compliance of the other components upon buying a video card with a powerful drive.

Number of fans : 3

Length (mm) : 261

Stream processors / CUDA Cores : 7680

PCI-E version : 4.0 x16

Power consumption (TDP) : 285 W

Minimum power supply output : 750 W

Power sockets : 1x 16-pin

Random-access memory (RAM)

RAM 12 GB

The RAM capacity of the video card. This is an important parameter if you want to play games of high resolution or work with a high resolution monitor. A higher memory capacity means better performance and the support to higher resolution.

Currently 1GB is the optimum capacity of the video memory.

Memory type GDDR6X

The type of the RAM of the video card determines the operation speed of the video card. The currently available video cards have DDRII, GDDRIII or GDDR4 memory. GDDR4 memory is the fastest memory type.

Memory type : 21000 MHz

Bus width 192 bit

The number of bits of the video card RAM determine what amount of information the video card memory can handle within a single clock cycle. A higher number of bits indicates higher performance of the video card.

Functionality

Cooling Standard Cooler

Two types of cooling are available, i.e. a radiator and a ventilator. The radiator based cooling is implemented without any moving parts (ventilator), therefore the video card does not emit any noise. The ventilator based cooling is more efficient, however, the video card emits certain noise during the computer operation.

Lighting : RGB

NVIDIA SLI (NVLink) support : Not

VR (Virtual Reality) Ready : Is

Low Profile support : No

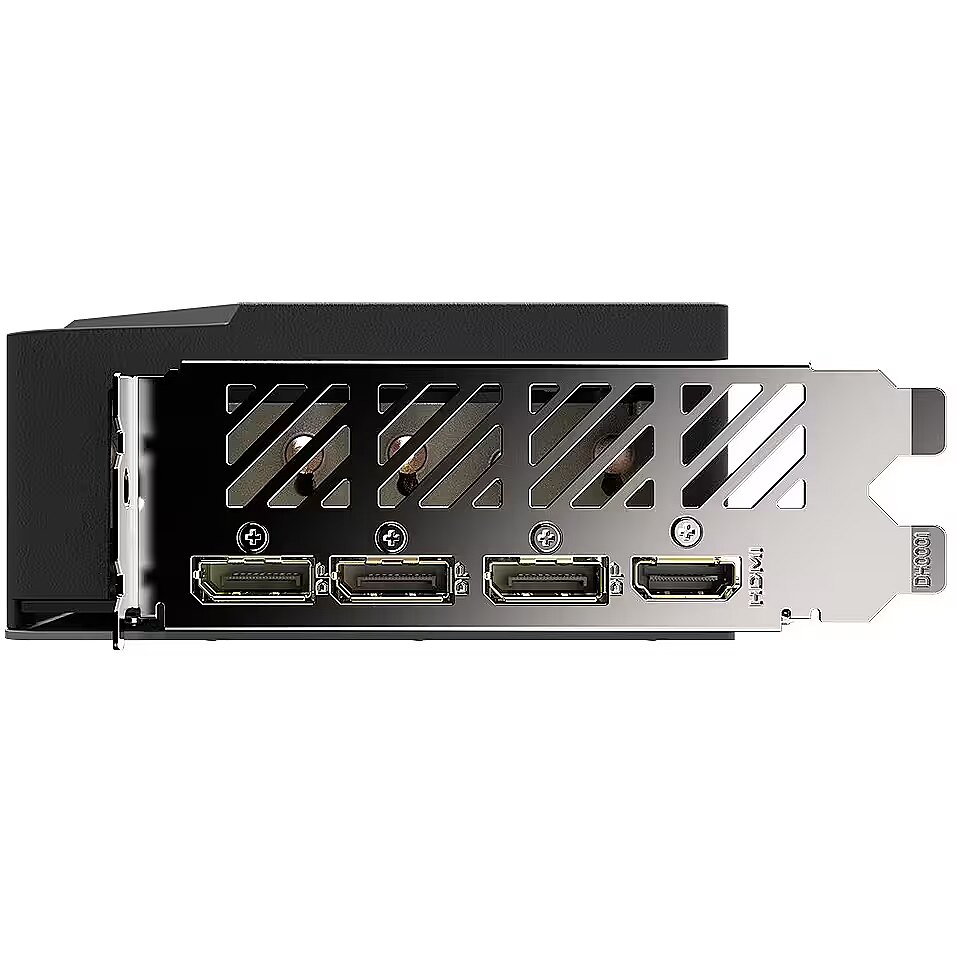

Ports and equipment

HDMI port 1

HDMI is the digital image and sound transmission standard that allows to connect a TV set, monitor or projector supporting HDMI to the computer via the HDMI cable.

DisplayPort 3

DisplayPort digital connection for the transmission of the image and sound via a single wire at a high quality level. Contrary to the HDMI, this connection allows to connect several external monitors to the computer via a single connector.

DVI-D port : 0

DVI-I port : 0

D-SUB 0

D-SUB is the classic (analogous) connection plug of monitors, projectors and other external video devices. This standard is gradually disappearing from the market leaving the space for much higher quality HDMI or DisplayPort (digitālajiem) plugs.

Maximum number of screens : 4

More detailed specification

Additional information in manufacturers website Gigabyte GeForce RTX 4070 Ti, 12GB GDDR6X, Eagle OC rev. 2.0 (DLSS 3)

Brand - GIGABYTE
BrandPartCode - GV-N407TEAGLE OC-12GD 2.0
Card's length - 240 to 280 mm
Category - Graphics Cards
Category 1 - Grafikkarten
Category 2 - NVidia PCI-Express Grafikkarten
Category Code - VGP
Category_1 - Graphics Cards
Category_2 - Graphics Cards PCIe - Nvidia
Chipset - NVIDIA GeForce RTX 4070 Ti
Cooling system - Dual Slot Fansink
CUDA Cores - 7680
Description - - Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing - 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering - 3rd Generation RT Cores: Up to 2X ray tracing performance - Powered by GeForce RTX™ 4070 Ti - Integrated with 12GB GDDR6X 192bit memory interface - WINDFORCE Cooling System - RGB Fusion - Dual BIOS - Protection metal back plate
Design - Bracket height - Full-Height (FH)
Design - Cooling technology - GIGABYTE WINDFORCE 3X
Design - Cooling type - Active
Design - Fan diameter - 8 cm
Design - Form factor - Full-Height/Full-Length (FH/FL)
Design - Illumination - Yes
Design - Illumination colour - Multi
Design - Number of fans - 3 fan(s)
Design - Product colour - Black
Dimensions - L=261 W=126 H=50 mm
DisplayPort Input/Output connectors - 3
EAN - 4719331312978
EAN_code - 4719331312978
Full Description Line - NVIDIA GeForce RTX 4070 Ti|Graphics memory size 12 GB|GDDR6X|192 bit|PCIE 4.0 16x|Memory CLK 21 Gbps|GPU clock 2625 MHz|7680x4320|Cooling Dual Slot Fansink|1xHDMI|3xDisplayPort|Included Accessories 1. Quick guide2. One 16-pin to two 8-pin power adaptor
GPU clock - 2625 MHz
Graphic card features - Overclock Edition
Graphics connector - PCIE 4.0 16x
Graphics memory size - 12 GB
Graphics memory type - GDDR6X
Gross Weight Kg - 2
GTIN - 4719331312978
HDMI Input/Output connectors - 1
Included Accessories - 1. Quick guide
2. One 16-pin to two 8-pin power adaptor
LongDesc - WINDFORCE COOLING SYSTEMThe WINDFORCE cooling system features three 80mm unique blade fans, alternate spinning, 8 composite copper heat pipes, a copper plate directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.ALTERNATE SPINNINGReduce the turbulence of adjacent fans and increase airflow pressure.3D ACTIVE FANThe 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.UNIQUE BLADE FANThe airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.GRAPHENE NANO LUBRICANTGraphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.SCREEN COOLINGExtended heatsink allows air to pass through, providing better heat dissipation.RGB FUSIONWith 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.EXCELLENT IN ESSENTIALPROTECTION METAL BACK PLATEThe metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.DUAL BIOSThe factory default setting is OC mode, which provides users with the best performance. However, switching to silent mode will enjoy a quieter experience.POWER INDICATORSWhen experiencing any power supply abnormality, the indicator will alert gamers by flashing light.BUILT STRONGULTRA DURABLEUltra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.FRIENDLY PCB DESIGNFully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.GIGABYTE CONTROL CENTERGIGABYTE CONTROL CENTER is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
LongProductName - 12 GB, GDDR6X, 192-bit, 2625 MHz core clock, PCI-E 4.0, HDMI, 3x DisplayPort, 1x 16 pin, RGB
LongSummaryDescription - GIGABYTE EAGLE GeForce RTX 4070 Ti OC 12G (rev. 2.0). Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 4070 Ti, Processor frequency: 2625 MHz. Discrete graphics card memory: 12 GB, Graphics card memory type: GDDR6X, Memory bus: 192 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express 4.0. Cooling type: Active, Number of fans: 3 fan(s), Illumination colour: Multi
Manufacturer - GigaByte
Manufacturer - Gigabyte
Manufacturer Code - GV-N407TEAGLE OC-12GD 2.0
Manufacturer Name - Gigabyte
Manufacturer_code - GV-N407TEAGLE OC-12GD 2.0
Max resolution - 7680x4320
Memory - Data transfer rate - 21 Gbit/s
Memory - Discrete graphics card memory - 12 GB
Memory - Graphics card memory type - GDDR6X
Memory - Memory bus - 192 bit
Memory - Number of pipelines - 8
Memory bus - 192 bit
Memory CLK - 21 Gbps
Model - GV-N407TEAGLE OC-12G 2.0
MPN - GV-N407TEAGLE OC-12GD 2.0
Name - GIGABYTE GeForce RTX 4070 Ti EAGLE OC 12G rev. 2.0, graphics card (DLSS 3, 3x DisplayPort, 1x HDMI 2.1)
Name - RTX 4070 Ti 12GB Gigabyte Eagle OC 2.0 GDDR6X 3Fan
Packaging content - Quick installation guide - Yes
Packaging data - Package type - Box
Performance - DirectX version - 12 Ultimate
Performance - Dual Link DVI - No
Performance - NVIDIA G-SYNC - Yes
Performance - OpenGL version - 4.6
Performance - TV tuner integrated - No
Performance - Virtual Reality (VR) ready - Yes
Ports & interfaces - DisplayPorts quantity - 3
Ports & interfaces - DisplayPort version - 1.4a
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 2.1a
Ports & interfaces - Interface type - PCI Express 4.0
Power - Minimum system power supply - 750 W
Power - Supplementary power connectors - 1x 16-pin
Power connectors - 16 pin
Processor - CUDA - Yes
Processor - CUDA cores - 7680
Processor - Graphics processor - GeForce RTX 4070 Ti
Processor - Graphics processor family - NVIDIA
Processor - Maximum displays per videocard - 4
Processor - Maximum resolution - 7680 x 4320 pixels
Processor - Parallel processing technology support - Not supported
Processor - Processor frequency - 2625 MHz
ProductName - GeForce RTX 4070 Ti EAGLE OC 12G (rev. 2.0)
Shipping Box Depth Shipping/Package Box Dimensions - 33.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 8 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 1.447 kg
Shipping Box Width Shipping/Package Box Dimensions - 22 cm
Short description - GIGA VGA 12GB RTX4070 Ti EAGLE OC-12GD 3xDP/HDMI GeForce RTX 4070 Ti EAGLE OC 12G
ShortSummaryDescription - GIGABYTE EAGLE GeForce RTX 4070 Ti OC 12G (rev. 2.0), GeForce RTX 4070 Ti, 12 GB, GDDR6X, 192 bit, 7680 x 4320 pixels, PCI Express 4.0
System requirements - Windows operating systems supported - Windows 10 x64, Windows 11 x64
Title - GIGABYTE EAGLE GeForce RTX 4070 Ti OC 12G (rev. 2.0) NVIDIA 12 GB GDDR6X
Unit Box Height - 0.08
Unit Box Length - 0.335
Unit Box Width - 0.22
Unit Brutto Volume - 0.005896 cubm
Unit Gross Weight - 1.45 kg
Unit Net Weight - 1.3 kg
URL - https://www.gigabyte.com/Graphics-Card/GV-N407TEAGLE-OC-12GD-rev-20
Vendor Homepage - www.gigabyte.com/Graphics-Card/GV-N407TEAGLE-OC-12GD-rev-20#kf
Warranty - 36 months
WarrantyInfo -
Weight - 0,75
Weight - 1.44
Weight & dimensions - Depth - 261 mm
Weight & dimensions - Height - 50 mm
Weight & dimensions - Width - 126 mm

Basic information
	This product Gigabyte GeForce RTX 4070 Ti, 12GB GDDR6X, Eagle OC rev. 2.0 (DLSS 3)	Asus GeForce RTX 4070 SUPER, 12GB GDDR6X, Dual OC EVO (DLSS 3) + Star Wars Outlaws game as a gift	Asus GeForce RTX 4070 Ti SUPER, 16GB GDDR6X, TUF Gaming White OC (DLSS 3) BTF + Star Wars Outlaws game as a gift	Palit GeForce RTX 4070, 12GB GDDR6, Dual OC (DLSS 3) + Star Wars Outlaws game as a gift	Palit GeForce RTX 4070 Ti SUPER, 16GB GDDR6X, GameRock OmniBlack (DLSS 3) + Star Wars Outlaws game as a gift
Show similar specs. Hide similar specs.	830.82 €	651.63 €	1,027.03 €	576.95 €	920.78 €
GPU tips	GeForce	GeForce	GeForce	GeForce	GeForce
GPU series	Gigabyte Eagle	Asus Dual	Asus BTF	Palit Dual	Palit GameRock
GPU model	GeForce RTX 4070 Ti	GeForce RTX 4070 SUPER	GeForce RTX 4070 Ti SUPER	GeForce RTX 4070	GeForce RTX 4070 Ti SUPER
GPU core frequency	2625 MHz	2550 MHz	2670 MHz	2505 MHz	2610 MHz
Number of fans	3	2	3	2	3
Length (mm)	261	228	305	270	330
Stream processors / CUDA Cores	7680	7168	8448	5888	8448
PCI-E version	4.0 x16	4.0 x16	4.0 x16	4.0 x16	4.0 x16
Power consumption (TDP)	285 W	220 W	285 W	200 W	295 W
Minimum power supply output	750 W	750 W	750 W	750 W	750 W
Power sockets	1x 16-pin	1x 16-pin	Asus - BTF	1x 8-pin	1x 16-pin
Random-access memory (RAM)
RAM	12 GB	12 GB	16 GB	12 GB	16 GB
Memory type	GDDR6X	GDDR6X	GDDR6X	GDDR6	GDDR6X
Memory type	21000 MHz	21000 MHz	21000 MHz	20000 MHz	21000 MHz
Bus width	192 bit	192 bit	256 bit	192 bit	256 bit
Functionality
Cooling	Standard Cooler	Standard Cooler	High-End Cooler	Standard Cooler	Standard Cooler
Lighting	RGB	Nav	RGB	RGB	Nav
NVIDIA SLI (NVLink) support	Not	Not	Not	Not	Not
VR (Virtual Reality) Ready	Is	Not	Is	Is	Is
Low Profile support	No	No	No	No	No
Ports and equipment
HDMI port	1	1	2	1	1
DisplayPort	3	3	3	3	3
DVI-D port	0	0	0	0	0
DVI-I port	0	0	0	0	0
D-SUB	0	0	0	0	0
Maximum number of screens	4	4	4	4	4
