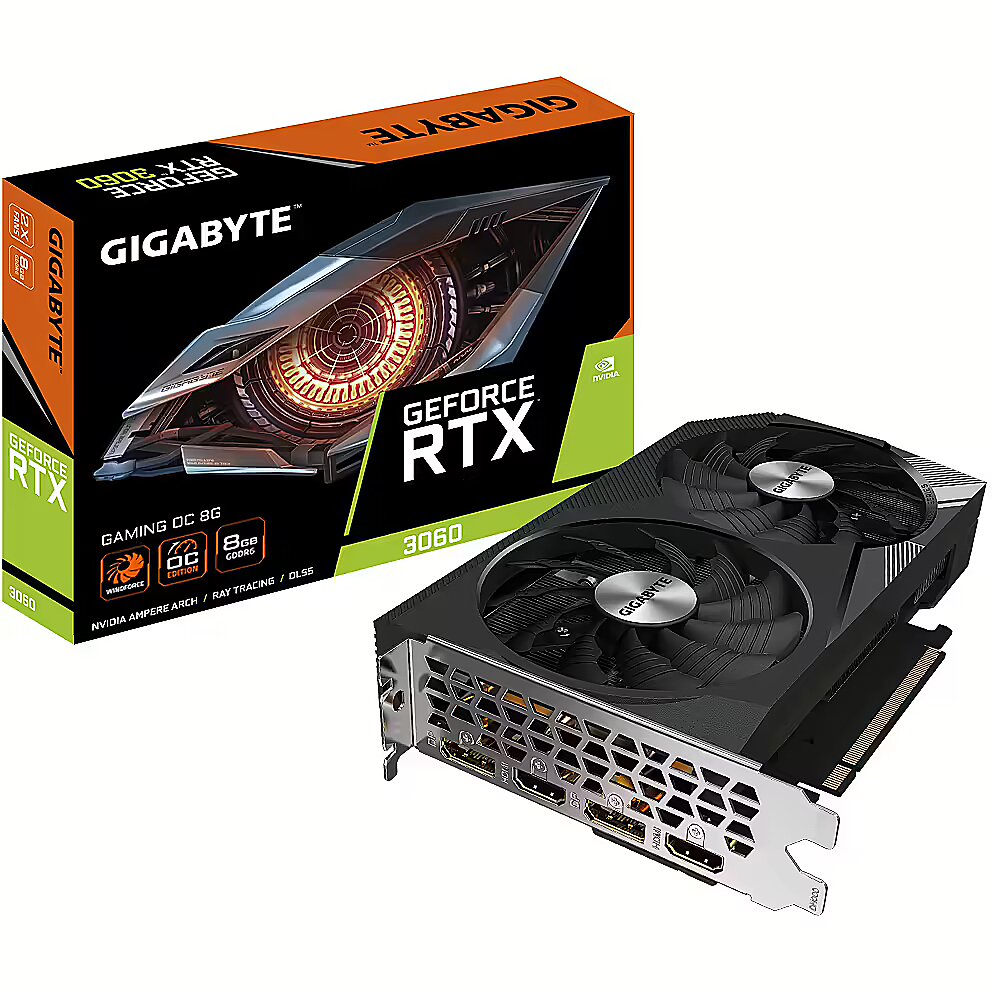

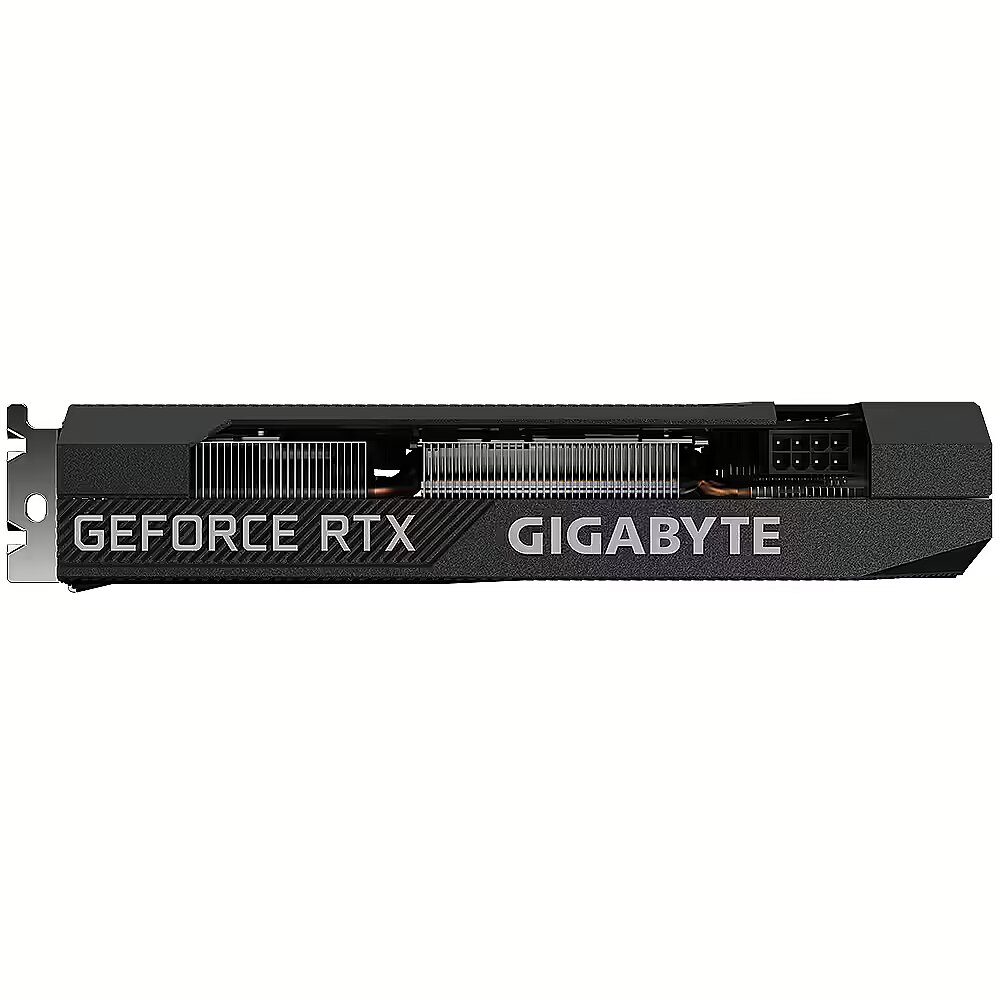

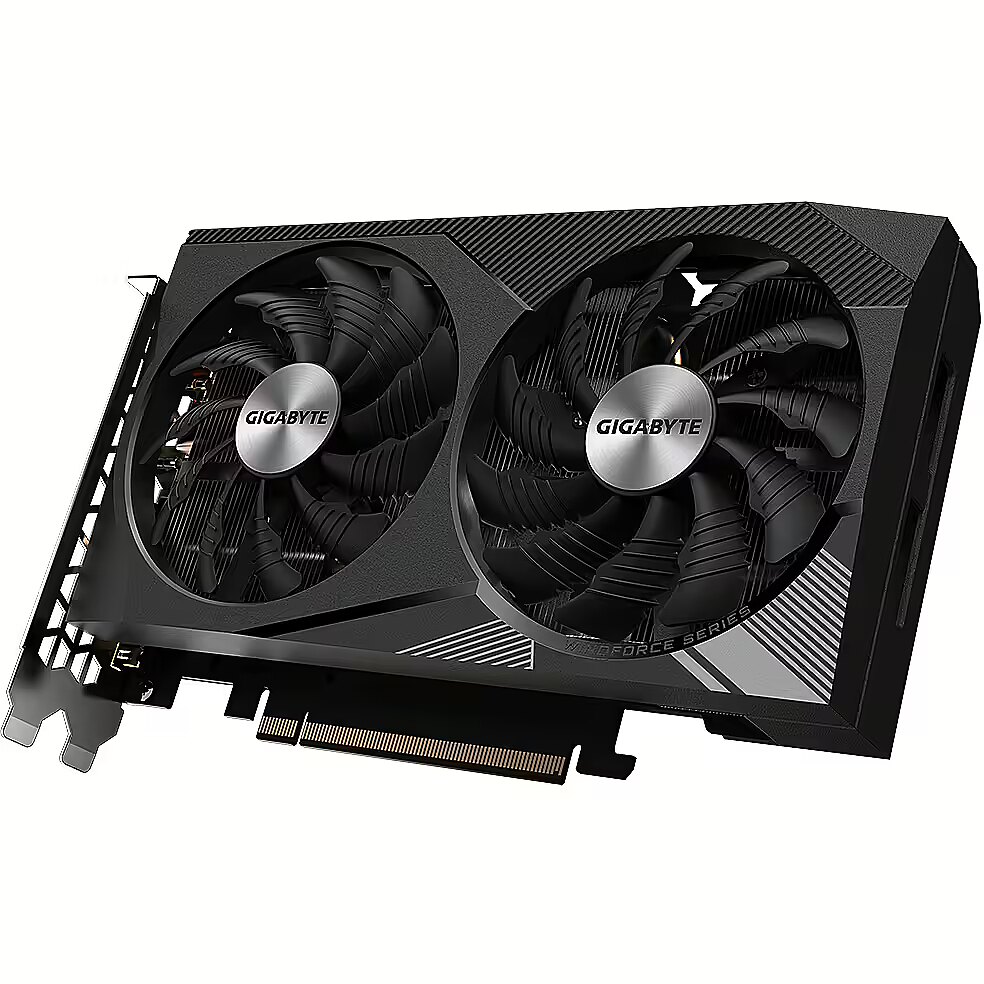

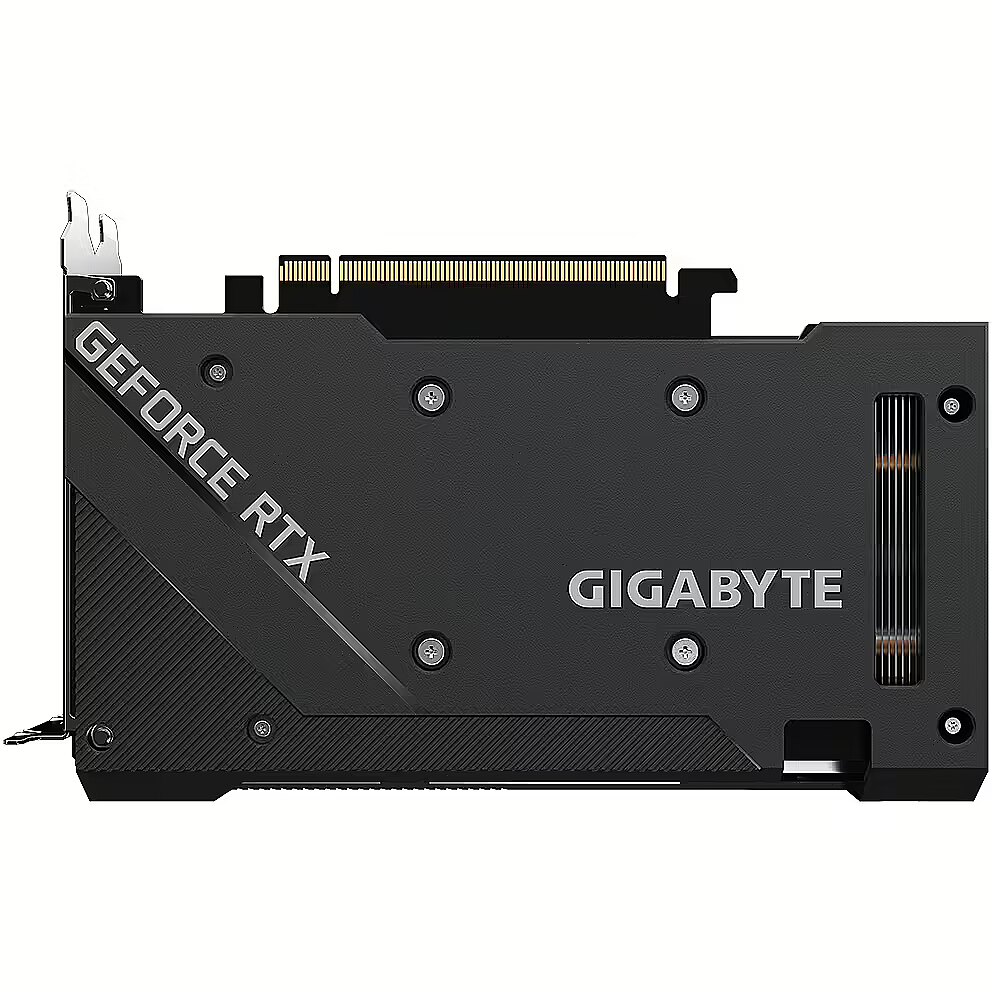

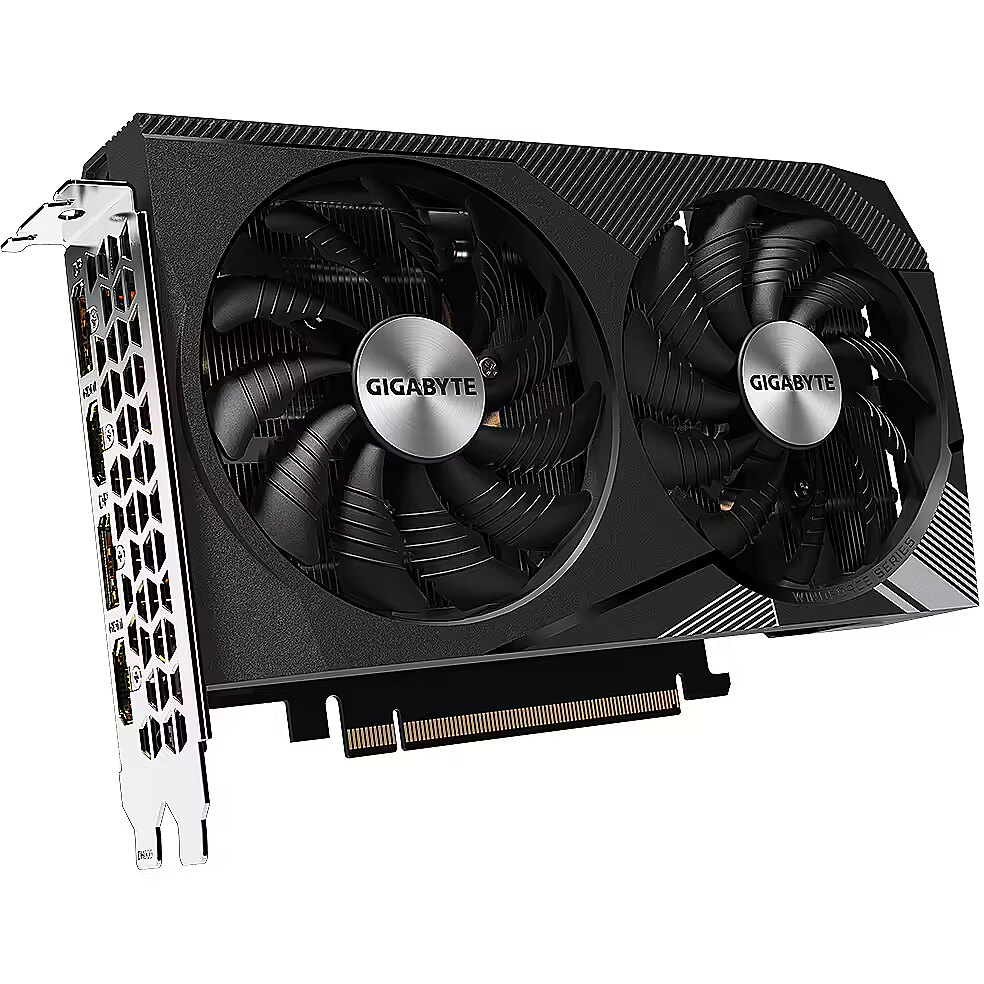

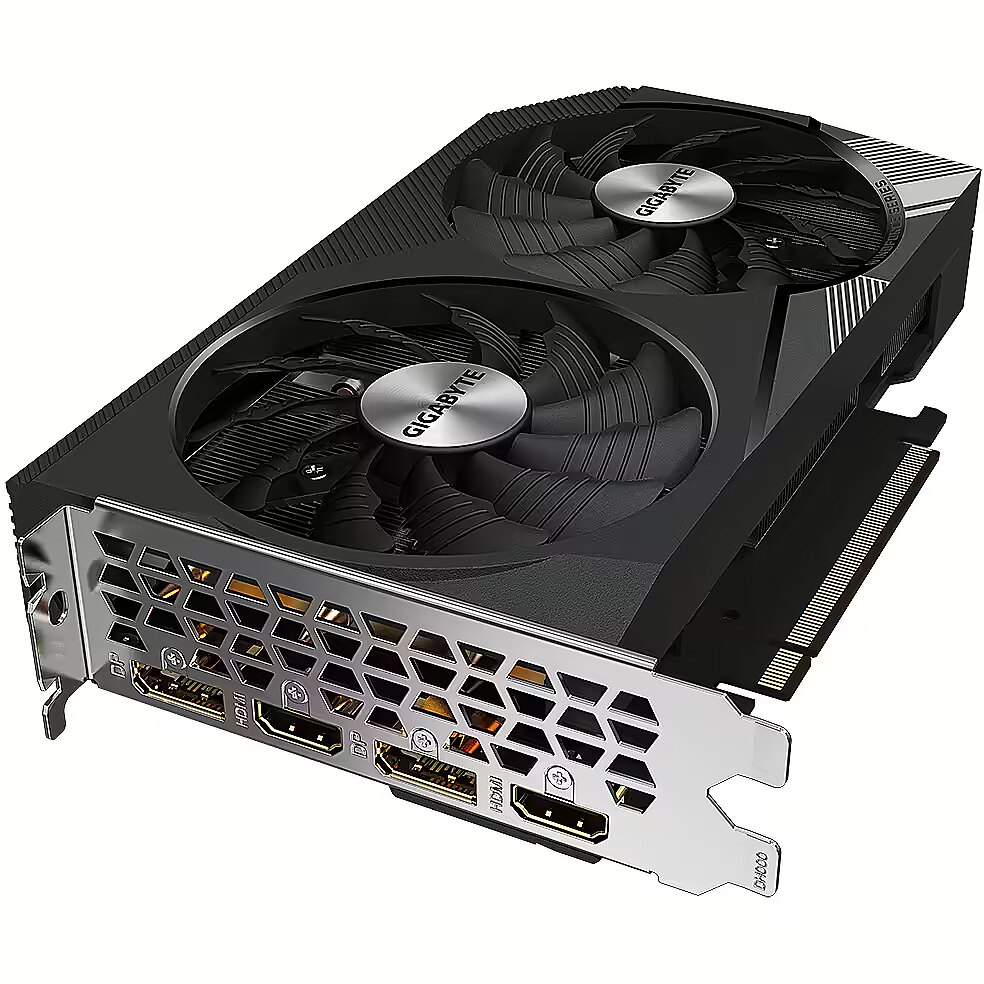

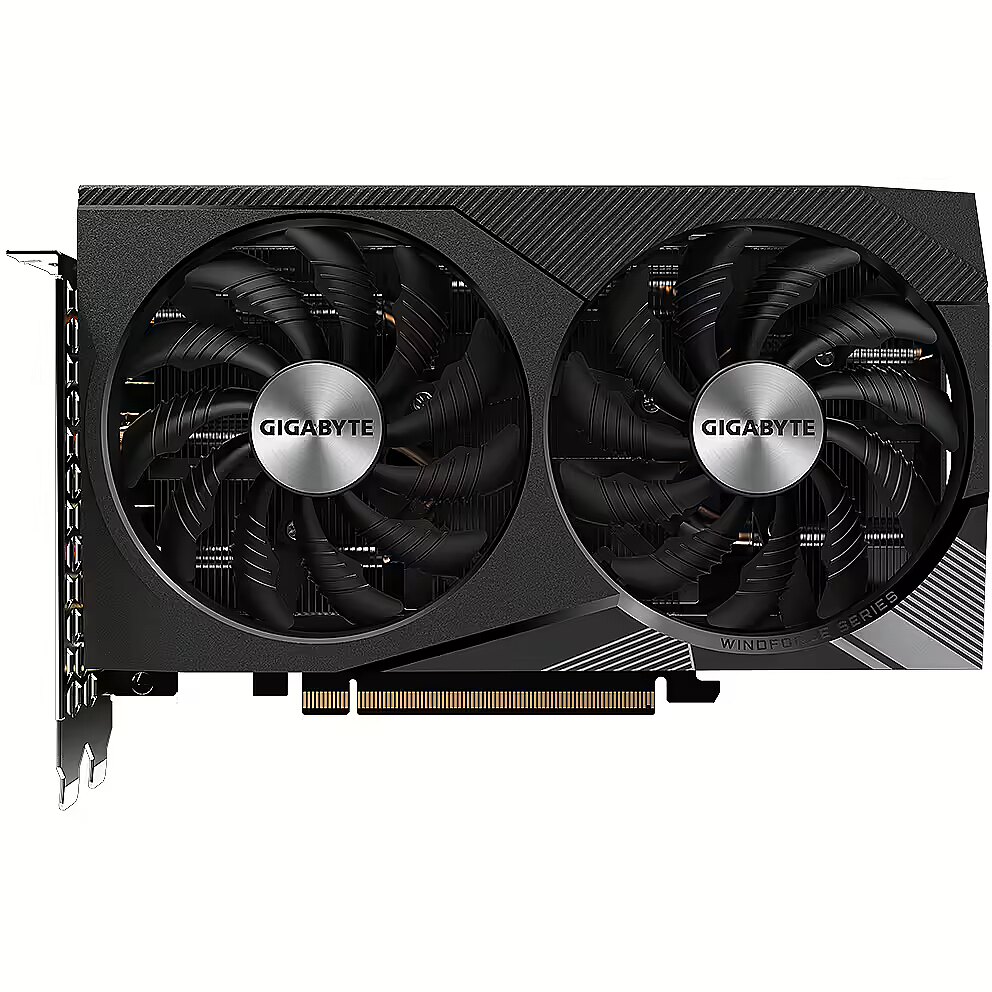

Gigabyte GeForce RTX 3060, 8GB GDDR6, Gaming OC
- Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
- Courier delivery 11.99 €: 29.11.2024
- GPU model: GeForce RTX 3060
- GPU core frequency: 1807 MHz
- Power sockets: 1x 8-pin
- RAM: 8 GB
- Memory type: GDDR6
- Cooling: Standard Cooler
TheGeForce RTX 3060 is NVIDIA's Ampere microarchitecture graphics card that delivers great performance in the best PC games at 1080p and 2K resolutions. With advanced Ray Tracing and Tensor cores, new streaming multiprocessors and high-speed 8 GB GDDR6 memory at 15000 MHz effective frequency, this card delivers a great balance between low price and high performance.
Launched in February 2021, the GeForce RTX 3060 graphics card is well ahead of its predecessors, the RTX 2060 and GTX 1060. But it doesn't stop there, as the RTX 3060 delivers the same power and even outperforms the GeForce RTX 2070 in several games at a significantly lower - 170 W TDP!
GeForce RTX 3060 performance in PC games
Cyberpunk 2077, Assassin's Creed Valhalla, Control, Watch Dogs: Legion, Hitman 2, Red Dead Redemption 2, Call of Duty: Black Ops Cold War, Metro Exodus - in any of these visually challenging games, the new GeForce RTX 3060 delivers over 60fps in 1080p or Full HD resolution at the highest quality settings. If you turn them down a bit, you can also achieve outstanding performance on 2K or 1440p and even 4K resolution monitors with the GeForce RTX 3060 video card.
This is the main performance indicator of the graphics card because it indicates the model of this card. The performance of cards of the same model is very similar and usually very different from the cards of another model.
The main difference is the manufacturer. NVidia produces GeForce series cards and AMD produces Radeon series cards. There are considerable differences between both series, GeForce cards have more successful (more stable) drivers, which improve the compatibility of these cards with games and operating systems reducing the image defect (artefact) and the cases of "hanging" to the minimum. Radeon cards usually are cheaper and consume less energy (they are technologically superior), however there might be problems with drivers and the support of games.
The choice between Radeon or GeForce series is the question of preference, similar to the choice between AMD or Intel CPU, and not always there is 100% rational justification behind it, therefore we recommend to base your selection criteria just on the games that you want to play in the near future and to find a video review in YouTube (the graphic card model + the game title) that will demonstrate exactly how the particular card handles the relevant game. The result will be obvious and usually quite close to what you get when you buy the particular or similar model card.
For making the choice easier for our customers TopPC.fi has marked the graphic cards (models) that are the best choice for playing all the newest games at a reasonable quality level with a green tick "recommended".
The RAM capacity of the video card. This is an important parameter if you want to play games of high resolution or work with a high resolution monitor. A higher memory capacity means better performance and the support to higher resolution.
Currently 1GB is the optimum capacity of the video memory.
The number of bits of the video card RAM determine what amount of information the video card memory can handle within a single clock cycle. A higher number of bits indicates higher performance of the video card.
HDMI is the digital image and sound transmission standard that allows to connect a TV set, monitor or projector supporting HDMI to the computer via the HDMI cable.
DisplayPort digital connection for the transmission of the image and sound via a single wire at a high quality level. Contrary to the HDMI, this connection allows to connect several external monitors to the computer via a single connector.
D-SUB is the classic (analogous) connection plug of monitors, projectors and other external video devices. This standard is gradually disappearing from the market leaving the space for much higher quality HDMI or DisplayPort (digitālajiem) plugs.
BrandPartCode - GV-N3060GAMING OC-8GD
BrandPartCode - GV-N3060GAMING OC-8GD 2.0
Category - Graphics Cards
Category - Root/Electronics/PC parts/Graphic cards
Design - Cooling technology - GIGABYTE WINDFORCE 2X
Design - Cooling type - Active
Design - Fan diameter - 9 cm
Design - Number of fans - 2 fan(s)
Design - Number of slots - 2
Eans - 4719331311957
GTIN - 4719331311957
GTIN - 4719331312909
LongDesc - WINDFORCE 2X COOLING SYSTEMThe WINDFORCE 2X cooling system features two 90mm unique blade fans, alternate spinning, 3 composite copper heat pipes direct touch GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.ALTERNATE SPINNINGThe GIGABYTE “Alternate Spinning” is the only solution that can solve the turbulent airflow of adjacent fans. Since the adjacent fans rotate in the same direction, the airflow direction is opposite between the fans, which will cause turbulent airflow and reduce heat dissipation efficiency. GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.UNIQUE BLADE FANThe airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.3D ACTIVE FANThe 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.HEAT PIPES DIRECT TOUCHThe shape of the pure copper heat pipe maximizes the direct contact area with the GPU, enhancing heat transfer. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.GRAPHENE NANO LUBRICANTGraphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter.SCREEN COOLINGExtended heatsink design allows air flow to pass through, providing better heat dissipation.BUILT STRONGTINY SIZE WITH MIGHTY PERFORMANCE.For gamers who prefer a small build with powerful performance, GIGABYTE delivers a compact graphics card with less than 200mm in length. The card provides mighty performance and is easy to install in any small chassis as well.EXTREME DURABILITY & OVERCLOCKINGThe graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.PROTECTION BACK PLATEThe back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.FRIENDLY PCB DESIGNFully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
LongProductName - GeForce RTX 3060, 8 GB GDDR6, 1807 MHz, 15000 MHz, 128 bit, 240 GB/s, 7680 x 4320, ATX, PCI-E 4.0, 2x DisplayPort 1.4a, 2x HDMI 2.1, 121 x 198 x 39 mm, 550 W
LongSummaryDescription - GIGABYTE GAMING GeForce RTX 3060 OC. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 3060, Processor frequency: 1807 MHz. Discrete graphics card memory: 8 GB, Graphics card memory type: GDDR6, Memory bus: 128 bit, Memory clock speed: 15000 MHz. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express 4.0. Cooling type: Active, Number of fans: 2 fan(s)
LongSummaryDescription - GIGABYTE GAMING GeForce RTX 3060 OC 8G (rev. 2.0). Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 3060, Processor frequency: 1807 MHz. Discrete graphics card memory: 8 GB, Graphics card memory type: GDDR6, Memory bus: 128 bit, Memory clock speed: 15000 MHz. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express 4.0. Cooling type: Active, Number of fans: 2 fan(s)
Memory - Discrete graphics card memory - 8 GB
Memory - Graphics card memory type - GDDR6
Memory - Memory bandwidth (max) - 240 GB/s
Memory - Memory bus - 128 bit
Memory - Memory clock speed - 15000 MHz
Name - Gigabyte GeForce RTX 3060 Gaming 8GB OC
Packaging content - Quick installation guide - Yes
Performance - DirectX version - 12 Ultimate
Performance - Dual Link DVI - No
Performance - OpenGL version - 4.6
Performance - TV tuner integrated - No
Ports & interfaces - DisplayPorts quantity - 2
Ports & interfaces - DisplayPort version - 1.4a
Ports & interfaces - HDMI ports quantity - 2
Ports & interfaces - HDMI version - 2.1
Ports & interfaces - Interface type - PCI Express 4.0
Power - Minimum system power supply - 550 W
Power - Supplementary power connectors - 1x 8-pin
Processor - CUDA - Yes
Processor - CUDA cores - 3584
Processor - Graphics processor - GeForce RTX 3060
Processor - Graphics processor family - NVIDIA
Processor - Maximum displays per videocard - 4
Processor - Maximum resolution - 7680 x 4320 pixels
Processor - Processor frequency - 1807 MHz
Processor - Processor frequency (OC mode) - 1777 MHz
Producer - Gigabyte
ProducerCode - GV-N3060GAMING OC-8GD
ProductName - GeForce RTX 3060 GAMING OC 8G (rev. 2.0)
ProductName - GeForce RTX 3060 OC
ShortDescription - Chipset NVIDIA RTX 3060 | 8GB |
ShortSummaryDescription - GIGABYTE GAMING GeForce RTX 3060 OC, GeForce RTX 3060, 8 GB, GDDR6, 128 bit, 7680 x 4320 pixels, PCI Express 4.0
ShortSummaryDescription - GIGABYTE GAMING GeForce RTX 3060 OC 8G (rev. 2.0), GeForce RTX 3060, 8 GB, GDDR6, 128 bit, 7680 x 4320 pixels, PCI Express 4.0
Title - GIGABYTE GAMING GeForce RTX 3060 OC 8G (rev. 2.0) NVIDIA 8 GB GDDR6
Title - GIGABYTE GAMING GeForce RTX 3060 OC NVIDIA 8 GB GDDR6
URL - https://www.gigabyte.com/Graphics-Card/GV-N3060GAMING-OC-8GD
URL - https://www.gigabyte.com/Graphics-Card/GV-N3060GAMING-OC-8GD-rev-20#kf
WarrantyInfo -
Weight & dimensions - Depth - 198 mm
Weight & dimensions - Height - 39 mm
Weight & dimensions - Width - 121 mm
