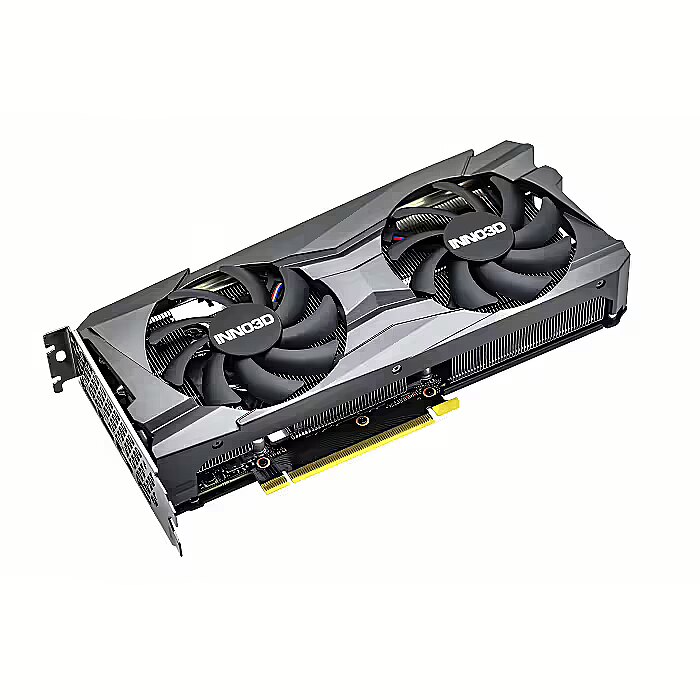

Inno3D GeForce RTX 3060, 12GB GDDR6, Twin X2 OC LHR
- GPU model: GeForce RTX 3060
- GPU core frequency: 1792 MHz
- Power sockets: 1x 8-pin
- RAM: 12 GB
- Memory type: GDDR6
- Cooling: Standard Cooler
TheGeForce RTX 3060 is NVIDIA's Ampere microarchitecture graphics card that delivers great performance in the best PC games at 1080p and 2K resolutions. With advanced Ray Tracing and Tensor cores, new streaming multiprocessors and high-speed 12 GB GDDR6 memory at 15000 MHz effective frequency, this card delivers a great balance between low price and high performance.
Launched in February 2021, the GeForce RTX 3060 graphics card is well ahead of its predecessors, the RTX 2060 and GTX 1060. But it doesn't stop there, as the RTX 3060 delivers the same power and even outperforms the GeForce RTX 2070 in several games at a significantly lower - 170 W TDP!
GeForce RTX 3060 performance in PC games
Cyberpunk 2077, Assassin's Creed Valhalla, Control, Watch Dogs: Legion, Hitman 2, Red Dead Redemption 2, Call of Duty: Black Ops Cold War, Metro Exodus - in any of these visually challenging games, the new GeForce RTX 3060 delivers over 60fps in 1080p or Full HD resolution at the highest quality settings. If you turn them down a bit, you can also achieve outstanding performance on 2K or 1440p and even 4K resolution monitors with the GeForce RTX 3060 video card.
This is the main performance indicator of the graphics card because it indicates the model of this card. The performance of cards of the same model is very similar and usually very different from the cards of another model.
The main difference is the manufacturer. NVidia produces GeForce series cards and AMD produces Radeon series cards. There are considerable differences between both series, GeForce cards have more successful (more stable) drivers, which improve the compatibility of these cards with games and operating systems reducing the image defect (artefact) and the cases of "hanging" to the minimum. Radeon cards usually are cheaper and consume less energy (they are technologically superior), however there might be problems with drivers and the support of games.
The choice between Radeon or GeForce series is the question of preference, similar to the choice between AMD or Intel CPU, and not always there is 100% rational justification behind it, therefore we recommend to base your selection criteria just on the games that you want to play in the near future and to find a video review in YouTube (the graphic card model + the game title) that will demonstrate exactly how the particular card handles the relevant game. The result will be obvious and usually quite close to what you get when you buy the particular or similar model card.
For making the choice easier for our customers TopPC.fi has marked the graphic cards (models) that are the best choice for playing all the newest games at a reasonable quality level with a green tick "recommended".
The RAM capacity of the video card. This is an important parameter if you want to play games of high resolution or work with a high resolution monitor. A higher memory capacity means better performance and the support to higher resolution.
Currently 1GB is the optimum capacity of the video memory.
The number of bits of the video card RAM determine what amount of information the video card memory can handle within a single clock cycle. A higher number of bits indicates higher performance of the video card.
HDMI is the digital image and sound transmission standard that allows to connect a TV set, monitor or projector supporting HDMI to the computer via the HDMI cable.
DisplayPort digital connection for the transmission of the image and sound via a single wire at a high quality level. Contrary to the HDMI, this connection allows to connect several external monitors to the computer via a single connector.
D-SUB is the classic (analogous) connection plug of monitors, projectors and other external video devices. This standard is gradually disappearing from the market leaving the space for much higher quality HDMI or DisplayPort (digitālajiem) plugs.
API Supports - DirectX 12.0 OpenGL 4.6
Box Weight Brutto (kg) - 11.2 kg
Cable Included - Power Cable
Card Slot Width - 2.7 slot
Category - Root/Electronics/PC parts/Graphic cards
Category_1 - Graphics Cards
Category_2 - Graphics Cards PCIe - Nvidia
Cooling System Type - VGA Cooler
Depth (mm) - 240 mm
DisplayPort Interface Quantity - 3
EAN Code - 4895223102084
Eans - 4895223102084
EAN_code - 0835168001725
External Power - 8 pin
GPU Core Name - GA104-200-A1
GPU Core Speed Boost - 1792 MHz
GPU Quantity - 1
HDMI Interface Connector Type - HDMI (Type A)
HDMI Interface Quantity - 1
Image - https://content.it4profit.com/pimg/s/resize/900x900x900x900/210819160017097620.jpg
Image - https://content.it4profit.com/pimg/s/resize/900x900x900x900/210819160017152126.jpg
Image - https://content.it4profit.com/pimg/s/resize/900x900x900x900/210819160017215349.jpg
Image - https://content.it4profit.com/pimg/s/resize/900x900x900x900/210819160017271079.jpg
Included Accessories - Documentation
Installed Video Memory Storage Capacity - 1 x 12 GB
Manufacturer - Inno3D
Manufacturer_code - N30602-12D6X-11902120H
Maximum Resolution - 7680x4320
Memory Bandwidth - 1 x 360 GB/s
Memory Bus Bandwidth - 1 x 192 bit
Memory Type - GDDR6 SDRAM
Name - INNO3D GeForce RTX 3060 TWIN X2 OC - 12GB - 3x DisplayPort, 1x HDMI 2.1
Name - Inno3D GeForce RTX 3060 Twin X2 OC LHR 12GB GDDR6
Package Type - Box
Packs in Box - 10
Pack Weight Brutto (kg) - 1 kg
Pack Weight Netto (kg) - 1 kg
Pieces in pack - 1
Producer - inno3D
ProducerCode - N30602-12D6X-11902120H
ProductCard - https://content.it4profit.com/itshop/itemcard_cs.jsp?ITEM=210611131800353771&THEME=asbis&LANG=lv
ProductCategory - Video kartes
ProductCode - N30602-12D6X-11902120H
ProductDescription - INNO3D Video Card NVIDIA GeForce RTX 3060 Twin X2 OC, 12GB 192bit GDDR6, 1792 / 19G PCI-E 4, 3x DP, HDMI, Dual fan, 2.7 slot
ProductType - Video Card
PSU Output Power Required - 550 W
Ray-tracing Cores Quantity - 1 x 28
Render Output Units Quantity (ROP) - 1 x 48
Requires Expansion Slot Standard - PCI Express 4.0 x16
Retail Packaging Net Weight Carton - 0.25 kg
Retail Packaging Net Weight Plastic - 0.05 kg
ShortDescription - Chipset NVIDIA RTX 3060 | 12GB | LHR | OC
Stream Processors Quantity - 1 x 3584
Tensor Core Quantity - 1 x 112
Texture Mapping Unit Quantity - 1 x 112
Vendor - INNO3D
Vertical Synchronization at Max. Resolution - 60 Hz
Video Chipset - Nvidia GeForce RTX 3060
Video Memory Speed - 15000 MHz
Video Memory Type - Video Controller Memory
Warranty Products Returnable - Yes
Warranty Term (month) - 36 mēneši
Warranty validation Criteria - Serial Number
Weight - 1,14
Width (mm) - 120 mm
