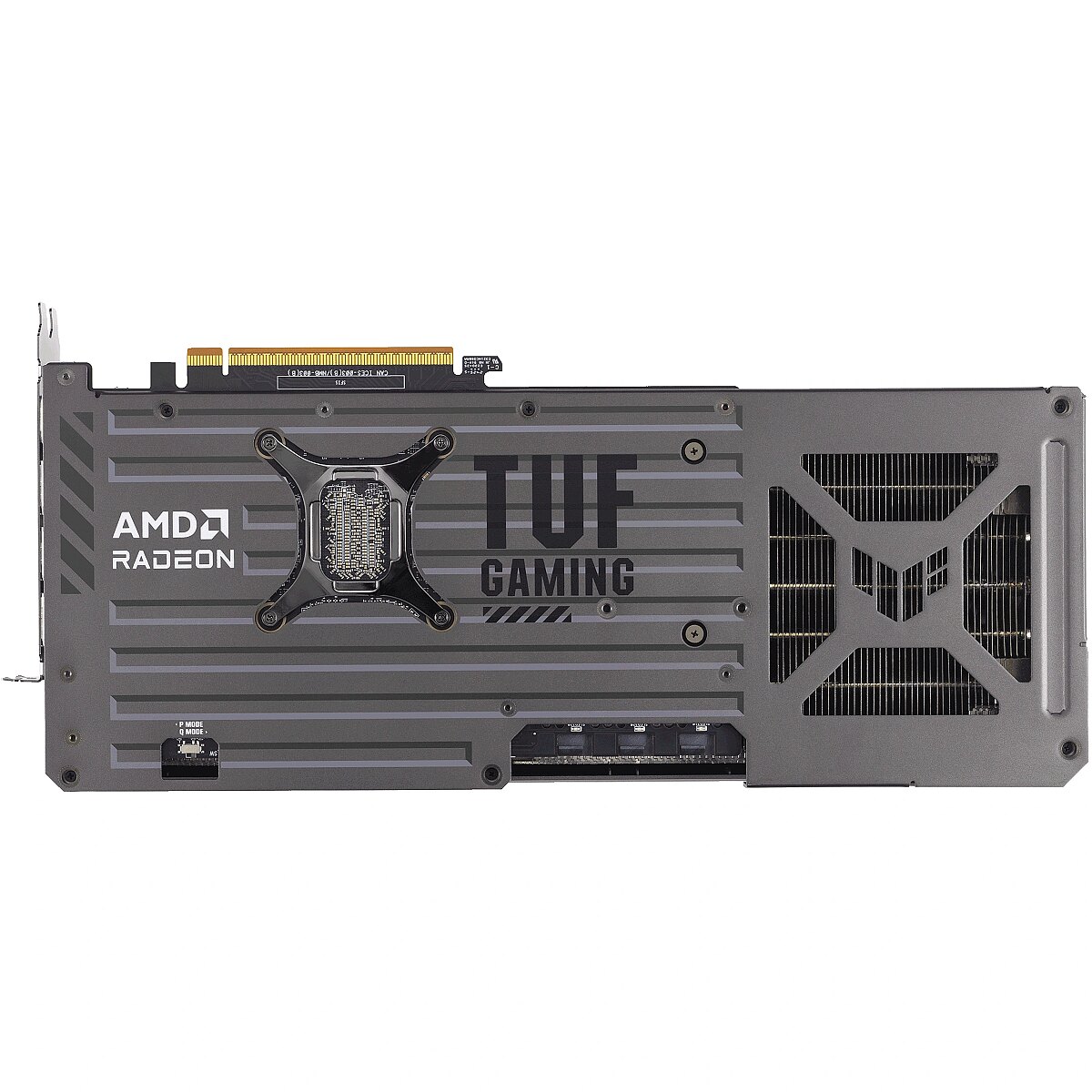

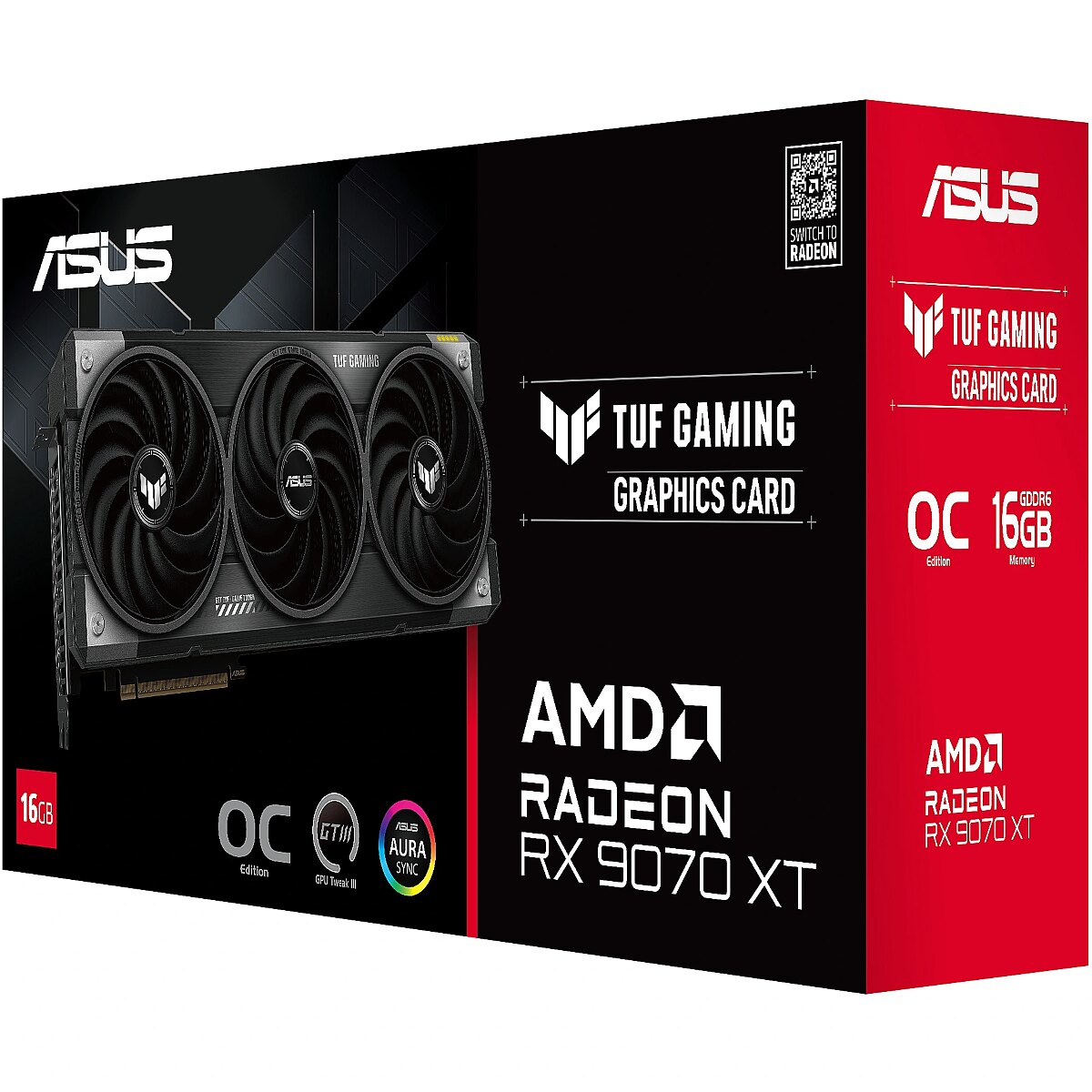

Asus Radeon RX 9070 XT, 16GB GDDR6, TUF Gaming OC

Name: Asus Radeon RX 9070 XT, 16GB GDDR6, TUF Gaming OC
Brand: Asus
SKU: 1198806
Price: 1091.54 EUR
Availability: OutOfStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 1198806 Product code: 90YV0L70-M0NA00

Goods are not available at the moment We do not accept orders for the delivery of this product. We do not have information as to when this product will be available. Our suppliers currently do not provide information about possible delivery times of the product and the possible price when it is on sale again.

TopPC.fi website provides information about this product for information only, so that customers can see the product and compare it to the products available for sale now.

Warranty: 3 years

Compare

Main product parameters All parameters

GPU model: Radeon RX 9070 XT
GPU core frequency: 3060 MHz
Power sockets: 3x 8-pin
RAM: 16 GB
Memory type: GDDR6
Cooling: High-End Cooler

Similar Products

Basic information
	This product Asus Radeon RX 9070 XT, 16GB GDDR6, TUF Gaming OC	Asus Radeon RX 9070, 16GB GDDR6, Prime OC	Sapphire Radeon RX 7700 XT, 12GB GDDR6, PULSE	Sapphire Radeon RX 7900 XT, 20GB GDDR6, NITRO+ Vapor-X	Gigabyte GeForce RTX 4060 Ti, 16GB GDDR6, WindForce OC (DLSS 3)
Show similar specs. Hide similar specs.	1,091.54 €	849.99 €	467.46 €	843.78 €	551.84 €
GPU tips	Radeon	Radeon	Radeon	Radeon	GeForce
GPU series	Asus TUF Gaming	Asus Prime	Sapphire Pulse	Sapphire Nitro	Gigabyte Windforce
GPU model	Radeon RX 9070 XT	Radeon RX 9070	Radeon RX 7700 XT	Radeon RX 7900 XT	GeForce RTX 4060 Ti (16GB)
GPU core frequency	3060 MHz	Not indicated	2171 MHz	2220 MHz	2565 MHz
Number of fans	3	3	2	3	2
Length (mm)	330	312	280	320	201
Stream processors / CUDA Cores	4096	3584	3456	5376	4352
PCI-E version	5.0 x16	5.0 x16	4.0 x16	4.0 x16	4.0 x16
Power consumption (TDP)	304 W	220 W	245 W	368 W	165 W
Minimum power supply output	850 W	650 W	700 W	750 W	500 W
Power sockets	3x 8-pin	2x 8-pin	2x 8-pin	3x 8-pin	1x 8-pin
Random-access memory (RAM)
RAM	16 GB	16 GB	12 GB	20 GB	16 GB
Memory type	GDDR6	GDDR6	GDDR6	GDDR6	GDDR6
Memory type	20000 MHz	20000 MHz	18000 MHz	20000 MHz	18000 MHz
Bus width	256 bit	256 bit	192 bit	320 bit	128 bit
Functionality
Cooling	High-End Cooler	Standard Cooler	Standard Cooler	High-End Cooler	Standard Cooler
Lighting	RGB	Nav	Nav	RGB	Nav
NVIDIA SLI (NVLink) support	Not	Not	Not	Not	Not
VR (Virtual Reality) Ready	Is	Is	Is	Is	Is
Low Profile support	No	No	No	No	No
Ports and equipment
HDMI port	1	1	2	2	2
DisplayPort	3	3	2	2	2
DVI-D port	0	0	0	0	0
DVI-I port	0	0	0	0	0
D-SUB	0	0	0	0	0
Maximum number of screens	4	4	4	4	4

Description

We offer to buy the graphics card Asus Radeon RX 9070 XT with 16 GB GDDR6 RAM.

Basic information

GPU tips Radeon

GPU or the video card processor. This parameter determines whether the video card model is AMD Radeon or FirePro, NVIDIA GeForce or Quadro.

GPU series : Asus TUF Gaming

GPU model Radeon RX 9070 XT

This is the main performance indicator of the graphics card because it indicates the model of this card. The performance of cards of the same model is very similar and usually very different from the cards of another model.

The main difference is the manufacturer. NVidia produces GeForce series cards and AMD produces Radeon series cards. There are considerable differences between both series, GeForce cards have more successful (more stable) drivers, which improve the compatibility of these cards with games and operating systems reducing the image defect (artefact) and the cases of "hanging" to the minimum. Radeon cards usually are cheaper and consume less energy (they are technologically superior), however there might be problems with drivers and the support of games.

The choice between Radeon or GeForce series is the question of preference, similar to the choice between AMD or Intel CPU, and not always there is 100% rational justification behind it, therefore we recommend to base your selection criteria just on the games that you want to play in the near future and to find a video review in YouTube (the graphic card model + the game title) that will demonstrate exactly how the particular card handles the relevant game. The result will be obvious and usually quite close to what you get when you buy the particular or similar model card.

For making the choice easier for our customers TopPC.fi has marked the graphic cards (models) that are the best choice for playing all the newest games at a reasonable quality level with a green tick "recommended".

GPU core frequency 3060 MHz

GPU speed or the graphic drive speed (MHz) indicates the clock frequency at which the most important component of the video card, i.e. the video processor, operates. The higher the drive speed, the more powerful the video card. The performance of the video card is also determined by the memory volume, type, bits and the drive model, therefore you should verify the capacity compliance of the other components upon buying a video card with a powerful drive.

Number of fans : 3

Length (mm) : 330

Stream processors / CUDA Cores : 4096

PCI-E version : 5.0 x16

Power consumption (TDP) : 304 W

Minimum power supply output : 850 W

Power sockets : 3x 8-pin

Random-access memory (RAM)

RAM 16 GB

The RAM capacity of the video card. This is an important parameter if you want to play games of high resolution or work with a high resolution monitor. A higher memory capacity means better performance and the support to higher resolution.

Currently 1GB is the optimum capacity of the video memory.

Memory type GDDR6

The type of the RAM of the video card determines the operation speed of the video card. The currently available video cards have DDRII, GDDRIII or GDDR4 memory. GDDR4 memory is the fastest memory type.

Memory type : 20000 MHz

Bus width 256 bit

The number of bits of the video card RAM determine what amount of information the video card memory can handle within a single clock cycle. A higher number of bits indicates higher performance of the video card.

Functionality

Cooling High-End Cooler

Two types of cooling are available, i.e. a radiator and a ventilator. The radiator based cooling is implemented without any moving parts (ventilator), therefore the video card does not emit any noise. The ventilator based cooling is more efficient, however, the video card emits certain noise during the computer operation.

Lighting : RGB

NVIDIA SLI (NVLink) support : Not

VR (Virtual Reality) Ready : Is

Low Profile support : No

Ports and equipment

HDMI port 1

HDMI is the digital image and sound transmission standard that allows to connect a TV set, monitor or projector supporting HDMI to the computer via the HDMI cable.

DisplayPort 3

DisplayPort digital connection for the transmission of the image and sound via a single wire at a high quality level. Contrary to the HDMI, this connection allows to connect several external monitors to the computer via a single connector.

DVI-D port : 0

DVI-I port : 0

D-SUB 0

D-SUB is the classic (analogous) connection plug of monitors, projectors and other external video devices. This standard is gradually disappearing from the market leaving the space for much higher quality HDMI or DisplayPort (digitālajiem) plugs.

Maximum number of screens : 4

More detailed specification

Additional information in manufacturers website Asus Radeon RX 9070 XT, 16GB GDDR6, TUF Gaming OC

Brand - ASUS
BrandPartCode - 90YV0L70-M0NA00
Category - Graphics Cards
Design - Bracket height - Full-Height (FH)
Design - Cooling technology - ASUS Axial-tech
Design - Cooling type - Active
Design - Form factor - Full-Height/Full-Length (FH/FL)
Design - Illumination - Yes
Design - Illumination colour - Multi
Design - Number of fans - 3 fan(s)
Design - Number of slots - 3.125
Design - Product colour - Black
Design - Product colour - Black, Silver
Design - Product colour - Silver
dimensionalWeight - 2415
GTIN - 4711387829578
LongDesc - Game TUF. Built to Last.ASUS TUF Gaming Radeon™ RX 9070 XTThe AMD RDNA™ 4 Architecture elevated by buffed cooling and power delivery to effortlessly churn out frames at 4K resolution and beyond, and backed with an arsenal of rugged reinforcements to cover your six.Premium DurabilityTUF Chokes & MOSFETsCertified military-grade TUF chokes and MOSFETs deliver rock-solid power to the GPU, which can help improve system stability.TUF CapacitorsTUF 5K black metallic capacitors provide 52% wider temperature tolerance and a 2.5X longer lifespan than standard capacitors.Phase-Change GPU Thermal PadBy melting to effectively fill the gaps between the GPU and the thermal module, a premium phase-change GPU thermal pad provides superior thermal conductivity and enhanced heat dissipation, ensuring optimal performance and longevity for graphics cards under heavy loads.Protective PCB CoatingA protective conformal coating envelops the circuit board to help protect against short-circuits caused by moisture, dust or debris.Dual-ball Fan BearingsDual-ball bearings offer an extensive lifespan of up to 80,000 hours, double the longevity of sleeve bearings and surpassing fluid dynamic bearings. This helps ensure long-lasting, reliable and quiet cooling.Cooling MasteryThis advanced cooling design features the ASUS-exclusive MaxContact manufacturing technique, a phase-change GPU thermal pad and efficient Axial-tech fans, helping to ensure premium thermal performance, optimized airflow and quiet operation, all within a robust and vented metal exoskeleton.MaxContact DesignMaxContact is a special ASUS manufacturing process that effectively expands the surface area of the heat spreader that sits atop the GPU by 5%, compared to traditional designs. This improves temperatures by up to 2°C, in concert with an extensive heatsink array and powerful Axial-tech fans.Axial-tech UpgradesAxial-tech fans spin on dual-ball bearings and propel up to 31% more air than standard fans.New DirectionsThe two outer fans spin counterclockwise to reduce turbulence and enhance air dispersion. All three fans stop when GPU temps are below 55°C, for quieter operation during light tasks. They restart above 60°C, following a speed curve that balances performance and acoustics.Vented ExoskeletonA high-quality diecast shroud and aluminum backplate help prevent PCB flex and feature large vents to further increase heat dissipation.The Perfect PSU for the TUF Gaming Radeon™ RX 9000 SeriesThe TUF Gaming Gold Series PSUs are the perfect match for TUF Gaming Radeon™ RX 9000 Series graphics cards, offering exceptional durability and reliable power delivery. Built with high-quality components and military-grade capacitors, these PSUs ensure your gaming setup performs at its best, even during the most demanding sessions.ReliabilityASUS GPU Guard & BracketASUS GPU Guard applies adhesive to secure all four corners to reduce the risk of cracks, while a GPU bracket helps ensure uniform mounting pressure and extra stability.Auto−Extreme TechnologyAn automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption and a more reliable product overall.
LongProductName - 16 GB, GDDR6, 256-bit, PCI Express 5.0, 3x DisplayPort, 1x HDMI, 3x 8-pin, RGB
LongSummaryDescription - ASUS TUF Gaming TUF-RX9070XT-O16G-GAMING. Graphics processor family: AMD, Graphics processor: Radeon RX 9070 XT. Discrete graphics card memory: 16 GB, Graphics card memory type: GDDR6, Memory bus: 256 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express 5.0. Cooling type: Active, Number of fans: 3 fan(s), Illumination colour: Multi
Memory - Data transfer rate - 20 Gbit/s
Memory - Discrete graphics card memory - 16 GB
Memory - Graphics card memory type - GDDR6
Memory - Memory bus - 256 bit
Packaging content - User guide - Yes
Packaging data - Package depth - 226 mm
Packaging data - Package height - 126 mm
Packaging data - Package type - Box
Packaging data - Package weight - 2.56 kg
Packaging data - Package width - 420 mm
Performance - DirectX version - 12 Ultimate
Performance - Dual Link DVI - No
Performance - HDCP - Yes
Performance - HDCP version - 2.3
Performance - OpenGL version - 4.6
Performance - Overclocked (OC) edition - Yes
Performance - TV tuner integrated - No
Ports & interfaces - DisplayPorts quantity - 3
Ports & interfaces - DisplayPort version - 2.1a
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 2.1b
Ports & interfaces - Interface type - PCI Express 5.0
Power - Minimum system power supply - 850 W
Power - Supplementary power connectors - 3x 8-pin
Processor - CUDA - No
Processor - Graphics processor - Radeon RX 9070 XT
Processor - Graphics processor family - AMD
Processor - Maximum displays per videocard - 4
Processor - Maximum resolution - 7680 x 4320 pixels
Processor - Parallel processing technology support - Not supported
Processor - Stream processors - 4096
producerCode - 90YV0L70-M0NA00
productName - ASUS TUF Gaming TUF-RX9070XT-O16G-GAMING AMD Radeon RX 9070 XT 16 GB GDDR6
ProductName - TUF-RX9070XT-O16G-GAMING
productSize - Normal
ShortSummaryDescription - ASUS TUF Gaming TUF-RX9070XT-O16G-GAMING, Radeon RX 9070 XT, 16 GB, GDDR6, 256 bit, 7680 x 4320 pixels, PCI Express 5.0
sizeX - 420
sizeY - 230
sizeZ - 125
Title - ASUS TUF Gaming TUF-RX9070XT-O16G-GAMING AMD Radeon RX 9070 XT 16 GB GDDR6
URL - https://www.asus.com/motherboards-components/graphics-cards/tuf-gaming/tuf-rx9070xt-o16g-gaming/
WarrantyInfo -
warrantyLength - 36
warrantyType - G
weight - 2600
Weight & dimensions - Depth - 62.5 mm
Weight & dimensions - Height - 140 mm
Weight & dimensions - Length - 330 mm
Weight & dimensions - Weight - 1.48 kg
