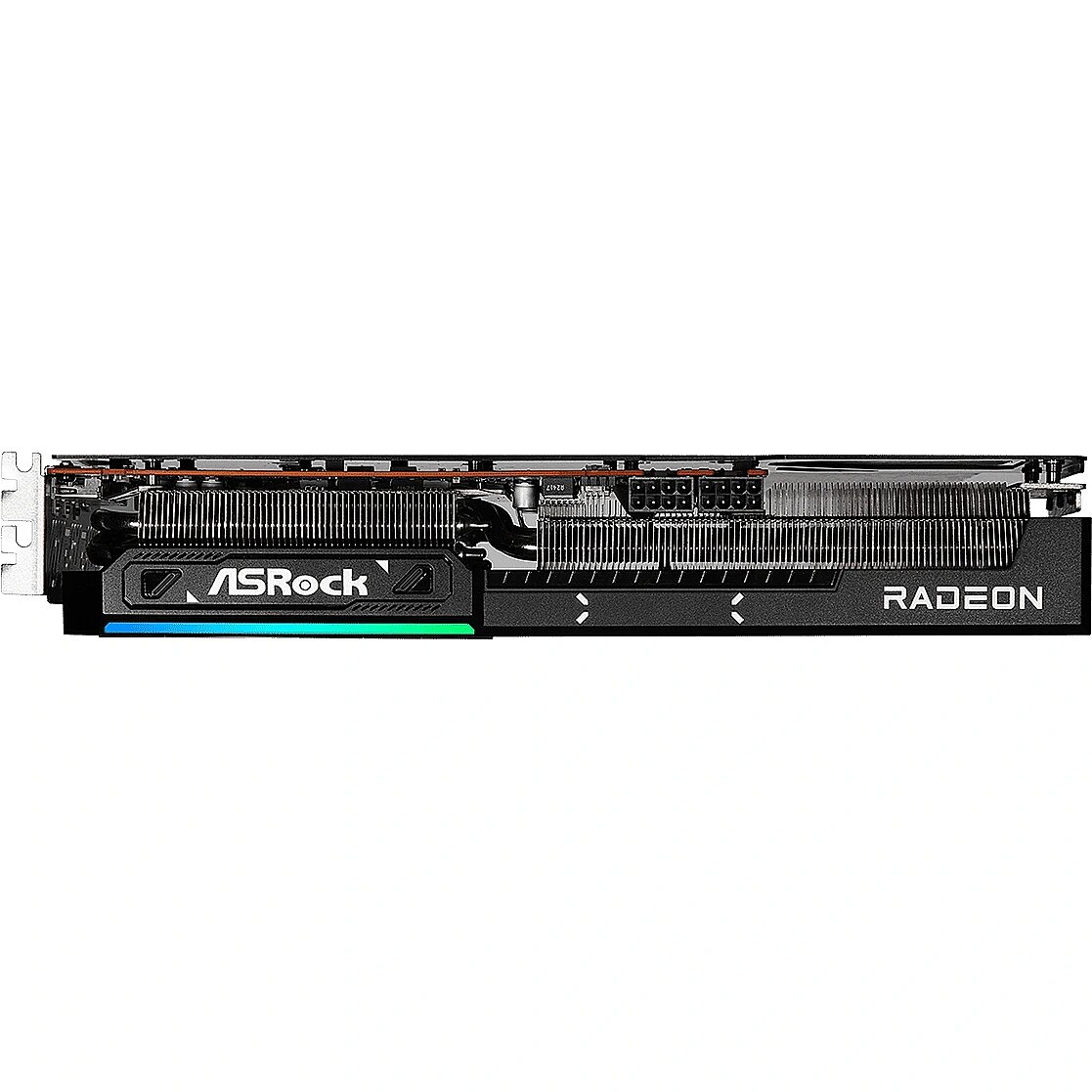

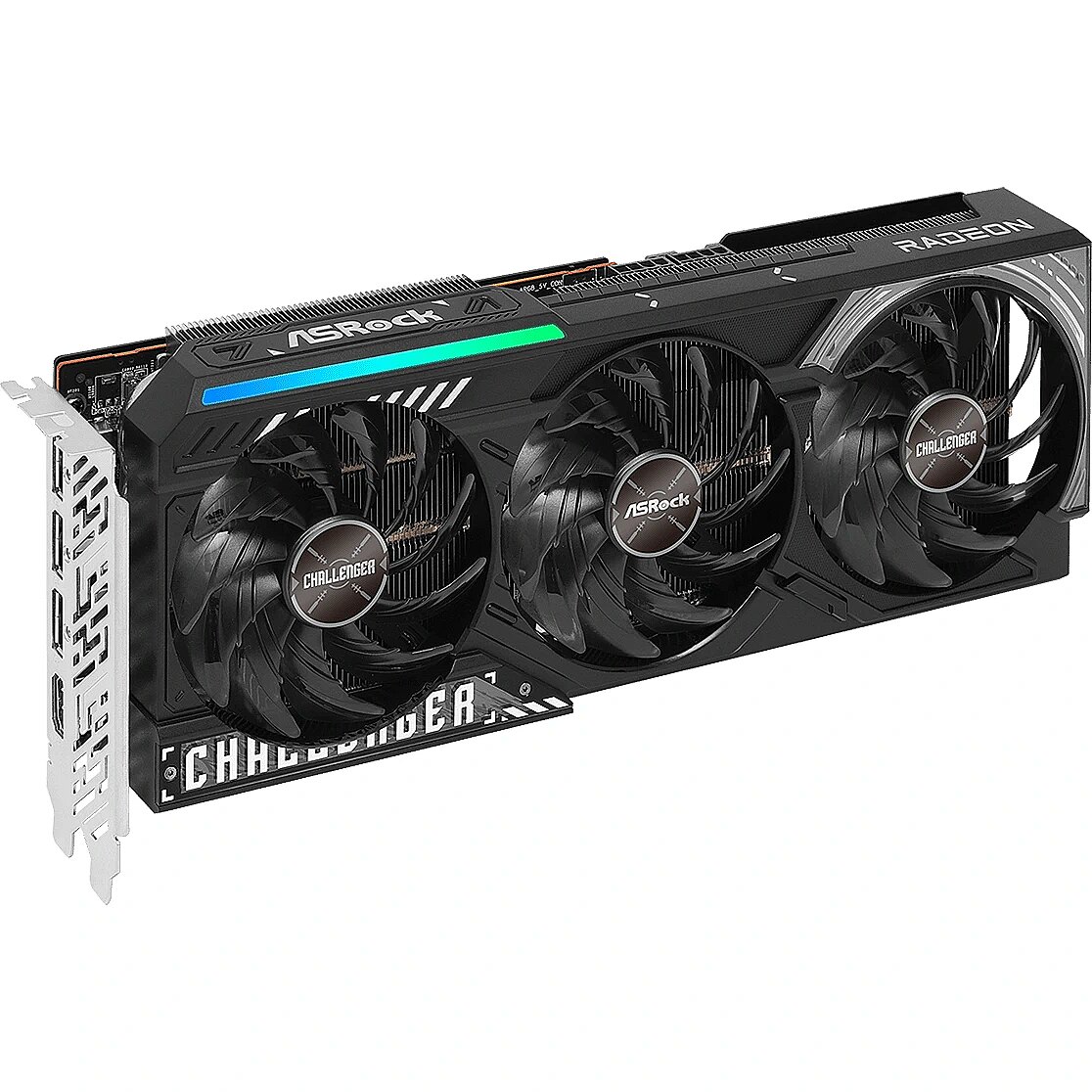

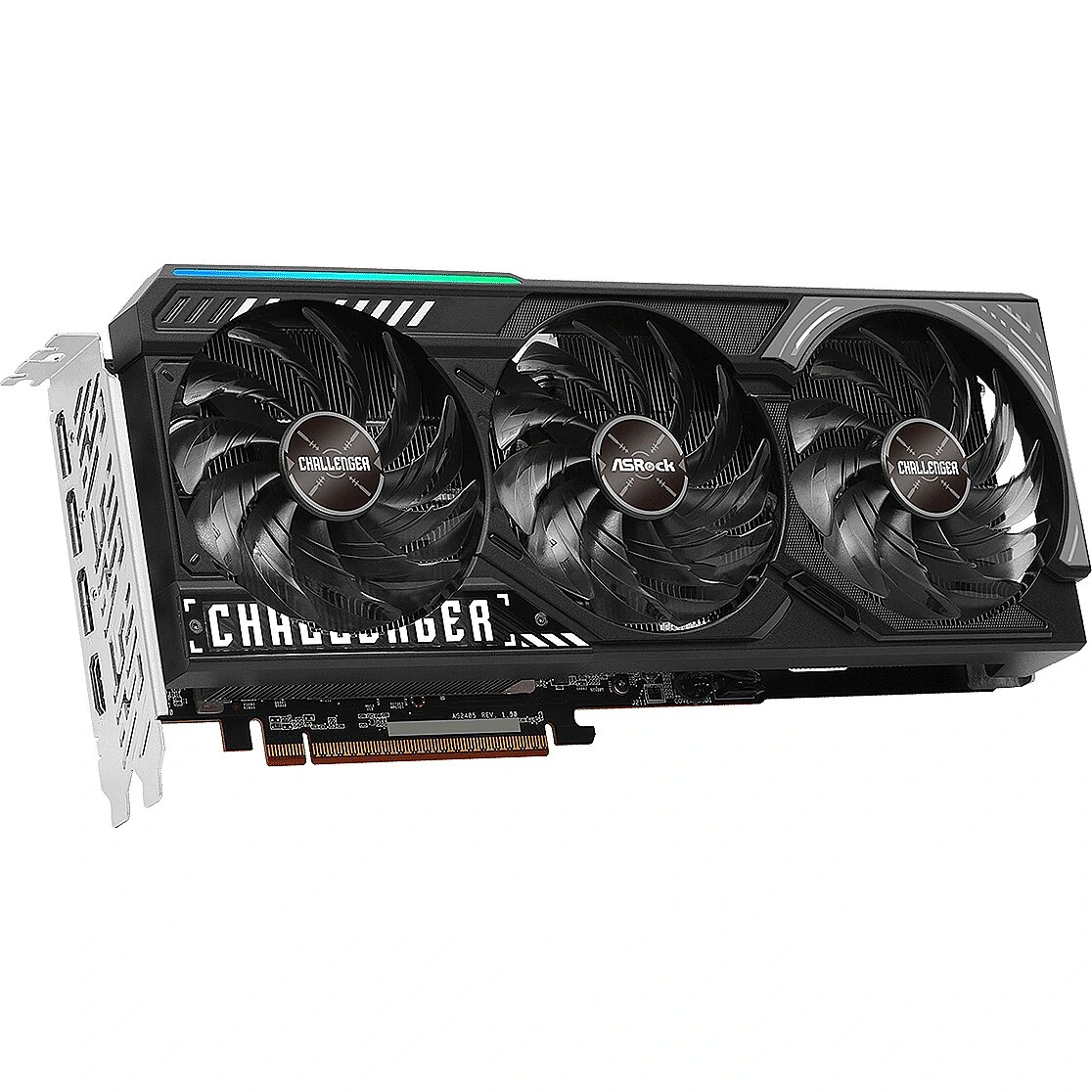

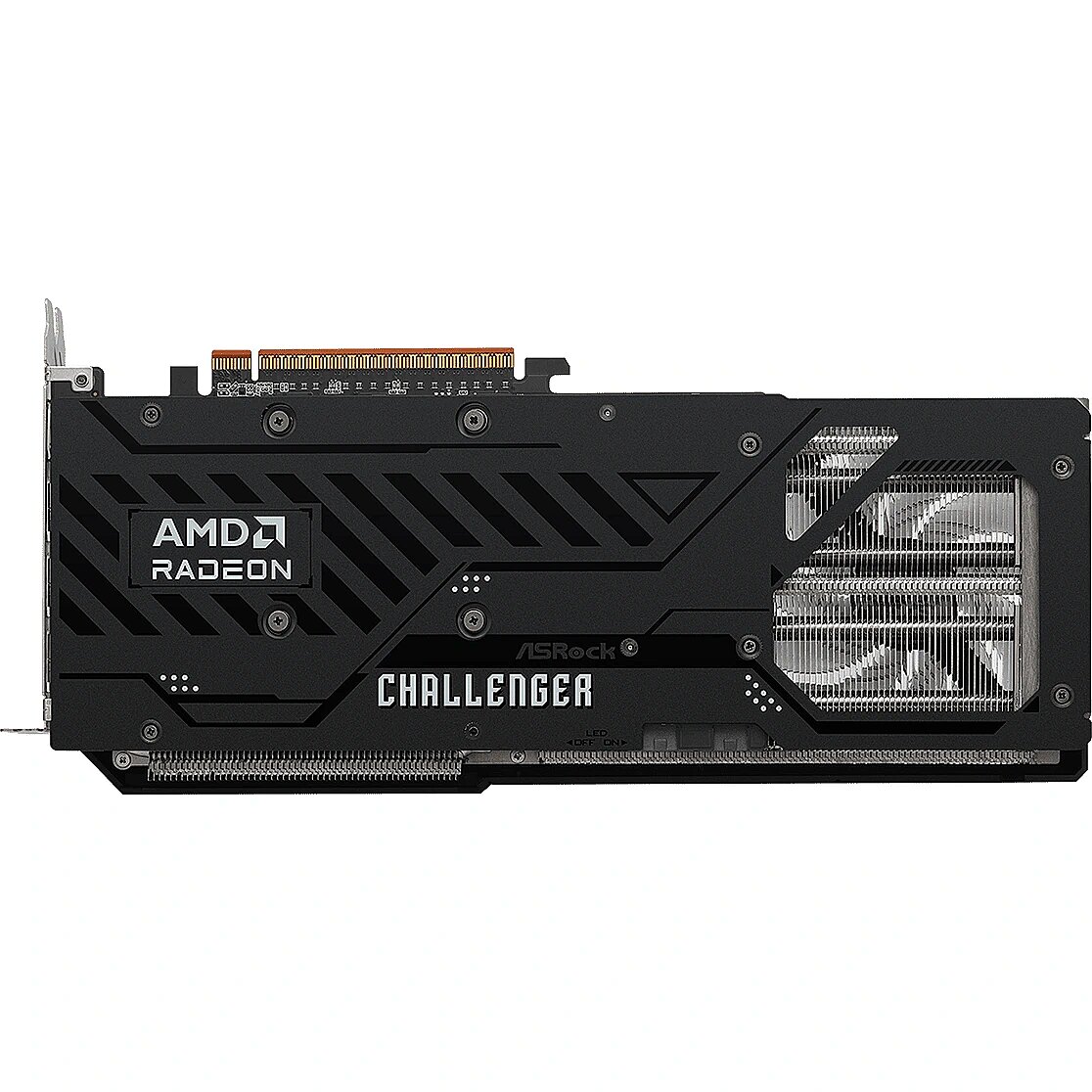

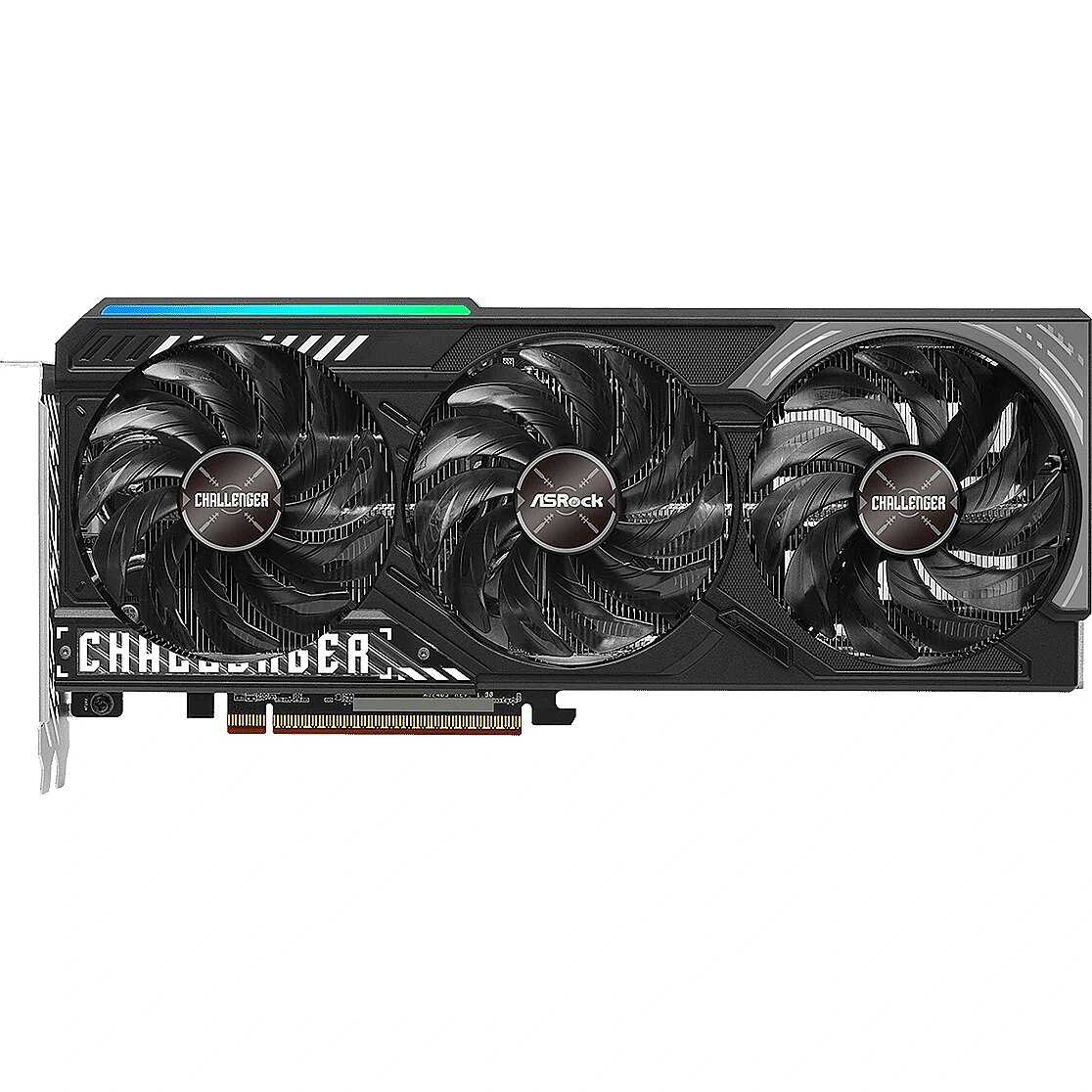

Asrock Radeon RX 9070, 16GB GDDR6, Challenger

Name: Asrock Radeon RX 9070, 16GB GDDR6, Challenger
Brand: Asrock
SKU: 1198451
Price: 728.85 EUR
Availability: InStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 1198451 Product code: 90-GA5NZZ-00UANF

Can be ordered 50 units Availability: 14 days after order approval

Warranty: 3 years

Compare

Delivery options

Delivery to Smartpost 6.99 €: 30.04.2025
Courier delivery 11.99 €: 30.04.2025

Main product parameters All parameters

GPU model: Radeon RX 9070
GPU core frequency: 2520 MHz
Power sockets: 2x 8-pin
RAM: 16 GB
Memory type: GDDR6
Cooling: High-End Cooler

Description

We offer to buy the graphics card Asrock Radeon RX 9070 with 16 GB GDDR6 RAM.

Basic information

GPU tips Radeon

GPU or the video card processor. This parameter determines whether the video card model is AMD Radeon or FirePro, NVIDIA GeForce or Quadro.

GPU series : Asrock Challenger

GPU model Radeon RX 9070

This is the main performance indicator of the graphics card because it indicates the model of this card. The performance of cards of the same model is very similar and usually very different from the cards of another model.

The main difference is the manufacturer. NVidia produces GeForce series cards and AMD produces Radeon series cards. There are considerable differences between both series, GeForce cards have more successful (more stable) drivers, which improve the compatibility of these cards with games and operating systems reducing the image defect (artefact) and the cases of "hanging" to the minimum. Radeon cards usually are cheaper and consume less energy (they are technologically superior), however there might be problems with drivers and the support of games.

The choice between Radeon or GeForce series is the question of preference, similar to the choice between AMD or Intel CPU, and not always there is 100% rational justification behind it, therefore we recommend to base your selection criteria just on the games that you want to play in the near future and to find a video review in YouTube (the graphic card model + the game title) that will demonstrate exactly how the particular card handles the relevant game. The result will be obvious and usually quite close to what you get when you buy the particular or similar model card.

For making the choice easier for our customers TopPC.fi has marked the graphic cards (models) that are the best choice for playing all the newest games at a reasonable quality level with a green tick "recommended".

GPU core frequency 2520 MHz

GPU speed or the graphic drive speed (MHz) indicates the clock frequency at which the most important component of the video card, i.e. the video processor, operates. The higher the drive speed, the more powerful the video card. The performance of the video card is also determined by the memory volume, type, bits and the drive model, therefore you should verify the capacity compliance of the other components upon buying a video card with a powerful drive.

Number of fans : 3

Length (mm) : 290

Stream processors / CUDA Cores : 3584

PCI-E version : 5.0 x16

Power consumption (TDP) : 245 W

Minimum power supply output : 700 W

Power sockets : 2x 8-pin

Random-access memory (RAM)

RAM 16 GB

The RAM capacity of the video card. This is an important parameter if you want to play games of high resolution or work with a high resolution monitor. A higher memory capacity means better performance and the support to higher resolution.

Currently 1GB is the optimum capacity of the video memory.

Memory type GDDR6

The type of the RAM of the video card determines the operation speed of the video card. The currently available video cards have DDRII, GDDRIII or GDDR4 memory. GDDR4 memory is the fastest memory type.

Memory type : 20000 MHz

Bus width 256 bit

The number of bits of the video card RAM determine what amount of information the video card memory can handle within a single clock cycle. A higher number of bits indicates higher performance of the video card.

Functionality

Cooling High-End Cooler

Two types of cooling are available, i.e. a radiator and a ventilator. The radiator based cooling is implemented without any moving parts (ventilator), therefore the video card does not emit any noise. The ventilator based cooling is more efficient, however, the video card emits certain noise during the computer operation.

Lighting : RGB

NVIDIA SLI (NVLink) support : Not

VR (Virtual Reality) Ready : Is

Low Profile support : No

Ports and equipment

HDMI port 1

HDMI is the digital image and sound transmission standard that allows to connect a TV set, monitor or projector supporting HDMI to the computer via the HDMI cable.

DisplayPort 3

DisplayPort digital connection for the transmission of the image and sound via a single wire at a high quality level. Contrary to the HDMI, this connection allows to connect several external monitors to the computer via a single connector.

DVI-D port : 0

DVI-I port : 0

D-SUB 0

D-SUB is the classic (analogous) connection plug of monitors, projectors and other external video devices. This standard is gradually disappearing from the market leaving the space for much higher quality HDMI or DisplayPort (digitālajiem) plugs.

Maximum number of screens : 4

More detailed specification

Accessories included -
category - PC Components|Graphics Cards|AMD
Category 1 - Grafikkarten
Category 2 - AMD PCI-Express Grafikkarten
Chipset - Radeon RX 9070
Chipset manufacturer - AMD
code - 90-GA5NZZ-00UANF
Cooling - Active
Core Boost frequency - 2520 MHz
Core frequency - 2070 MHz
Description -
Design - Bracket height - Full-Height (FH)
Design - Cooling technology - Asrock Striped Axial Fan
Design - Cooling type - Active
Design - Form factor - Full-Height/Full-Length (FH/FL)
Design - Illumination - Yes
Design - Illumination colour - Multi
Design - Number of fans - 3 fan(s)
Design - Product colour - Black
Design - Product colour - Grey
Designation - CE+WEEE
dimensionalWeight - 1656
dimension depth - 100 mm
dimension height - 215 mm
Dimensions - 51 x 123 x 290 mm
dimension weight - 1329 g
dimension width - 400 mm
ean - 4711581490475
EAN - 4711581490475
Graphics card connector - PCI-E 16x ver. 5.0
guarantee - 36
guarantee_type - normal
Manufacturer - ASRock
Memory - Data transfer rate - 20 Gbit/s
Memory - Discrete graphics card memory - 16 GB
Memory - Graphics card memory type - GDDR6
Memory - Memory bus - 256 bit
Memory bus - 256-bit
Memory frequency - 20 Gbps
Memory type - DDR6
Model - Radeon RX 9070
MPN - 90-GA5NZZ-00UANF
name - ASRock Radeon RX 9070 Challenger Grafikkarte, 16384 MB GDDR6
name - Graphics card Radeon RX 9070 Challenger 16GB
Name - RX 9070 16GB ASRock Radeon Challenger GDDR6 3Fan
Other features -
Other information -
Packaging content - Quick installation guide - Yes
Packaging data - Package type - Box
Performance - DirectX version - 12 Ultimate
Performance - Dual Link DVI - No
Performance - HDCP - Yes
Performance - OpenGL version - 4.6
Performance - TV tuner integrated - No
Ports & interfaces - DisplayPorts quantity - 3
Ports & interfaces - DisplayPort version - 2.1a
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 2.1b
Ports & interfaces - Interface type - PCI Express x16 5.0
Power - Minimum system power supply - 700 W
Power - Supplementary power connectors - 2x 8-pin
Processor - CUDA - No
Processor - Graphics processor - Radeon RX 9070
Processor - Graphics processor family - AMD
Processor - Maximum displays per videocard - 4
Processor - Maximum resolution - 7680 x 4320 pixels
Processor - Parallel processing technology support - Not supported
Processor - Processor boost clock speed - 2520 MHz
Processor - Stream processors - 3584
producer - ASRock
producerCode - RX9070 CL 16G
productName - ASRock Challenger AMD Radeon RX 9070 AMD 16 GB graphics card
productSize - Normal
sizeX - 399
sizeY - 214
sizeZ - 97
Supported standards - DirectX 12 Ultimate
Supported standards - OpenGL 4.6
System requirements - Windows operating systems supported - Windows 10 x64
System requirements - Windows operating systems supported - Windows 11 x64
vendpn - RX9070 CL 16G
Version - Box
Video ports - 1 x HDMI
Video ports - 3 x DisplayPort
VRAM memory size - 16 GB
warrantyLength - 36
warrantyType - G
Weight - 1.34
weight - 1331
Weight & dimensions - Depth - 51 mm
Weight & dimensions - Height - 123 mm
Weight & dimensions - Length - 290 mm
Weight & dimensions - Weight - 918 g
