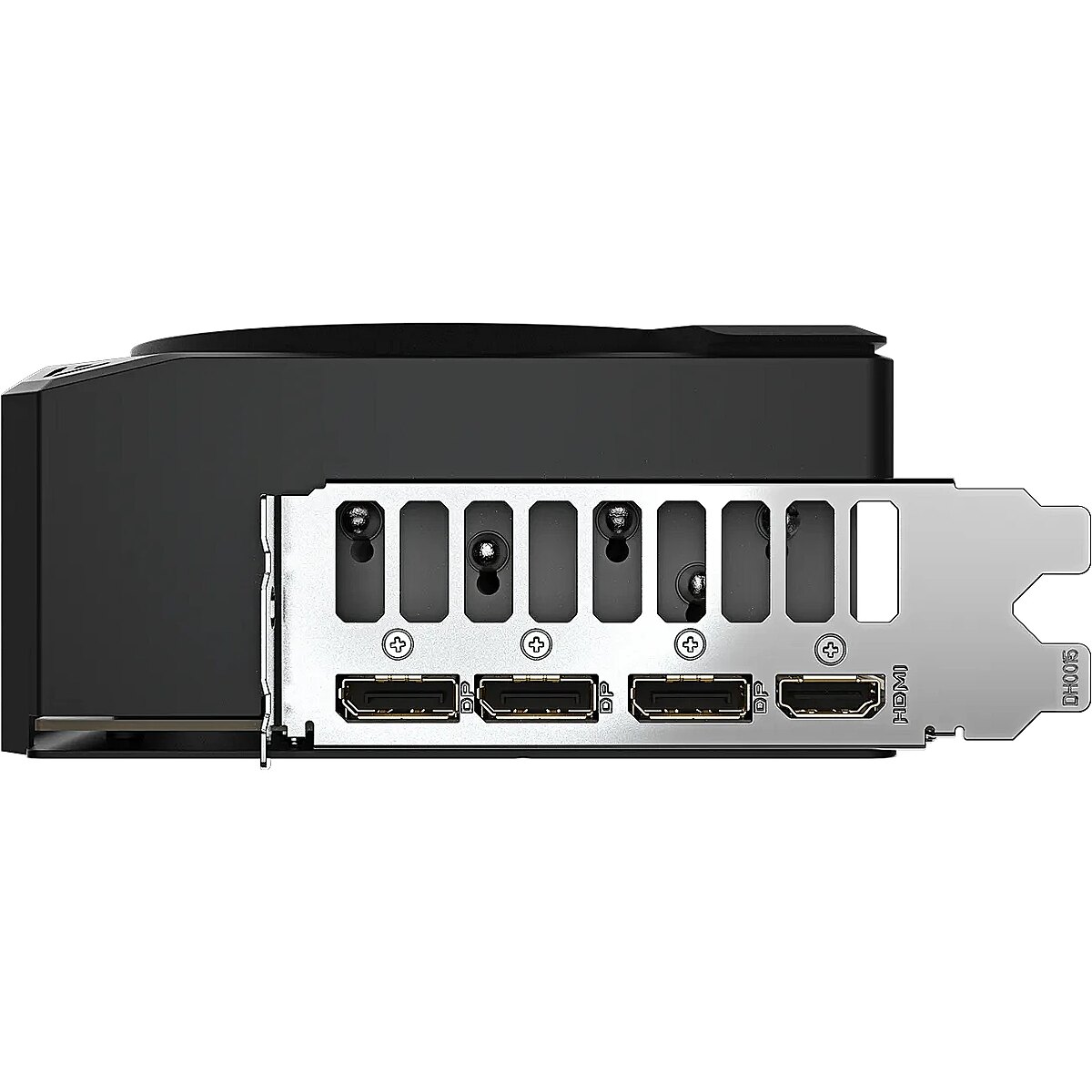

Gigabyte GeForce RTX 5090, 32GB GDDR7, Windforce OC (DLSS 4)

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 1186884 Product code: GV-N5090WF3OC-32GD
Goods are not available at the moment We do not accept orders for the delivery of this product. We do not have information as to when this product will be available. Our suppliers currently do not provide information about possible delivery times of the product and the possible price when it is on sale again.

TopPC.fi website provides information about this product for information only, so that customers can see the product and compare it to the products available for sale now.

Warranty: 3 years
Main product parameters All parameters
  • GPU model: GeForce RTX 5090
  • GPU core frequency: 2467 MHz
  • Power sockets: 1x 16-pin
  • RAM: 32 GB
  • Memory type: GDDR7
  • Cooling: Standard Cooler
Similar Products
This product Gigabyte GeForce RTX 5090, 32GB GDDR7, Windforce OC (DLSS 4)
Recommended Gigabyte GeForce RTX 5090, 32GB GDDR7, GAMING OC (DLSS 4)
Recommended Inno3D GeForce RTX 5090, 32GB GDDR7, X3 OC (DLSS 4)
Recommended Gigabyte GeForce RTX 5080, 16GB GDDR7, GAMING OC (DLSS 4)
Recommended Gigabyte GeForce RTX 5070, 12GB GDDR7, GAMING OC (DLSS 4)
Show similar specs. Hide similar specs.
3,050.54 €
3,399.00 €
3,625.98 €
1,749.00 €
804.25 €
Basic information
GPU tips GeForce GeForce GeForce GeForce GeForce
GPU series Gigabyte Windforce Gigabyte Gaming Inno3D X Gigabyte Gaming Gigabyte Gaming
GPU model GeForce RTX 5090 GeForce RTX 5090 GeForce RTX 5090 GeForce RTX 5080 GeForce RTX 5070
GPU core frequency 2467 MHz 2550 MHz 2452 MHz 2730 MHz 2625 MHz
Number of fans 3 3 3 3 3
Length (mm) 342 342 333 340 327
Stream processors / CUDA Cores 21760 21760 21760 10752 6144
PCI-E version 5.0 x16 5.0 x16 5.0 x16 5.0 x16 5.0 x16
Power consumption (TDP) 575 W 575 W 575 W 360 W 250 W
Minimum power supply output 1000 W 1000 W 950 W 850 W 750 W
Power sockets 1x 16-pin 1x 16-pin 1x 16-pin 1x 16-pin 1x 16-pin
Random-access memory (RAM)
RAM 32 GB 32 GB 32 GB 16 GB 12 GB
Memory type GDDR7 GDDR7 GDDR7 GDDR7 GDDR7
Memory type 28000 MHz 28000 MHz 28000 MHz 30000 MHz 28000 MHz
Bus width 512 bit 512 bit 512 bit 256 bit 192 bit
Functionality
Cooling Standard Cooler High-End Cooler High-End Cooler High-End Cooler High-End Cooler
Lighting Nav RGB Nav RGB RGB
NVIDIA SLI (NVLink) support Not Not Not Not Not
VR (Virtual Reality) Ready Is Is Is Is Is
Low Profile support No No No No No
Ports and equipment
HDMI port 1 1 1 1 1
DisplayPort 3 3 3 3 3
DVI-D port 0 0 0 0 0
DVI-I port 0 0 0 0 0
D-SUB 0 0 0 0 0
Maximum number of screens 4 4 4 4 4
Description
We offer to buy the graphics card Gigabyte GeForce RTX 5090 with 32 GB GDDR7 RAM.
Basic information
GPU tips GeForce
GPU or the video card processor. This parameter determines whether the video card model is AMD Radeon or FirePro, NVIDIA GeForce or Quadro.
GPU series : Gigabyte Windforce
GPU model GeForce RTX 5090

This is the main performance indicator of the graphics card because it indicates the model of this card. The performance of cards of the same model is very similar and usually very different from the cards of another model.

The main difference is the manufacturer. NVidia produces GeForce series cards and AMD produces Radeon series cards. There are considerable differences between both series, GeForce cards have more successful (more stable) drivers, which improve the compatibility of these cards with games and operating systems reducing the image defect (artefact) and the cases of "hanging" to the minimum. Radeon cards usually are cheaper and consume less energy (they are technologically superior), however there might be problems with drivers and the support of games.

The choice between Radeon or GeForce series is the question of preference, similar to the choice between AMD or Intel CPU, and not always there is 100% rational justification behind it, therefore we recommend to base your selection criteria just on the games that you want to play in the near future and to find a video review in YouTube (the graphic card model + the game title) that will demonstrate exactly how the particular card handles the relevant game. The result will be obvious and usually quite close to what you get when you buy the particular or similar model card.

For making the choice easier for our customers TopPC.fi has marked the graphic cards (models) that are the best choice for playing all the newest games at a reasonable quality level with a green tick "recommended".

GPU core frequency 2467 MHz
GPU speed or the graphic drive speed (MHz) indicates the clock frequency at which the most important component of the video card, i.e. the video processor, operates. The higher the drive speed, the more powerful the video card. The performance of the video card is also determined by the memory volume, type, bits and the drive model, therefore you should verify the capacity compliance of the other components upon buying a video card with a powerful drive.
Number of fans : 3
Length (mm) : 342
Stream processors / CUDA Cores : 21760
PCI-E version : 5.0 x16
Power consumption (TDP) : 575 W
Minimum power supply output : 1000 W
Power sockets : 1x 16-pin
Random-access memory (RAM)
RAM 32 GB

The RAM capacity of the video card. This is an important parameter if you want to play games of high resolution or work with a high resolution monitor. A higher memory capacity means better performance and the support to higher resolution.

Currently 1GB is the optimum capacity of the video memory.

Memory type GDDR7
The type of the RAM of the video card determines the operation speed of the video card. The currently available video cards have DDRII, GDDRIII or GDDR4 memory. GDDR4 memory is the fastest memory type.
Memory type : 28000 MHz
Bus width 512 bit

The number of bits of the video card RAM determine what amount of information the video card memory can handle within a single clock cycle. A higher number of bits indicates higher performance of the video card.

Functionality
Cooling Standard Cooler
Two types of cooling are available, i.e. a radiator and a ventilator. The radiator based cooling is implemented without any moving parts (ventilator), therefore the video card does not emit any noise. The ventilator based cooling is more efficient, however, the video card emits certain noise during the computer operation.
Lighting : Nav
NVIDIA SLI (NVLink) support : Not
VR (Virtual Reality) Ready : Is
Low Profile support : No
Ports and equipment
HDMI port 1

HDMI is the digital image and sound transmission standard that allows to connect a TV set, monitor or projector supporting HDMI to the computer via the HDMI cable.

DisplayPort 3

DisplayPort digital connection for the transmission of the image and sound via a single wire at a high quality level. Contrary to the HDMI, this connection allows to connect several external monitors to the computer via a single connector.

DVI-D port : 0
DVI-I port : 0
D-SUB 0

D-SUB is the classic (analogous) connection plug of monitors, projectors and other external video devices. This standard is gradually disappearing from the market leaving the space for much higher quality HDMI or DisplayPort (digitālajiem) plugs.

Maximum number of screens : 4
More detailed specification
Additional information in manufacturers website Gigabyte GeForce RTX 5090, 32GB GDDR7, Windforce OC (DLSS 4)
Accessories included - Krótki przewodnik Adapter 1x 12V-2x6 do 4x PCIe 8pin Uniwersalny uchwyt VGA Instrukcja obsługi uniwersalnego uchwytu VGA
Brand - GIGABYTE
BrandPartCode - GV-N5090WF3OC-32GD
Category - Graphics Cards
category - PC Components|Graphics Cards|NVIDIA
Category 1 - Grafikkarten
Category 2 - NVidia PCI-Express Grafikkarten
Chipset - GeForce RTX 5090
Chipset manufacturer - NVIDIA
code - GV-N5090WF3OC-32GD
Code - GV-N5090WF3OC-32GD
Cooling - Active
Core frequency - 2467 MHz
CUDA Core - 21760
Description - Karta graficzna GeForce RTX 5090 WINDFORCE OC 32G Oparta na architekturze NVIDIA Blackwell i DLSS 4 Oparta na GeForce RTX5090 Zintegrowana z 32 GB pamięci GDDR7 512 bitów Podwójny BIOS (wydajność/cichy) Wzmocniona struktura Uniwersalny uchwyt VGA System chłodzenia WINDFORCE: Wentylator Hawk Żel termoprzewodzący klasy serwerowej
Design - Bracket height - Full-Height (FH)
Design - Cooling technology - GIGABYTE WINDFORCE 3X
Design - Cooling type - Active
Design - Form factor - Full-Height/Full-Length (FH/FL)
Design - Number of fans - 3 fan(s)
Design - Number of slots - 3.5
Design - Product colour - Black
Designation - CE+WEEE
dimension depth - 120 mm
dimension height - 435 mm
Dimensions - 342 x 150 x 65 mm
dimension weight - 2770 g
dimension width - 270 mm
EAN - 4719331355838
ean - 4719331355838
Graphics card connector - PCI-E ver. 5.0
Gross Weight Kg - 5
GTIN - 0889523048467
GTIN - 889523048467
GTIN - 4719331355838
guarantee - 36
guarantee_type - normal
Logistics data - Products per shipping (inner) case - 1 pc(s)
LongDesc - Unlock unparalleled gaming prowess with GIGABYTE's NVIDIA graphics cards. Engineered for peak performance and visual excellence, our GPUs redefine gaming standards. With advanced cooling solutions and cutting-edge technologies, GIGABYTE NVIDIA graphics cards deliver stunning visuals and seamless gameplay experiences, empowering gamers to dominate every virtual battlefield with confidence and precision.
LongProductName - GeForce RTX 5090 WINDFORCE OC 32G Graphics Card - 32GB GDDR7, 512bit, PCI-E 5.0, 2467MHz Core Clock, 3 x DP 2.1a, 1 x HDMI 2.1b, NVIDIA DLSS 4, GV-N5090WF3OC-32GD
LongSummaryDescription - GIGABYTE GeForce RTX 5090 WINDFORCE OC 32G Graphics Card - 32GB GDDR7, 512bit, PCI-E 5.0, 2467MHz Core Clock, 3 x DP 2.1a, 1 x HDMI 2.1b, NVIDIA DLSS 4, GV-N5090WF3OC-32GD. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 5090, Processor frequency: 2467 MHz. Discrete graphics card memory: 32 GB, Graphics card memory type: GDDR7, Memory bus: 512 bit, Memory clock speed: 28000 MHz. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12.0, OpenGL version: 4.6. Interface type: PCI Express x16 5.0. Cooling type: Active, Number of fans: 3 fan(s)
Manufacturer - Gigabyte
Manufacturer Code - GV-N5090WF3OC-32GD
Manufacturer Name - Gigabyte
Memory - Data transfer rate - 28 Gbit/s
Memory - Discrete graphics card memory - 32 GB
Memory - Graphics card memory type - GDDR7
Memory - Memory bus - 512 bit
Memory - Memory clock speed - 28000 MHz
Memory bus - 512-bit
Memory frequency - 28 Gbps
Memory type - DDR7
Model -
MPN - GV-N5090WF3OC-32GD
name - Gigabyte GeForce RTX 5090 Windforce OC 32G, 32768 MB GDDR7
Name - GIGABYTE GV-N5090WF3OC-32GD 1.0
Name - RTX 5090 32GB Gigabyte Windforce OC GDDR7 3Fan
name - RTX 5090 WINDFORCE OC 3 2GB 512bit GDDR7 DP/HDM
Other features -
Other information -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 295.00 mm
Package features > Gross height (mm) - 50.00 mm
Package features > Gross width (mm) - 210.50 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 278 pc(s)
Package features > Paper/Pasteboard - 800.00 g
Package features > Plastic (No PET) - 70.00 g
Package features > Tare weight (kg) - 0.87 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEEE tax - No
Packaging content - Cables included - Power
Packaging content - Quick installation guide - Yes
Packaging data - Package depth - 427 mm
Packaging data - Package height - 105 mm
Packaging data - Package weight - 3 kg
Packaging data - Package width - 264 mm
Performance - DirectX version - 12.0
Performance - Dual Link DVI - No
Performance - NVIDIA G-SYNC - Yes
Performance - OpenGL version - 4.6
Performance - Overclocked (OC) edition - Yes
Performance - TV tuner integrated - No
Performance - Virtual Reality (VR) ready - Yes
Ports & interfaces - DisplayPorts quantity - 3
Ports & interfaces - DisplayPort version - 2.1a
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 2.1b
Ports & interfaces - Interface type - PCI Express x16 5.0
Power - Minimum system power supply - 1000 W
Power - Supplementary power connectors - 1x 16-pin
Processor - CUDA - Yes
Processor - CUDA cores - 21760
Processor - Graphics processor - GeForce RTX 5090
Processor - Graphics processor family - NVIDIA
Processor - Maximum displays per videocard - 4
Processor - Maximum resolution - 7680 x 4320 pixels
Processor - Parallel processing technology support - Not supported
Processor - Processor frequency - 2467 MHz
producer - Gigabyte
ProductName - GeForce RTX 5090 WINDFORCE OC 32G Graphics Card - 32GB GDDR7, 512bit, PCI-E 5.0, 2467MHz Core Clock, 3 x DP 2.1a, 1 x HDMI 2.1b, NVIDIA DLSS 4, GV-N5090WF3OC-32GD
Short description - GIGA VGA 32GB RTX5090 WINDFORCE OC-32G 3xDP/HDMI GeForce RTX 5090 WINDFORCE OC 32G
ShortSummaryDescription - GIGABYTE GeForce RTX 5090 WINDFORCE OC 32G Graphics Card - 32GB GDDR7, 512bit, PCI-E 5.0, 2467MHz Core Clock, 3 x DP 2.1a, 1 x HDMI 2.1b, NVIDIA DLSS 4, GV-N5090WF3OC-32GD, GeForce RTX 5090, 32 GB, GDDR7, 512 bit, 7680 x 4320 pixels, PCI Express x16 5.0
Supported standards - DirectX 12 API
Technical details > Gross weight - 2.48 kg
Technical details > Net weight - 1.61 kg
Technical details > Producer - Gigabyte
Title - GIGABYTE GeForce RTX 5090 WINDFORCE OC 32G Graphics Card - 32GB GDDR7, 512bit, PCI-E 5.0, 2467MHz Core Clock, 3 x DP 2.1a, 1 x HDMI 2.1b, NVIDIA DLSS 4, GV-N5090WF3OC-32GD
URL - https://www.gigabyte.com/
vendpn - GV-N5090WF3OC-32GD
Version - Box
Video ports - 1 x HDMI
Video ports - 3 x DisplayPort
VRAM memory size - 32 GB
Warranty - 36
Warranty - 36 month(s)
WarrantyInfo -
Weight - 2.78
Weight & dimensions - Depth - 65 mm
Weight & dimensions - Height - 150 mm
Weight & dimensions - Length - 342 mm
Weight & dimensions - Weight - 2 kg
3,050.54 €
