Asus GeForce GT 710, 2GB GDDR5, EVO LP

Name: Asus GeForce GT 710, 2GB GDDR5, EVO LP
Brand: Asus
SKU: 1131288
Price: 67.5 EUR
Availability: InStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 1131288 Product code: 90YV0ALA-M0NA00

In stock 20 units

Warranty: 3 years

Compare

Main product parameters All parameters

GPU model: GeForce GT 710
GPU core frequency: 954 MHz
Power sockets: Nav
RAM: 2 GB
Memory type: GDDR5
Cooling: Passive

Description

We offer to buy the graphics card Asus GeForce GT 710 with 2 GB GDDR5 RAM.

Basic information

GPU tips GeForce

GPU or the video card processor. This parameter determines whether the video card model is AMD Radeon or FirePro, NVIDIA GeForce or Quadro.

GPU series : Asus LP

GPU model GeForce GT 710

This is the main performance indicator of the graphics card because it indicates the model of this card. The performance of cards of the same model is very similar and usually very different from the cards of another model.

The main difference is the manufacturer. NVidia produces GeForce series cards and AMD produces Radeon series cards. There are considerable differences between both series, GeForce cards have more successful (more stable) drivers, which improve the compatibility of these cards with games and operating systems reducing the image defect (artefact) and the cases of "hanging" to the minimum. Radeon cards usually are cheaper and consume less energy (they are technologically superior), however there might be problems with drivers and the support of games.

The choice between Radeon or GeForce series is the question of preference, similar to the choice between AMD or Intel CPU, and not always there is 100% rational justification behind it, therefore we recommend to base your selection criteria just on the games that you want to play in the near future and to find a video review in YouTube (the graphic card model + the game title) that will demonstrate exactly how the particular card handles the relevant game. The result will be obvious and usually quite close to what you get when you buy the particular or similar model card.

For making the choice easier for our customers TopPC.fi has marked the graphic cards (models) that are the best choice for playing all the newest games at a reasonable quality level with a green tick "recommended".

GPU core frequency 954 MHz

GPU speed or the graphic drive speed (MHz) indicates the clock frequency at which the most important component of the video card, i.e. the video processor, operates. The higher the drive speed, the more powerful the video card. The performance of the video card is also determined by the memory volume, type, bits and the drive model, therefore you should verify the capacity compliance of the other components upon buying a video card with a powerful drive.

Number of fans : Nav

Length (mm) : 170

Stream processors / CUDA Cores : 192

PCI-E version : 2.0 x8

Power consumption (TDP) : 19 W

Minimum power supply output : 300 W

Power sockets : Nav

Random-access memory (RAM)

RAM 2 GB

The RAM capacity of the video card. This is an important parameter if you want to play games of high resolution or work with a high resolution monitor. A higher memory capacity means better performance and the support to higher resolution.

Currently 1GB is the optimum capacity of the video memory.

Memory type GDDR5

The type of the RAM of the video card determines the operation speed of the video card. The currently available video cards have DDRII, GDDRIII or GDDR4 memory. GDDR4 memory is the fastest memory type.

Memory type : 5012 MHz

Bus width 64 bit

The number of bits of the video card RAM determine what amount of information the video card memory can handle within a single clock cycle. A higher number of bits indicates higher performance of the video card.

Functionality

Cooling Passive

Two types of cooling are available, i.e. a radiator and a ventilator. The radiator based cooling is implemented without any moving parts (ventilator), therefore the video card does not emit any noise. The ventilator based cooling is more efficient, however, the video card emits certain noise during the computer operation.

Lighting : Nav

NVIDIA SLI (NVLink) support : Not

VR (Virtual Reality) Ready : Not

Low Profile support : Yes

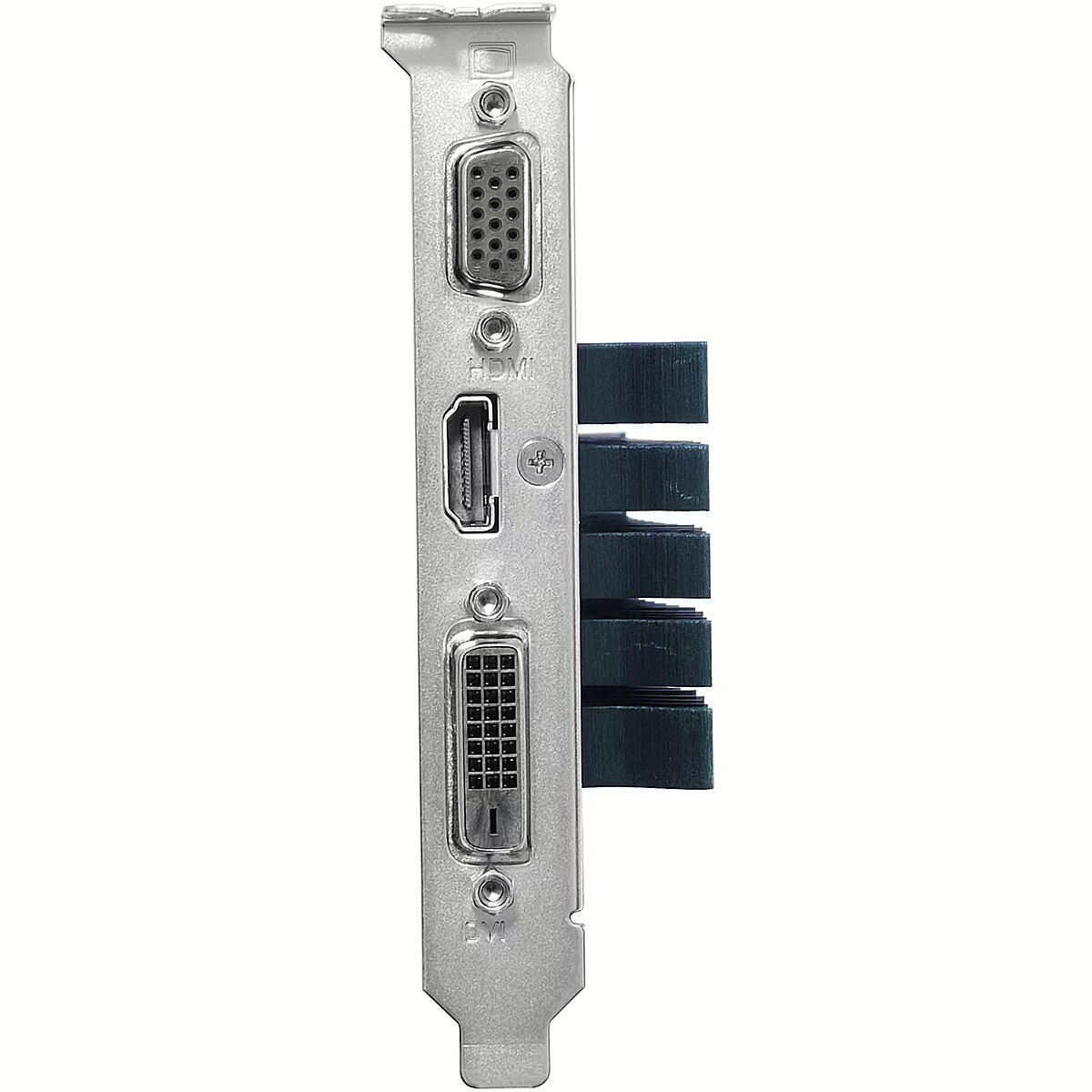

Ports and equipment

HDMI port 1

HDMI is the digital image and sound transmission standard that allows to connect a TV set, monitor or projector supporting HDMI to the computer via the HDMI cable.

DisplayPort 0

DisplayPort digital connection for the transmission of the image and sound via a single wire at a high quality level. Contrary to the HDMI, this connection allows to connect several external monitors to the computer via a single connector.

DVI-D port : 1

DVI-I port : 0

D-SUB 1

D-SUB is the classic (analogous) connection plug of monitors, projectors and other external video devices. This standard is gradually disappearing from the market leaving the space for much higher quality HDMI or DisplayPort (digitālajiem) plugs.

Maximum number of screens : 3

More detailed specification

Additional information in manufacturers website Asus GeForce GT 710, 2GB GDDR5, EVO LP

Brand - ASUS
BrandPartCode - 90YV0ALA-M0NA00
Category - Graphics Cards
Code - 90YV0ALA-M0NA00
Design - Cooling type - Passive
Design - Number of slots - 2
Design - Product colour - Black
Design - Product colour - Black, Blue
Design - Product colour - Blue
dimensionalWeight - 389
EAN - 4711387418680
GTIN - 4711387418680
LongDesc - Big Productivity in a Small PackageThe ASUS GeForce® GT 710 is a passively-cooled graphics card that enables quiet multi-monitor productivity.Passive CoolingA passively-cooled design creates a quieter workspace.Supports 3 DisplaysASUS GeForce GT 710 is a compact graphics card with three outputs (HDMI, DVI and D-Sub) that can support up to three displays at the same time for convenient multitasking.GPU TWEAK IIIMonitor, tweak, and tuneASUS GPU Tweak III is more intuitive and feature-rich than ever before. A revamped interface offers greater accessibility by integrating core functions into a centralized dashboard, and our Voltage-Frequency tuner has been overhauled to make overclocking even easier. Additional goodies like 0dB fan technology, automatic profile swapping, a fully customizable on-screen display, and logging capabilities ensure that you get the most out of your graphics card.
LongProductName - GeForce GT 710 2GB GDDR5 EVO low-profile graphics card for silent HTPC builds
LongSummaryDescription - ASUS GT710-SL-2GD5-BRK-EVO. Graphics processor family: NVIDIA, Graphics processor: GeForce GT 710. Discrete graphics card memory: 2 GB, Graphics card memory type: GDDR5, Memory bus: 64 bit, Memory clock speed: 5012 MHz. Maximum resolution: 3840 x 2160 pixels. OpenGL version: 4.5. Interface type: PCI Express 2.0. Cooling type: Passive
Memory - Discrete graphics card memory - 2 GB
Memory - Graphics card memory type - GDDR5
Memory - Memory bus - 64 bit
Memory - Memory clock speed - 5012 MHz
Memory > Discrete graphics adapter memory - 2 GB
Name - Asus GeForce GT 710 EVO | NVIDIA | 2 GB | GeForce GT 710 | PCI Express 2.0
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 165.00 mm
Package features > Gross height (mm) - 50.00 mm
Package features > Gross width (mm) - 230.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 911 pc(s)
Package features > Paper/Pasteboard - 230.00 g
Package features > Plastic (No PET) - 50.00 g
Package features > Tare weight (kg) - 0.28 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEEE tax - No
Packaging data - Package depth - 163 mm
Packaging data - Package height - 50 mm
Packaging data - Package type - Box
Packaging data - Package weight - 480 g
Packaging data - Package width - 228 mm
Performance - HDCP - Yes
Performance - HDCP version - 1.4
Performance - OpenGL version - 4.5
Ports & interfaces - DVI-D ports quantity - 1
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 1.4b
Ports & interfaces - Interface type - PCI Express 2.0
Ports & interfaces - VGA (D-Sub) ports quantity - 1
Ports & interfaces > Interface type - PCI Express 2.0
Power - Minimum system power supply - 300 W
Processor - CUDA - Yes
Processor - CUDA cores - 192
Processor - Graphics processor - GeForce GT 710
Processor - Graphics processor family - NVIDIA
Processor - Maximum displays per videocard - 3
Processor - Maximum resolution - 3840 x 2160 pixels
Processor - Parallel processing technology support - Not supported
Processor > Graphics processor - GeForce GT 710
Processor > Graphics processor family - NVIDIA
producerCode - 90YV0ALA-M0NA00
productName - ASUS GT710-SL-2GD5-BRK-EVO NVIDIA GeForce GT 710 2 GB GDDR5
ProductName - GT710-SL-2GD5-BRK-EVO
productSize - Normal
ShortSummaryDescription - ASUS GT710-SL-2GD5-BRK-EVO, GeForce GT 710, 2 GB, GDDR5, 64 bit, 3840 x 2160 pixels, PCI Express 2.0
sizeX - 234
sizeY - 51
sizeZ - 163
Technical details > Gross weight - 0.58 kg
Technical details > Net weight - 0.30 kg
Technical details > Producer - Asus
Technical details > Producer product name - GeForce GT 710 EVO
Title - ASUS GT710-SL-2GD5-BRK-EVO NVIDIA GeForce GT 710 2 GB GDDR5
URL - https://www.asus.com/motherboards-components/graphics-cards/asus/gt710-sl-2gd5-brk-evo/
Warranty - 36
Warranty - 36 month(s)
WarrantyInfo -
warrantyLength - 36
warrantyType - G
weight - 503
Weight & dimensions - Depth - 39 mm
Weight & dimensions - Height - 69 mm
Weight & dimensions - Length - 170 mm
Weight & dimensions - Weight - 254 g
