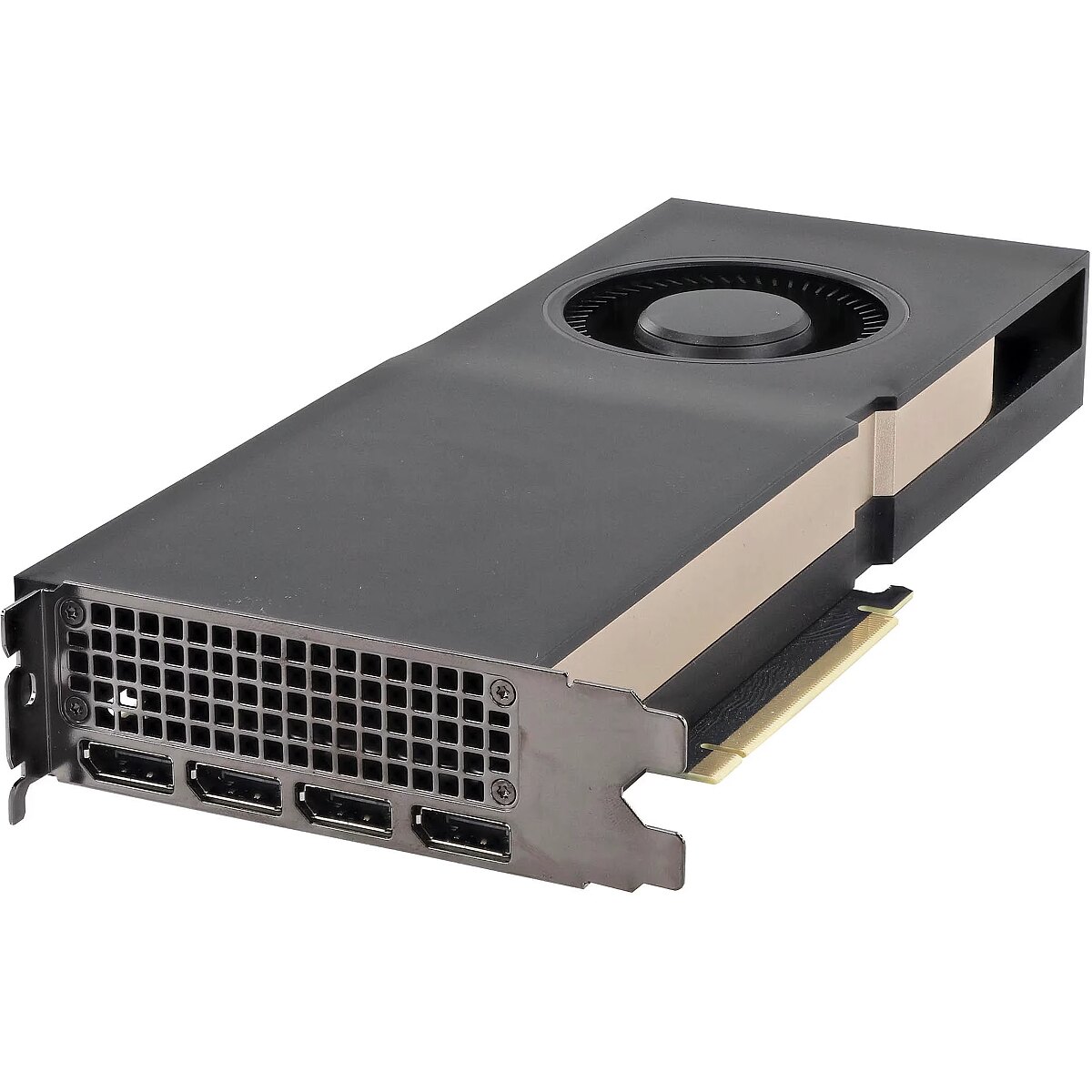

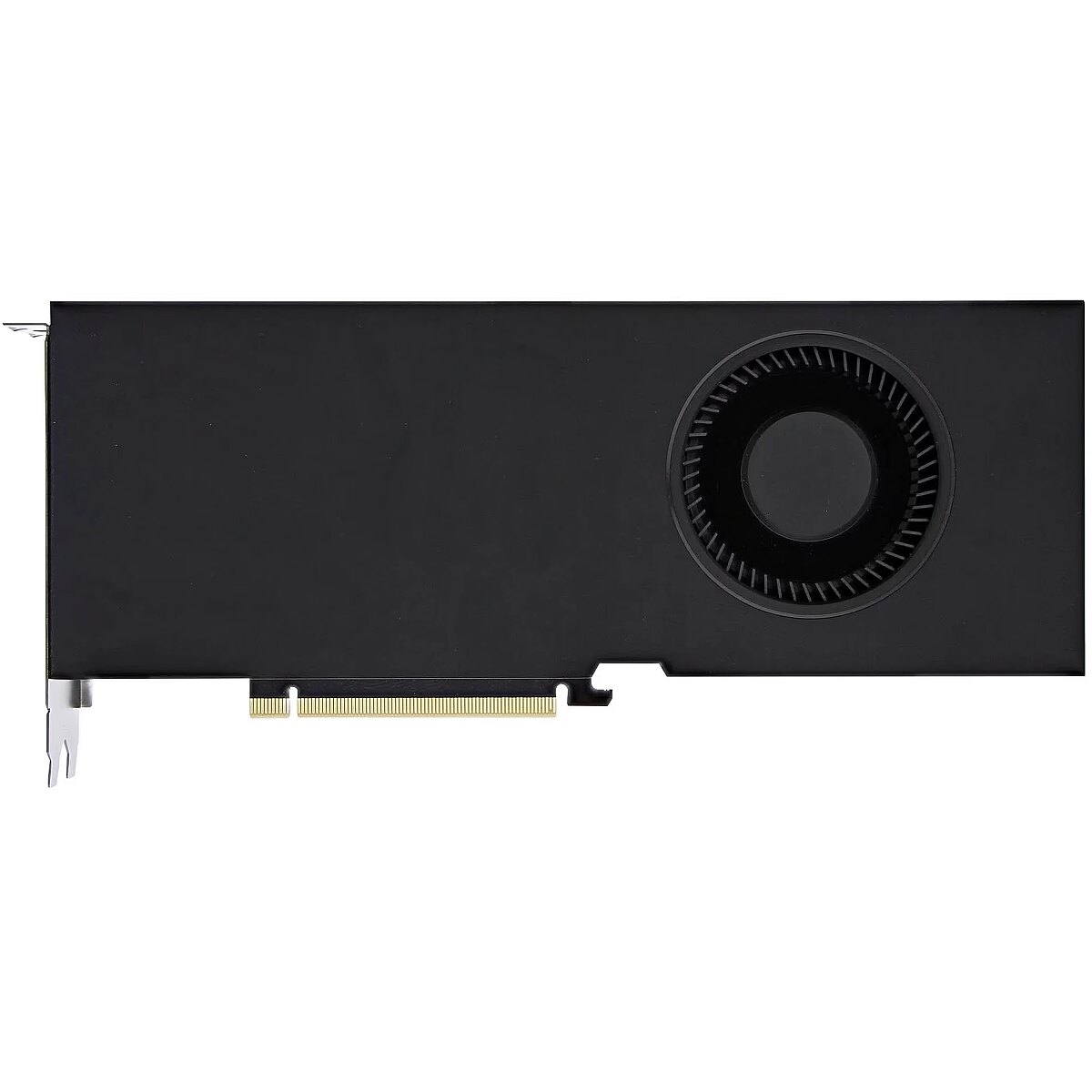

Dell NVIDIA RTX A5500 24GB GRAPHICS CARD

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 1102065 Product code: DELL-PXXDT
Can be ordered 2 units Availability: 14 days after order approval
Warranty: 2 years (Warranty for business entities 1 year)
5,235.27 €
Delivery options
  • Delivery to Smartpost 6.99 €: 24.04.2025
  • Courier delivery 11.99 €: 24.04.2025
Main product parameters All parameters
  • GPU model: RTX A5500
  • GPU core frequency: 1665 MHz
  • Power sockets: 1x 8-pin
  • RAM: 24 GB
  • Memory type: GDDR6
  • Cooling: Blower
Description
We offer to buy the graphics card Dell RTX A5500 with 24 GB GDDR6 RAM.
Basic information
GPU tips NVIDIA A Series
GPU or the video card processor. This parameter determines whether the video card model is AMD Radeon or FirePro, NVIDIA GeForce or Quadro.
GPU series : None
GPU model RTX A5500

This is the main performance indicator of the graphics card because it indicates the model of this card. The performance of cards of the same model is very similar and usually very different from the cards of another model.

The main difference is the manufacturer. NVidia produces GeForce series cards and AMD produces Radeon series cards. There are considerable differences between both series, GeForce cards have more successful (more stable) drivers, which improve the compatibility of these cards with games and operating systems reducing the image defect (artefact) and the cases of "hanging" to the minimum. Radeon cards usually are cheaper and consume less energy (they are technologically superior), however there might be problems with drivers and the support of games.

The choice between Radeon or GeForce series is the question of preference, similar to the choice between AMD or Intel CPU, and not always there is 100% rational justification behind it, therefore we recommend to base your selection criteria just on the games that you want to play in the near future and to find a video review in YouTube (the graphic card model + the game title) that will demonstrate exactly how the particular card handles the relevant game. The result will be obvious and usually quite close to what you get when you buy the particular or similar model card.

For making the choice easier for our customers TopPC.fi has marked the graphic cards (models) that are the best choice for playing all the newest games at a reasonable quality level with a green tick "recommended".

GPU core frequency 1665 MHz
GPU speed or the graphic drive speed (MHz) indicates the clock frequency at which the most important component of the video card, i.e. the video processor, operates. The higher the drive speed, the more powerful the video card. The performance of the video card is also determined by the memory volume, type, bits and the drive model, therefore you should verify the capacity compliance of the other components upon buying a video card with a powerful drive.
Number of fans : 1
Length (mm) : 267
Stream processors / CUDA Cores : 10240
PCI-E version : 4.0 x16
Power consumption (TDP) : 230 W
Minimum power supply output : 550 W
Power sockets : 1x 8-pin
Random-access memory (RAM)
RAM 24 GB

The RAM capacity of the video card. This is an important parameter if you want to play games of high resolution or work with a high resolution monitor. A higher memory capacity means better performance and the support to higher resolution.

Currently 1GB is the optimum capacity of the video memory.

Memory type GDDR6
The type of the RAM of the video card determines the operation speed of the video card. The currently available video cards have DDRII, GDDRIII or GDDR4 memory. GDDR4 memory is the fastest memory type.
Memory type : 16000 MHz
Bus width 384 bit

The number of bits of the video card RAM determine what amount of information the video card memory can handle within a single clock cycle. A higher number of bits indicates higher performance of the video card.

Functionality
Cooling Blower
Two types of cooling are available, i.e. a radiator and a ventilator. The radiator based cooling is implemented without any moving parts (ventilator), therefore the video card does not emit any noise. The ventilator based cooling is more efficient, however, the video card emits certain noise during the computer operation.
Lighting : Nav
NVIDIA SLI (NVLink) support : Not
VR (Virtual Reality) Ready : Not
Low Profile support : No
Ports and equipment
HDMI port 0

HDMI is the digital image and sound transmission standard that allows to connect a TV set, monitor or projector supporting HDMI to the computer via the HDMI cable.

DisplayPort 4

DisplayPort digital connection for the transmission of the image and sound via a single wire at a high quality level. Contrary to the HDMI, this connection allows to connect several external monitors to the computer via a single connector.

DVI-D port : 0
DVI-I port : 0
D-SUB 0

D-SUB is the classic (analogous) connection plug of monitors, projectors and other external video devices. This standard is gradually disappearing from the market leaving the space for much higher quality HDMI or DisplayPort (digitālajiem) plugs.

Maximum number of screens : 4
More detailed specification
ARTIKEL1 - NVIDIA RTX A5500 24GB GRAPHICS
ARTIKEL2 - CARD
Brand - DELL
BrandPartCode - DELL-PXXDT
Breite - 0
Category - Graphics Cards
Design - Cooling type - Active
EANCode - 5397184791363
Gewicht - 1.3
GRUPPE1 - Multimedia & Games
GRUPPE2 - Video Card
GTIN - 5397184791363
HERSTELLER - DELL EMC
Hoehe - 0
HSTNUMMER - DELL-PXXDT
Laenge - 0
LongDesc -
LongProductName - Nvidia® RTX A5500 24GB Graphics Card
LongSummaryDescription - DELL NVIDIA RTX A5500. Graphics processor family: NVIDIA, Graphics processor: RTX A5500. Discrete graphics card memory: 24 GB, Graphics card memory type: GDDR6, Memory bus: 384 bit. Maximum resolution: 7680 x 4320 pixels. Interface type: PCI Express x16 4.0. Cooling type: Active
Memory - Data transfer rate - 768 Gbit/s
Memory - Discrete graphics card memory - 24 GB
Memory - Graphics card memory type - GDDR6
Memory - Memory bus - 384 bit
Ports & interfaces - DisplayPorts quantity - 4
Ports & interfaces - DisplayPort version - 1.4a
Ports & interfaces - Interface type - PCI Express x16 4.0
Power - Power consumption (typical) - 230 W
Power - Supplementary power connectors - 1x 8-pin
Processor - CUDA - Yes
Processor - CUDA cores - 10240
Processor - Graphics processor - RTX A5500
Processor - Graphics processor family - NVIDIA
Processor - Lithography - 8 nm
Processor - Maximum displays per videocard - 4
Processor - Maximum resolution - 7680 x 4320 pixels
Processor - Parallel processing technology support - NVLink
ProductName - NVIDIA RTX A5500
ShortSummaryDescription - DELL NVIDIA RTX A5500, RTX A5500, 24 GB, GDDR6, 384 bit, 7680 x 4320 pixels, PCI Express x16 4.0
Stck_Kart - 1
Stck_Pal - 0
Storno - Y
System requirements - Linux operating systems supported - Yes
System requirements - Windows operating systems supported - Yes
Title - DELL NVIDIA RTX A5500 24 GB GDDR6
URL - https://www.dell.com/
WarrantyInfo - 1 Year
5,235.27 €
