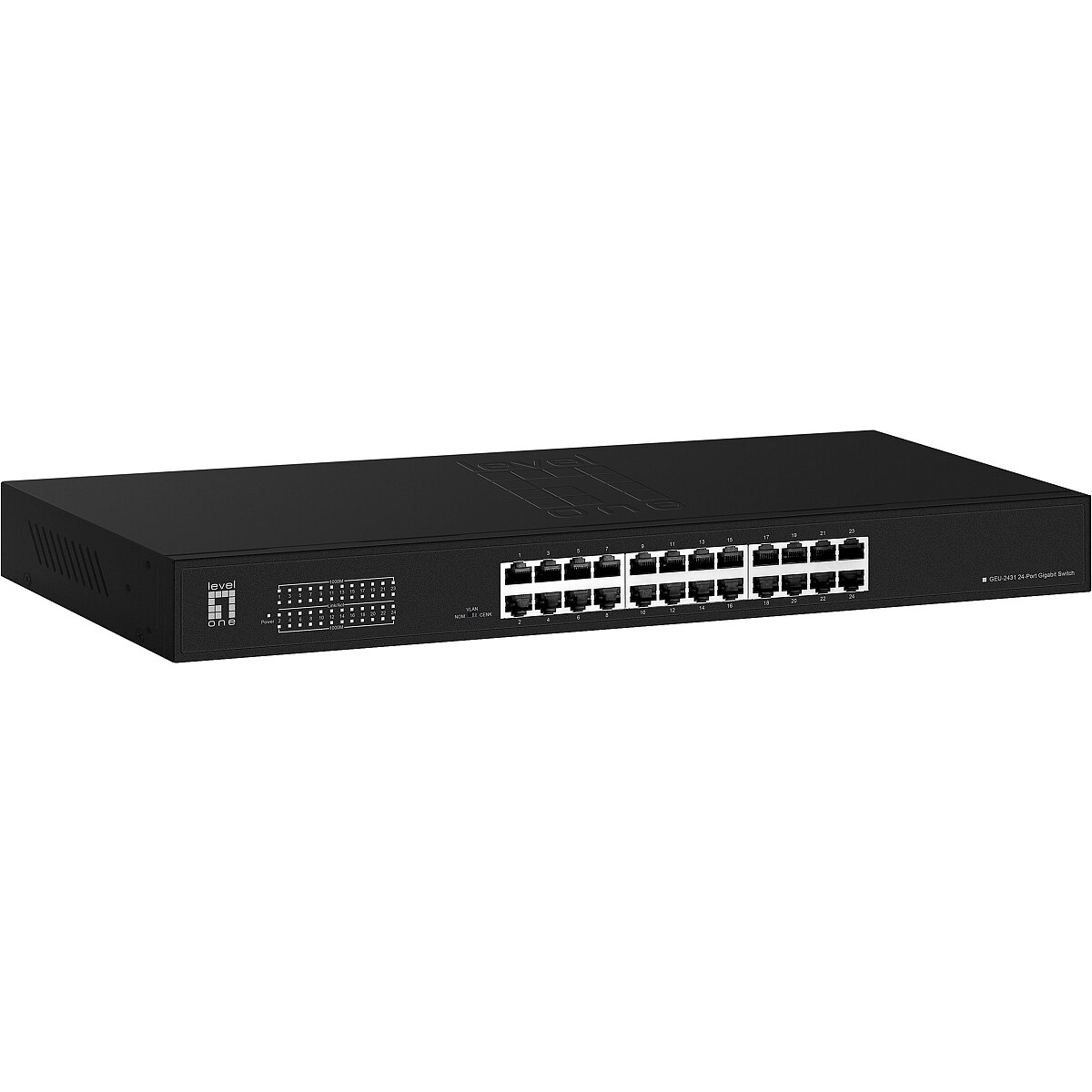

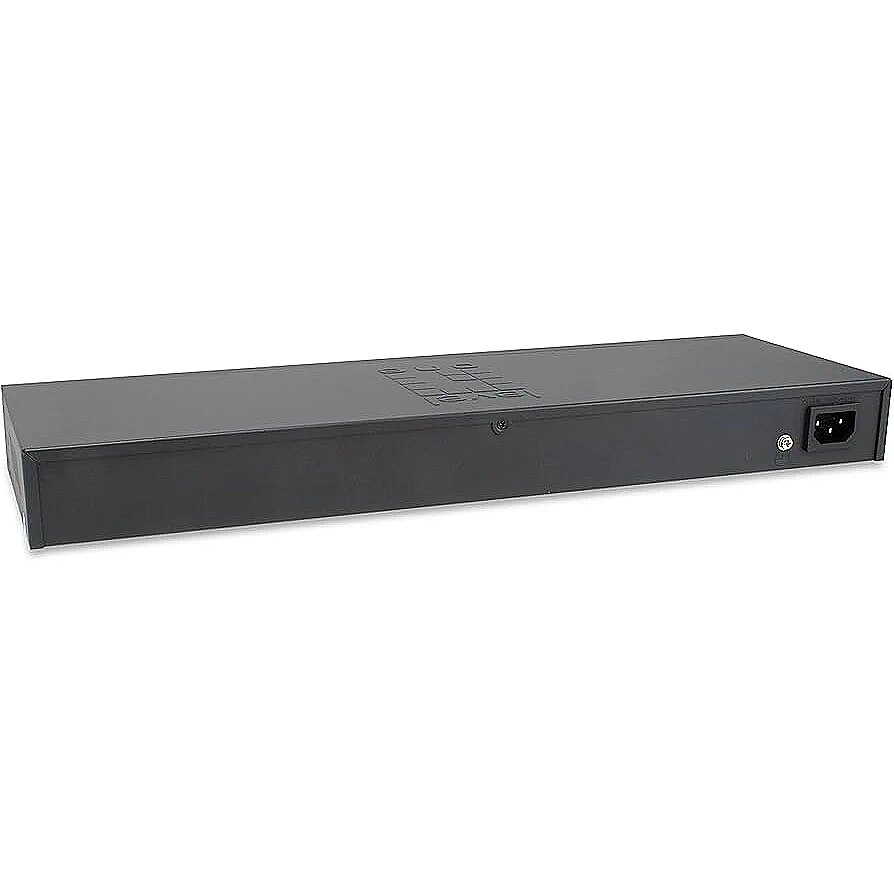

Level One GEU-2431, 24x1GE

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 902237 Product code: GEU-2431
Can be ordered 14 units Availability: 14 days after order approval
Warranty: 2 years (Warranty for business entities 1 year)
104.34 €
Delivery options
  • Delivery to Smartpost 6.99 €: 18.04.2025
  • Courier delivery 11.99 €: 18.04.2025
Main product parameters All parameters
  • Base-T speed: 10/100/1000
  • RJ-45 Ports: 24
Ports and equipment
Base-T speed : 10/100/1000
PoE Ports : N/A
RJ-45 Ports : 24
SFP Ports : N/A
Specifikācija
Number of fans : Fanless
PoE Per-Port Power Budget : N/A
PoE Support : Nav
PoE Total Power Budget : N/A
Weight (g) : 1630 g
Network cards
More detailed specification
Brand - LevelOne
BrandPartCode - GEU-2431
Category - Network Switches
Certificates - Certification - CE, RoHS
Data transmission - Jumbo frames - 9000
Data transmission - Jumbo frames support - Yes
Data transmission - MAC address table - 8000 entries
Design - Form factor - 1U
Design - LED indicators - Yes
Design - Product colour - Black
Design - Rack mounting - Yes
Design - Stackable - No
EAN - 4015867228142
Gross Weight Kg - 2,4
GTIN - 4015867228142
Logistics data - Country of origin - China
Logistics data - Harmonized System (HS) code - 85176990
LongDesc - Gigabit Speeds: Take Your Data to the Next LevelGEU-2431 is a 24-port Gigabit Ethernet Switch that gives you a high-performance, low-cost, easy-to-use, seamless upgrade to boost your network to 1000Mbps. Increase the speed of your network backbone to a massive 48Gbps and bring lightning fast Gigabit connections to all your computers.Bandwidth hungry? Not a problem.What happens when you have several users accessing multimedia applications all at the same time? No need to worry as GEU-2431 allows you to move large files faster and easier. Transfer your CGI, CAD, video, or other large multimedia files over the network instantly and without lag.Plug and Play, Flexible and EasyGEU-2431 is plug-and-play so no configuration is required. Providing auto MDI/MDI-X cable detection on all ports eliminates the need for crossover cables or Uplink ports. Each port can be used as general ports or Uplink ports, and any port can be simply plugged into a server, a hub, a router or a switch, using a straight cable or crossover cable.
LongProductName - 24-Port Gigabit Switch
LongSummaryDescription - LevelOne Switch 24x GE GEU-2431 19\" Rack Mount Kit. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 8000 entries. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. Power connector: AC-in jack. Rack mounting, Form factor: 1U
Management features - Switch type - Unmanaged
Manufacturer Code - GEU-2431
Manufacturer Name - Level One
Network - 10G support - No
Network - Auto-negotiation - Yes
Network - Auto MDI/MDI-X - Yes
Network - Copper ethernet cabling technology - 10BASE-T, 100BASE-TX, 1000BASE-T
Network - Ethernet LAN data rates - 10,100,1000 Mbit/s
Network - Full duplex - Yes
Network - Half duplex - Yes
Network - Networking standards - IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Operational conditions - Operating relative humidity (H-H) - 5 - 90%
Operational conditions - Operating temperature (T-T) - -10 - 55 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 95%
Operational conditions - Storage temperature (T-T) - -40 - 75 °C
Packaging content - Cables included - AC
Packaging content - Quick start guide - Yes
Packaging content - Rack mount kit - Yes
Packaging data - Package depth - 497 mm
Packaging data - Package height - 93 mm
Packaging data - Package type - Box
Packaging data - Package weight - 2.22 kg
Packaging data - Package width - 218 mm
Performance - Built-in processor - Yes
Performance - Internal memory - 4.1 MB
Performance - Processor frequency - 500 MHz
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 24
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Gigabit Ethernet (10/100/1000)
Ports & interfaces - Gigabit Ethernet (copper) ports quantity - 24
Ports & interfaces - Power connector - AC-in jack
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Input current - 1 A
Power - Power consumption (typical) - 25 W
Power - Power source - AC
Power - Power supply included - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) - No
ProductName - Switch 24x GE GEU-2431 19\" Rack Mount Kit
Short description - LevelOne Switch 19" 24xGBit Unmanaged (GEU-2431)
ShortSummaryDescription - LevelOne Switch 24x GE GEU-2431 19\" Rack Mount Kit, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex, Rack mounting, 1U
Title - LevelOne Switch 24x GE GEU-2431 19\" Rack Mount Kit Unmanaged Gigabit Ethernet (10/100/1000) 1U Black
URL - https://www.level1.com/level1_en/geu-2431-24-port-gigabit-switch-53016403101
WarrantyInfo -
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 45 mm
Weight & dimensions - Weight - 1.62 kg
Weight & dimensions - Width - 438 mm
