ID: 800757
Product code: JL813A
In stock 4 units
Warranty: 2 years
(Warranty for business entities 1 year)

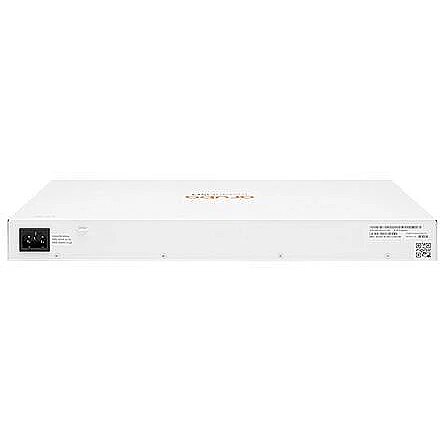

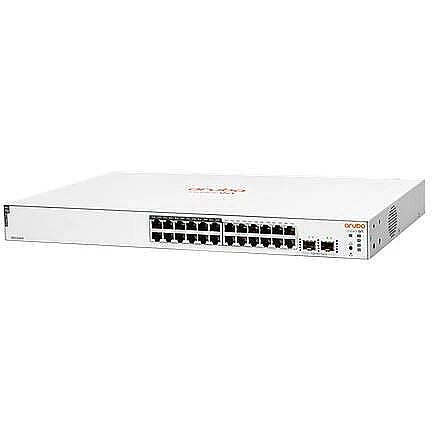

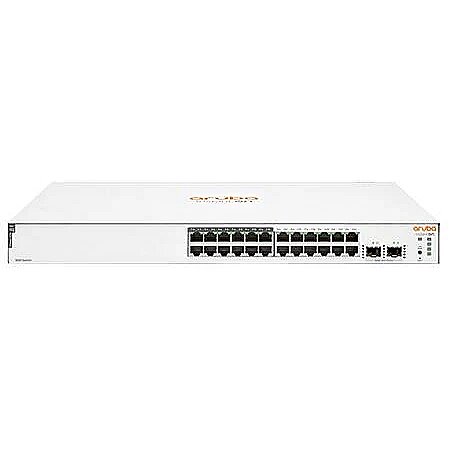

Hewlett Packard 1830 24G 12P CLASS4 POE
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Courier delivery 11.99 €: 03.03.2025
Main product parameters All parameters
- Base-T speed: 10/100/1000
- RJ-45 Ports: 24
Ports and equipment
Base-T speed
: 10/100/1000
PoE Ports
: 12
RJ-45 Ports
: 24
SFP Ports
: 2
Specifikācija
Number of fans
: Fanless
PoE Per-Port Power Budget
: 30 W
PoE Support
: Ir
PoE Total Power Budget
: 195 W
Weight (g)
: 3470 g
Network cards
More detailed specification
10/100/1000/2500 Mbps ports - None
Accessories included -
Application - Medium and large companies
ARTIKEL1 - 1830 24G 12P CLASS4 POE-STOCK
ARTIKEL2 - .
Category 1 - Netzwerk
Category 2 - Switching Hubs
Chassis type - Rack
Description - Switch Instant On 1830 The Aruba Instant On 1830 switch series provides an easy-to-use and affordable wired solution for networks supporting IT, mobile and cloud applications. This affordable and easy to deploy series of intelligent managed switches is ideal for businesses looking for a cost-effective wired infrastructure to meet changing network requirements.
Designation - CE+WEEE
dimension depth - 515 mm
dimension height - 385 mm
Dimensions - 25.30 x 44.30 x 4.39 cm
dimension weight - 4800 g
dimension width - 130 mm
EAN - 0190017523712
ean - 190017523743
EAN - 0190017523743
EANCode - 0190017523712
Forwarding rate - 38.68 Mpps
Gross Weight Kg - 3,8
GRUPPE1 - Network
GRUPPE2 - Switches Managed
guarantee - -1
guarantee_type - external
HERSTELLER - HPE
HSTNUMMER - JL813A
L2 features -
L3 features -
MAC address table size - 16000
Management, monitoring, configuration -
Manufacturer - HP Enterprise
Manufacturer Code - JL813A
Manufacturer Name - Hewlett Packard
Memory buffer - 256 MB
MPN - JL813A#ABB
Name - 24+2P HP Enterprise Aruba Instant On 1830 24G Switch M RM PoE+
name - Switch Instant On 1830 PoE 24x1GbE JL813A
Network architecture - GigabitEthernet
Number of 10/100 Mbps ports - None
Number of 10/100/1000 Mbps ports - 26
Number of 10Gb ports - None
Number of COMBO ports - None
Number of PoE+ ports - None
Number of PoE ports (PoE & PoE+) - 12
Number of QSFP+ ports - None
Number of SFP+ ports - None
Number of SFP ports - 2
Other features - PoE: 195 W Class 4
Other functions -
Packet buffer - 1.5 MB
Power consumption - 244.6 W
Power supply - 100 - 240 VAC
Power supply - Internal
producer - Hewlett Packard Enterprise
QoS -
Security -
Short description - HPE Aruba Switch 1830 24G 2SFP 24xGBit/2xSFP (12xPoE/195W) JL813A Aruba Instant On
Stck_Kart - 1
Stck_Pal - 36
Storno - Y
Supported protocols and standards -
Switch class - SMART
Switch layer - L2
Throughput - 52 Gb/s
vendpn - JL813A
VLAN -
Weight - 3.47 kg
Weight - 4.76
