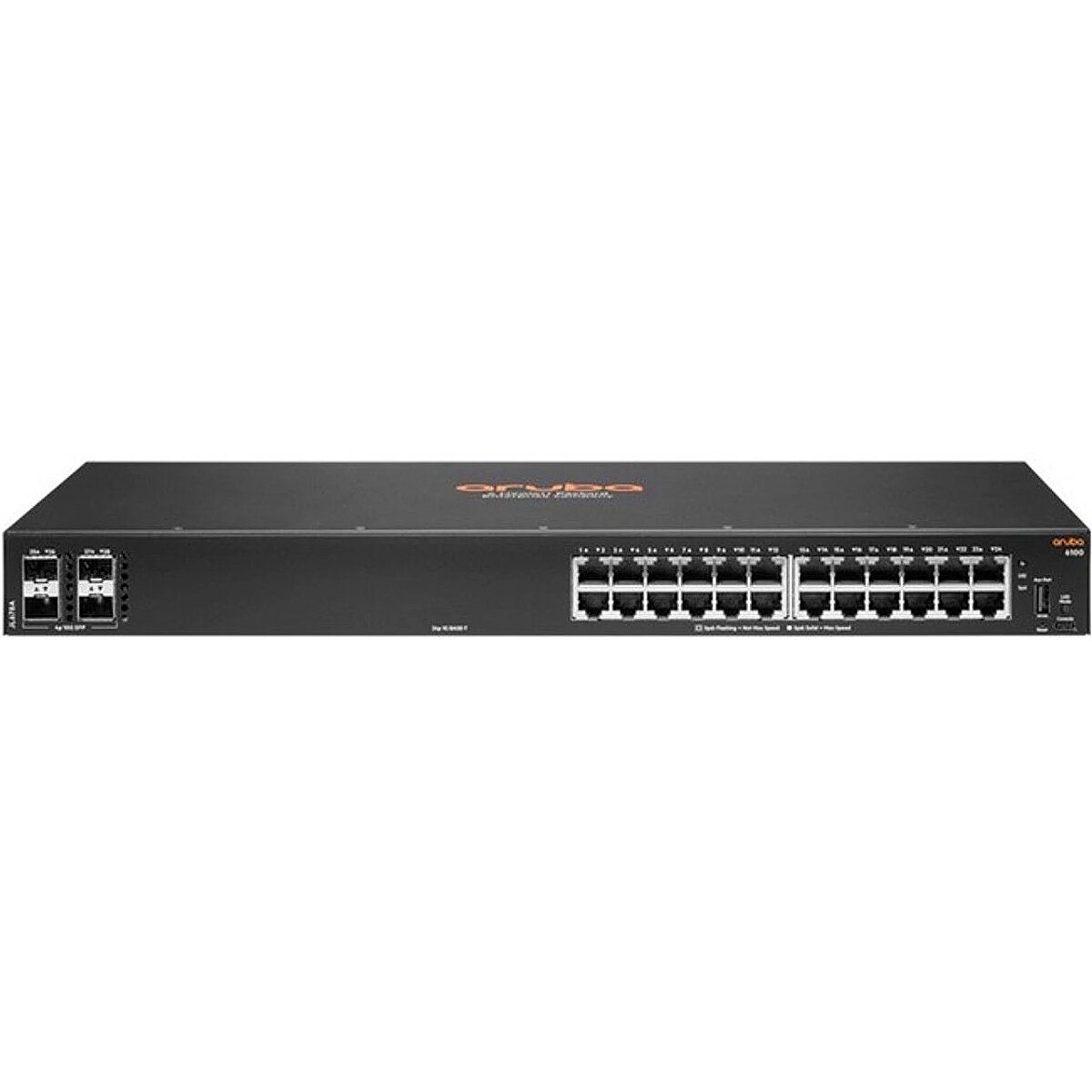

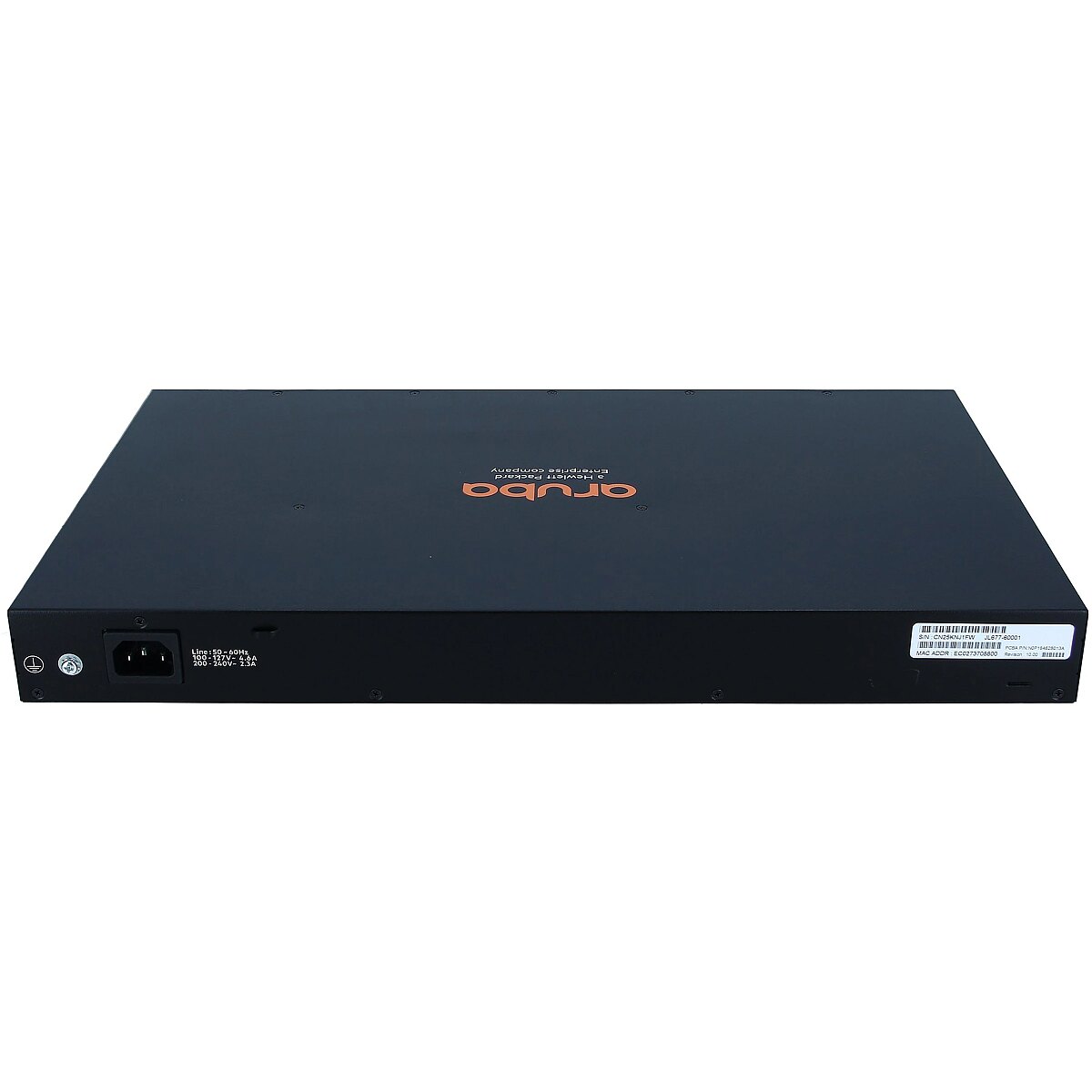

Hewlett Packard Aruba 6100 24G 4SFP+

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 715935 Product code: JL677A#ABB
Can be ordered 3 units Availability: 14 days after order approval
Warranty: 2 years (Warranty for business entities 1 year)
1,567.90 €
Delivery options
  • Delivery to Smartpost 6.99 €: 12.03.2025
  • Courier delivery 11.99 €: 12.03.2025
Main product parameters All parameters
  • Base-T speed: 10/100/1000
  • RJ-45 Ports: 24
Ports and equipment
Base-T speed : 10/100/1000
PoE Ports : 24
RJ-45 Ports : 24
SFP Ports : 4
Specifikācija
Number of fans : Fanless
PoE Per-Port Power Budget : 30 W
PoE Support : Ir
PoE Total Power Budget : 370 W
Weight (g) : 4200 g
Network cards
More detailed specification
Additional information in manufacturers website Hewlett Packard Aruba 6100 24G 4SFP+
DataBuffer - 12.38MB (4.5MB Ingress/7.875MB Egress)
DataTransferRate -
  • 1 Gbps Latency: 1.5 µs
  • 10 Gbps Latency: 1.8 µs
  • Throughput: up to 95.2 Mpps
  • Switching capacity: 128 Gbps
  • Switched Virtual Interfaces (dual stack): 16

    • Depth - 268.2 mm
    Duplex - -
    EthernetType - 10 Gigabit Ethernet
    FormFactor - Rack
    GrossWeight - 5.420 kg
    Height - 43.9 mm
    Interface -
  • 24x 10/100/1000BASE-T ports
  • 4x 1G/10G SFP ports
  • USB-C Console Port
  • USB Type-A Host port

    • Layers - 3
    LED - -
    LongDesc -
    MACAddressTable - 8 K
    Manage - Managed
    MANUFDATASHEET - https://www.hpe.com/psnow/doc/a00021859enw?jumpid=in_lit-psnow-red
    Mirroring - -
    NetworkCables - -
    NetworkPorts - 24
    PackageContents - -
    PoE - 455 W
    Power -
  • Voltage: 100-127 / 200-240 VAC (50/60 Hz)
  • Current: 4.6 / 2.3 A
  • Power: 22.9 (idle) / 32.7 W (max)
  • Power supply: 500 W

    • ProdDesc - Aruba 6100 24G CL4 4SFP+ Swch
    ProductPicture - http://www.tdbaltic.ee/images/ds4/JL677A-ABB-01.jpg
    ProductPicture2 - http://www.tdbaltic.ee/images/ds4/JL677A-ABB-02.jpg
    ProductPicture3 -
    ProductPicture4 -
    Security - -
    Standard -
  • 802.3af
  • 802.3at

    • SystemRequirements - -
    Type - Aruba 6100 Series
    UplinkType - SFP
    VLAN - -
    Warranty - -
    Weight - 4.190 kg
    Width - 442 mm
