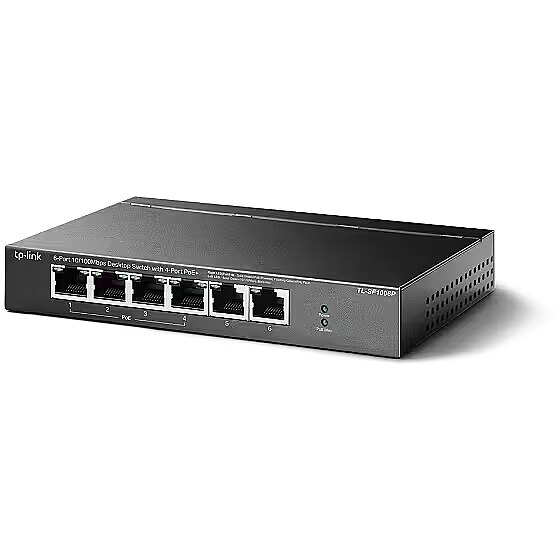

TP-LINK TL-SF1006P 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+

10Base-T / 100Base-TX Ports - 6
Accessories included - TL-SF1006P Zasilacz Instrukcja Instalacji
Application - Home and small office
ARTIKEL1 - 6-PORT POE+ FE DESKTOP SWITCH
ARTIKEL2 - .
Brand - TP-Link
BrandPartCode - TL-SF1006P
Breite - 0.14
Category - Network Switches
Category - Root/Electronics/Networks and communication/Switchers
Category Code - SWI
Certificates - Certification - FCC, CE, RoHS
Certificates - Compliance certificates - CE, Federal Communications Commission (FCC), RoHS
Chassis type - Desktop
Code - TL-SF1006P
Data transmission - Forwarding rate - 0.8928 Mpps
Data transmission - Jumbo frames - 2000
Data transmission - Jumbo frames support - Yes
Data transmission - MAC address table - 2000 entries
Data transmission - Store-and-forward - Yes
Data transmission - Switching capacity - 1.2 Gbit/s
Description - Profesjonalny przełącznik o dużej mocy z 4 portami PoE+ Instalacja Plug and Play. Do 250 m zasięgu transmisji danych i zasilania z myślą o systemach monitoringu.
Description - TP-LINK TL-SF1006P + 6× 10/100 Mbps RJ45 ports + 4× PoE+ ports transfer data and power on individual cables + Works with IEEE 802.3af/at compliant PDs + Up to 250m data and power transmitting range under Extend Mode** + Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application + Supports PoE Power up to 30 W for each PoE port + Supports PoE Power up to 67 W for all PoE ports* + Plug and play with no configuration required + Learn more about TP-Link PoE technology
Design - Housing material - Metal
Design - LED indicators - Yes
Design - Product colour - Black
Design - Rack mounting - No
Design - Stackable - No
Design > Form factor - Desktop
Desktop/pedestal Mounting Type - Yes
dimension depth - 120 mm
dimension height - 130 mm
Dimensions - 158 x 101 x 25 mm
dimension weight - 690 g
dimension width - 195 mm
EAN - 6935364030933
ean - 6935364030933
EANCode - 6935364030933
Eans - 6935364030933
Fan - No
Forwarding mode - Store-and-forward
Forwarding rate - 0.8928 Mpps
Forwarding rate - 0.8928 Mpps
Full Description Line - Desktop/pedestal|6x10Base-T / 100Base-TX|PoE+ ports 4|Switching capacity 1.2 Gbps|Forwarding rate 0.8928 Mpps|Switching method Store-and-forward|Power supply External|Dimensions 158 x 101 x 25 mm|Unit Net Weight 0.46 kg
Gewicht - 0.87
GRUPPE1 - Network
GRUPPE2 - Lan Switch Unmanaged
GTIN - 0845973088071
GTIN - 845973088071
GTIN - 6935364030933
GTIN - 6935364030940
guarantee - 60
guarantee_type - normal
HERSTELLER - TP-LINK
Hoehe - 0.13
HSTNUMMER - TL-SF1006P
Jumbo frame size - 2 KB
L2 features -
L3 features -
Laenge - 0.2
Link - https://www.tp-link.com/uk/business-networking/poe-switch/tl-sf1006p/
Logistics data - Harmonized System (HS) code - 85176990
LongDesc - Professional High-Power Switch with 4 PoE+ PortsPlug and Play, with PoE Transmission for Surveillance up to 250 mDedicated 4-Poart PoE+ Switch (67 W Budget) for Numerous ApplicationsCompliance with the 802.3af/at PoE standard supports up to 15.4 W on each PoE port. The total 41 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.Ideal for IP Surveillance—Up to 250 m TransmissionsWith extend mode, the PoE transmission distance reaches up to 250 m**—perfect for IP Camera deployment in large areas.**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.Priority Video Quality GuaranteedQuality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–2 when one-touch Priority Mode is on.Intelligent Power ManagementWhen total power consumption exceeds 67 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.Durable Metal CasingThe interior components of TL-SF1006P are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1006P delivers switching performance you can depend on.
LongProductName - 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+
LongSummaryDescription - TP-Link TL-SF1006P. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 6. Full duplex. MAC address table: 2000 entries, Switching capacity: 1.2 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at. DC input voltage: 53.5 V. Power over Ethernet (PoE)
MAC address table size - 2000
Management, monitoring, configuration -
Management features - Switch type - Unmanaged
Management features > Switch type - Unmanaged
Model name - TL-SF1006P
name - TP-Link SF1006P switch 6xFE (4xPoE+)
Name - TP-Link TL-SF1006P
Name - TP-LINK | Switch | TL-SF1006P | Unmanaged | Desktop | 10/100 Mbps (RJ-45) ports quantity 6 | PoE+ ports quantity 4 | Power supply type External
Network - 10G support - No
Network - Auto-negotiation - Yes
Network - Auto MDI/MDI-X - Yes
Network - Cable types supported - Cat3, Cat4, Cat5, Cat5e
Network - Copper ethernet cabling technology - 10BASE-T, 100BASE-TX, 100BASE-T
Network - Flow control support - Yes
Network - Full duplex - Yes
Network - Half duplex - Yes
Network - MAC address auto-aging supported - Yes
Network - MAC address auto-learning supported - Yes
Network - Networking standards - IEEE 802.3af, IEEE 802.3at
Network architecture - FastEthernet
Number of 10/100 Mbps ports - 1
Number of 10/100 Mbps ports - 5
Number of PoE ports (PoE & PoE+) - 4
Operational conditions - Heat dissipation - 252.34 BTU/h
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features - Certyfikaty: FCC, CE, RoHS
Other features > Power supply type - External
Other functions - Zgodność z urządzeniami zasilanymi PoE (PD) działającymi w standardzie IEEE 802.3af/at Przycisk trybu Extend (porty 14) Przycisk trybu Priority (porty 12) Automatyczne zapamiętywanie i wygaszanie adresów MAC Obsługa kontroli przepustowości IEEE802.3x dla transmisji w pełnym dupleksie oraz funkcji backpressure dla transmisji w półdupleksie
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 197 mm
Package features > Gross depth master carton - 421 mm
Package features > Gross height (mm) - 133 mm
Package features > Gross height master carton - 390 mm
Package features > Gross weight - 0.869 kg
Package features > Gross width (mm) - 123 mm
Package features > Gross width master carton - 280 mm
Package features > Net weight master carton - 10.428 kg
Package features > Packing quantity - 12 pc(s)
Package features > Palette Qty - 444 pc(s)
Package features > Paper/Pasteboard - 184.00 g
Package features > Plastic (No PET) - 46.00 g
Package features > Tare weight (kg) - 0.23 kg
Package features > Tare weight master carton - 0.782 kg
Package features > Volume (m3) - 0.003222723 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packaging content - User guide - Yes
Packaging data - AC adapter included - Yes
Packaging data - Package depth - 196 mm
Packaging data - Package height - 121 mm
Packaging data - Package type - Box
Packaging data - Package weight - 870 g
Packaging data - Package width - 131 mm
Performance - Fanless - Yes
PoE+ ports - 4
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 6
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Fast Ethernet (10/100)
Ports & interfaces > 10/100 Mbps (RJ-45) ports quantity - 6
Ports & interfaces > POE - PoE 802.3 af
Ports & interfaces > PoE+ ports quantity - 4
Ports & interfaces > Predominant port type - 10/100 Mbps (RJ-45)
Power - AC input frequency - 50 Hz
Power - AC input voltage - 220 V
Power - DC input voltage - 53.5 V
Power - Input current - 1.31 A
Power - Power consumption (max) - 74 W
Power - Power source - DC/PoE
Power - Power supply included - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) - Yes
Power over Ethernet (PoE) - Power over Ethernet plus (PoE+) ports quantity - 4
Power over Ethernet (PoE) - Total Power over Ethernet (PoE) budget - 67 W
Power over Ethernet (PoE) > Power over Ethernet (PoE) - Yes
Power over Ethernet (PoE) > Power over Ethernet (PoE) power per port - 30 W
Power supply - External
Power supply - Zasilacz zewnętrzny (na wyjściu: 53.5 V DC / 1.31 A)
Power supply - Internal
producer - TP-LINK
Producer - TP-Link
ProducerCode - TL-SF1006P
Producer product family - Switch
Producer product name - TL-SF1006P
ProductName - TL-SF1006P
QoS -
Security -
Shipping Box Depth Shipping/Package Box Dimensions - 42 cm
Shipping Box Height Shipping/Package Box Dimensions - 39 cm
Shipping box quantity - 12
Shipping Box Weight Shipping/Package Box Dimensions - 11.2 kg
Shipping Box Width Shipping/Package Box Dimensions - 29 cm
ShortDescription -
ShortSummaryDescription - TP-Link TL-SF1006P, Unmanaged, Fast Ethernet (10/100), Full duplex, Power over Ethernet (PoE)
Stackability - No
Stck_Kart - 12
Stck_Pal - 0
Storno - Y
Supported protocols and standards -
Support for Jumbo frames - Yes
Sustainability - Sustainability compliance - Yes
Switch class - Unmanaged
Switching capacity - 1.2 Gbps
Switching method - Store-and-forward
Switch layer - L2
Technical details > Net weight - 0.639 kg
Technical details > Producer - TP-LINK
Throughput - 1.2 GB/s
Title - TP-Link TL-SF1006P network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Black
Unit Box Height - 0.125
Unit Box Length - 0.2
Unit Box Width - 0.135
Unit Brutto Volume - 0.003959 cubm
Unit Gross Weight - 0.933 kg
Unit Net Weight - 0.46 kg
URL - https://www.tp-link.com/uk/business-networking/poe-switch/tl-sf1006p/#overview
Vendor Homepage - www.tp-link.com/uk/business-networking/poe-switch/tl-sf1006p/
vendpn - TL-SF1006P
VLAN -
Warranty - 60
Warranty - 60 month(s)
Warranty - 60 months
WarrantyInfo -
Weight & dimensions - Depth - 101 mm
Weight & dimensions - Height - 25 mm
Weight & dimensions - Width - 158 mm
