ID: 1144823
Product code: CS4228-24GT-240
In stock 1 units
Warranty: 3 years

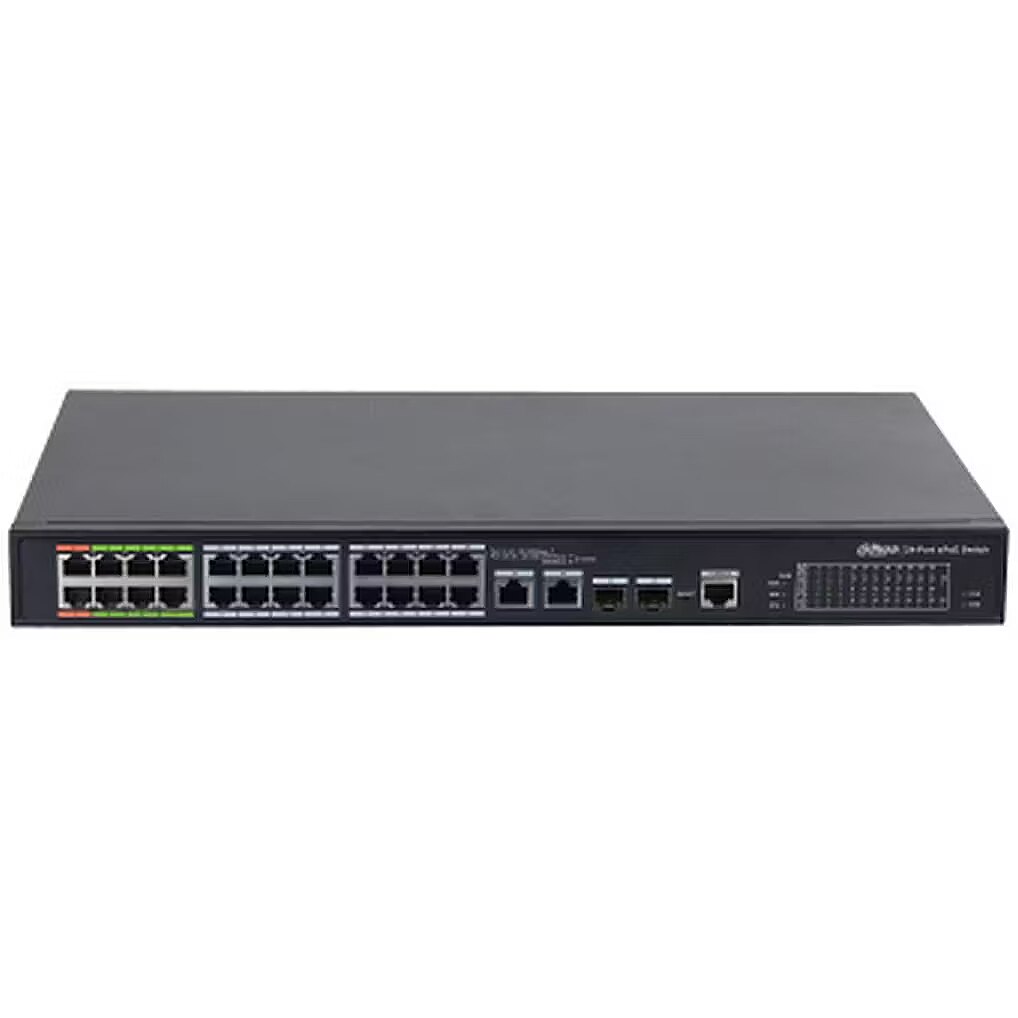

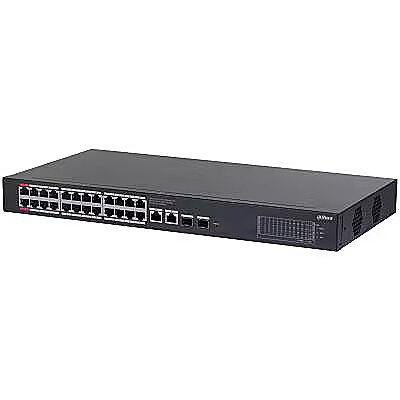

Dahua CS4228-24GT-240 2xSFP 26xRJ45 POE
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost 6.99 €: on Thursday, 23.01.2025
- Courier delivery 11.99 €: on Thursday, 23.01.2025
Main product parameters All parameters
- Base-T speed: 10/100/1000
- RJ-45 Ports: 26
Ports and equipment
Base-T speed
: 10/100/1000
PoE Ports
: 24
RJ-45 Ports
: 26
SFP Ports
: 2
Specifikācija
Number of fans
: 2
PoE Per-Port Power Budget
: 30 W
PoE Support
: Ir
PoE Total Power Budget
: 240 W
Weight (g)
: 2500 g
More detailed specification
Category Code - SWI
Description - CS4228-24GT-240 28-Port Cloud Managed Desktop Gigabit Switch with 24-Port PoE > Meets the requirements of IEEE802.3,IEEE802.3u,IEEE802.3x,IEEE802.3ab,IEEE802.3z standards. > Meets the requirements of IEEE802.3af, IEEE802.3at, Hi-PoE, and IEEE802.3bt power supply standards. > Manages PoE power consumption and PoE power on/off. Supports Intelligent PoE. > A wide operating temperature range and a full metal casing that is fully-enclosed and dust-proof.
Desktop/pedestal Mounting Type - Yes
Dimensions - 440 × 220 × 44 mm
Forwarding rate - 41.66 Mpps
Full Description Line - Desktop/pedestal|Rack|2xSFP|26xRJ45|IEEE 802.3|IEEE 802.3ab|IEEE 802.3u|IEEE 802.3x|IEEE 802.3z|PoE power budget 240 Watts|Switching capacity 56 Gbps|Forwarding rate 41.66 Mpps|Power supply Inbuilt|Dimensions 440 × 220 × 44 mm|Unit Net Weight 2.5 kg
IEEE 802.3 Network standard - Yes
IEEE 802.3ab Network standard - Yes
IEEE 802.3u Network standard - Yes
IEEE 802.3x Network standard - Yes
IEEE 802.3z Network standard - Yes
Model name - CS4228-24GT-240
PoE power budget - 240 Watts
Power supply - Inbuilt
Primary port count - 28
Rack Mounting Type - Yes
RJ45 Ports - 26
SFP Ports - 2
Shipping Box Depth Shipping/Package Box Dimensions - 54 cm
Shipping Box Height Shipping/Package Box Dimensions - 9 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 3.25 kg
Shipping Box Width Shipping/Package Box Dimensions - 34 cm
Switching capacity - 56 Gbps
Unit Box Height - 0.09
Unit Box Length - 0.54
Unit Box Width - 0.34
Unit Brutto Volume - 0.01652 cubm
Unit Gross Weight - 3.25 kg
Unit Net Weight - 2.5 kg
Vendor Homepage - transmission.dahuasecurity.com/en/product-list/Business/CloudManagementSolution/NetworkSwitch/CS4228-24GT-240
Warranty - 36 months
Description - CS4228-24GT-240 28-Port Cloud Managed Desktop Gigabit Switch with 24-Port PoE > Meets the requirements of IEEE802.3,IEEE802.3u,IEEE802.3x,IEEE802.3ab,IEEE802.3z standards. > Meets the requirements of IEEE802.3af, IEEE802.3at, Hi-PoE, and IEEE802.3bt power supply standards. > Manages PoE power consumption and PoE power on/off. Supports Intelligent PoE. > A wide operating temperature range and a full metal casing that is fully-enclosed and dust-proof.
Desktop/pedestal Mounting Type - Yes
Dimensions - 440 × 220 × 44 mm
Forwarding rate - 41.66 Mpps
Full Description Line - Desktop/pedestal|Rack|2xSFP|26xRJ45|IEEE 802.3|IEEE 802.3ab|IEEE 802.3u|IEEE 802.3x|IEEE 802.3z|PoE power budget 240 Watts|Switching capacity 56 Gbps|Forwarding rate 41.66 Mpps|Power supply Inbuilt|Dimensions 440 × 220 × 44 mm|Unit Net Weight 2.5 kg
IEEE 802.3 Network standard - Yes
IEEE 802.3ab Network standard - Yes
IEEE 802.3u Network standard - Yes
IEEE 802.3x Network standard - Yes
IEEE 802.3z Network standard - Yes
Model name - CS4228-24GT-240
PoE power budget - 240 Watts
Power supply - Inbuilt
Primary port count - 28
Rack Mounting Type - Yes
RJ45 Ports - 26
SFP Ports - 2
Shipping Box Depth Shipping/Package Box Dimensions - 54 cm
Shipping Box Height Shipping/Package Box Dimensions - 9 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 3.25 kg
Shipping Box Width Shipping/Package Box Dimensions - 34 cm
Switching capacity - 56 Gbps
Unit Box Height - 0.09
Unit Box Length - 0.54
Unit Box Width - 0.34
Unit Brutto Volume - 0.01652 cubm
Unit Gross Weight - 3.25 kg
Unit Net Weight - 2.5 kg
Vendor Homepage - transmission.dahuasecurity.com/en/product-list/Business/CloudManagementSolution/NetworkSwitch/CS4228-24GT-240
Warranty - 36 months
