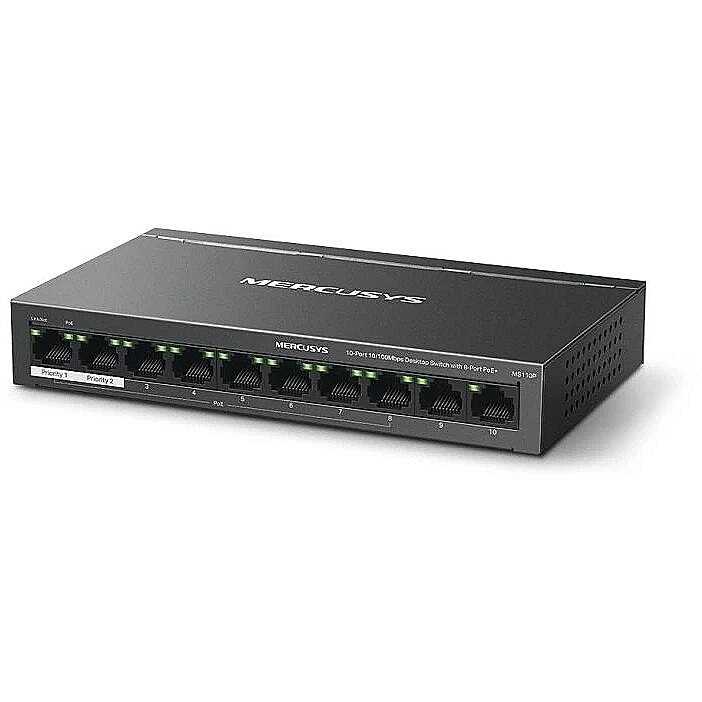

Mercusys MS110P, 10x100Mb PoE

10Base-T / 100Base-TX Ports - 10
Category Code - SWI
Data transmission - MAC address table - 2000 entries
Description - MS110P 10-Port 10/100Mbps Desktop Switch with 8-Port PoE+ - 10 Ports: 10× 10/100 Mbps RJ45 ports with 8 PoE+ ports - Two Cables in One: With 8 PoE+ ports, transfers data and power on one single cable - High Power PoE+: Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports - 2× Uplink Ports: MS110P provides 2× uplink ports when turning on the isolation mode. One for connecting to the Internet and one for connecting to the NVR. - Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode - Isolation Mode: One click to divide traffic for specific ports for stability and security - Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs - Durable Metal Casing: Allows for efficient heat dissipation and long network life - Plug and Play: Simple to use and saves time and effort - PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices
Design - Product colour - Black
Design - Rack mounting - No
Design - Stackable - No
Design - Wall mountable - Yes
Desktop/pedestal Mounting Type - Yes
dimensionalWeight - 332
Dimensions - 171x98x27mm
Full Description Line - Desktop/pedestal|10x10Base-T / 100Base-TX|IEEE 802.3af|IEEE 802.3at|IEEE 802.3x|PoE+ ports 8|Included Accessories Switch; Power Adapter; Installation Guide|Dimensions 171x98x27mm|Unit Net Weight 0.6 kg
IEEE 802.3af Network standard - Yes
IEEE 802.3at Network standard - Yes
IEEE 802.3x Network standard - Yes
Included Accessories - Switch; Power Adapter; Installation Guide
Management features - Switch type - Managed
Management features - Web-based management - Yes
Model - MS110P
Network - 10G support - No
Network - Auto-negotiation - Yes
Network - Auto MDI/MDI-X - Yes
Network - Ethernet LAN data rates - 10,100 Mbit/s
Network - Flow control support - Yes
Network - Full duplex - Yes
Network - Networking standards - IEEE 802.3af
Network - Networking standards - IEEE 802.3at
Network - Networking standards - IEEE 802.3x
Network - Policy-based routing - Yes
Operational conditions - Heat dissipation - 263.568 BTU/h
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 95%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
PoE+ ports - 8
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 10
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Fast Ethernet (10/100)
Power - AC input frequency - 50 Hz
Power - AC input voltage - 220 V
Power - DC input voltage - 53.5 V
Power - Input current - 1.31 A
Power - Power consumption (max) - 77.52 W
Power - Power consumption (typical) - 2.96 W
Power - Power source - AC
Power - Power supply included - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) power per port - 30 W
Power over Ethernet (PoE) - Power over Ethernet plus (PoE+) ports quantity - 8
Power over Ethernet (PoE) - Total Power over Ethernet (PoE) budget - 65 W
Primary port count - 10
producerCode - MS110P
productName - Mercusys 10-Port 10/100Mbps Desktop Switch with 8-Port PoE+
productSize - Normal
Shipping Box Depth Shipping/Package Box Dimensions - 40 cm
Shipping Box Height Shipping/Package Box Dimensions - 28 cm
Shipping box quantity - 12
Shipping Box Weight Shipping/Package Box Dimensions - 10.3 kg
Shipping Box Width Shipping/Package Box Dimensions - 27 cm
sizeX - 190
sizeY - 125
sizeZ - 70
Unit Box Height - 0.09
Unit Box Length - 0.12
Unit Box Width - 0.19
Unit Brutto Volume - 0.00252 cubm
Unit Gross Weight - 0.858 kg
Unit Net Weight - 0.6 kg
Vendor Homepage - www.mercusys.com/en/product/details/ms110p
Warranty - 36 months
warrantyLength - 36
warrantyType - G
weight - 795
Weight & dimensions - Depth - 98 mm
Weight & dimensions - Height - 27 mm
Weight & dimensions - Width - 171 mm
