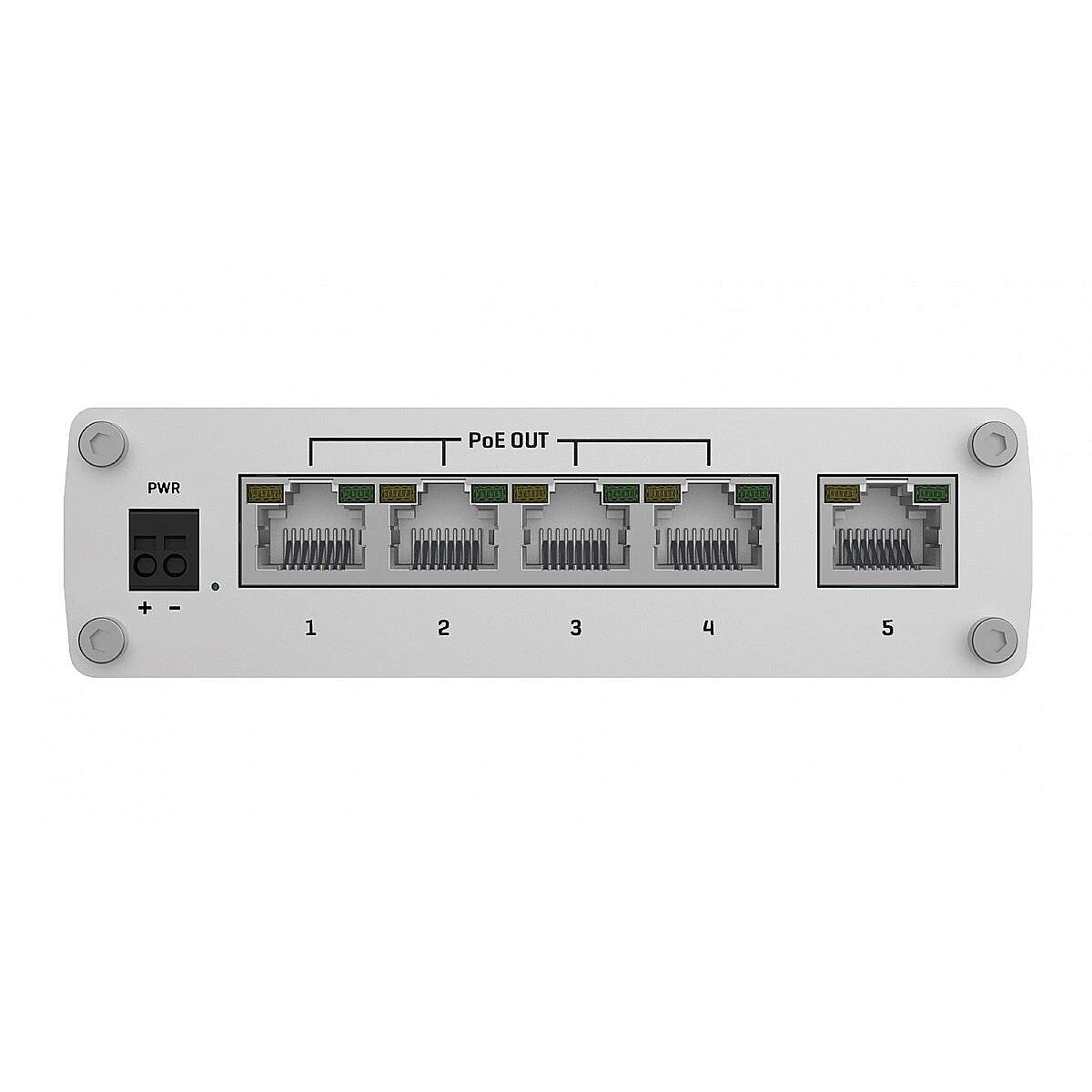

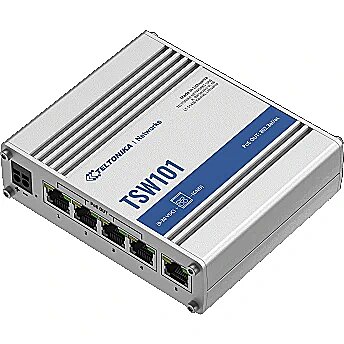

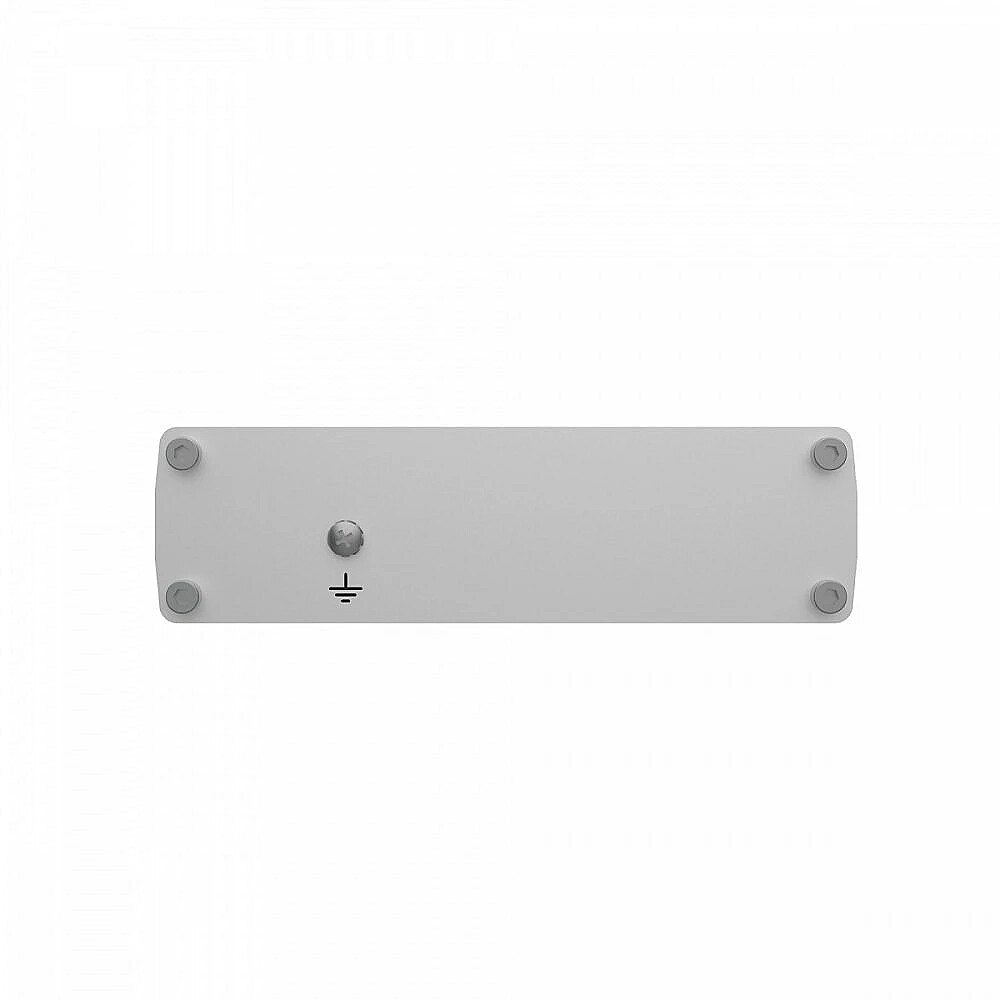

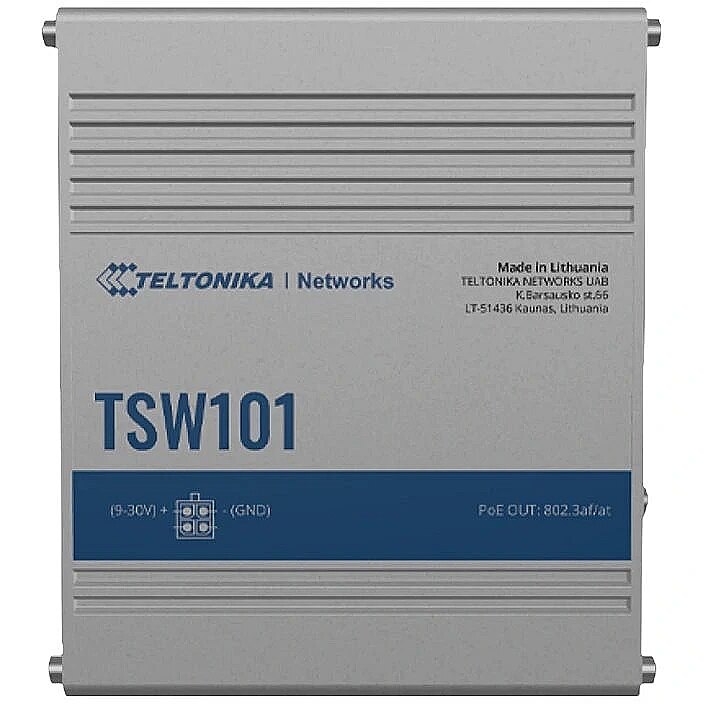

Teltonika TSW101, 5x1Gb PoE+

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 1103872 Product code: TSW101000000
Goods are not available at the moment We do not accept orders for the delivery of this product. We do not have information as to when this product will be available. Our suppliers currently do not provide information about possible delivery times of the product and the possible price when it is on sale again.

TopPC.fi website provides information about this product for information only, so that customers can see the product and compare it to the products available for sale now.

Warranty: 2 years
Main product parameters All parameters
  • Base-T speed: 10/100/1000
  • RJ-45 Ports: 5
Similar Products
This product Teltonika TSW101, 5x1Gb PoE+
Ubiquiti N-SW, 4x1G PoE, Openbox
TP-LINK TL-SF1016DS 16-Port 10/100Mbps Desktop/Rackmount Switch
D-Link DGS-1100-24V2 Smart Managed Switch [24x Gigabit Ethernet], Openbox
Teltonika TSW101, 5x1Gb POE
Show similar specs. Hide similar specs.
74.05 €
39.00 €
47.51 €
149.00 €
73.10 €
Ports and equipment
Base-T speed 10/100/1000 10/100/1000 10/100 10/100/1000 10/100/1000
PoE Ports 4 4 N/A N/A 4
RJ-45 Ports 5 4 16 24 5
SFP Ports N/A N/A N/A N/A N/A
Specifikācija
Number of fans Fanless Fanless Fanless Fanless Fanless
PoE Per-Port Power Budget 30 W 24 W N/A N/A 30 W
PoE Support Ir Ir Nav Nav Ir
PoE Total Power Budget 60 W 30 W N/A N/A 60 W
Weight (g) 383 g 270 g 500 g 1630 g 383 g
Ports and equipment
Base-T speed : 10/100/1000
PoE Ports : 4
RJ-45 Ports : 5
SFP Ports : N/A
Specifikācija
Number of fans : Fanless
PoE Per-Port Power Budget : 30 W
PoE Support : Ir
PoE Total Power Budget : 60 W
Weight (g) : 383 g
More detailed specification
Additional information in manufacturers website Teltonika TSW101, 5x1Gb PoE+
Auto MDI/MDI-X - Yes
Bandwidth, Gbit/s - 10
Buffer size, KB - 128
Code - TSW101000000
Description - TELTONIKA TSW101 IOT SWITCH 5X10/100/1000 RJ45
Design > Form factor - Wall-mountable
Dimensions W x D x H, mm - 115 x 95 x 32
EAN - 4779051840113
Ethernet LAN (RJ-45) PoE ports quantity - 4
Ethernet LAN (RJ-45) ports quantity - 5
Ethernet LAN data transfer rates, Mbit/s - 10/100/1000
Green certifications - REACH
Green certifications - RoHS compliant
Green certifications - WEEE
Height - 37.000000
IP classification - IP30
Jumbo Frames support - 9216 bytes
Length - 150.000000
Link - https://teltonika-networks.com/products/ethernet-switches/tsw101
MAC address table, entries - 2K
Management features > Switch type - Unmanaged
Manufacturer - Teltonika
ManufacturerPartNumber - TSW101000000
Name - Teltonika Automotive Switch, 5 ports | TSW101 | Unmanaged | Wall-mountable
Networking standards - 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
Operating temperature range (T-T), °C - - 40 - 75
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 105 mm
Package features > Gross height (mm) - 42 mm
Package features > Gross width (mm) - 125 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 1567 pc(s)
Package features > Paper/Pasteboard - 116 g
Package features > Tare weight (kg) - 0.116 kg
Package features > Volume (m3) - 0.00055125 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
PeriodofWarranty - 2 Y
PoE capasity per port W - 30
Ports & interfaces > POE - PoE+ 802.3at/af
Ports & interfaces > Predominant port type - 10/100/1000 Mbps (RJ-45)
Ports quantity - 5
Power over Ethernet (PoE), W - 60
Power over Ethernet (PoE) > Power over Ethernet (PoE) - Yes
Power over Ethernet (PoE) Support - Yes
Technical details > Gross weight - 0.5 kg
Technical details > Net weight - 0.384 kg
Technical details > Producer - Teltonika
Technical details > Producer product family - Automotive Switch, 5 ports
Technical details > Producer product name - TSW101
Warranty - 24
Warranty - 24 month(s)
Weight - 0.440000
Weight, g - 384
Width - 175.000000
