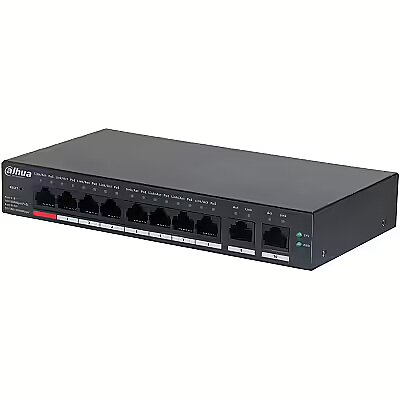

Dahua CS4010-8ET-110 PoE ports 8

10/100/1000M LAN Ports - 2
10/100M LAN Ports - 8
Brand - Dahua Technology
BrandPartCode - DH-CS4010-8ET-110
Category - Network Switches
Category Code - SWI
Certificates - Compliance certificates - CE
Data transmission - Forwarding rate - 4.17 Mpps
Data transmission - Jumbo frames - 9216
Data transmission - Jumbo frames support - Yes
Data transmission - MAC address table - 8000 entries
Data transmission - Packet buffer memory - 0.5 MB
Data transmission - Switching capacity - 5.6 Gbit/s
Description - "10-Port Cloud Managed Desktop Switch with 8-Port PoE > Meets the requirements of IEEE802.3,IEEE802.3u,IEEE802.3x,IEEE802.3ab standards > Meets the requirements of IEEE802.3af, IEEE802.3at, Hi-PoE, and IEEE802.3bt power supply standards. > Manages PoE power consumption and PoE power on/off. Supports Intelligent PoE. > A wide operating temperature range and a full metal casing that is fully-enclosed and dust-proof."
Design - Housing material - Metal
Design - LED indicators - Yes
Design - Product colour - Black
Design - Rack mounting - No
Design - Reset button - Yes
Desktop/pedestal Mounting Type - Yes
Dimensions - 190 × 106 × 30 mm
Forwarding rate - 4.17 Mpps
Full Description Line - Type L2|Desktop/pedestal|8x10/100M|2x10/100/1000M|IEEE 802.3|IEEE 802.3ab|IEEE 802.3u|IEEE 802.3x|PoE ports 8|Switching capacity 5.6 Gbps|Forwarding rate 4.17 Mpps|Power supply External|Dimensions 190 × 106 × 30 mm|Unit Net Weight 0.5 kg
GTIN - 6923172571168
IEEE 802.3 Network standard - Yes
IEEE 802.3ab Network standard - Yes
IEEE 802.3u Network standard - Yes
IEEE 802.3x Network standard - Yes
LongDesc - Highly intuitive, the Smart Managed Switch can manage local networks. With the DoLynk Care platform, it can also perform cloud management. The switch performs operation and maintenance using topology visualization on front-end, transmission and back-end storage devices that are in the security system and IT system. With its full metal design, the switch has great heat dissipation and can operate in temperatures ranging -10°C to 55°C. It offers EMC and has protection against overvoltage, overcurrent, static electricity, lightning strikes, pulses and other types of interference. For the PoE series Smart Managed Switch, power is supplied up to 250 meters away. The orange port supplies up to 60 W and the red port provides up to 90 W.Also, link aggregation and STP are available on select models to ensure the network remains stable. The switch can be used in small and medium-sized businesses such as supermarkets, offices, restaurants, cafés and hotels.
LongProductName - 10-Port Cloud Managed Desktop Switch with 8-Port PoE
LongSummaryDescription - Dahua Technology DH-CS4010-8ET-110. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 8000 entries, Switching capacity: 5.6 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x. DC input voltage: 54 V. Power over Ethernet (PoE)
Management features - Cloud-managed - Yes
Management features - Quality of Service (QoS) support - Yes
Management features - Switch layer - L2
Management features - Switch type - Managed
Management features - Web-based management - Yes
Model name - CS4010-8ET-110
Network - 10G support - No
Network - Copper ethernet cabling technology - 10BASE-T, 100BASE-TX, 1000BASE-T
Network - Ethernet LAN data rates - 10,100,1000 Mbit/s
Network - Flow control support - Yes
Network - Networking standards - IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x
Network - Number of VLANs - 32
Network - Virtual LAN features - Port-based VLAN
Network - VLAN support - Yes
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - -10 - 55 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 95%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Packaging data - Package depth - 244 mm
Packaging data - Package height - 87 mm
Packaging data - Package weight - 1.25 kg
Packaging data - Package width - 256 mm
PoE ports - 8
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 8
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Fast Ethernet (10/100)
Ports & interfaces - Fast Ethernet (copper) ports quantity - 8
Ports & interfaces - Gigabit Ethernet (copper) ports quantity - 2
Power - DC input voltage - 54 V
Power - Input current - 2.22 A
Power - Power consumption (max) - 110 W
Power - Power source - DC/PoE
Power - Power supply included - Yes
Power - Redundant power supply (RPS) support - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) ports quantity - 8
Power supply - External
Primary port count - 8
ProductName - DH-CS4010-8ET-110
Security - DHCP features - DHCP client
Shipping Box Depth Shipping/Package Box Dimensions - 25 cm
Shipping Box Height Shipping/Package Box Dimensions - 9 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 1.25 kg
Shipping Box Width Shipping/Package Box Dimensions - 24.5 cm
ShortSummaryDescription - Dahua Technology DH-CS4010-8ET-110, Managed, L2, Fast Ethernet (10/100), Power over Ethernet (PoE)
Sustainability - Sustainability compliance - Yes
Switching capacity - 5.6 Gbps
Switch type - L2
Title - Dahua Technology DH-CS4010-8ET-110 network switch Managed L2 Fast Ethernet (10/100) Power over Ethernet (PoE) Black
Unit Box Height - 0.09
Unit Box Length - 0.25
Unit Box Width - 0.245
Unit Brutto Volume - 0.005513 cubm
Unit Gross Weight - 1.25 kg
Unit Net Weight - 0.5 kg
URL - https://www.dahuasecurity.com/products/All-Products/Transmission/Cloud-Managed-Switches/CS4010-8ET-110
Vendor Homepage - www.dahuasecurity.com/ceen/products/All-Products/Transmission/Cloud-Managed-Switches/CS4010-8ET-110
Warranty - 36 months
WarrantyInfo -
Weight & dimensions - Depth - 106 mm
Weight & dimensions - Height - 30 mm
Weight & dimensions - Weight - 500 g
Weight & dimensions - Width - 190 mm
