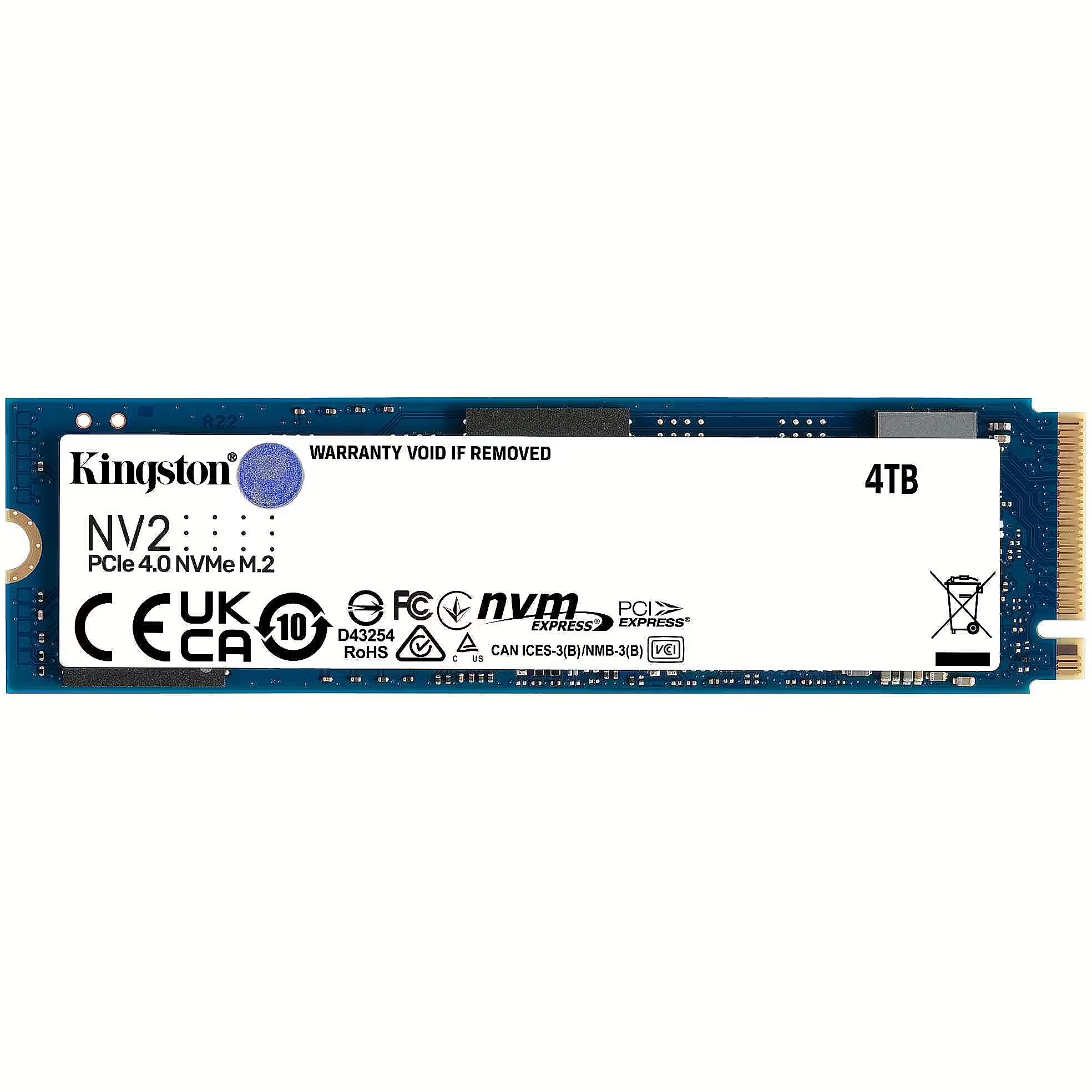

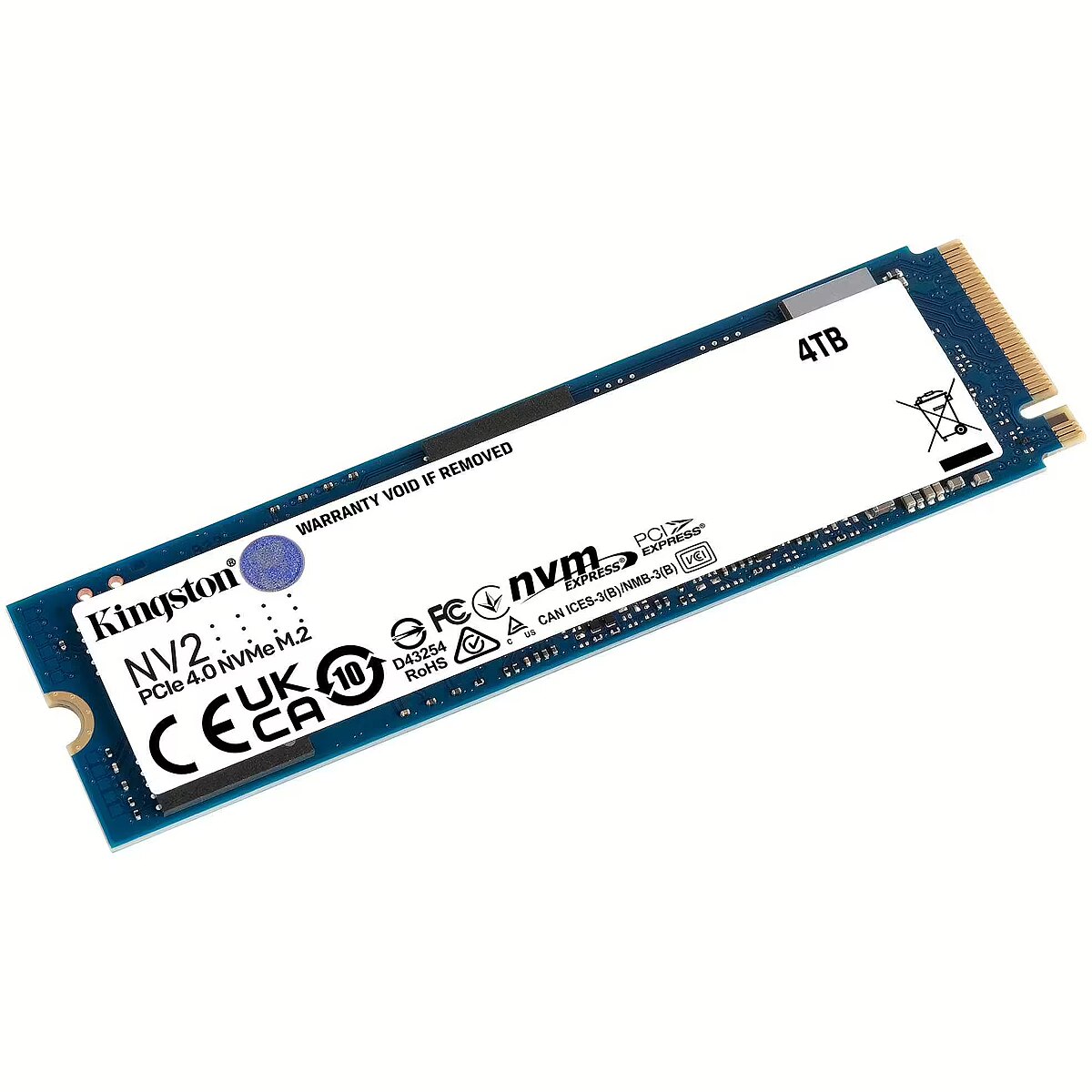

Kingston NV2, 4TB, M.2 Gen4 x4
- Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
- Courier delivery 11.99 €: 02.12.2024
- Capacity: 4 TB
- Type: NVMe
- Read speed (sequential): 3500 MB/s
- Write speed (sequential): 2800 MB/s
- Form factor: M.2 80mm (2280)
- Interface: PCIe 4.0 x4
Available for purchase, the Kingston M.2 80mm (2280) format SSD disk with a large volume of 4 TB.
This disc uses the latest generation compact M.2 port.
This SSD drive uses the latest NVME standard with PCIe interface, which allows simultaneous data transmission across multiple data lines. Thanks to this technology, the drive is ideally suited for those who work with large files, play computer games or deal with video editing.
This SSD disk read speed (Sequential read speed) is 3500 MB/s. Keep in mind that "fast" disks without a proper cooling solution may not reach the speeds indicated by the manufacturer.
2800 MB/s - this SSD drive is capable of achieving such data writing speed. The speed parameters promised by the manufacturer may not be reached if the "fast" disk is not provided with an appropriate cooling system.
This is an SSD disk in the M.2 80mm (2280) format.
The SSD drive has a PCIe 4.0 x4 interface. If it is inserted into an older interface slot, the potential speed of the drive will not be fully utilized, as the older interface will not provide sufficient data transfer bandwidth.
Sequential read speed or the mean data reading speed is the most important criterion of the high-speed operation of the SSD. The data from the SSD will be read much more often than written to it because the operating system stores the processed data in the RAM in most cases.
If you want the reading speed of the purchased SSD to exceed the speed of the classic HDD considerably you should choose the SSD with the reading speed of 200 MB/s or above. The additional increase in the performance will be achieved on the account of the data search (SeekTime) which is of much higher level with SSDs than any HDD.
The writing speed is almost as important as the reading speed. Also this parameter determines the performance of the SSD, however, as the writing to the disc happens not as often as the data reading and average user will find it subjectively difficult to distinguish between any speed above 100 MB/s and higher indices, except the cases when the SSD is used in a server, for audio/video recording, etc.
Thanks to the small size provided by the SSD technology the standard size of the discs is 2.5", and it is suitable for an average portable computer. It is possible to install the 2.5" disc in the desktop computer if the transition 2.5" -> 3.5" is used, and this transition can be bought at a low cost at TopPC.fi section"Adapteri". The discs with the format 2.5" + 3.5" have this transition included.
1.8" discs are intended for the ultra-compact class portable computers.
PCI-Express SSDs are intended for desktop computers with a free PCI-Express plug available. This technology in most cases is used for ensuring the performance that exceeds the possibilities of other types of connections.
SSDs with SATAII and SATAIII connection are compatible with the connections of both types in the motherboard. Still, it has to be taken into account that the motherboard SATAII connection can provide maximum about 300 MB/s transmission capacity which can reduce the actual transmission capacity of the SSDs whose reading and/or writing speed exceeds this level to the capacity limits of the SATAII.
The situation is similar with the PCI-Express and SATAIII connection slots. Although the SATAIII standard can provide up to 600 MB/s data transmission capacity there are SSDs with the speed exceeding this limit, in this case the manufacturer chooses the PCI-Express connection slot with a higher transmission capacity. The PCI-Express discs cannot be connected to the portable computer.
ARTIKEL2 - PCIE 4.0 NVME SSD
Brand - Kingston Technology
BrandPartCode - SNV2S/4000G
Breite - 0.13
Category - Internal Solid State Drives
category - PC Components|Drives|Solid State Drives (SSDs)|M.2
Category - Root/Electronics/PC parts/Hard drives
Category 1 - SSDs
Category 2 - Interne SSDs
Category Code - SSU
Category_1 - Hard Drives and Pendrives
Category_2 - Internal SSD - M.2
code - SNV2S/4000G
Code - SNV2S/4000G
Color - Not applicable
Depth - 80 mm
Description - Kingston’s NV2 PCIe 4.0 NVMe SSD is a substantial next-gen storage solution powered by a Gen 4x4 NVMe controller. NV2 delivers read/write speeds with lower power requirements and lower heat to help optimise your system’s performance and deliver value without sacrifice. The compact single-sided M.2 2280 (22x80mm) design saving space for other components, making NV2 ideal for thinner notebooks, small-form-factor (SFF) systems and DIY motherboards.
Description - NV2 PCIe 4.0 NVMe SSD Improved performance for thinner notebooks and computer systems. The NV2 PCIe 4.0 NVMe SSD is an efficient next-generation storage solution using the NVMe Gen 4x4 controller. The NV2 drive delivers read/write speeds of up to 3,500/2,800MB/s with lower power requirements and less heat generation, helping to optimise system performance and enhance value without compromising other performance. The compact, single-sided design of the M.2 2280 (22 x 80mm) format allows for storage expansion of up to 4TB while saving space for other components, making the NV2 ideal for thinner notebooks, SFF PCs and motherboards used for standalone systems. PCIe NVMe Gen 4x4 performance Provides read/write speeds of up to 3,500/2,800 MB/s, resulting in an overall increase in system speed. Ideal for space-constrained systems Enables easy installation in systems with an M.2 connector, perfect for thin laptops and SFF computers.
Design > SSD form factor - M.2 2280
dimensionalWeight - 28
dimension depth - 15 mm
dimension height - 180 mm
Dimensions - 22mm x 80mm x 2.2mm
dimension weight - 50 g
dimension width - 130 mm
Disk type - SSD
Drive thickness - 2.2mm
Drive type - Internal
EAN - 740617329940
ean - 0740617329940
ean - 740617329940
EAN - 0740617329940
EANCode - 0740617329940
Eans - 740617329940
EAN_code - 0740617329940
Features - Component for - PC/Laptop
Features - Interface - PCI Express 4.0
Features - Mean time between failures (MTBF) - 2000000 h
Features - NVMe - Yes
Features - PCI Express interface data lanes - x4
Features - Read speed - 3500 MB/s
Features - SSD capacity - 4 TB
Features - SSD form factor - M.2
Features - TBW rating - 1280
Features - Write speed - 2800 MB/s
Form Factor - M.2
Form factor (width) - M.2 2280
Full Description Line - SSD series NV2|4TB|Form Factor M.2|PCIE|NVMe|Write speed 2800 MBytes/sec|Read speed 3500 MBytes/sec|Drive thickness 2.2mm|TBW 1280 TB|MTBF 1500000 hours
Gewicht - 0.03
GRUPPE1 - Hard Drive/Optical
GRUPPE2 - Solid State Drive
GTIN - 740617329940
GTIN - 0740617329940
guarantee - 36
guarantee_type - normal
HDD capacity - 4 TB
HDD interface - PCI-Express
Height - 2.2 mm
HERSTELLER - KINGSTON
Hoehe - 0.01
HSTNUMMER - SNV2S/4000G
Laenge - 0.19
Link - https://www.kingston.com/en/ssd/nv2-nvme-pcie-ssd?capacity=4tb
Logistics data - Country of origin - China, Taiwan
Logistics data - Master (outer) case gross weight - 393.6 g
Logistics data - Master (outer) case height - 69.9 mm
Logistics data - Master (outer) case length - 203.2 mm
Logistics data - Master (outer) case width - 135.9 mm
Logistics data - Products per master (outer) case - 10 pc(s)
LongDesc - Kingston’s NV2 PCIe 4.0 NVMe SSD is a substantial next-gen storage solution powered by a Gen 4x4 NVMe controller. NV2 delivers read/write speeds up to 3,500/2,800MB/s* with lower power requirements and lower heat to help optimize your system’s performance and deliver value without sacrifice. The compact single-sided M.2 2280 (22x80mm) design expands storage up to 4TB** while saving space for other components, making NV2 ideal for thinner notebooks, small form factor (SFF) systems, and DIY motherboards. Available in capacities from 250GB – 4TB** to give you all the space you need for applications, documents, photos, videos, and more.Gen 4x4 NVMe PCIe performanceDelivers read/ write speeds of up to 3,500/2,800MB/s* for an overall faster system.Ideal for systems with limited spaceEasily integrate into designs with M.2 connectors. Perfect for thin laptops and small-form-factor PCs.Extended capacitiesAvailable in a range of high capacities up to 4TB** to meet your data storage requirements.
LongProductName - 4000G NV2 M.2 2280 PCIe 4.0 NVMe SSD
LongSummaryDescription - Kingston Technology 4000G NV2 M.2 2280 PCIe 4.0 NVMe SSD. SSD capacity: 4 TB, SSD form factor: M.2, Read speed: 3500 MB/s, Write speed: 2800 MB/s, Component for: PC/Laptop
Manufacturer - Kingston
Manufacturer_code - SNV2S/4000G
Model - NV2
Model - SNV2S/4000G
MPN - SNV2S/4000G
MTBF - 1.5e+006 hours
Name - Kingston NV2 4TB, SSD (PCIe 4.0 x4, NVMe, M.2 2280)
Name - Kingston NV2 M.2 Pcie 4.0 NVMe 4TB
name - Kingston NV2 NVMe, PCIe 4.0 M.2 Typ 2280 - 4 TB
Name - Kingston | SSD | NV2 | 4000 GB | SSD form factor M.2 2280 | Solid-state drive interface PCIe 4.0 x4 NVMe | Read speed 3500 MB/s | Write speed 2800 MB/s
Name - M.2 4TB Kingston NV2 NVMe PCIe 4.0 x 4
name - SSD NV2 4000GB M.2 2280 PCI-e 4.0 NVMe 3500/2800
NVMe - Yes
Operational conditions - Non-operating vibration - 20 G
Operational conditions - Operating temperature (T-T) - -40 - 85 °C
Operational conditions - Operating vibration - 2.17 G
Operational conditions - Storage temperature (T-T) - 0 - 70 °C
Other features -
Other features - Compliance certificates - CE
Other features - Compliance certificates - CE, RoHS
Other features - Compliance certificates - RoHS
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 50.00 mm
Package features > Gross depth master carton - 205 mm
Package features > Gross height (mm) - 10.00 mm
Package features > Gross height master carton - 68 mm
Package features > Gross width (mm) - 100.00 mm
Package features > Gross width master carton - 138 mm
Package features > Net weight master carton - 0.23 kg
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 17280 pc(s)
Package features > Paper/Pasteboard - 8.00 g
Package features > Plastic (No PET) - 2.00 g
Package features > Tare weight (kg) - 0.01 kg
Package features > Tare weight master carton - 0.019 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packaging data - Package depth - 8.4 mm
Packaging data - Package height - 184.2 mm
Packaging data - Package weight - 10 g
Packaging data - Package width - 129.5 mm
PCIE Interface - Yes
Performance > Read speed - 3500 MB/s
Performance > Solid-state drive capacity - 4000 GB
Performance > Solid-state drive interface - PCIe 4.0 x4 NVMe
Performance > Write speed - 2800 MB/s
producer - Kingston
Producer - Kingston
producerCode - SNV2S/4000G
ProducerCode - SNV2S/4000G
Producer product family - SSD
Producer product name - NV2
ProductName - 4000G NV2 M.2 2280 PCIe 4.0 NVMe SSD
productName - Kingston Technology 4000G NV2 M.2 2280 PCIe 4.0 NVMe SSD
productSize - Normal
Reading speed - 3500 MB/s
Read speed - 3500 MBytes/sec
Shipping Box Depth Shipping/Package Box Dimensions - 18 cm
Shipping Box Height Shipping/Package Box Dimensions - 0.5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.03 kg
Shipping Box Width Shipping/Package Box Dimensions - 13 cm
ShortDescription -
ShortSummaryDescription - Kingston Technology 4000G NV2 M.2 2280 PCIe 4.0 NVMe SSD, 4 TB, M.2, 3500 MB/s
sizeX - 135
sizeY - 130
sizeZ - 8
SSD Capacity - 4TB
SSD series - NV2
Stck_Kart - 0
Stck_Pal - 0
Storno - Y
Sustainability - Sustainability compliance - Yes
TBW - 1280 TB
TBW - 1280 TB
Technical details > Gross weight - 0.02 kg
Technical details > Net weight - 0.01 kg
Technical details > Producer - Kingston
Technical details > Warranty - 36 month(s)
Title - Kingston Technology 4000G NV2 M.2 2280 PCIe 4.0 NVMe SSD
Unit Box Height - 0.005
Unit Box Length - 0.18
Unit Box Width - 0.13
Unit Brutto Volume - 0.000117 cubm
Unit Gross Weight - 0.03 kg
Unit Net Weight - 0.007 kg
URL - https://www.kingston.com/
Vendor Homepage - www.kingston.com/en/ssd/nv2-nvme-pcie-ssd
vendpn - SNV2S/4000G
Warranty - 36
Warranty - 36L months
WarrantyInfo - Limited 3-year warranty with free technical support ****
warrantyLength - 36
warrantyType - G
Weight - 0,02
Weight - 0.026
Weight - 7 g
weight - 20
Weight & dimensions - Depth - 80 mm
Weight & dimensions - Height - 3.5 mm
Weight & dimensions - Weight - 7 g
Weight & dimensions - Width - 22 mm
Width - 22 mm
Write speed - 2800 MBytes/sec
Writing speed - 2800 MB/s
