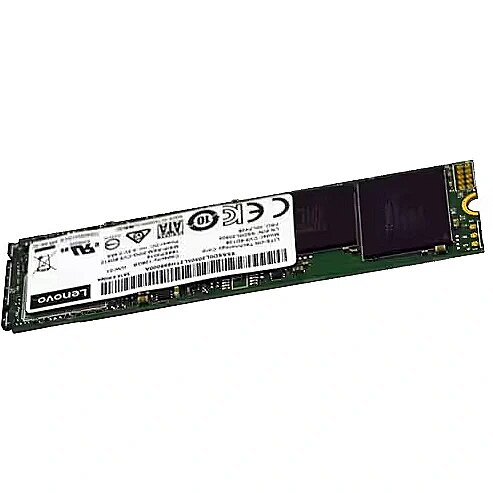

Lenovo ThinkSystem M.2 5400 PRO, 480GB, SATA

- Delivery to Smartpost 6.99 €: 06.05.2025
- Courier delivery 11.99 €: 06.05.2025

- Capacity: 480 GB
- Type: SATA
- Read speed (sequential): N/A
- Write speed (sequential): N/A
- Form factor: M.2 80mm (2280)
- Interface: SATA III (6Gb/s)
Sequential read speed or the mean data reading speed is the most important criterion of the high-speed operation of the SSD. The data from the SSD will be read much more often than written to it because the operating system stores the processed data in the RAM in most cases.
If you want the reading speed of the purchased SSD to exceed the speed of the classic HDD considerably you should choose the SSD with the reading speed of 200 MB/s or above. The additional increase in the performance will be achieved on the account of the data search (SeekTime) which is of much higher level with SSDs than any HDD.
The writing speed is almost as important as the reading speed. Also this parameter determines the performance of the SSD, however, as the writing to the disc happens not as often as the data reading and average user will find it subjectively difficult to distinguish between any speed above 100 MB/s and higher indices, except the cases when the SSD is used in a server, for audio/video recording, etc.
Thanks to the small size provided by the SSD technology the standard size of the discs is 2.5", and it is suitable for an average portable computer. It is possible to install the 2.5" disc in the desktop computer if the transition 2.5" -> 3.5" is used, and this transition can be bought at a low cost at TopPC.fi section"Adapteri". The discs with the format 2.5" + 3.5" have this transition included.
1.8" discs are intended for the ultra-compact class portable computers.
PCI-Express SSDs are intended for desktop computers with a free PCI-Express plug available. This technology in most cases is used for ensuring the performance that exceeds the possibilities of other types of connections.
SSDs with SATAII and SATAIII connection are compatible with the connections of both types in the motherboard. Still, it has to be taken into account that the motherboard SATAII connection can provide maximum about 300 MB/s transmission capacity which can reduce the actual transmission capacity of the SSDs whose reading and/or writing speed exceeds this level to the capacity limits of the SATAII.
The situation is similar with the PCI-Express and SATAIII connection slots. Although the SATAIII standard can provide up to 600 MB/s data transmission capacity there are SSDs with the speed exceeding this limit, in this case the manufacturer chooses the PCI-Express connection slot with a higher transmission capacity. The PCI-Express discs cannot be connected to the portable computer.
ARTIKEL2 - READ INTENSIVE SATA 6GB NHS SSD
Brand - Lenovo
BrandPartCode - 4XB7A82287
Breite - 0.14
Category - Internal Solid State Drives
EANCode - 0889488633784
Features - Certification - Micron Green Standard
Built with sulfur resistant resistors
CE (Europe): EN 55032 Class B, RoHS
UKCA (UK): SI 2016/1091 Class B and SI 2012/3032 RoHS
FCC: CFR Title 47, Part 15 Class B
UL/cUL: approval to UL-60950-1, 2nd Edition, IEC 60950-1:2005 (2nd Edition); EN 60950-1 (2006) + A11:2009+ A1:2010 + A12:2011 + A2:2013
BSMI (Taiwan): approval to CNS 13438 Class B and CNS 15663
RCM (Australia, New Zealand): AS/NZS CISPR32 Class B
KC RRA (Korea): approval to KN32 Class B, KN 35 Class B
W.E.E.E.: compliance with EU WEEE directive 2012/19/EC
TUV (Germany): approval to IEC60950/EN60950
VCCI (Japan): 2015-04 Class B
IC (Canada): ICES-003 Class B
Morocco: approval to EN55032/EN55024 Class B
UkrSEPRO (Ukraine): EN55032 Class B, IEC60950/EN60950, RoHS (Resolution 2017 No. 139)
Features - Component for - Server/workstation
Features - Hot-swap - Yes
Features - Interface - Serial ATA III
Features - Mean time between failures (MTBF) - 3000000 h
Features - Memory type - 3D TLC NAND
Features - Random read (4KB) - 95000 IOPS
Features - Random write (4KB) - 37000 IOPS
Features - Read latency - 170 µs
Features - S.M.A.R.T. support - Yes
Features - SSD capacity - 480 GB
Features - SSD form factor - M.2
Features - Write latency - 42 µs
Gewicht - 0.05
GRUPPE1 - Hard Drive/Optical
GRUPPE2 - Solid State Drive
GTIN - 0889488633784
GTIN - 889488633784
HERSTELLER - LENOVO
Hoehe - 0.02
HSTNUMMER - 4XB7A82287
Laenge - 0.22
LongDesc - The ThinkSystem 5400 PRO Read Intensive SATA 6Gb SSDs are general-purpose self-encrypting SSDs (SEDs) based on the Micron 5400 PRO platform and are available in capacities ranging from 240GB to 7.86TB. They are engineered for greater performance and endurance in a cost-effective design, and to support a broader set of workloads.This product guide provides essential presales information to understand the 5400 PRO SSDs, their key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the 5400 PRO SSDs and consider their use in IT solutions.
LongProductName - ThinkSystem M.2 5400 PRO 480GB Read Intensive SATA 6Gb NHS
LongSummaryDescription - Lenovo 4XB7A82287. SSD capacity: 480 GB, SSD form factor: M.2, Component for: Server/workstation
Operational conditions - Non-operating shock - 1500 G
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 70 °C
Operational conditions - Storage temperature (T-T) - -40 - 85 °C
Other features - Compatible products - ThinkSystem
Power - Power consumption (read) - 2.5 W
Power - Power consumption (write) - 3.1 W
ProductName - 4XB7A82287
ShortSummaryDescription - Lenovo 4XB7A82287, 480 GB, M.2
Stck_Kart - 9998
Stck_Pal - 0
Storno - Y
Title - Lenovo 4XB7A82287 internal solid state drive 480 GB M.2 Serial ATA III 3D TLC NAND
URL - https://lenovopress.lenovo.com/lp1634-thinksystem-5400-pro-read-intensive-sata-6gb-ssds
WarrantyInfo -
Weight & dimensions - Depth - 80 mm
Weight & dimensions - Height - 3.9 mm
Weight & dimensions - Width - 22 mm
