ID: 951168
Product code: ALEG-960M-4TCS
Can be ordered 15 units Availability: 14 days after order approval
Warranty: 3 years

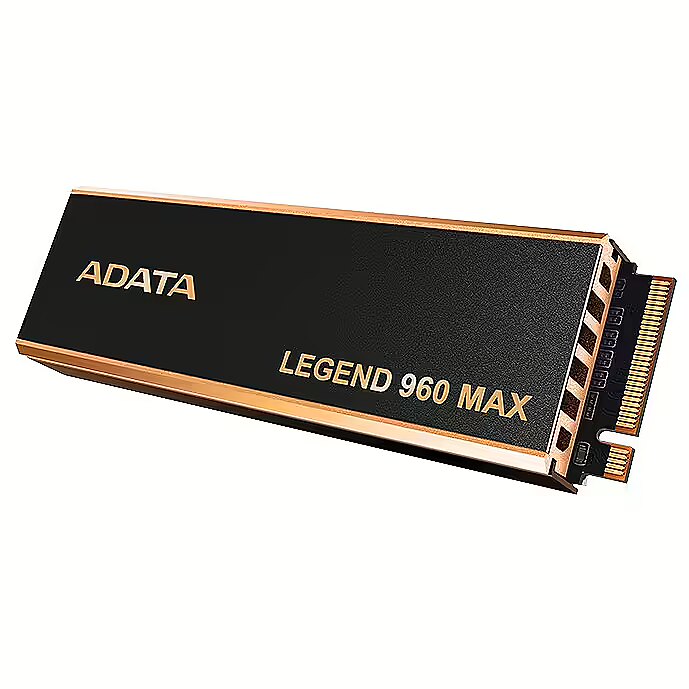

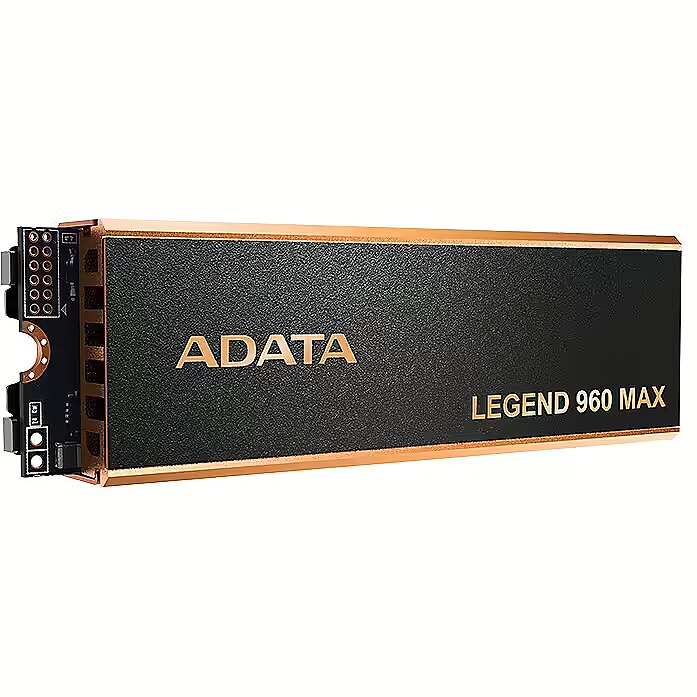

ADATA Legend 960 MAX, 4TB, M.2 Gen4 x4
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
- Courier delivery 11.99 €: 10.12.2024
Main product parameters All parameters
- Capacity: 4 TB
- Type: NVMe
- Read speed (sequential): 7400 MB/s
- Write speed (sequential): 6800 MB/s
- Form factor: M.2 80mm (2280)
- Interface: PCIe 4.0 x4
Description
Available for purchase, the Adata M.2 80mm (2280) format SSD disk with a large volume of 4 TB.
The disk is equipped with the currently most advanced and compact M.2 connection port.
This is an NVME type SSD drive. It uses the PCI-e protocol, which allows data to be transmitted over multiple lines at the same time. This type of drive is ideal for processing large files, gaming, video editing, and other resource-intensive tasks.
The read speed for this SSD drive reaches 7400 MB/s. However, it's crucial to note - if the "fast" drives are not provided with adequate cooling, they may not be able to operate at the speed indicated by the manufacturer.
6800 MB/s - this SSD drive is capable of achieving such data writing speed. The speed parameters promised by the manufacturer may not be reached if the "fast" disk is not provided with an appropriate cooling system.
A stable data reading and writing speed during prolonged work is ensured by a cooler or heat sink with which this SSD drive is equipped. It helps to maintain memory chips at an optimal temperature. There is no particular need to worry if you choose a "fast" disc without a heat sink, as almost always (99% of cases) the system board will be equipped with a built-in M.2 slot cooling solution.
The format of this SSD drive (physical size of the drive) is M.2 80mm (2280).
The SSD drive has a PCIe 4.0 x4 interface. If it is inserted into an older interface slot, the potential speed of the drive will not be fully utilized, as the older interface will not provide sufficient data transfer bandwidth.
Basic information
Capacity
4 TB
The HDD capacity in Gigabytes indicates how much information can be stored by the HDD. The capacity of the HDD is fixed and cannot be increased after buying the HDD. Therefore, upon buying the HDD you should verify its compliance with your current volume requirements and provides a reserve for future needs.
Type
: NVMe
Read speed (sequential)
7400 MB/s
Sequential read speed or the mean data reading speed is the most important criterion of the high-speed operation of the SSD. The data from the SSD will be read much more often than written to it because the operating system stores the processed data in the RAM in most cases.
If you want the reading speed of the purchased SSD to exceed the speed of the classic HDD considerably you should choose the SSD with the reading speed of 200 MB/s or above. The additional increase in the performance will be achieved on the account of the data search (SeekTime) which is of much higher level with SSDs than any HDD.
Write speed (sequential)
6800 MB/s
The writing speed is almost as important as the reading speed. Also this parameter determines the performance of the SSD, however, as the writing to the disc happens not as often as the data reading and average user will find it subjectively difficult to distinguish between any speed above 100 MB/s and higher indices, except the cases when the SSD is used in a server, for audio/video recording, etc.
Functionality
Radiators
: Ir
Lighting
: Nav
Ports and equipment
Form factor
M.2 80mm (2280)
Thanks to the small size provided by the SSD technology the standard size of the discs is 2.5", and it is suitable for an average portable computer. It is possible to install the 2.5" disc in the desktop computer if the transition 2.5" -> 3.5" is used, and this transition can be bought at a low cost at TopPC.fi section"Adapteri". The discs with the format 2.5" + 3.5" have this transition included.
1.8" discs are intended for the ultra-compact class portable computers.
PCI-Express SSDs are intended for desktop computers with a free PCI-Express plug available. This technology in most cases is used for ensuring the performance that exceeds the possibilities of other types of connections.
Interface
: PCIe 4.0 x4
Interface
M.2
SSDs with SATAII and SATAIII connection are compatible with the connections of both types in the motherboard. Still, it has to be taken into account that the motherboard SATAII connection can provide maximum about 300 MB/s transmission capacity which can reduce the actual transmission capacity of the SSDs whose reading and/or writing speed exceeds this level to the capacity limits of the SATAII.
The situation is similar with the PCI-Express and SATAIII connection slots. Although the SATAIII standard can provide up to 600 MB/s data transmission capacity there are SSDs with the speed exceeding this limit, in this case the manufacturer chooses the PCI-Express connection slot with a higher transmission capacity. The PCI-Express discs cannot be connected to the portable computer.
Specifikācija
Memory type
: TLC (Triple-Level Cell)
Random Read IOPS
: 700K
Random Write IOPS
: 550K
Endurance (TBW)
: 3120 TB
More detailed specification
Brand-specific features - Brand specific technologies - SLC Caching
Category_1 - Hard Drives and Pendrives
Category_2 - Internal SSD - M.2
Color - Not applicable
Depth - 80 mm
Description - LEGEND 960 MAX With a finned heatsink design and support for the latest PCIe 4.0 interface, the LEGEND 960 MAX drive delivers incredible read and write speeds of up to 7400/6800 MB/s while maintaining stable performance. What's more, not only can the LEGEND 960 MAX drive hold up to 4TB, making it ideal for use as a memory expansion for the PS5 console, but it also supports the latest Intel and AMD platforms, making it an extremely valuable product for all creatives! Redefining the speed of creative work The LEGEND 960 MAX drive supports the latest PCIe Gen4x4 interface, which is compliant with the NVMe 1.4 standard. It offers incredible creative power and supports the latest Intel and AMD platforms, turning the device into an unbeatable power machine. Ultimate performance for creators The LEGEND 960 MAX drive delivers sequential read and write speeds of 7400/6800 MB per second, up to 4 times faster than a standard PCIe Gen3 SSD and 13 times faster than a SATA SSD. It is backward-compatible with the PCIe 3.0 interface and is designed for professionals who challenge the impossible. Maximum heat dissipation, maximum stability The LEGEND 960 MAX drive's cooling system includes a thorough aluminium alloy coating on the drive to maximise heat dissipation. With multi-layered cooling fins, cool air flows through the metal structure and pushes out hot air. The unique convection cooling design reduces SSD temperatures by 40% and ensures stable performance. * The installation of a heatsink for this SSD is required. Before installing the SSD heatsink, the motherboard's built-in M.2 heatsink must be removed to avoid damaging the product by trying to install two heatsinks at the same time. Perfect compatibility with PS5 console The size of the LEGEND 960 MAX drive is compatible with the PS5 console slot and can be installed as a memory expansion to take the PS5 console's performance to the next level. With the LEGEND 960 MAX drive, you can play AAA games without lag and show off your skills to the world! * According to Sony, even though the read and write speeds exceed the official standard, not all games will achieve the same performance as the PS5 console's built-in SSD. ** When used with the PS5 console, the sequential read speed is 6400 MB/s for all capacities. Cooling to support stable operation The difference is in the detail. As a result of thorough convection cooling research, ADATA offers the unique cooling fins of the LEGEND 960 MAX drive, which significantly reduce the temperature of the SSD by up to 40%. Thanks to the unique cooling system, you can enjoy a smooth gaming experience. 4TB capacity? Challenge accepted Thanks to the applicable 3D flash memory, the LEGEND 960 MAX drive offers capacities of up to 4TB. In addition, it is equipped with various security and correction technologies and has a high TBW (Total Bytes Written) rating for endurance and reliability. Intriguing performance The LEGEND 960 drive's SLC caching and DRAM buffer improve system loading and data caching. Random 4K read/write speeds of up to 750K/630K IOPS ensure smooth multitasking. Create without worry Low Density Parity Check (LDPC) code technology and 256-bit AES encryption ensure data accuracy and file security. 5-year warranty LEGEND Series SSDs feature high-quality integrated circuits that are built to withstand time and conditions of use. Their reliability has been proven through rigorous verification and testing procedures. In addition, they are backed by a 5-year warranty.
dimensionalWeight - 28
dimension depth - 20 mm
dimension height - 105 mm
dimension weight - 30 g
dimension width - 130 mm
Disk type - SSD
Drive type - Internal
ean - 4711085938879
EAN_code - 4711085938879
Features - Certification - CE, FCC, BSMI, KC, EAC, RCM, morocco, UKCA, RoHS
Features - Compatible products - PlayStation 5
Features - Component for - PC/Laptop
Features - Controller type - SMI SM2264
Features - ECC - Yes
Features - Hardware encryption - Yes
Features - Interface - PCI Express 4.0
Features - M.2 SSD size - 2280 (22 x 80 mm)
Features - Mean time between failures (MTBF) - 2000000 h
Features - Memory type - 3D NAND
Features - NVMe - Yes
Features - NVMe version - 1.4
Features - PCI Express interface data lanes - x4
Features - Random read (4KB) - 700000 IOPS
Features - Random write (4KB) - 550000 IOPS
Features - Read speed - 7400 MB/s
Features - Security algorithms - 256-bit AES
Features - SSD capacity - 4 TB
Features - SSD form factor - M.2
Features - TBW rating - 3120
Features - Write speed - 6800 MB/s
Form factor (width) - M.2 2280
guarantee - 60
guarantee_type - normal
HDD capacity - 4 TB
HDD interface - PCI-Express
Height - 3.3 mm
Manufacturer - ADATA
Manufacturer_code - ALEG-960M-4TCS
Model - LEGEND 960 MAX
Name - ADATA LEGEND 960 MAX 4 TB, SSD (dark grey/gold, PCIe 4.0 x4, NVMe 1.4, M.2 2280)
name - SSD drive LEGEND 960 MAX 4TB PCIe 4x4 7.4/6.8 GB/s M2
Operational conditions - Maximum operating temperature - 70 °C
Operational conditions - Operating shock - 1500 G
Operational conditions - Operating temperature (T-T) - 0 - 70 °C
Operational conditions - Storage temperature (T-T) - -40 - 85 °C
Other features - Dimensions with heatsink: 10.65 x 23.2 x 80.6 mm Weight with heatsink: 36,6 g
Packaging data - Manual - Yes
Packaging data - Package type - Box
producer - Adata
producerCode - ALEG-960M-4TCS
productName - ADATA LEGEND 960 MAX M.2 4 TB PCI Express 4.0 3D NAND NVMe
productSize - Normal
Random read IOPS (max) - 700 K
Random write IOPS (max) - 550 K
Reading speed - 7400 MB/s
sizeX - 130
sizeY - 110
sizeZ - 10
TBW - 3120 TB
vendpn - ALEG-960M-4TCS
Video -
warrantyLength - 60
warrantyType - G
Weight - 0,03
Weight - 7.3 g
weight - 60
Weight & dimensions - Depth - 80.6 mm
Weight & dimensions - Height - 10.7 mm
Weight & dimensions - Weight - 36.6 g
Weight & dimensions - Width - 23.2 mm
Width - 22 mm
Writing speed - 6800 MB/s
