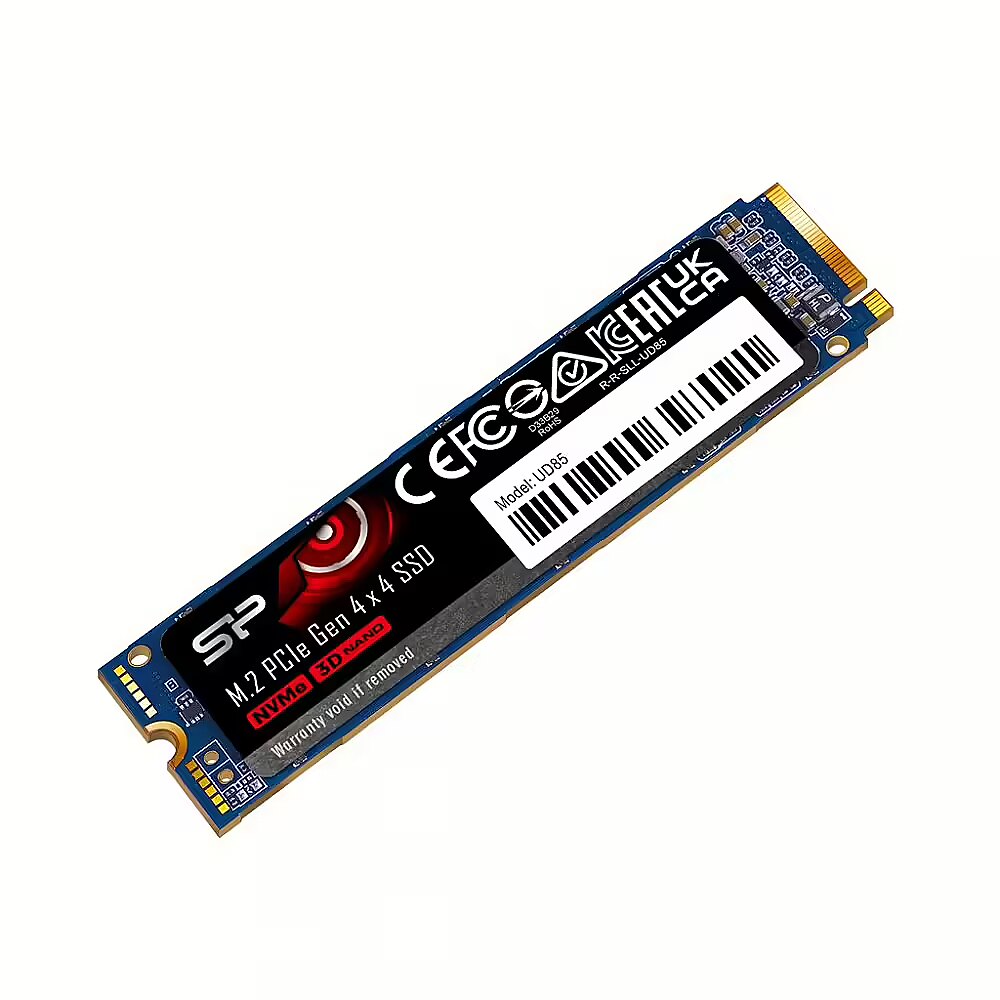

Silicon Power UD85, 1TB, M.2 Gen4 x4

Name: Silicon Power UD85, 1TB, M.2 Gen4 x4
Brand: Silicon Power
SKU: 950231
Price: 74.33 EUR
Availability: InStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 950231 Product code: SP01KGBP44UD8505

In stock 8 units

Warranty: 3 years

Compare

Main product parameters All parameters

Capacity: 1 TB
Type: NVMe
Read speed (sequential): 3600 MB/s
Write speed (sequential): 2800 MB/s
Form factor: M.2 80mm (2280)
Interface: PCIe 4.0 x4

Description

We offer to buy the Silicon Power SSD disc with 1 TB data capacity and M.2 port.

The additional advantages that can be provided by the SSD technology are based on the unique design of this disc. SSD discs save the data in memory chips distinguished by totally silent operation, low temperature and electricity consumption. All these features permit to feel the essential difference from the currently obsolete technology of hard discs.

Basic information

Capacity 1 TB

The HDD capacity in Gigabytes indicates how much information can be stored by the HDD. The capacity of the HDD is fixed and cannot be increased after buying the HDD. Therefore, upon buying the HDD you should verify its compliance with your current volume requirements and provides a reserve for future needs.

Type : NVMe

Read speed (sequential) 3600 MB/s

Sequential read speed or the mean data reading speed is the most important criterion of the high-speed operation of the SSD. The data from the SSD will be read much more often than written to it because the operating system stores the processed data in the RAM in most cases.

If you want the reading speed of the purchased SSD to exceed the speed of the classic HDD considerably you should choose the SSD with the reading speed of 200 MB/s or above. The additional increase in the performance will be achieved on the account of the data search (SeekTime) which is of much higher level with SSDs than any HDD.

Write speed (sequential) 2800 MB/s

The writing speed is almost as important as the reading speed. Also this parameter determines the performance of the SSD, however, as the writing to the disc happens not as often as the data reading and average user will find it subjectively difficult to distinguish between any speed above 100 MB/s and higher indices, except the cases when the SSD is used in a server, for audio/video recording, etc.

Functionality

Radiators : Nav

Lighting : Nav

Ports and equipment

Form factor M.2 80mm (2280)

Thanks to the small size provided by the SSD technology the standard size of the discs is 2.5", and it is suitable for an average portable computer. It is possible to install the 2.5" disc in the desktop computer if the transition 2.5" -> 3.5" is used, and this transition can be bought at a low cost at TopPC.fi section"Adapteri". The discs with the format 2.5" + 3.5" have this transition included.

1.8" discs are intended for the ultra-compact class portable computers.

PCI-Express SSDs are intended for desktop computers with a free PCI-Express plug available. This technology in most cases is used for ensuring the performance that exceeds the possibilities of other types of connections.

Interface : PCIe 4.0 x4

Interface M.2

SSDs with SATAII and SATAIII connection are compatible with the connections of both types in the motherboard. Still, it has to be taken into account that the motherboard SATAII connection can provide maximum about 300 MB/s transmission capacity which can reduce the actual transmission capacity of the SSDs whose reading and/or writing speed exceeds this level to the capacity limits of the SATAII.

The situation is similar with the PCI-Express and SATAIII connection slots. Although the SATAIII standard can provide up to 600 MB/s data transmission capacity there are SSDs with the speed exceeding this limit, in this case the manufacturer chooses the PCI-Express connection slot with a higher transmission capacity. The PCI-Express discs cannot be connected to the portable computer.

Specifikācija

Memory type : TLC (Triple-Level Cell)

Random Read IOPS : Not indicated

Random Write IOPS : Not indicated

Endurance (TBW) : 560 TB

More detailed specification

Additional information in manufacturers website Silicon Power UD85, 1TB, M.2 Gen4 x4

Category - Root/Electronics/PC parts/Hard drives
Code - SP01KGBP44UD8505
Color - Not applicable
Depth - 80 mm
Description -
Design > SSD form factor - M.2 2280
dimensionalWeight - 21
dimension depth - 10 mm
dimension height - 125 mm
dimension weight - 18 g
dimension width - 85 mm
Disk type - SSD
Drive type - Internal
EAN - 4713436150435
ean - 4713436150435
Eans - 4713436150435
Features - Certification - CE, FCC, UKCA, BSMI, Green dot, WEEE, RoHS, KCC
Features - Component for - PC/Laptop
Features - ECC - Yes
Features - Hardware encryption - Yes
Features - Interface - PCI Express 4.0
Features - M.2 SSD size - 2280 (22 x 80 mm)
Features - Mean time between failures (MTBF) - 1500000 h
Features - Memory type - 3D NAND
Features - NVMe - Yes
Features - NVMe version - 1.4
Features - PCI Express interface data lanes - x16
Features - Protection features - Shock resistant
Features - Read speed - 3600 MB/s
Features - S.M.A.R.T. support - Yes
Features - SSD capacity - 1 TB
Features - SSD form factor - M.2
Features - Windows operating systems supported - Windows 8.1
Features - Windows operating systems supported - Windows 10
Features - Windows operating systems supported - Windows 11
Features - Write speed - 2800 MB/s
Form factor (width) - M.2 2280
guarantee - 60
guarantee_type - normal
HDD capacity - 1 TB
HDD interface - PCI-Express
Height - 3.5 mm
Model - UD85
Name - Silicon Power UD85 M.2 NVMe PCIe 1TB
Name - Silicon Power | SSD | UD85 | 1000 GB | SSD form factor M.2 2280 | SSD interface PCIe Gen4x4 | Read speed 3600 MB/s | Write speed 2800 MB/s
name - SSD drive UD85 1TB PCIe M.2 2280 NVMe Gen 4x4 3600/2800 MB/s
Operational conditions - Operating shock - 1500 G
Operational conditions - Operating temperature (T-T) - 0 - 70 °C
Other features -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 25.00 mm
Package features > Gross height (mm) - 5.00 mm
Package features > Gross width (mm) - 90.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 17241 pc(s)
Package features > Paper/Pasteboard - 40.00 g
Package features > Plastic (No PET) - 10.00 g
Package features > Tare weight (kg) - 0.05 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
PDF - https://www.blobs.lt/products/9/9/5/4/9/3/7d42a8a87919a365c92a4503be9041bc/original.pdf
Performance > Read speed - 3600 MB/s
Performance > Solid-state drive capacity - 1000 GB
Performance > Solid-state drive interface - PCIe Gen4x4
Performance > Write speed - 2800 MB/s
producer - Silicon Power
Producer - Silicon Power
producerCode - SP01KGBP44UD8505
ProducerCode - SP01KGBP44UD8505
Producer product family - SSD
Producer product name - UD85
productName - Silicon Power UD85 M.2 1 TB PCI Express 4.0 3D NAND NVMe
productSize - Normal
Reading speed - 3300 MB/s
ShortDescription - SSD | 1TB | 3600/2800 MB/s | M.2 | 2280 | PCI-E Gen3x4 | NVMe
sizeX - 125
sizeY - 10
sizeZ - 85
Technical details - Sustainability certificates - CE
Technical details - Sustainability certificates - UKCA
Technical details - Sustainability certificates - WEEE
Technical details > Gross weight - 0.06 kg
Technical details > Net weight - 0.01 kg
Technical details > Producer - Silicon Power
Technical details > Warranty - 60 month(s)
vendpn - SP01KGBP44UD8505
Warranty - 60
warrantyLength - 60
warrantyType - G
Weight - 8 g
weight - 20
Weight & dimensions - Depth - 22 mm
Weight & dimensions - Height - 8 mm
Weight & dimensions - Weight - 8 g
Weight & dimensions - Width - 80 mm
Width - 22 mm
Writing speed - 1300 MB/s
